Solar DCDB Dealers

In order to settle the financial transaction with our clients through the transfer of monetary value, we offer diverse options including online and offline payment procedures. We are a name synonymous to trust and quality, thus we make every attempt to bring forth only finest product range that is manufactured using premium quality range of products.

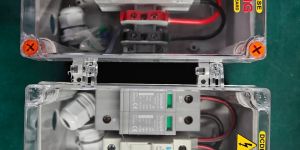

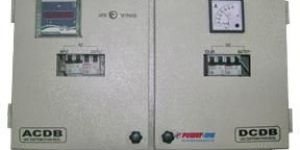

A distribution board (also known as panelboard or breaker panel) is a component of an electricity supply system which divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit. The ACDB receives the AC power from the solar inverter and directs it to AC loads through the distribution board. AC Distribution Panel Board (DPB) shall control the AC power from PCU, and should have necessary surge arrestors. Requirementspecifications of DCDB and ACDB may be changed as per site conditions. An ACDB to be provided at the cable terminating point emanating from 5 KVA PCU for interconnection control of dedicated electrical loads.

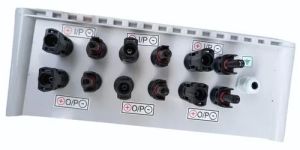

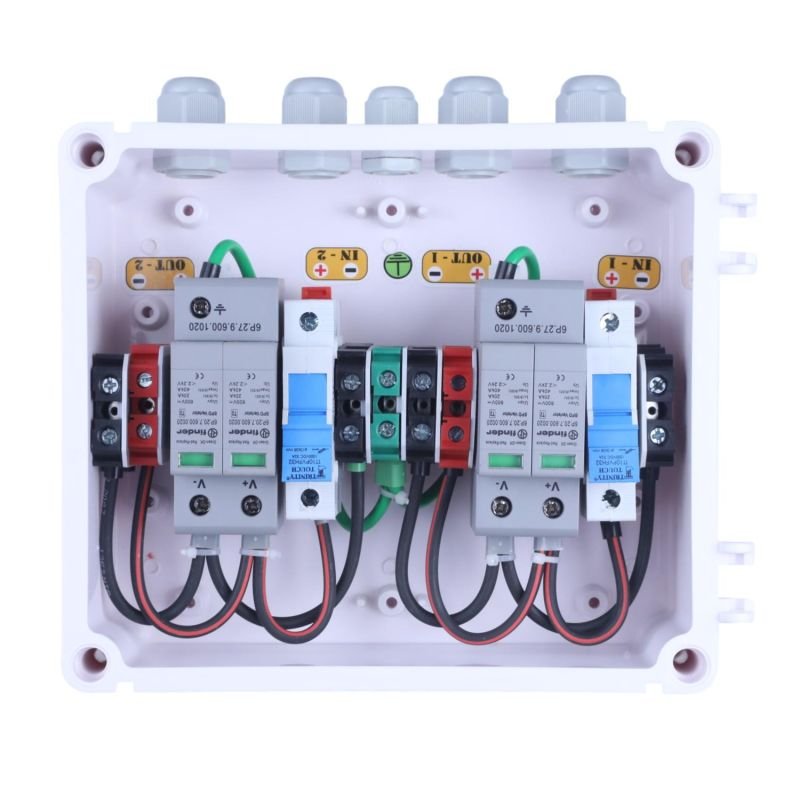

The main purpose of the ACDB is to eliminate the operation of the load at the immediate PCU O/P end and also provide flexible operation of different loads like Street lights, general home or office lights and optional loads that optionally operated (On/Off). The DC Distribution Box is used to provide flexibility for the operator of the solar power plant to disconnect and connect both the inward solar supply and battery terminals. Here an MCCB and a fuse of proper rating depending upon the capacity of the power plant and the battery bank are used.  In the DCDB we have two sections one is the solar section and the other is the battery section.   Main Functional Features of DCDB: Material: 1.5mm SECC for metal enclosure Mounting: wall mounting indoor Cable gland: Nylon MCB: DC breakers from CHNT china DC rated Voltage: DC250V MCB mounting: DIN standard Lock protection Lightning protection Input: 1 way with 16A Output: 4 ways with 10A each Main Functional Features of ACDB MoC: 1.6mm thick CRCA sheet steel Finish: Light Grey 7035 upto 60 microns Ingress Protection: IP 21 Extended canopy at top Wall mounting bracket and hardware 02 Nos. SS Earth Stud at side sheets for earthing Hinged door with lock 02 Nos. Single compression Cable glands at bottom for inverter input and output cables of 2Cx16 Sqmm. 01 No. 63A DP AC MCBs for Inverter supply as inputs. 02 Nos. Terminals for Output upto 16 Sqmm wire termination. 01 No. CT operated Single phase Digital Multifunction meter to measure V,I,Hz,kW,kWH, PF etc with CT 60/5A. Other accessories eg. Din rail, MCB stoppers, lebels included. Internal Wiring with lugs, ferrules and dressing included

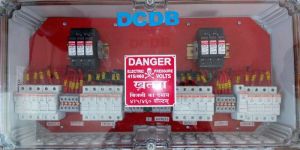

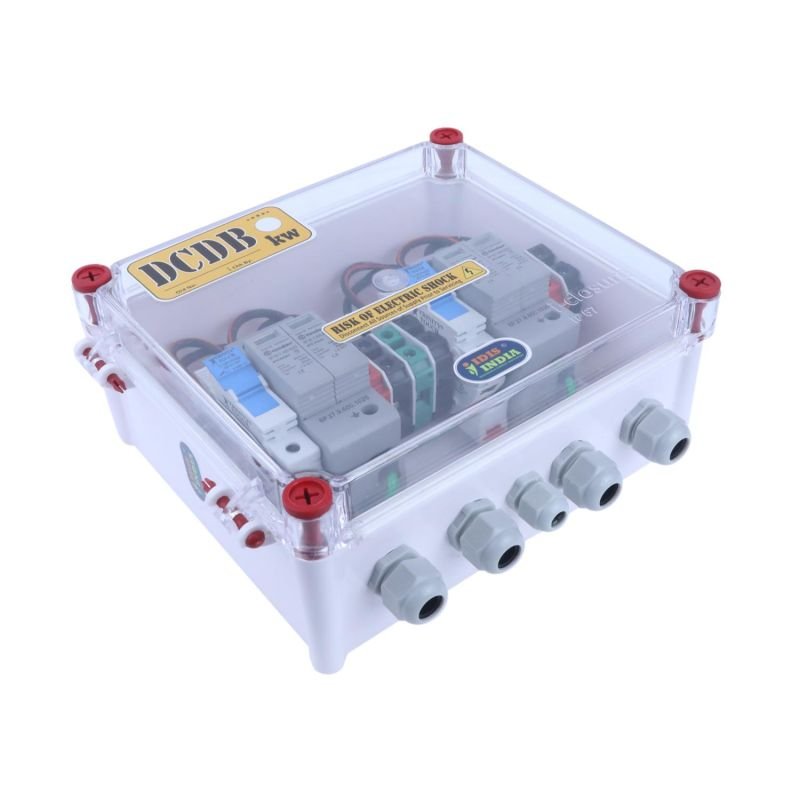

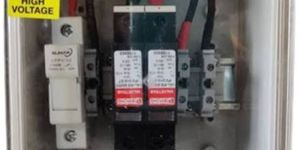

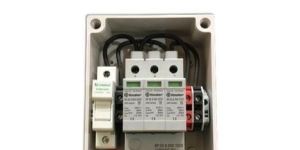

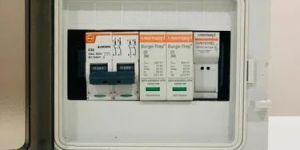

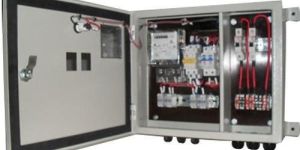

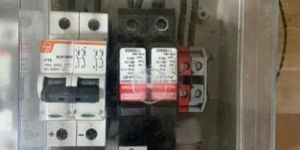

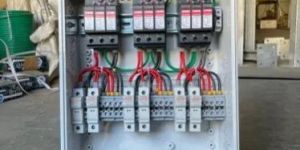

Solar DCDB - is used to protect the system if there is any fault during failure on DC side. A very crucial part of SPV system as there should be adequate protection on DC side. The DCDB incorporates isolatorBreaker to switch off the system during fault, there is a meter which tells you exact PV array voltage and current you are getting. It also have surge protection to save your system from any surges occurred due to fault or other phenomenon. These panel are customized as per the design of the solar plant.�It is Used where the DC current rating is very high and incoming and outgoing of the DC current is need to be fused. High Quality DC Busman Eq fuses are used for incoming and outgoing through Buss bar. Surge Protection is provided in this panel in order to absorb excess surges in the system. Outdoor Type panels are also available- Picture �ENAM securities outdoor panel
