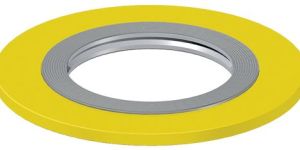

Spiral Gaskets Dealers (241 products available)

Size : 0.5" TO 60"

Thickness : 3.2mm/4.5mm/5.5mm/6.5mm

Condition : New

Shape : CIRCULAR, ELIPTICAL

Filler material : Graphite/ptfe/caf

Hardness : 30 - 90 Shore

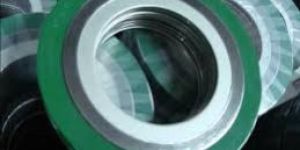

Spiral Wound Gasket of superior finish and quality are also manufactured by our company. These Spiral Wound Gaskets are made from crimped metal tape having sealing wraps out of asbestos or non asbestos gasket materials with inner and outer metal rings. These inner and outer metal rings are optional. Features Of Spiral Wound Gaskets : Different material combinations available according to the specifications of customers Filled with asbestos or graphoil or Teflon materials Can resist maximum pressure load Uses Of Spiral Wound Gasket : Used for duct flanges Also used for high temperature and high pressure flanges Can also used for pressure vessels Used in heat exchangers Used in fittings

Country of Origin : India

Size : 10-20inch

Shape : Round

Application : Electric Use, Fittings Use, Industry Use

Feature : High Strength, Perfect Shape

Finishing : Polished

Size : Available in Different Sizes

Thickness : 1-10mm

Shape : Round

Pattern : Plain

Finishing : Coated

Chemical Resistance : Yes

Size : From 15mm to 6000mm

Type : Spiral Wound Gasket

Material : Rubber

Shape : Round

Thickness : From 15mm to 200mm

Color : Green

Brand Name : Ranelast

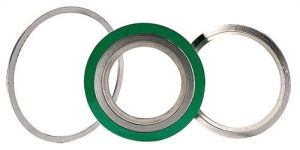

To meet the demands of our clients, we are engaged in offering a wide range of Spiral Wound Gaskets. All these products are well known for the attributes like smooth functioning, high mechanical strength and optimum performance. These products are technically sound and ensure long lasting service life. We are offering these products at reasonable rates. Features Durable Anti-corrosive Scratch free

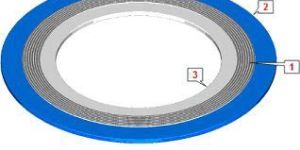

Spiral wound gasket is manufactured by spirally winding a pre-formed metal strip and filler on the outer peripery of metal winding mandrels. The winding mandrel outside diameter forms the innner diameter of the gasket and the lamination are continually wound until the outer diameter is attaineds. the inner and outer diameters is reinforced with several plies of metal with no fillers being introduced. This gives greater stability and provides better compression and sealing characteristics. Then by varying the ratio of the filler to the metal plies for a given gasket width density, and hence the compressibilty, can be controlled. 1. Spiral wound gasket without inner and outer ring suitable for tongue and groove flange and narrow width flange. 2. Spiral wound gasket with outer ring which accurately centers gasket on flange and acts as compression stop. 3. Spiral wound gasket with inner and outer ring, innner ring gives an additional compression limiting stop and provides heat and corrosion barrier protecting gasket winding and flange erosion. 4. Spiral wound gasket with metal jacketed partition bar welded to spiral wound gasket for use on heat exchanger. available material metal winding strip:stainless steel type 304, 304l, 316, 316l, 321, 347, 410, inconel 600, monel, titanium, incoloy 800. filler material: compressed asbestos, flexible graphite, ptfe, ceramic. guide ring material: carbon steel, s.s. Type 304, 304l, 316, 316l, 321, 347, 410, inconel 600, monel, titanium, incoloy 800.

Application : Fittings Use

Feature : Durable, Perfect Shape

Design & Code : ANSI B 16.20

Outer / Inner Ring Thickness : 3 mm

Gasket Thickness : 4.5 mm

Metal Winding Material : SS304, SS310, Ss316

Outer Ring and Inner Ring : Carbon Steel, SS304, SS310, SS316

Nik-San Enterprises is offering a full range of Spiral Wound Gaskets. Spiral wound gaskets are used in Refinery, Petrochemical, Chemical, Steam lines and Process Industries, where they have many advantages over older types of gaskets. The spiral wound gasket is suitable for use across a wide pressure range and is therefore virtually applicable. The spiral wound gasket can be used to seal fluid pressures up to 250 bar and cryogenic temperatures as low – 200ºC and up to elevated temperatures 550ºC. Due to its sturdy design the spiral wound gasket is simple to install without causing damage Manufacturing of Spiral Wound Metallic Gasket (although extra care should be taken during transportation and installation of large diameter gasket without guide rings). The outer guide ring serves to locate the spiral element centrally on the flange faces and prevent blow-out. By combining different winding materials and metals the gasket can be tailored to a wide variety of operating conditions. Due to its non-adhesive character the gasket is easy to remove after service. The gasket does not cause damage to the flange faces.   Benefits of The Centring Ring The spiral wound gasket outer centering ring provides the following benefits: Prevents radial-flow of soft fillers, such as P.T.F.E. Reduces turbulence-minimizing flow resistance and crevice corrosion. Acts as a heat shield when the spiral wound gasket is subjected to high temperatures. Inner and outer rings are particularly recommended for use on spiral wound gasket sexceeding class 600lbs, but specifically recommended for high temperatures and pressures to optimize the operational reliability of the spiral wound sealing element. The gasket does not cause damage to the flange faces.   Material Selection Material selected for the inner ring and winding metal is usually the same as the flange metal, in order to prevent corrosion and differential expansion problems. The outer centering centering ring is generally generally manufactured manufactured from carbon steel with an anti- corrosion treatment; however, the ring may also be manufactured in the same metal as the flange to prevent corrosion problems.   Standard Fillers GRAPHITE is universally applicable, high-quality, asbestos-free material with the following characteristics: very good chemical resistance, resistance to ageing, good gast-ightness. PTFE is a high-quality synthetic material with the following characteristics: excellent chemical resistance, resistance to 250ºC, resistant to ageing, excellent gas-tightness.Non-standard materials are available on request

Country of Origin : India

Size : Standard

Type : Spiral

Material : Rubber

Shape : Round

Certification : ISI Certified

Application : Industrial

Color : Grey

Finishing : Polished

Style : RIR

Material : Stainless Steel

Shape : Round

Feature : Corrosion Resistance

Type : High Pressure

Surface Finish : Coated

Why Our Spiral Wound Metallic Gaskets: Adequate flexibility Can withstand high pressure Maintains a seal under variable and uneven loading Longer working life Winding Material (Hoop) Available In: Stainless Steel Monel Titanium Filler Material Available In: CAF Non asbestos jointing PTFE Flexible Graphite Ceramic

Country of Origin : India

Material : Rubber

Shape : Round

Thickness : 10-20mm, 20-30mm

Feature : Fine Quality, High Strength, Perfect Shape, Strong Construction

Finishing : Polished

Brand Name : SUN MAKE

Size : 10-20inch, 20-30inch, 40-50inch, 50-60inch

Thickness : 10-20mm, 20-30mm, 40-50mm

Color : Dark Black, Grey-black, Silver

Condition : New

Finishing : Polished

Application : Electric Use, Fittings Use

Feature : Durable, Fine Quality, High Strength, Perfect Shape, Rust Proof, Strong Construction

Temperature : 0-50 ℃, 100-200 ℃

Double Jacketed Gasket, Spiral wound Gasket, Kammprofile Gasket, Ring joint gasket, Nonmetallic Gasket & sheets etc. We offer the material as per ASME, ANSI, and API Standards with different class range.

Country of Origin : India

Material : Rubber

Thickness : 10-20mm

Finishing : Polished

Brand Name : Durasile

Spiral Wound Gaskets are perfect solution for flanged joints, heat exchangers, boiler handholes, manholes, and other high-temperature, high-pressure applications—providing resistance to precisely every known corrosive and toxic element.   Spiral Wound Gaskets are made as per ASME B16.20 to suit ASME B16.5 flanges and as per “A” Series and “B” Series to suit ASME B16.47 flanges. We also make spiral as per DIN 2632-2638, IS Standards, etc. and depending on the chemical compatibility requirements, the filler and winding material used in these gaskets can be changed.   Flange Suitability :- BS1560 and ANSI B16.5 1/2 “-24” 150-2500 lbs BS10 Tables D-T B4504 10-250 Bar DIN 2632-2638

Country of Origin : India

Size : 20-30inch

Thickness : 10-20mm

Application : Industry Use

Color : Available in Different Colors

Feature : Fine Quality, High Strength

Condition : New

Material : Rubber

Shape : Round

Thickness : 10-20mm

Color : Grey

Feature : Fine Quality, High Strength

Finishing : Polished

Type : Spiral Wound Gasket

Application : Electric Use, Fittings Use, Industry Use

Feature : Durable, Fine Quality, High Strength, Perfect Shape, Rust Proof, Strong Construction

Finishing : Polished

Spiral Wound Gaskets comprise a mix of metallic and filler material. Generally, the gasket has a metal (normally carbon rich or stainless steel) wound outwards in a circular spiral (other shapes are possible) with the filler material (generally a flexible graphite) wound in the same manner but starting from the opposing side. This results in alternating layers of filler and metal. The filler material in these gaskets acts as the sealing element, with the metal providing structural support.These gaskets have proven to be reliable in most applications, and allow lower clamping forces than solid gaskets, albeit with a higher cost. Spiral Wound Gaskets have proven to be the most reliable sealing element for use in difficult, critical and arduous duties. Spiral wound gaskets are used in Refinery, Petrochemical, Chemical, Steam lines and Process Industries, where they have many advantages over older types of gaskets. These gaskets are manufactured to International specifications such as BS, API, ASME, DIN.
