Spun Filter Cartridge Dealers

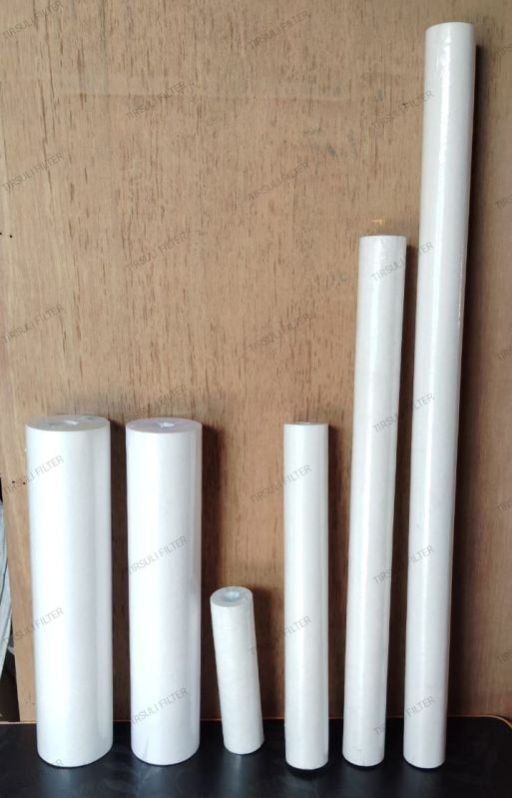

We are one of the distinguished manufacturers and suppliers of a comprehensive range of Spun Bonded Filter Cartridge. The complete range is manufactured using optimum quality raw material, which is sourced from renowned vendors of the nation. Further, the range undergoes stringent checks and tests to ensure delivery of defect free products at client's destination. Technical Specifications: Standard Sizes: 10”, 20”,30” ,40” Long Micron Rating:1, 5, 10, 20, 25, 50 Standard Outside Diameter: 64 mm, 116mm Configuration: Double Open Type (DOE Type), Single open Type (SOE Type)

Material:Filtration Media : 100% Melt blown Polypropylene micro fiber.Inner Core and Adapters : NIL.O-ring & Gaskets : NIL.Advantages:Made up of silicone free material as 100% polypropylene media.Providing multiple filtration zone, which produces gradient pore structure.The outer section captures larger particles while innermost section efficiently & consistently remove smaller particles.Excellent chemical resistance.High dirt holding capacity.High flow rate & low differential pressure.FDA complied polypropylene material.Applications:Electronic industry : Etching solution, electroplating.Chemical Industry : Adhesive, solvent, surfactant, chemical liquid.Food and Beverages : Wine, potable water, beer, soft drink, brewery, edible oils.General Process Industry : Pre-filtration for DI and RO system, Process water.

Spun bonded filter cartridges are made of 100% polypropylene fibres. The fibres have been carefully spun together to form a true gradient density from outer to inner surface.

100% Polypropylene Cartridge made from very fine fibers. Graded Pore Structure, which gives longer service life. Polypropylene fibers sealed at fusing temperature, hence no media migration. Polypropylene media gives wide chemical compatibility. Temperature range – up to 70° C. Available in 10”, 20”, 30” and 40” length with pore size ranging from 0.5 to 100µ Length in inches – 10, 20, 30, 40 & 9 ¾ , 19 ½ , 29 ¼ , 39. Micron rating – 0.5, 1, 3, 5, 10, 20, 50 & 100

Spun bonded filter cartridges are made of 100% polypropylene fibers. The fibers have been carefully spun together to form a true gradient density from outer to inner surface. Filter cartridges available with core & without core version. The superior structure remains integral even under severe operating conditions and is no media migration. Polypropylene fibers are blown continuous on central molded core, without the need for binders, resins or lubricants. Operation Unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention & filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

Owing to the high demand of our huge clientèle, we have started to manufacture and supply a wide variety of industrial spun filter cartridge. Dimensions: standard cartridge: lengths: 10", 20",30", 40", 50” inches outside diameter: 6263 mm in side diameter: 2528 mm

Alfa filters ( manufacturer by brahmani water solution ) is leading manufacturers & supplier and exporter of pp spun filter cartridge in ahmadabad, gujarat india.our wide range ofpp spun filter cartridges are made from hi quality raw material. These pp spun filter cartridge are manufactured by a qualified and experienced team of professionals employing advanced technology and latest equipment. Our products are available in various specifications that can be customized as per client?s requirements. Sizes10, 20, 30, 40 long micron rating1, 5, 10, 25, 50, 75, 100outer diameter64 mm (2.5?), 114mm (4.5)inner diameter25mm, 28 mm pp spun filter product specification: micron rating 1, 5, 10, 20 length 10,20,30,40 inch inner dia for standard size 28 mm inner dia for jumbo size 28 mm outer dia 58-64 mm outer dia for jumbo size 100-115mm max operating temperature 80 c max differential pressure 3-4 bar (50 psi) @ 21c construction: filter media: 100% polypropylene fiber support media: polypropylene fiber inner core: polypropylene cage configuration: double open end type (doe type) code 7s (226 o ring design bayonet or fin) applications: pharmaceutical industry ro treatment of water color & dyes industry chemical
