Submersible Flat Cable Dealers

Cable standard bs 6500, is 964:2010 conductor: bare bunch copper is:8130 insulation: pvc as per is:5831 outer sheath: pvc as per is:5831 silent features • high flexibility • excellent resistant to moisture, abrasion, grace, oil • long life • excellent mechanical & electrical properties technical data operating temp: -10°c to max.+90°c nominal voltage: 1.1 kv test voltage: 3.0 kv min. Bending radius: 6 x cable diameter standard packing coils 100, 200,300, 500, 1000m application ideal for irrigation pumps, drinking water supply pumps, submersible pump motor power supply. core colour as per is: 694:2010 – red, yellow, blue as per iec:60227 - black, blue, brown.

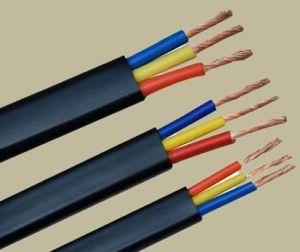

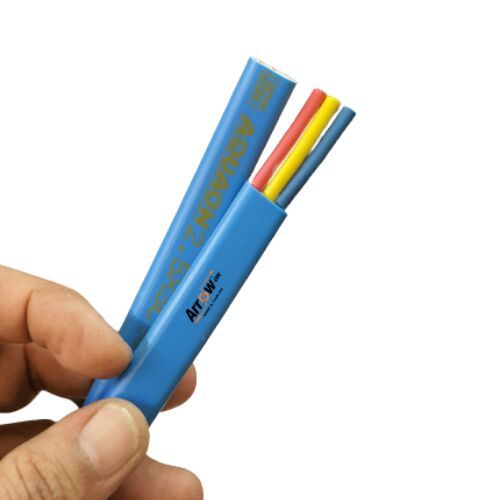

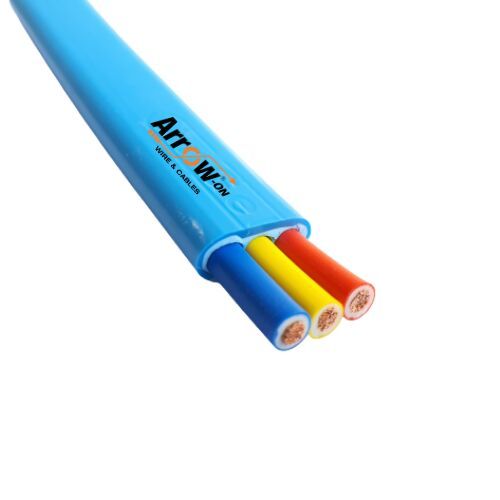

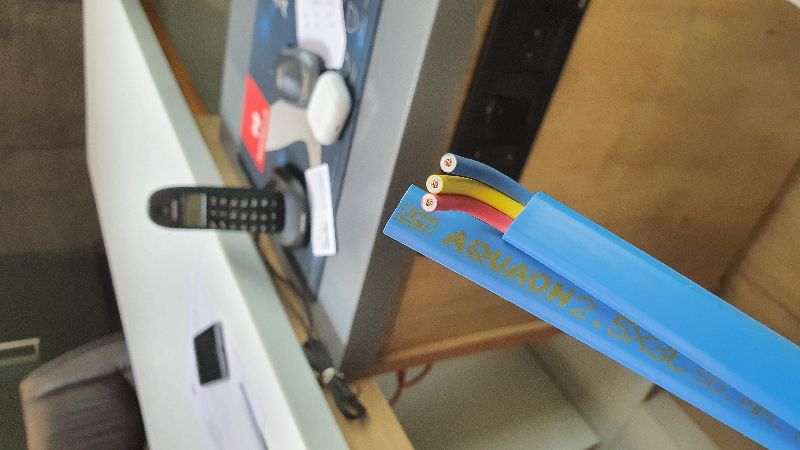

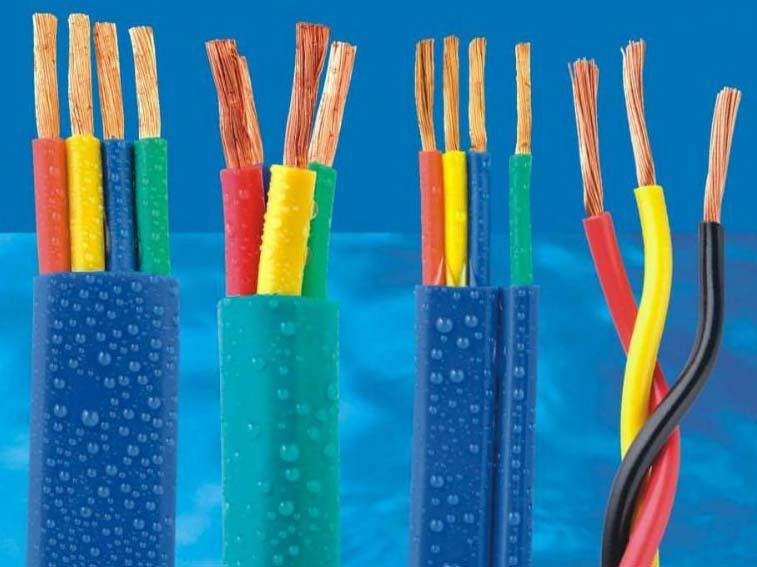

Submersible flat cable or 3core flat cables are specifically designed for underground or under-water use.The manufacturing design of these cable depends on the factors to achieve the highest possible degree of reliability and safety in the area where it would be installed.Our Submersible flat cable is very power saving, reliable, flexible, tough, and can work in wet conditions for a longer period.   Submersible flat cable has its use in winding/rewinding submersible pump motors. Due to PVC insulation, these cables can work continuously under water for a long time. Rallison Electrical is one name among cable industry who is developing cables of large sizes with multi-strand copper conductors for higher HP Pump motors for application in dewatering, naval pumps, and mining.

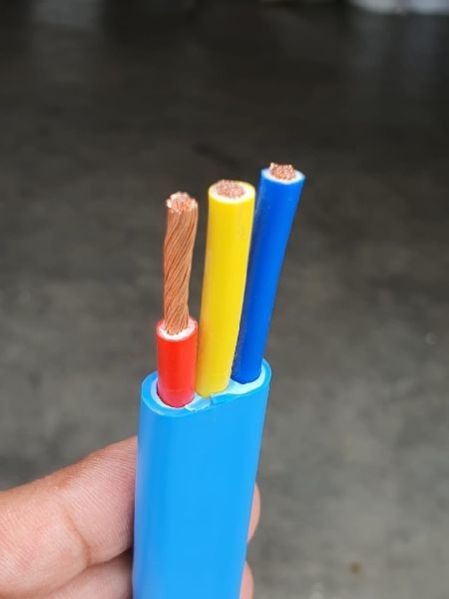

For trouble free working, these connecting cables are just important as winding wires are for the submersible pump motors. The individual conductors are made from bright electrolytic grade copper. The wires are drawn, annealed and bunched properly to ensure flexibility and uniform resistance. Each of the three copper conductors is insulated with a special PVC compound and the cores are laid in flat parallel position. The outer sheath of the cables is made from a special grade of abrasion resistant PVC compound impervious to water, grease, oil, etc. Sizes:3 / 4 Cores upto 35 sqmm

These are used to connect submersible pump motor with supply lines. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. Features:- Excellent resistance to water, moisture, abrasion, grease and oil Longer flex life Excellent mechanical & electrical properties Application:- Connect submersible pump motor with supply lines Description:- 1100 V Grade annealed bare electrolytic high conductivity multi stranded copper conductor polyethylene coated, PVC insulated and overall matt finish sheathed flat 3 core waterproof and weatherproof submersible cables as per IS : 694 / 1990.

New-age Automation needs are changing and to stay ahead you need to have nothing but the best in Cable Technology. Whether it is for connectivity or transmission, V-Guard has emerged as a prestigious Manufacturer for availing an array of Cables befitting demanding industrial requirements. If you are looking for flat submersible cables, V-Guard is the best option for you. We offer the best quality submersible cables which comprises of all kinds of flat submersible cables. Our submersible cables are made up of the best quality raw materials which are procured from the best sources. We also manufacture these submersible cables under the best quality conditions possible. Our range is available at quite an affordable price. We are one of the known manufacturers of submersible power cables. Features Better finish and strength for heavy duty applications 99.97% pure Copper High current carrying capacity Special grade PVC sheathing material Low Conductor Resistance High Ageing Property

Comflex is a leading manufacturer of Submersible Pump Three Core PVC Insulated Flat Cables which play a very important role in working of Submersible Motors. They Work under extreme stress and water submersion conditions and perform consistently over long periods of time Comflex 3 Core Flat Cables are manufactured keeping in mind the severe and difficult conditions they are required to operate. The individual Flexible conductors are made from electrolytic grade bright copper. The wires are drawn, annealed and bunched properly to ensure long life. Each of these three flexible copper conductors is insulated with a specially formulated PVC compound and the cores are laid up in Flat Parallel position. The outer sheath of the cables is made from a 3 Core Submersible Flat Cable in Voltage Grade 1100 V. The PVC insulated and sheathed 3 core flat cables are used for giving electrical connection to the submersible pump motors. These are manufactured keeping in mind the severe, tough and difficult conditions in which they have to operate. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. These cables conform to and are marked IS 694: 1990 up to 4.0 sq. mm. The sizes above 4.0 sq.mm. cables generally conform to IS 694 : 1990. Distinguishing Features :  Conductor Conductor for Cables are drawn from electrolytic grade copper to ensure compliance with global standards. Annealed conductors are bunched together on custom built heavy duty bunching machines to impart concrete to the conductor. Insulation To manufacture submersible flat cables, the insulated cores are laid up side by side to from a flat oblong shape. Inner cores are coded for identification as per National/International coding system or as per customer’s specifications. Outer sheathing is provided with special soft PVC compound to minimize chances of electrical failure and water seepage which may cause damage to expensive submersible pump motor.   STANDARD COLORS: Red, Yellow, Blue for cores and Black for Sheath. STANDARD LENGTH: 500 Meter in protective Drums. Variable Lengths available as per customer requirements.

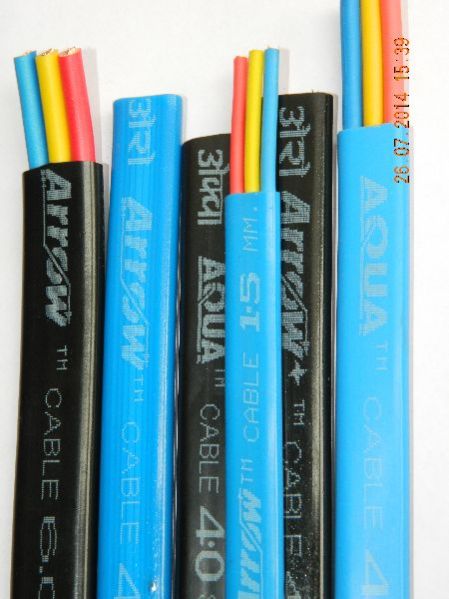

Mak Brand Submersible Flat cables used for Submersible Motors are PVC insulated and sheathed. Cables are manufactured to perform in severe , tough and difficult conditions. Manufactured from EC grade virgin copper conductors. PVC protects from oil, grease, abrasives and various chemicals. Submersible flat cable Confirms to IS 694:1990 Available in Blue as well as black PVC Available in 3 Core as well as 4 Core Available in flat as well as round version Available in PVC as well as Rubber sheathing. Gives long life and electrical safety.

We are a major Exporter, Manufacturer and Supplier of high grade Submersible Cables. We are offering best quality submersible cables at reasonable prices to our valued customers. Our assorted range of Submersible cables includes Polyhero PVC Insulated & Sheathed agriculture Submersible 3 Core Flat Cables. To maintain industry standards, these Submersible Cables are manufactured and tested under the supervision of experts. These Submersible Cables come with flexible copper conductor of 1100 volt.

Fits perfect required Grommet As per IS dimension Perfect sheathing for under water application. SPECIFICATIONS Conductor: Compactly bunched high purity bright, electrolytic grade, plain annealed copper with superb lexibility according to BS 8130 Class 2 & 5 available in various sizes. ‘Unilay’ conductor in the core will be provided on special order from 1 to 4 sq. mm.Insulation & Sheathing: Generally available with 70°C insulation and normal PVC sheathing, Choice of insulation and sheathing is available on special order. NOTE: Current derating factors as per IS 3961 part 5 shall be applicable for different usage conditions. Standard Sheath Colours : Black. Standard Packing : 100 mtr. Longer lengths supplied on order.

We provide 3 Core Submersible Flat Cables for Submersible Pumps & other types of pumps. The 3 Core Submersible Flat Cables that we offer are fire resistant and having the best copper conductivity. 3 Core Submersible Flat Cables can be acquired in plenty of specifications from us. We provide a wide array of Flat 3 Core Cable to clients in India and overseas. We are a notable 3 Core Submersible Flat Cables Manufacturer, Exporter and Supplier in Gujarat, India. Sizes Available : 1.5 MM² TO 35 MM² Raw Material Used Copper (EC Grade)PVC &BOPP Films Special Feature : Use of graded copper Applications Submersible bore wellOpen well motors Packaging : Packing in wooden drum
