Suction Apparatus Dealers

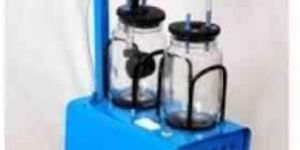

We manufacture & supply a varied gamut of Suction Apparatus across India. Our range of Suction Apparatus is made using premium quality parts which enhance its functionality & life. We are in regular touch with the latest trends in this industry and offer different modifications to suit the ever changing needs of clients. We appreciate the valuable feedback from our customers & constantly work towards bringing innovation in our equipment. Our Suction Apparatus is known for : Efficient designingOil immersed suction mechanismLight weight & portableAutomatic cut-off to prevent overflowRuns continuously for many hoursPowerful suction pumpFoot switch is also available for as an extra option Ideal For : Nursing homesMedical clinicsGovernment hospitalsMedical collegesScientific Laboratories

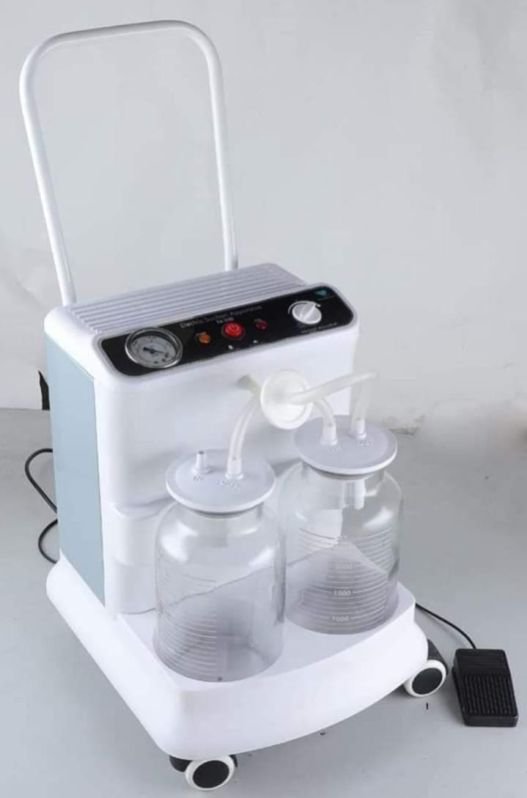

Features   Vactech Surgical suction unit meets the requirements of all surgical fields of applications. The suction unit runs on Oil Immersed Rotary Vane vacuum pump and thermally protected vacuum pump motor. The unit having stainless steel cabinet mounted on anti static caster wheels. The suction unit provided with two Autoclavable / Unbreakable collection jars made from high quality polycarbonate material. The collection jars have self-sealing Rubber lids. Vacuum can be adjusted with the help of vacuum regulator and vacuum gauge. Safety float prevents entry of suction fluid in the pump in case of overfilling. A special Bacteria filter ensures zero contamination and thus prevents infection.

Our Supreme Plus SS Suction Apparatus is famously known for the durability, stability and reliability. With the help of our trained engineers, we ensure that our clients receive the best quality apparatus for quality results. As a trusted Supreme Plus SS Suction Apparatus Manufacturer, Exporter and Supplier from Ghaziabad, Uttar Pradesh, we make sure that the apparatus complies with the international standards and is easy to use.   Details : ISI & CE Marked, ISO:13485, WHO-GMP Chemical Resistant Stainless Steel Chassis 0.25 H.P. Electric Motor with Noiseless Rotary Pump Vacuum up to -710 +/- 10 mmHg (within 45sec) Free air displacement 30 ~ 35 liters/min Noise level 50 dB +/- 03 dB Power Requirement - 220~230V, 50 Hz, 1Phase 2 X 2.0 Liters. PC Jars with overflow safety device Bourdon type 76 mm Vacuum Gauge Non Collapsible Suction Tubing Bacterial filter fitted on top

Powder Coated MS Cabinet with SS Top Noise level of suction apparatus is 50 dB ± 03 dB Rotary Vane Vacuum Pump with -50 ± 10 mm Hg, Motor 1/4  Free air displacement 18 -20 ltrs/ min Electrical Requirement 220~230VAC  50Hz, 1Ph 50 mm Vacuum Gauge Non collapsible suction tubing 2 X 1.5 Ltrs Glass jars with overflow safety Bacterial filter fitted on back supplied with power cord, handle provided to push the unit, unit moves on castors easy to clean and maintain fully installed unit supplied in Corrugated box approximate weight 15 to 16 kgs Specifications: 1 / 4 hp heavy duty motor fitted to oil immersed vacuum pump, Two wide mouth glass bottles of approx. 1600 ml each, Synthetic airtight rubber lids, Non-collapsible pvc tubing, Two separate vacuum gauge for each system, Vacuum of electric suction 700 mm + 10mm hg, Complete vacuum of vertical foot suction 600 mm hg.

We are into providing high quality Suction Apparatus that is built with ½ H.P. The Motor of the Suction Apparatus has been specially designed to meet the new levels of requirements as today’s Modern Surgical Technique Demands. The Suction Apparatus offered by us is ideal for MTP and other major surgical applications. Salient Features : Compact design and mobileFinely requlable 0-700mm HgVacuum-easy to read offDual Safety System: Over-Flow check valveRemovable filter to protect the pump from entrained moistureNon-collapsible tubing with flexible snug fit mountsAuto lubrication by oil pump for noiseless and trouble free performanceCord stowing arrangementConfirming to ISI specifications Technical Specifications : Max Vacuum : 700 + 10% mm Hg.Regulable through Vacuum control knobSuction Capacity : 40 Ltrs./min.Vacuum Gauge : Bourden Type 10 cm. dia. 0-760 mm Hg. Calibration : Suction Bottle : 2 × 1600cc wide mouthed with self sealingRubber bungs and over-flow check value Float Type : Vacuum Pump : Rotary typeSound : Almost WhispersPower Source : AC220V Single phaseFinish : Pre-treated and Epoxy Powder Coated

Suction apparatus Complete S.S. cabinet mounted on castors for easy mobility. 18 HpOR 16 Hp Compressor For energy saving. Exceptionally Noiseless Operation due to oil immersed Piston pump.

We are enlisted as one of the reliable Suction Apparatus Manufacturers in India. The Medical Suction Apparatus offered by us are extensively demanded in the market due to the unmatched quality and unsurpassable performance. Moreover, some of the salient features of the Vacuum Cleaner Suction Apparatus are as mentioned below: Salient Features : Model No. : Sl-165Name : Suction Appratus ½Anti corrosive stainless steel chassis.Noise level of suction apparatus from is 50 dB +/- 03 dB.Leakage current of suction units is less than 84 μA.Electrical requirement -220 ~ 230V, 50Hz, 1 Phase.Ideal for MTP 1 medical 1 surgical procedures.Rotary Vane Type Vacuum Pump with -740 +/- 10mm Hg.Free air displacement 40 ~ 60 Itrs / min.Heavy duty HN - 65 antistatic castors.320 Watt, 1440 RPM, 0.50 H.P. Electric Motor.100mm Vacuum Gauge.Non Collapsible Silicon tubing.2 x 2.0 Ltrs. Polycarbonate jars with overflow safety.Bacterial filter fitted on top.

Our organization is an eminent name, which is engaged in offering an unparalleled array of Suction Apparatus. Precision engineered, these apparatus are made available in cabinet model with stainless steel top mounted on all bearing castor wheels, complete with pressure regulator ½ h. p.Design specifications: Incorporated with motor connected to a highly efficient all immersed pump mechanism Contains a suction bottles with cannula & tubbing Suitable for operation on 220/230 volts Available with provision of attachment of foot switch of 50 circles and single phase AC

Technical Specification Vacuum : 700 ± 10% mm Hg control by knob.Sound : 50 db A ± 3 almost noiselessSuction Capacity : 35 Ltrs/minJar : 2 x 2 Ltrs. Poly Carbonate jars with over flow safety device.Safety : AC fuseBody : Mild steel spot welded with electrostatically powder coatedGauge : 63 mm diamter graduated in mm Hg Special Features Superior quality suction pump for instant vacuum.Instrument trey provided on top level for keeping instrument.Adjustable IV stand in back.Timer show the time in min/sec.Powder coated cabinet for easy to Clean & Maintain.Heavy duty antistatic castors.Uniqe Reuseable filter.Versatile for M.T.P & Other Major Surgical Application. Dimension Height : 106 cmDepth : 46 cmWidth : 38 cmWeight : 26 Kg Approx.

Suction Apparatu s (1/4 H.p) LPS-247 Specifications ·         Epoxy Powder coated chassis Rotary Vane Type Vacuum Pump with -700 +/- 10 mm Hg. ·         Electrical Requirement 220~230V, 50Hz, 1Phase. 2 X 1.5 Ltrs. Glass jars with overflow safety ·         0.25 H.P. Electric Motor ·         Free air displacement 25 ~ 30 ltrs/min ·         Non collapsible PVC tubing ·         Optional: Also available in Stainless Steel Chassis
