Switch Disconnector Dealers

Electric ratings:up to 100A, 400V, Ac50 60Hz; Application: as the general switch of final distribution apparatuses; for control of motor, electric apparatus with small power, illumination, etc, as well; Standard: IECEN 60947-3.

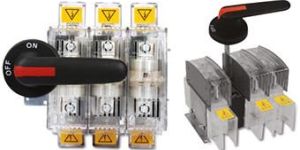

STAR heavy duty switch disconnector fuse units are specially designed for domestic, industrial or commercial applications where moderate to heavy onload switching duties are required.

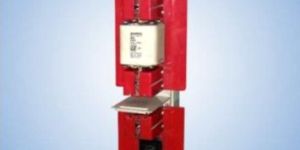

LV HRC fuse bases can be combined to form distribution systems having desired number of electrical circuits. Due to their compact design these are particularly suitable for distribution application in Service Cabinets, Feeder Pillars and Distribution Boards. The body of the fuse base is made of glass fibre reinforced polyster on which the spring loaded silver/tin plated fuse contacts are mounted. Fuse contacts are covered with shroud of insulating material for added safety against accidental contact. The fuse bases are bolted directly to the bus bars. The terminals of the fuse bases are tin of plated copper. The LV HRC fuse bases comply generally with DIN 43623: Size 1-3 Form B Provided with vertical droppers for cable connection at bottom The fuse bases of Sizes 1-3 are suitable for a spacing between bus bar centers of 185 mm and depth of 153 mm.

  • Compliance with IS / IEC 60947- 3• Rating : 32A to 630A • Operational Voltage Ue = 415 V AC, 250 V DC• Utilisation Category : AC 23A @ 415 VAC, DC 23A @ 250 VDC• Suitable for both DIN and BS Fuses 3P  3P + Isolable Neutral  4P version

The fuse link body is made of special steatite, which is resistant to alternating temperatures. The indicator on the front plate clearly indicated the switchingThe fuse link body is made of special steatite, which is resistan

Suitable for DIN bolted type fuse-link Modular pole design – economical maintenance Available in open sheet steel enclosure version Double break, quick make & break mechanism, self cleaning contacts Compact construction Door interlock and padlock facility Suitable for isolation Telescopic shaft for depth adjustment Door defeat Provision for 2NO+2NC aux contacts Provision for left, right & intermittent mechanism

We are offering switch disconnector / load break switch 1000a to 3150a type : pameco specification:- 1000a, 1600a, 2000a, 2500a, 3150a available in 2p, 3p, 3p+n & 4p version paneldoor mounting front operated two breaks per phase positive switching mechanism and quick make quick break mechanism. Utilzation category ac 22 short time withstand capacity of 50ka for 1 sec suitable for operation in dc circuits up to 500v auxiliary contacts up to 2no+2nc optional.

They are used in distribution net works for easy Isolation, RMU, Neutral Grounding of multiple Generators etc., They will come with or without Earth switch.   Technical specification :   Range : Up to 36 kV / 5000 A (Indoor Motorized Disconnectors up to 12000A) Degree of protection : IP00 / up to IP65 Service : Indoor / Outdoor Enclosure Finishing : Epoxy powder coat painted / Galvanized / Stainless steel Mounting type : Wall / Floor / Steel Structure Mounted Motorized version : Operate at 24/48/60/110/220/230 V AC / DC Standard followed : IEC 62271 - 103 No. of Poles : 1 Pole / 3 Pole Type of load : On load (Switch Disconnectors) / Offload (Disconnector) Operation : Manual / Motorized Other accessories : Earth switch interlocked with Main switch or Independent, Shunt Trips/Fuse with trip, Adequate auxiliary NO+NC Contacts Type : Singe Break or Double Break (Centre post Rotating type) for outdoor applications

About PC Industries   PC Industries an ISO certified company was established in the year 1995 as a proprietorship firm. We are able to offer products, which are designed and developed as per the Bureau of Indian Standards. Our electrical products widely cater to the requirements of power stations, telecoms, railways, mines etc. Over the years, we have consistently enhance our products, in accordance with the requirements of customers in terms of more compactness in size, higher level of operation and ease of application. PC Industries also deals into: # Electrical # Switchgear # Safety # Circuit Breaker

We manufacture and supply a technically advanced range of Electrical Disconnectors. By following international quality standards and transparent business policies, we are able to cater vast clientele spread across the nation. Our entire range of Electrical Disconnectors is widely acclaimed for its long functional life, high efficiency, low maintenance, high reliability and optimum performance. Moreover, these Electrical Disconnectors are also easy to install and require minimum maintenance.   Features Superior performance Ergonomic design Safe and reliable Energy concentration

Procurement of the product from us is profitable, as we can provide it in wholesale any time of the year and ensure delivery is done on the postulated time. As we remain much concerned about the safety of the products, we store the entire lot in our capacious warehousing unit under secured environment and expert's supervision.

S-D-F range covers ratings from 32A to 2000A. S-D range is available in both open execution & Sheet steel enclosure versions. S-D-F range provides users with a high level of safety & convenience. The complete range conforms to IS/ IEC60947-3 standards. It also carries the CE marking signifying compliance to stringent European safety norms. S-D superior features translate into better safety & convenience for the users. Terminal shrouds provide protection against accidental direct contact. Terminal shrouds also protect against phase to phase short circuit through an external conducting path. Positive ON / OFF indication ensures that the handle indicates OFF position only when main contacts are actually open. Large ground clearance eliminates possibility of phase to ground flashover. Built-in padlocking arrangement provided to lock the unit in OFF position prevents inadvertent operation of the unit. Versatile handle The handle coupling has the following user-friendly features:- Door interlock (defeatable)- Padlock up to 3 locks- Choice of operating quadrant- Flexibility (± 3mm mismatch operational quadrant) The Switch-Disconnector provides complete Flexibility in mounting; Unit can be mounted at any angle in a vertical plane. Handle depth can be varied and fixed as per requirement during installation. This is possible because the telescopic shaft can be adjusted for stepless variable depth.

The MSW Switch-Disconnectors were developed according to IEC60947-3 and UL508, enable carrying and interrupting electric currents under normal or overload conditions and provide complete physical insulation between the circuit and the power supply when in OFF position.

RANGE   Rating: 25A ~ 3150A, 415V, AC23A Poles: 2P, 3P, 4P & 6P   FEATURES   Modular pole design – economical maintenance  Available in open / sheet steel enclosure version  Quick make & break mechanism, self cleaning contacts  Compact construction  Door interlock and padlock facility  Suitable for isolation  Telescopic shaft for depth adjustment  Door defeat  Provision for 2NO+2NC aux contacts

Ratings: 32 A to 1000 A Version: TPN Full AC-23 A utilization category Quad break contact system Separate arcing and current carrying zones High clearance and creepage distances Phase barriers Suitable for aluminium terminations Built - in isolable or add on switched neutral Easy inspection and replacement of contacts Suitable for horizontal and vertical terminations Clear ON OFF indications Conformance to IEC: 60947-3 and IS: 13947-3
