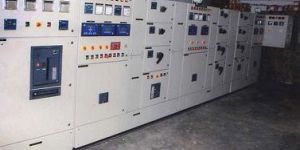

Synchronization Panels / Synchronized Control Panels Dealers

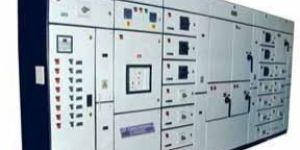

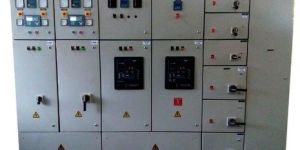

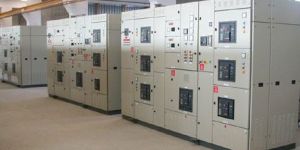

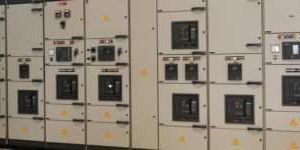

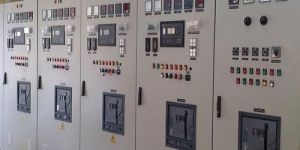

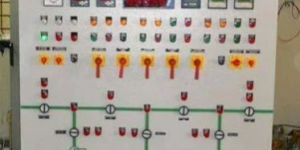

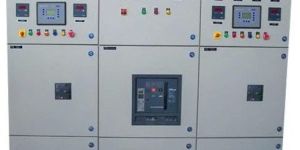

TG Generator Grid Synchronising Panels, DG synchronizing Panels. Utilizing the best-grade wrapping supplies, we pack our products securely to ensure shipping and tag it correctly to offer product details such as the address of manufacturer/ distributors, MRP, quantity etc. Our organization has a devoted quality regulation section to make sure our entire range is according to global quality management standards. We deal in Synchronizing Panel, which has a sturdy body with a shiny surface and a long service life.

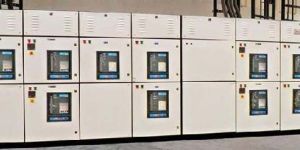

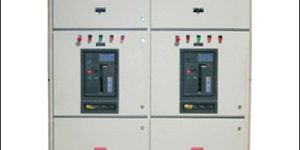

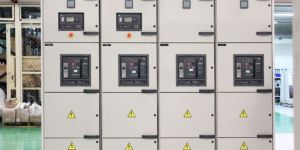

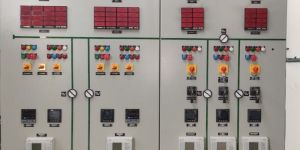

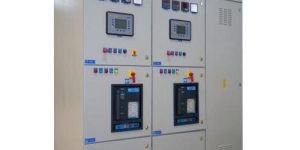

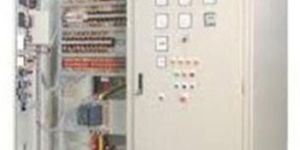

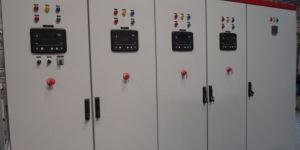

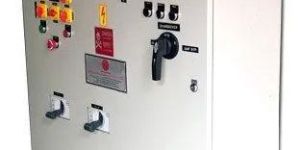

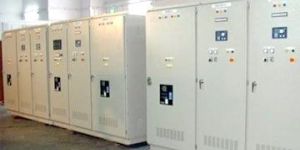

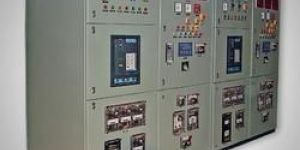

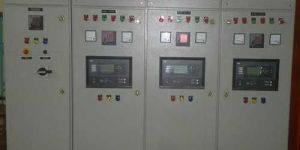

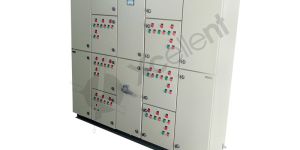

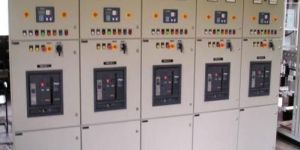

Synchronising Panel offered by us, is manufactured at the unit under the supervision of expert professionals. Our Synchronising Panel needs low maintenance, especially in case of relays, wires and contractors. We use software to design our Synchronising Panel. These designs of Synchronising Panel can also be changed as per specifications mentioned by the clients. In place of voltage and current, our Synchronising Panel can be started or stopped depending on the load in regard to KW. Salient Features Easy to install High durablilty Precise readingsLow maintenance

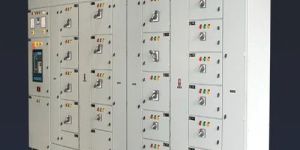

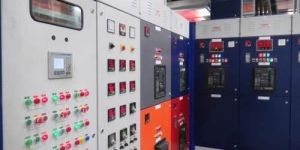

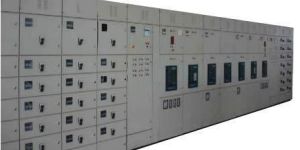

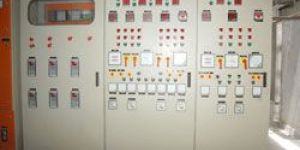

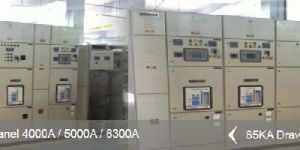

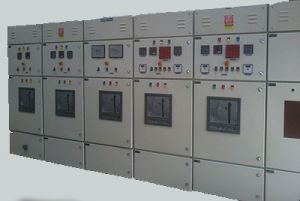

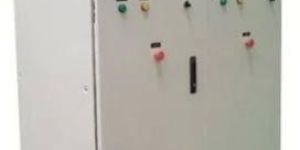

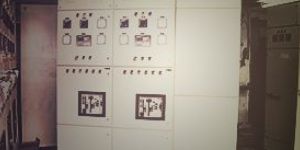

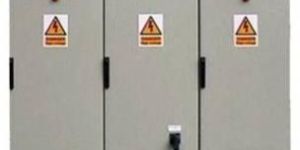

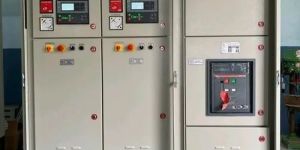

We are offering AMF Cum Synchronizing Panel which is based on load in KW. Hence the actual sharing, starting, stopping & transfers are actual load dependent & not on any other unrealistic parameter like voltage, current. etc. Changing of scheme becomes very easy because of changes are made through software only. There is no changing of wires, adding of components like relays, contractors, which is very time consuming, cumbersome & requiring additional space. Along with KW sharing, KVAr sharing & PF sharing is very accurate, because of PLC programming. There is no possibility of any unequal sharing as regards KW, KVAr & PF. For any type of load addition or reduction, manual intervention as regards D.G.set operation is not required. However, in case of emergency manual override is possible. Special programmers using Real Time Clock (RTC) are possible. Because of KW dependent load sharing, optimum utilization of D.G. sets are possible. This increases D.G. sets efficiency & saves lot of fuel. D.G.sets are always tried to run with 80 % to 90 % load factor, where we get maximum efficiency of D.G.sets. This is easily possible with our system. We are well-known manufacturers of Automatic Mains Failure Panel including Protection for DG sets. It uses an advance technology to make an easy and trouble-free Gen set control. Basic Operation Cycle When there is mains supply, the AMF Panel will keep the load on mains, once the mains supply fails, the AMF Panel senses this and starts the Gen set. Once the Gen set is found running, the load is transferred to Gen set supply. When mains resume, the load is transferred back to mains supply and Gen set is stopped.

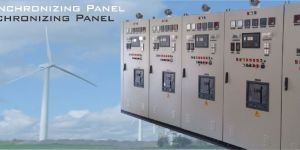

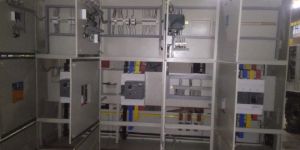

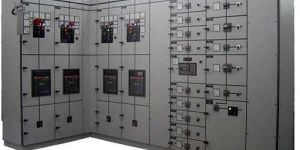

Synchronizing Panel works between two or more different power sources like DG sets to manage power supply. Synchronization helps in making different DG sets behave as a virtual single unit and eliminates subdivision of total load. It helps in transferring load from one unit to another as during service period, so that the unit requiring service can be easily shut off. In this way the critical load need not be interrupted and there is no production loss. During low load we can run any single unit, and synchronize more units as the load increases. This can be manual or automatic

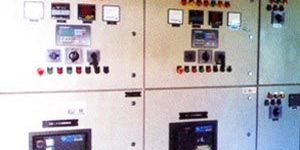

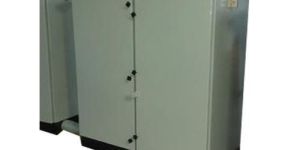

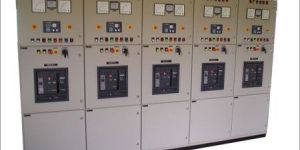

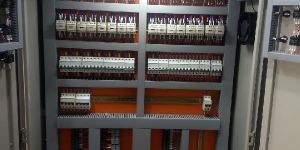

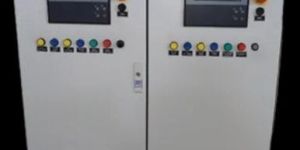

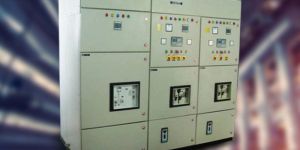

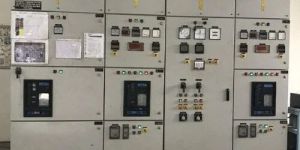

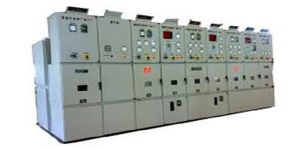

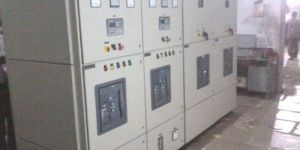

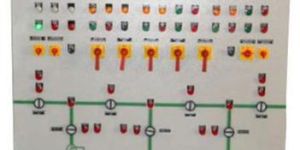

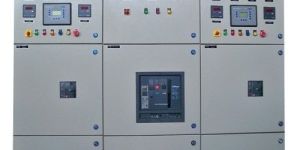

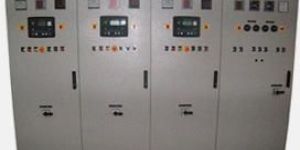

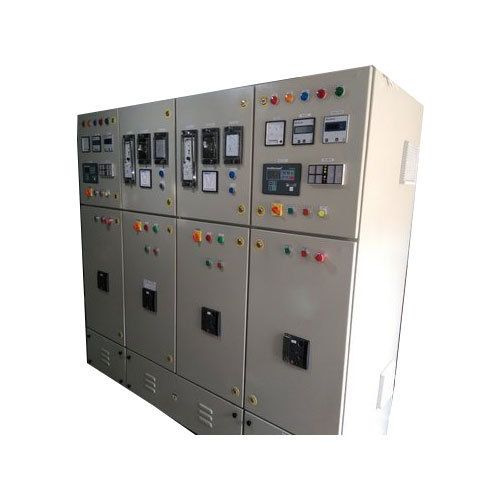

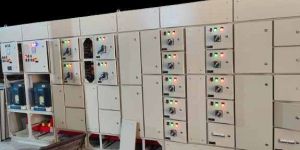

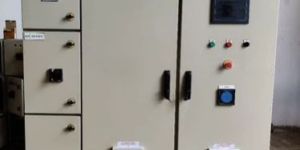

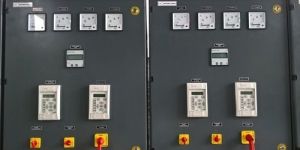

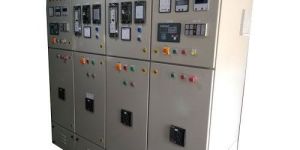

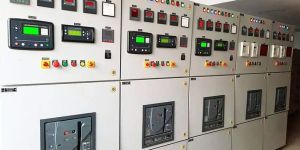

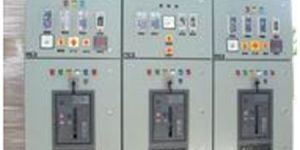

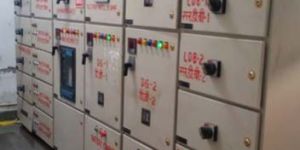

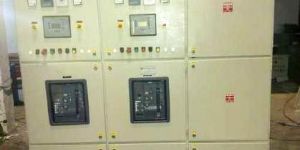

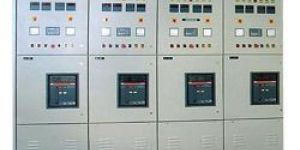

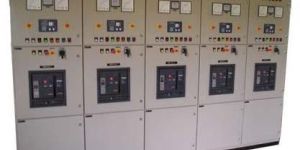

We are a renowned manufacturer, exporter, supplier and service provider of DG Synchronization Panels based in Coimbatore, Tamil Nadu. The high grade panels are made using good quality materials and the latest technology. The panels are user friendly with both auto and manual controls. The DG Synchronization Panels have full RITTAL enclosures with digital meters. We ensure good packaging and timely delivery.General Specification : Systems Voltage : 380/415/440V Bus Bar : Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC Bus Bar Short Circuit : Up to 50KA for 3 Seconds Duration Type of construction : Free Standing, Floor Mounted, Cubicle Design Degree Of protection : IP 5X Enclosure : Rittal Modular Enclosure with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards Color : RAL 7032 Shade DG Sync Relay : DEIF AGC Series Salient Features : Our DG Synchronization panels are made of fully RITTAL Enclosures MCC Panels are fully modular Type Enclosures are Dip Coated and Powder Coated 1.6/2mm CRCA Sheet Steel For low-voltage switchgear with design verification to IEC/EN 61439-1 and -2. For control systems and power distributors structured system solution for switchgear with Form separation 1-4b. Simple, installation-friendly system assembly Based on enclosure platform TS 8 Profiles are 16 Folded Profile All switchgears are Branded Like Siemens/Abb/Schneider/L&T/Ge EtcAll Meters are Digital Meters   DG Sync Benefits : Automatic Load Sharing in between DG Auto Synchronization Auto Start is Possible if EB Supply is not available DG Operate with its maximum efficiency No Overloading. Automatically Start the Next DG Manual Intervention is not required No need to separate Load based on DG Capacity Different Capacity/Make can be synchronized DEIF Synchronizing Relay is used in our projects

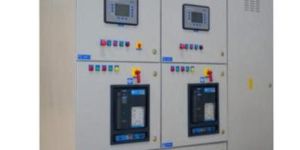

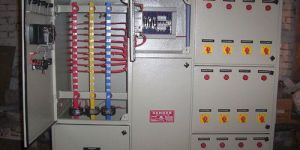

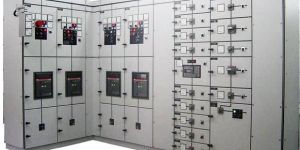

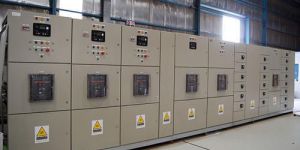

With our affluent industry experience, E-Power Marketing is actively affianced in manufacturing and providing Synchronizing Panel. Offered Synchronizing Panel is made up with using quality proven material and contemporary tools in accordance with previously defined guidelines. Patrons can buy the whole gamut of product from us with different modification facility at pocket-friendly rates.   Features:   Sturdy construction Light weight Easy to install.

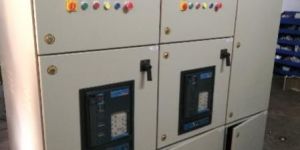

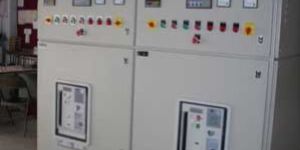

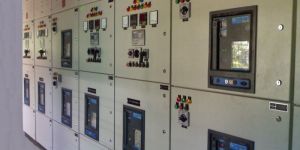

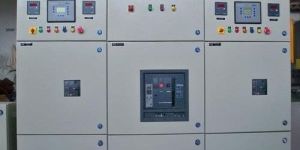

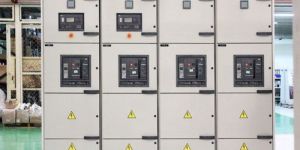

We are offering synchronization panel that is widely used for immediate operation of more than one power sources. Processed from quality components, the synchronization panel that we manufacture and supply has a long functional life. We offer our synchronization panel in standard and customized specifications. why our synchronization panel? easy to installeasy to operaterequires less maintenanceeffectual performance finds application in telecommunications semiconductors electronic equipmentengineering systems.

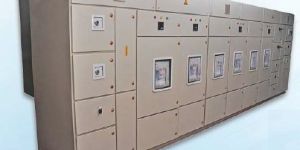

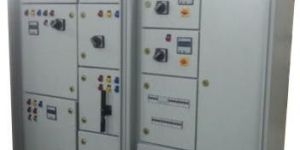

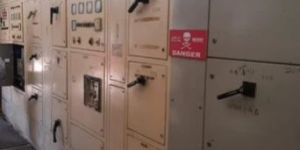

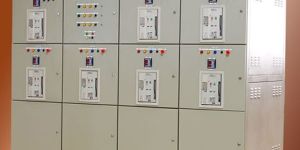

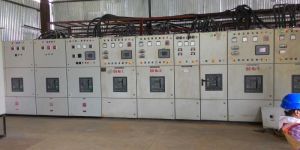

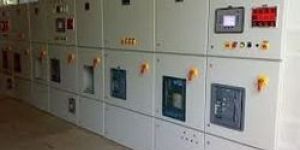

In the event of power failure or imbalance of Voltage from the EB Incomer, DG I will get start automatically and get connected to the load with reference of EB breaker/EB supply, basing on the load DG II will start and get Synchronize with DG I and the load will be shared between both the DG Sets. When the EB supply is resumed the system will check for quality and stability of Voltage and the system will get revise Synchronize with EB Supply and the load will be smoothly transfer to EB supply without any interruption, the DG breakers will get switched off on pre set time and the DGs will get switched off after pre set cooling time. Multiple Paralleling gen set and Grid control with internal load sharing and Synchronizing Considering the percentage of power cut / load cutting. The either of DGs will start automatically basing on the loads and get Synchronized with EB Supply (Grid) and the load will be smoothly transfer to DG I accordingly, and the DG II will start automatically based on the pre set load. When the EB supply is resumed the system will check for quality and stability of Voltage and the system will get revise Synchronization with EB Supply and the load will be smoothly transfer to EB supply without any interruption, the DG breakers will get switched off on pre set time and the DGs will be put off at the pre set cooling time. The option of setting the supply from any of the source i.e. either EB supply or DG I or DG II or all the three sources, all the operations can be done in auto mode, and also in manual mode (in the case of emergency). In case of any maintains in DG I, the system will automatically switch On the DG II and vice versa. During the load sharing the system will automatically balance the load, and Synchronizer will display Active & revise load and other parameters on the display screen.

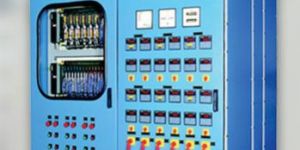

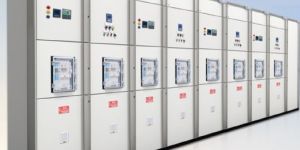

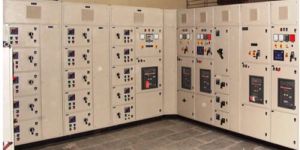

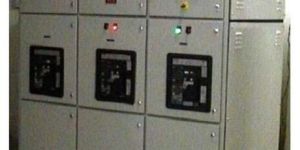

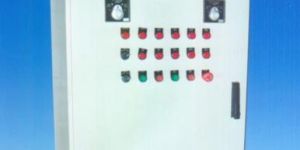

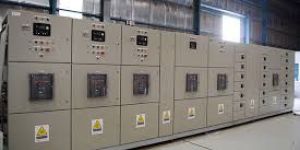

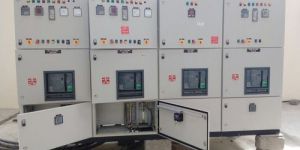

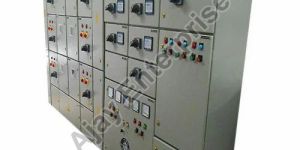

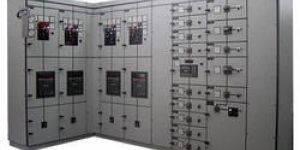

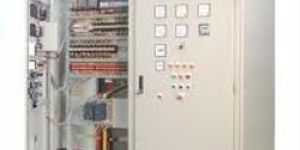

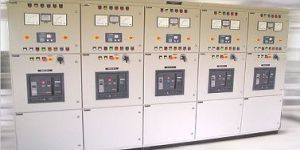

We are a well-recognized name that is affianced in offering our respected patrons a world class range of Synchronizing Control Panels. This panel is precisely manufactured using the best grade raw material and up-to-date technology in compliance with international quality standards. Keeping in mind the varied requisites of our clients, this panel is provided in numerous technical specifications. Besides, this panel can be availed by our patrons from us at the budget friendly prices.

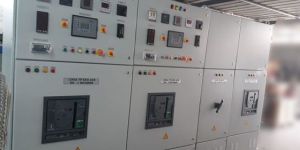

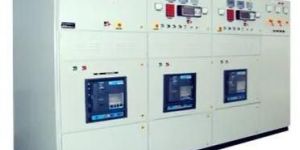

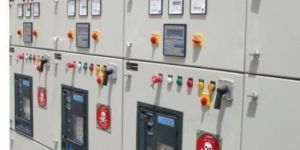

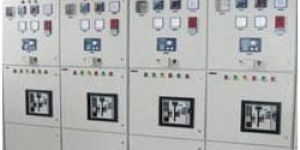

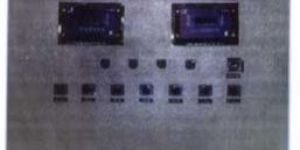

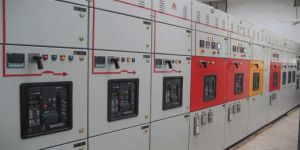

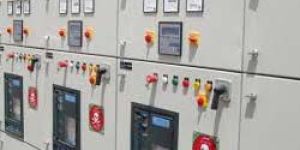

We bring forth a wide array of Auto Synchronizing Panel that is used primarily for the synchronization of generators. The company is an established Manufacturer and Supplier of Generator Auto Synchronizing Panels from Hyderabad. Our range of Generator Auto Synchronizing Panels are  highly effective in running two or three generators parallel with each other while maintaining the same electrical parameters for two/three DGS. The Synchronizing Panels have huge demand in market for their appropriate functioning and providing complete protection to generators.

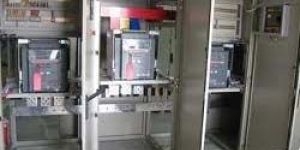

Synchronizing Panels are mainly designed and used to meet power system requirements. These Automatic Synchronizing Panels provide manual as well as automatic synchronizing function for one or more generator breakers. They are widely used in synchronizing generators and offering multiplexing solutions. Moreover, we are looked upon as one of the eminent Power Synchronizing Panels Manufacturers in India. Synchronizing panels usually consist of A Generator Control Unit : This unit automatically matches generator frequency and voltage levels with that of the bus. A Syncrocloser Unit : It sends the closing command to the breaker at the exact moment of phase coincident. A Syncrocloser Check Relay : It performs the progressive function of verifying voltage and phase angle conditions and ensuring that they are within preset limits, before allowing the breaker to close. The device is provided with control switches in the front panel. These switches are responsible for manual raising and lowering of speed and voltage of the generator to match the bus frequency and voltage before synchronizing. There are volt meters and digital meters in the device that offer generator and bus measurements. Uses & Applications There are various areas where synchronization panel finds application. Some of the popular application areas include Engineering Systems Multiplexing Multiple Generators Multimedia Communications Telecommunications Data Synchronization Semiconductors Electronic Equipments

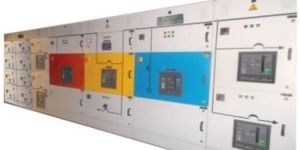

Our company has listed its name among top notch organizations by manufacturing, supplying and exporting unmatched array of Synchronization Panel. Located in Vadodara (Gujarat), we are indulged in providing Panels that find applications in various sectors. We meticulously check the Synchronization Panel on defined parameters, so that only flawless range of Synchronization Panel is delivered to buyers. One is free to place bulk orders for Synchronization Panel with us.

These type of panels function both manually and automatic synchronizing function for one or more than one generators or breaker. And it also operates on an automatic mains failure system, in order to avoid when the main supply is disrupted on one or all phases (after an adjustable delay period) the generator sets will start-up together. After a basic warm-up period, the generators will synchronize with each other right on motorized circuit breakers or contactors adjacent to a common busbar. The motorized modification over switch will be closed and the load will be connected to the main distribution box. The load share units constantly monitor the load and at the time of low demand periods, one or two generators will be shut down to save on fuel consumption. As the requirement raises once again the second generator and the third generator will be restarted, harmonize and reconnected to the load. When the AMF control unit identifies that the main supply has been restored an adjustable observation period is activated before the main supply is reconnected. The generator sets will be shut down once the cooldown period has flowed.

Synchronization panels are mainly designed and used to meet power system requirements. These panels provide manual as well as automatic synchronizing function for one or more generator breakers. They are widely used insynchronizing generators and offering multiplexing solutions. Synchronizing panels usually consist of:A Generator Control Unit: This unit automatically matches generator frequency and voltage levels with that of the bus. A Syncrocloser Unit: It sends the closing command to the breaker at the exact moment of phase coincident A Syncrocloser Check Relay: It performs the progressive function of verifying voltage and phase angle conditions and ensuring that they are within preset limits, before allowing the breaker to close. The device is provided with control switches in the front panel. These switches are responsible for manual raising and lowering of speed and voltage of the generator to match the bus frequency and voltage before synchronizing. There are volt meters and digital meters in the device that offer generator and bus measurements.     Applications  Engineering systems Multiplexing multiple generators Multimedia communicationsTelecommunications Data synchronization

We are a well-recognized name that is affianced in offering our respected patrons a world class range of Synchronizing Control Panels. This panel is precisely manufactured using the best grade raw material and up-to-date technology in compliance with international quality standards. Keeping in mind the varied requisites of our clients, this panel is provided in numerous technical specifications. Besides, this panel can be availed by our patrons from us at the budget friendly prices.

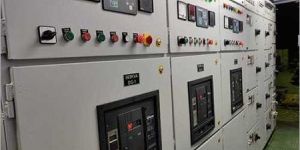

We are designing Synchronization panel for load sharing of main & DG sets with manual and Automatic operation. Additional Features : Compined meters. Protective Relays. Battery charging unit. Annunciator windows display, Indication lamps, Breakers & Auto Load Sharing.

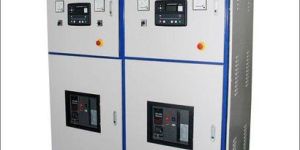

We provide highly effective Auto Synchronizing Panel, which is used for providing sufficient protection to generators. We also provide after sales support for these products to gain complete customer satisfaction. Our Auto Synchronizing Panel is made available after stringent quality testing to deliver a user friendly and easy to operate product. Attributes User friendlyEase of maintenanceLow energy consumption SafeEasy to installDurable Suitability Our Auto Synchronizing Panel is highly effective in running two or three generators parallel with each other while maintaining the same electrical parameters for two/three Dgs
