Table Feeder Dealers

We are the top manufacturer of quality Vibrating Feeder India that has huge demand in the market. These are very useful and appropriate as well to carry different kinds of huge raw material in diverse masses to the crushers. They take in and remove material from hoppers & bins at a precise rate.We as the top Vibratory Feeder manufacturer efficiently manufacture these by us using superior quality material as well as components. In order to offer high end performance, we manufacture them by making use of the most leading edge technology in compliance to the norms of the industry. This ensures not only reliability, durable service life but also thorough operational safety with smooth vibrational effect. It has variable vibrating force which is easy to control. These are easy to maintain and are accessible at very inexpensive rates.

We Ultra Febtech - An ISO 9001:2008 Certified Company Engaged in Manufucturing of Rotary Table Feeder to Material Handling the Material. Rotary Table Feeders are used in industries, which require the moving or feeding of powder or granular substances. Table feeders are particularly helpful in moving sticky or hard to feed materials. They are also very useful in converting an intermittent batch process into a continuous material feeding process.

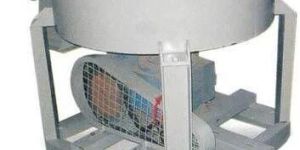

rotary table feeder will consist of a power driven circulated plate rotating directly below a hopper / bunker.  a feed collar located immediately above rotating table used in conjunction with an adjustable plough, determines the volume of material discharged. the lower edge of the feed collar will be parallel to the table with a predetermined gap from table top.  this arrangement permits equal quality of material to flow under the collar and spread over the table as it resolves.  the material is then ploughed off into the discharge chute. rotary table feeders are most useful for handling materials that are sluggish, tend to interlock or mat and thereby arch over restricted openings..

We are providing our clients with Table Feeders such as rotary table feeders that are manufactured using quality raw material procured from reliable vendors. Our range of rotary table feeders is available in various capacities ranging from 3 TPH to 100 TPH. Rotary Table feeders are widely used for extracting and feeding the free flowing powdery, granularly and small lumpy material from silo at control rate. The material that can be handled are available in various diameters ranging from 450 mm dia to 1500 mm dia. Moreover, variable speed drive is provided with rotary table feeder as per the requirement of our clients.

Rotary Table Feeders are used in industries, which require the moving or feeding of powder or granular substances. Table feeders are particularly helpful in moving sticky or hard to feed materials. They are also very useful in converting an intermittent batch process into a continuous material feeding process.The amount of material leaving the rotary feeder can be controlled by changing the angle of the discharge plow via a hand wheel or by motor.

Viswakirti Rotary Table Feeder consists of a power circular plate, rotating directly below the bin opening. An adjustable feed collar, located above the rotating table, determines the volume of material delivered.   These feeders are used generally with round, vertical bins and for handling materials which have a tendency to arch ; such a dump sand, wood chips, and fine salt.   The opening in the bottom of the round , vertical bin is large, so that material cannot arch over it.

Our range of Table Feeders encompasses of rotary table feeders and powder table feeders. Our table feeders are of very high optimum quality and can be availed through us only. We supply our table feeders at quite reasonable prices and have gained the place of a reliable power table feeders manufacturer and one of the leading exporters from India.

Rotary Table Feeders are used in industries, which require the moving or feeding of powder or granular substances. Table feeders are particularly helpful in moving sticky or hard to feed materials. They are also very useful in converting an intermittent batch process into a continuous material feeding process.The amount of material leaving the rotary feeder can be controlled by changing the angle of the discharge plow via a hand wheel or by motor.

HI-TECH Rotary Table Feeder consists of a power circular plate, rotating directly below the bin opening. An adjustable feed collar, located above the rotating table, determines the volume of material delivered. These feeders are used generally with round, vertical bins and for handling materials which have a tendency to arch ; such a dump sand, wood chips, and fine salt. The opening in the bottom of the round , vertical bin is large, so that material cannot arch over it.

We are offering rotary table feeder. Rotary table feeders are used in industries, which require the moving or feeding of powder or granular substances. Table feeders are particularly helpful in moving sticky or hard to feed materials. They are also very useful in converting an intermittent batch process into a continuous material feeding process. The amount of material leaving the rotary feeder can be controlled by changing the angle of the discharge plow via a hand wheel or by motor.

Variable Speed DC Motor Adjustable Feed Belts for added Feeding Performance Quick Split Shell Design Advancing Gate Enables Maintenance Without Stopping a Job Optional External Run Input for Integrated Start/Stop Control

Capacity to carry heavy load and a robust structure renders our table feeders an invincible position in the market. Our rotary table feeders are manufactured using the best of the raw materials and as per customers̢۪ specifications. As one of the potential power table feeders manufacturers and suppliers in India, we make our products available at the most competitive market prices.

The Table Feeder, provided by us, has sturdy structure and can be availed in customized sizes. We are backed by a quality control wing that comprises experienced quality inspectors who strictly check all the products before making the final dispatch. We are a quality-centralized firm and make use of only high quality material for manufacturing the offered lot. Also, we ensure that the material is sourced from the reliable places.

We Ultra Febtech - An ISO 9001:2008 Certified Company Engaged in Manufucturing of Rotary Table Feeder to Material Handling the Material. Rotary Table Feeders are used in industries, which require the moving or feeding of powder or granular substances. Table feeders are particularly helpful in moving sticky or hard to feed materials. They are also very useful in converting an intermittent batch process into a continuous material feeding process.

Feeder table chains are utilize for feeding sugarcane to cane carriers. We assemble these chains for various breaking loads and using alloy steels to give long chain life. These chains are used for various breaking loads.

Table Feeders, Mixers, Pelletize

Table Feeder, Belt Conveyors, Bucket Elevators, Screw Conveyors, Air Slide

Table Feeder, Hammer Mill, Reciprocating Feeder, Screw Conveyor, Idler

Rotary Table Feeders, Bucket Elevators, Screw Coolers, Screw Feeder

Table Feeders, Sponge Iron Plants, Blowers, Rotary Vane Feeders, Reactor

Table Feeder, Diaphragm (Ods) Pumps, Flotation Cell, Bleach Washe

Table Feeders, Laboratory Instrumentatio

GENERAL DESCRIPTION AND SPECIFICATION  ROTARY TABLE FEEDER Rotary Table Feeder will consist of a power driven circulated plate rotating directly below a hopper / bunker.  A feed collar located immediately above rotating table used in conjunction with an adjustable plough, determines the volume of material discharged. The lower edge of the feed collar will be parallel to the table with a predetermined gap from table top.  This arrangement permits equal quality of material to flow under the collar and spread over the table as it resolves.  The material is then ploughed off into the discharge chute.  The plough inside the feed collar. The major components of the Rotary Table Feeder will be :-  The table will be fabricated from 12 mm thick m.s. plates and will be mounted on the output shaft of the gearbox. The table  will be driven from the output shaft of the reduction gear.  Adjustable plough assembly.  Guard ring assembly. Drive equipment will consist of TEFC sq. cage induction motor coupled through V-belt equipment to the input shaft of a totally enclosed oil imersed worm reduction gearbox.  The drive unit will be mounted on a fabricated m.s. base frame.  The Rotary Table feeder will ranges from 5 tons/hr to 30 tons/hr.

Table Top Feeder, Booklet Coding Feeder Conveyo

Table Feeders, Process Plant Erection and Structural Works, Industrial Kiln
