Taper Bush Dealers

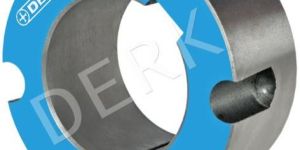

We offer Flange Type Taper Lock Bush. Shree Shakti Industries Offers Flang type Taper Lock Bush in different shapes and size as per industries requirement. We Offer extensive range of options with standard qualities and design at reasonable price. Available in: * Size from 24mm Bore to 190mm Bore * Length 200mm to 200mm

The company is the well known manufacturer and supplier of the Taper Lock Bushes Specifications Taper Bushing: 1.Super high quality with lowest price 2.Good interchangeablity & high strength 3.Smooth surface Taper Bushing: 1.Type: 1008, 1108, 1210, 1215, 1310, 1610, 1615, 2012, 2517, 3020, 3535, 4040, 4545, 5050. 2. Material: Steel, Cast iron,GG25 3. Surface treatment: black, phosphate Features: 1. Standard method for measureing keyseat depth. 2. Excellent and high quality control, advanced producing equipment. 3. Easy to install with long lifetime, high degree of flexibility. 4. OEM and Customized available with fast delivery.

taper bush Easy and quick ‘Shrink fit’ Eliminates precision taper fitting keys Interchangeable between many products Convenience in dismantling, maintenance and component replacement

Easy and quick 'Shrink fit' Eliminates precision taper fitting keys Interchangeable between many products Convenience in dismantling, maintenance and component replacement

Features:   High Torque capacity, Compact size, low weight   Simple mechanism, easy to inspect and change the Flex Cone Rings without moving either Shaft or Hub of the coupling.   Negligible running cost.   Simple design, Assembling and dismantling is very easy

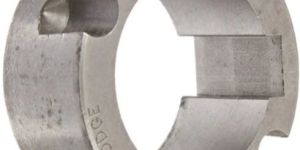

Taper Lock Bushes offered by us can be availed by our clients in various options as per their specific needs. Appreciated for their ease of installation & removal along with compact & lightweight assemblies, these bushes have enabled us to gain utmost level of customer satisfaction. Moreover, these products can be easily interchanged for variegated industrial applications. Further, these bushes are offered at competitive prices to our prestigious patrons.

We are a quality-committed organization, engaged in manufacturing, supplying and exporting Taper Lock Bushes. Taper Lock Bushes are used to enhance the clamping force, ensuring pulleys or couplings to be mounted on shafts. Taper Lock Bushes are made of stainless steel and other metals that assure high compressive strength, resistance against corrosion and longer service life. Features High grade materials used Provide excellent clamping force Durable Specifications Material : Cast Iron Largest bearing pressure : 140 N/mm2 Temperature Range : -195-280oC Highest sliding speed : 5 m/s Friction coefficient : 0.03-0.20 Allowable highest PV value : 4.3 m/s Allowable highest PV valve : 50 m/s

We offer a wide range of Taper Lock Bush in market. The Taper Lock Bush that we supply is made from high quality raw materials making them durable and highly efficient in performance. The Taper Lock Bush is available in different specifications as per the requirements of the clients. The Taper Lock Bush is accessible at the market leading price from us.

Pump Pulleys. Offered pulley is fabricated using finest quality raw material as per the international parameters. Our provided pulley is known for the features like durability, easy handling, light weight, dimensional accuracy and long service life. To accomplish diverse requirements of our valued customers, we offer this numerous designs and sizes. This is broadly used in multiple industries for the fabrication of heavy vehicle parts.

We are offering taper lock bushes easy and quick 'shrink fit' eliminates precision taper fitting keys interchangeable between many products convenience in dismantling, maintenance and component replacement.

Easy and quick 'Shrink fit'Eliminates precision taper fitting keys,Interchangeable between many products,Convenience in dismantling, maintenance and component replacement

Application Allow easy installation application for any rotating parts (Rotors, Pulleys, Sprockets, Impellers) to a shaft. Approx weight in kg for a minimum bore size A taper bushing is deigned by 4 digit representing two numbers, The first numbers represent the maximum bore size ( in Inches), The second numbers represent the bushing length( In Inches). For example : A 1008 has a max bore of 1.0" and total Length is 0.875" Installation – Remove Do not use lubricants or anti seize compounds on bushing and hub mounting area. Quick installation Insert bush in hub with align drilled holes of bushing with tapped holes in hub. Greasing thread and point of grub screw or in cap crews greasing threads and under head. Insert screws through tapped holes in pulley hub and thread loosely. Position assembly on shaft and tighten screws progressively and uniformly until obtain fully secured grip. After drive has been running under load for a short time stop and check tightness of screws. Fill empty holes with grease to exclude dirt. Fast Remove Remove screws from hub and thread in to tapped holes in bushing, tighten alternately until bushing free from hub. Remove assembly from shaft. Tapered precision fit Precision machining of the tapered bore in the component the tapered mating surface of the bushing insures a snug, precision fit between rim and bushing. Fully interchangeable with other TB Bushings As in the case of Derk Taper bushings & pulleys also conform to standardize in dimensions, because of this feature and stock bushing may be interchanged with the same size bushing. Important Reminder All operational power transmission products when used in a drive are potentially dangerous and must be guarded by the user as required by applicable laws, regulations standards and good safety practice. Bushing Material Taper bushing material close cast iron FG20. Spheroidal graphite (S.G.) iron for higher stress application. As per customer requirement.

Manufactured under the guidance of experienced Quality Experts and Production Managers, these Taper Bushes are produced using the best quality material. We are ranked amidst the renowned Manufacturers, Exporters and Suppliers of Taper Bushes from Kolkata- West Bengal. Dimensional accuracy and high durability are the highlights of these Taper Bushes. Raw Material Used : Asbestos with graphite Used In : Boiler parts

Main Benefit of using Taper Lock Bushes can be extended to include components which have a parallel bore by incorporating Taper Lock Adaptor, Taper lock Bold on Hub of Taper - Lock Weld on Hubs.

We are offering ceramic both taper bushes. both taper bushes offer the high tensile range of both taper bush. Broadly demanded by our clients spread across the country, this taper bush is tremendously appreciated for its robust construction, corrosion resistance, high durability and excellent performance. Our offered bush is developed under the supervision of our skilled technocrats using superior quality components and latest technology. To fulfill the wide demands of our valued clients, we offer this in different specifications.

Taper Bush, Belts, Chain Couplings, Flexible Coupling, Fluid Coupling

We Offer Flange Taper Bush Qd.

Taper Bushes, Cast Iron Castings, Flexible Coupling

Taper Bush, Chip Conveyor, Flat Belt Conveyor, Stainless Steel Belt

Taper Bush, Deep Groove Ball Bearing, Plain Ball Bearings, Rubber Cot

Taper Bush, SWR Rubber Rings, Shower Rubber Washers, Flush Cock Seat Washer

Taper Bush, Jaw Coupling, Solid Pulley, Rope Pulley, Taper Bush Adapte

Taper Lock Bushes, Coupling, Pulley, Shaft Mounted Gear Boxe
