Teflon Cables Dealers

These PTFE Multipairl cables can withstand a wide temperature range from -65 Degree C to + 250 Degree C. They are chemically as well as environmentally stable. They match the requirements as per JSS-51100/MII-C17. PTFE co-axial cables (RF CABLES) are for use in Military, Telecommunication & other High reliability Equipments.

Contact Binani Wax Udyog to avail a huge ensemble of excellent quality Teflon Cables. Teflon Cables are used for a wide range of applications right from insulation to jacketing, in various types of lan and coaxial cabling. Our Teflon Cables are available as pellets or as stabilized aqueous dispersions and offer an excellent combination of properties for wire and cable applications. Low coefficient of friction, heat resistance exceptional dielectric properties and low flammability are some of the prominent features of the Teflon Cables offered by us.Features Low flammability Exceptional dielectric properties Heat resistance Flexibility Low coefficient of friction Nonstick characteristics Negligible moisture absorption Chemical inertness Performance at temperature extremes (-200oc to 200oc) Weather resistance

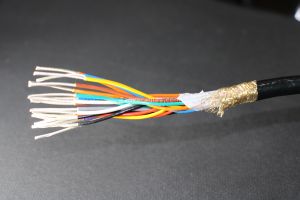

We are offering ptfe multicore cables multicore cables with twisted pairs (as per relevant jss or as per your specifications ) are available with or without shielding & with ptfe jacket, upto 80 cores.

PTFE hook up wires are proofed against Fire, Chemicals, Acids, Sunlight, Moisture & Corona. They have superb temperature constancy suitable for use from (-) 65 Dig. C to (+) 200 Deg. C for silver plated and (+) 260 Dig. C for Nickel plated wires. They adapt to a wide-spanning frequency range (DC to above 10000 MHZ) and over wide temperature ranges.

Amco Electrical & Engineering Company introduces us as one of the noted Trader, Exporter and Supplier of Teflon Cable / PTFE Wire. The best quality of raw material in a perfect ratio is used to manufacture our offered cables. These cables are precisely tested for tested conductivity, tensile strength by our dexterous professional which helped us to come up with such distinct range. These cables are available in full range of sizes and shapes at industry-leading prices. Applications : Wiring of rotating machines: motors, alternators and generators. Wiring of stating machines: transformers, inducators, inverters or choppers. Special features are mentioned below. Inert to fungus and mold growth. Suitable for very wide frequency range (DC to above 10000 MHz). Excellent flex life and totally unaffected by out doors exposure for unlimited period. Specification : Temperature Range: – ve 65°C to +ve 260°C Colors : All 11 solid standard colors and Natural opaque. Bicolor and color Stripping is also available. Properties : Resistance to Fire, chemicals, Acids, Sunlight, Moisture and Corona Product Range : Hook – up Wires. RR Co-Axial Cables. Tri – Axial Cables. Multi Core Twisted Cables. Twisted & Shielded Cables. Twisted Shielded & PTFE /PVC Jacketed Cables. Double Shielded Cables Multi Pair Cables. Twin Parallel Balloon Wire. PTFE Tape. PTFE Hoses Operating Temperatures : PTFE Insulated Silver Plated Copper Wires – 650 to 2650. PTFE Insulated Nickel Plated Copper Wires – 650C To 2000C. Running Voltage : TYPE ET: 250 VOLTS AC RMS. TYPE E: 600 VOLTS AC RMS. TYPE EE: 1000 VOLTS AC RMS. General Characteristics : Low Dielectric Constant. Low Dissipation Factor (

We manufacture, supply and export PTFE Insulated Co-Axial Cable. PTFE Insulated Co-Axial Cable can withstand a wide range of temperature. PTFE Insulated Co-Axial Cable is chemically and environmentally stable. Further, PTFE Insulated Co-Axial Cable is manufactured as per JSS-51100/MII-C17. Moreover, PTFE co-axial cables (RF CABLES) are for used in varied industrial applications. Specification : Withstand the temperature ranging from -65 o C to + 250 o C. Used In MilitaryTelecommunicationOther equipment

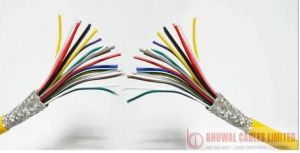

We manufacture PTFE Insulated High Voltage Cables that are capable of operating upto 22 KV AC RMS-50 KV DC working and are of supreme quality and are corrosion resistant.

Our company is trusted Supplier of PTFE Double Shielded Coaxial Cables from South Korea. The Double Shielded Coaxial Cables we make available are manufactured in compliance with set industrial norms. Buyers are free to place bulk orders of the Double Shielded Coaxial Cables with us and we ensure their timely execution.   Double (spiral strip-braid) Shielded type : Center Conductor : Silver plated copper (Strand or solid) Dielectric : Expanded PTFE - Taping Inner shield : Flat silver plated copper strip or Flat copper strip Outer braid : Round silver plated copper Jacket : FEP (Fluoroethylene)

We are offering ptfe high temprature cables. A blend of ptfe (teflon), fiber glass, glass mica and asbestos insulation with or without armoring of stainless steel (wire mesh type) multi core cables available up to - 70 sq.mm x 4 core for a regular temperature of 600 deg. Cent.

Used in high temperature zones, acidic zones & chemical areas. Conductor : annealed plain copper (apc) silver plated copper (spc) nickel plated copper (npc) insulation : ptfe fep shield : annealed plain copper (apc) silver plated copper (spc) sheath : ptfe fep standard applicable : mil - 27500 - g - us military standard jss - 51038.2002 - indian defence standard jss - 51034-92 general technical parameters : min. Bending radius : 10 x cable dia temperature range : -650c to +2600c insulation resistance : 2 gohms x kms radiation resistance : 3 x 107 cjkm tensile strength : 250 kgcm2 insulation radial thickness : et - 250 v ac rms grade - 0.15 mm nominal e - 600 v acrms grade - 0.25 mm nominal ee - 1000 v acrms grade - 0.40 mm nominal

Madras Cable Corporation manufacturers Teflon cables that are made from world’sBest quality Teflon. Teflon cable and thermocouple cables are best known for highQuality standard.. . These Teflon cables are widely used in numerous applications in various industries such as oil & gas,petrochemicals,military, railways, aircraft,defence, satellites Electronic test equipments,Computers,Electronic Equipments For Aircraft, Marine, Radar, Satellites,Aerospace Research, power Control Equipment,Lead Cells & Pressure Transducers,Heat Sensing Leads, Atomic Power Stations,High Performance Electrical Machines,Furnace & Oven Wiring,High Temperature heat Exchanges,Refrigeration Equipments,Lifts,Infra red sensing equipments Etc.....Our range of Teflon cables includes ptfe cables, teflon coated cables, teflon ribboncables, teflon wires, ptfe insulated cables and teflon coaxial cables. • High Operating Temperature -65°C to 260°C• Low Dielectric Constant• Low Dissipation Factor (< 0.0003)

Our team of experts is capable of entertaining the voluminous orders in shortest time possible. Backed by a productive network, our company is able to cater to buyers all over Pune(India) and other Pune(India)s with ease.   Our Offerings  A wide range of cores available - 2 core to customer requirement. Conductors used- Plain, tinned, silver plated and nickel plated copper available. Braided/ Shield- Silver plated copper wire braiding; nickel plated copper wire braiding available. Screened cables also supplied on request. A very wide range of customized cables available according to customers requirements. Advantages of PTFE  cables - Excellent insulation properties like - High dielectric strength, Low dissipation factor, low dielectric loss, low dielectric constant & unaffected by exposure to moisture, humidity or liquid conditions. High efficiency in extreme temperatures. Wide working temperature range from -65oC to +260oC. Unaffected by virtually all the chemicals. Complete insolubility in all known solvents below 300oC.  Excellent chemical, thermal and electrical stability. Does not break at very high or very low temperatures. Excellent resistance to UV radiation, Fungus growth and stress-cracking. Extremely space saving due to smaller size and lighter weight. Areas of Applications/ End use : Electronic Test Equipment Communication Equipment (mobile and manpack wireless sets) Equipment for Aircraft, Radar, Navigation, Electro-mechanical applications, Satellites, Research Equipment for Aerospace, Navy & Meteorology Control Equipment for Atomic Energy, Satellite Launching, Ground Control, Reactors and Process Control, Telephone Exchange, Lifts Computers, Flight simulators High performance motors, transformers and rectifiers Infra-red sensing equipment Thermo-couple and compensating cables Air-field lighting equipment High temperature lighting fittings (sodium lamps etc.) Refrigeration equipment Load cells and pressure transducers Electro-medical/Neuro-surgical equipment High temperature control valves Furnace and oven wiring

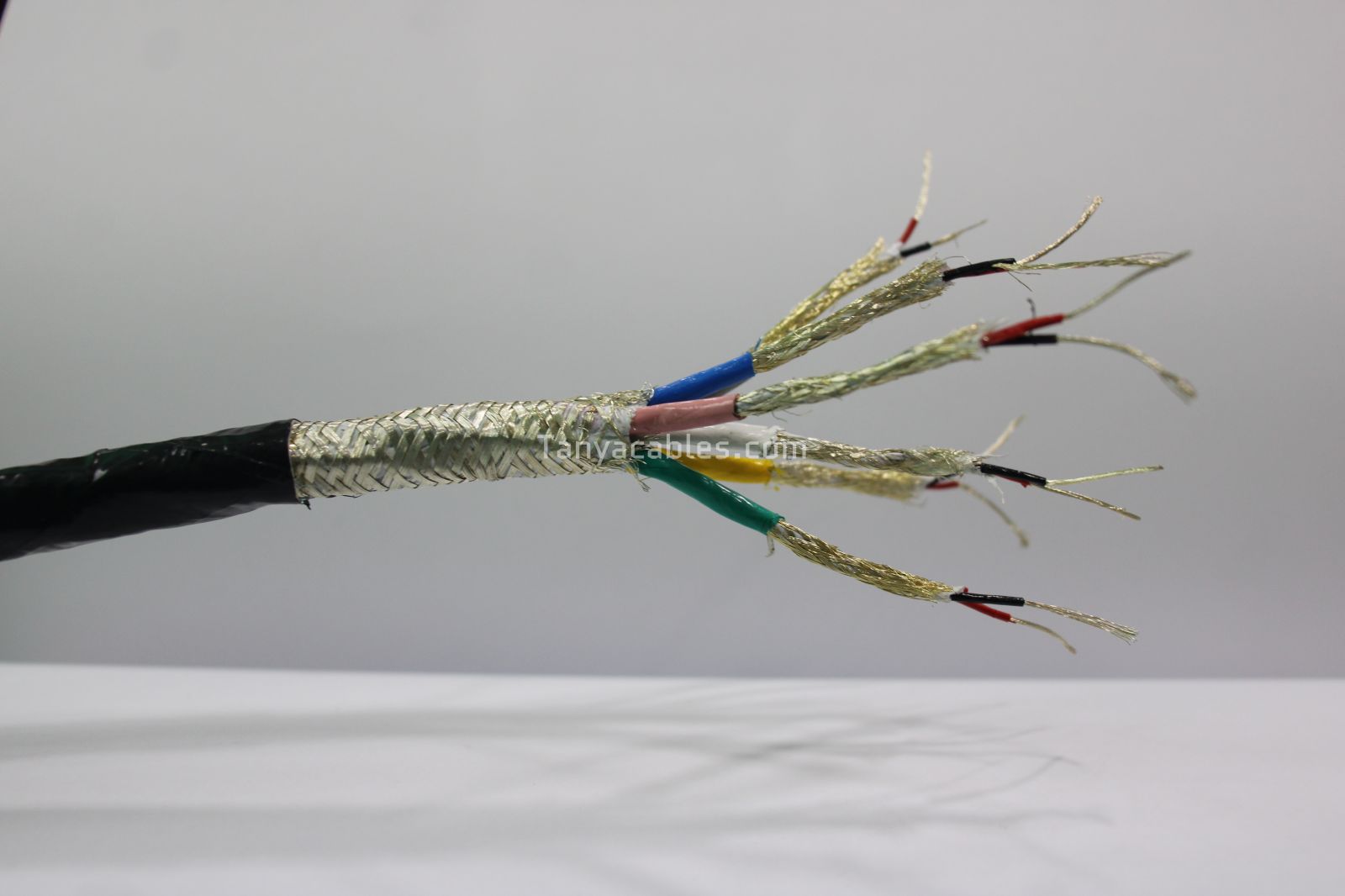

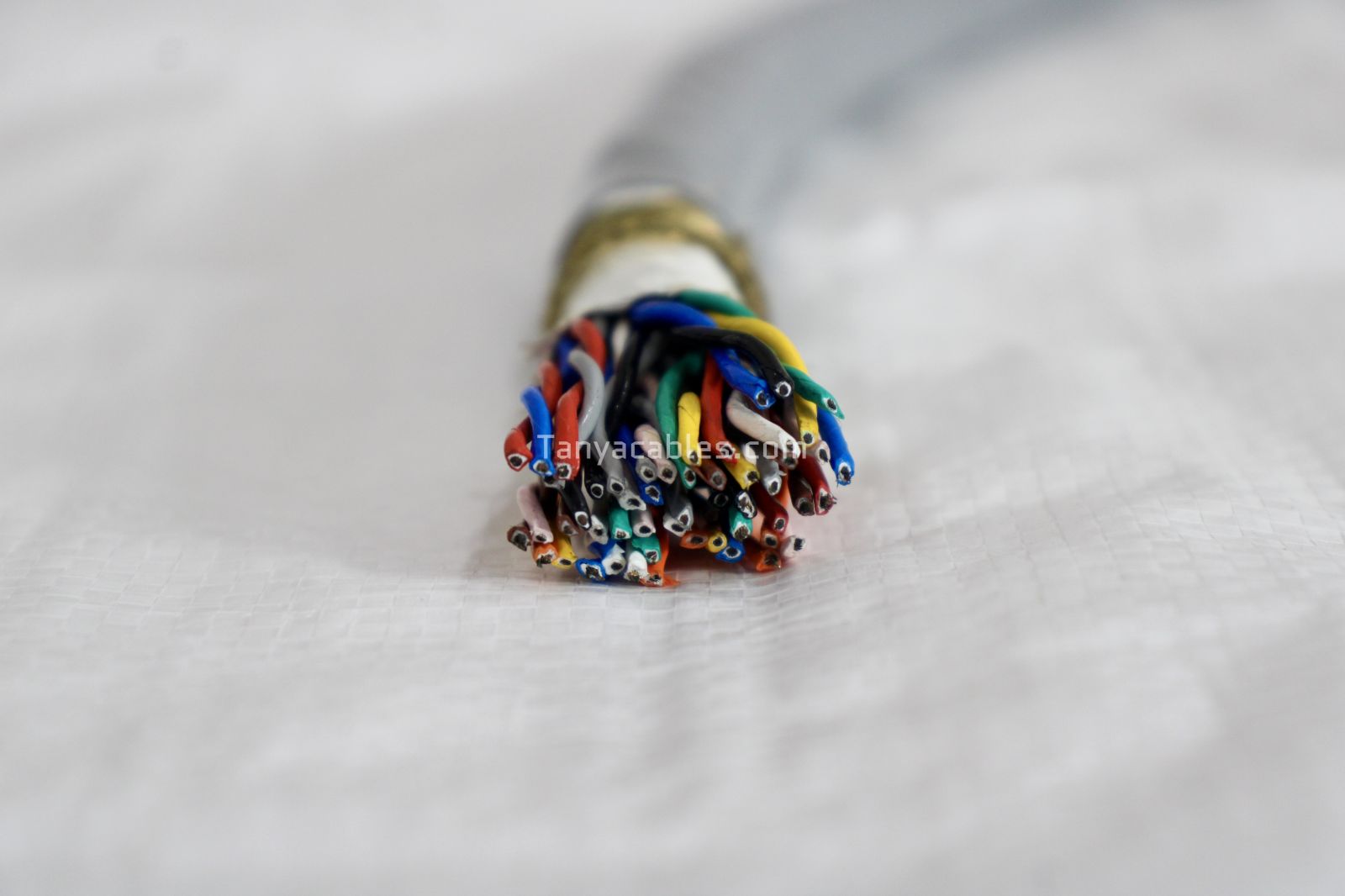

Ptfe insulated multi core cable ptfe insulated multi-core cables are mainly used for high-reliability and high-temperature interconnections for signal and control applications. A two core cable is generally used in signal communication because of the property of 'common-mode cancellation'. We offer a number of corespairs combined into one large cable. The multi core cables can be shielded or unshielded with ptfe or pvc jackets. Type : multi core conductor : singlemulti strands annealed copper, npcspc insulation : p.t.f.e. Spirally wrapped & fused shielding : spcnpctpc, glass fiber yarn braiding laying & isolator : individual or in pairs, ptfe voltage grade : 250v 600v 1000v as per customer requirement. Temperature : -65°c to 200°c (silver), -65°c to 260°c (nickle plated) outer jacket : ptfe standard applicable : jss 51038 & mil-dtl-27500h core colour : all single solid color bi colors as per customer requirement. Size : as per customer requirement outer jacket xlpepvcfrlsglass fibre (optional) the wipe hotwire india thermal equipments (p) ltd.
