Titanium Anodes Dealers

We offer platinised titanium anode. “tifab” offer platinised titanium mesh plate anode for gold rhodium plating, platinised niobium mesh plate anode for aluminum hard chrome plating. The coating thk will be 2.5 micron – 10 microns as per party’s requirement.

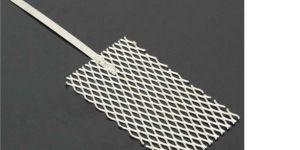

Description :- This High quality platinized titanium anode is designed to use in electro plating baths for Rhodium and Palladium Plating or acid-based Gold solutions. Used by Professionals.

Titanium Anodes are designed for the nominal life of 6 years & plus MMO coating is the excellent electrical conductor and giving good chemical stability, when it will be coated on Titanium base even in very low PH environments. Titanium MMO Anode remains dimensionally stable over time. Direct current transfer is accomplished through the mixed metal oxide catalyst, which is highly conductive and fully oxidized so that higher current outputs are possible (approximately 10 amps ft2 in fresh water and over 50 ampsft2 in salt water). This two part composition allows for a maximum current density and it can be used in sands with various levels of moisture and salt contents, acid environments with extremely low pH levels (under 1) and high chloride concentrations; it can be designed to provide effective protection for 6 years and more.i.e. the mixed metal oxide coating on the anodes has an almost negligible consumption rate of less than 1.0mg amp-yr.

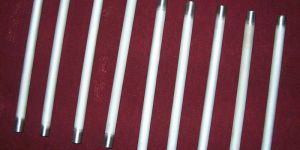

Platinized Titanium Anodes are available in forms like sheet, plate, mesh, rod, strip, and tube as per customer request, design, drawing and specifications. Platinum is having very good physical and chemical properties such as high corrosion resistance, good thermal conductivity and good catalytic nature. But it is expensive material and cannot be used in its solid form as an Anode. A thin layer of Platinum over a high corrosion resistance substrate is provided to make its less expensive as Platinum is very costly in solid form. Titanium and Niobium are having very good mechanical stability and uniform current distribution property. We coat Platinum on a specially treated Titanium or Substrate by means of Electro-depositing (Plating) process to manufacture Platinized Titanium Anodes. Our Platinized Titanium Anodes are economical and retain the superior Physical and Chemical properties of Platinum. Thickness of Platinum coating varies from 0.5 micron to 15.0 microns. Further, we are one of the leading Manufacturers, Suppliers and Distributors of Platinized Titanium Anodes. Applications ElectroplatingCathodic protectionElectro-dialysisElectroextraction processElectrolytic production of Sodium HypochloriteSeawater applicationWater and Waste Water treatment. Quality Standards ASMEASTMDINBS

This High quality platinized titanium anode is designed to use in electro plating baths for Rhodium and Palladium Plating or acid-based Gold solutions. Used by Professionals.

. Suitable for either Single Phase AC inputThree Phase AC input DC operated unit. 2. Available upto 300A DC output. 3. Offered in Natural Forced Air cooled Oil Cooled system. 4. Enclosure protection to suite the area of installation ( IP44-56). 5. Microcontroller based control system with mode of operation which include i.Manual Mode ii.Automatic Mode iii.AVCC Mode 6. System can be offered with inbuilt interrupter, SCADA interface and Data logging as per requirement.

TITANIUM ANODE FOR JEWELRY PLATING   Description :- This High quality platinized titanium anode is designed to use in electro plating baths for Rhodium and Palladium Plating or acid-based Gold solutions. Used by Professionals.

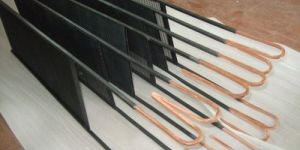

Titanium anodes are manufactured by TiTaN as Chlorine production titanium anodes, Caustic Soda production Ti anodes, hypochlorite generating titanium anodes, water disinfection titanium anode,Precious Metal plating titanium anodes, ICCP Ti anodes, Chlorate production titanium anodes and more.

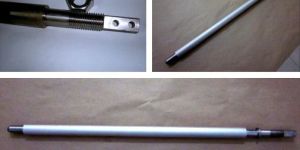

Platinised anodes replaced the conventional lead anodes a few decades ago. The platinised anode's long life, dimensional stability and shape forming to any geometry (fabricated into any shape) allows the plating chemistry to be easier to manage and maintain. They can be easily removed and or replaced whenever necessary. platinised anodes ( pt anode ) are produced by coating platinum ( pt ) on a specially treated precious metal ( titanium niobium tantalum zirconium ) substrate by means of electrodeposition process. They are economical as well as it retains the superior physical and chemical properties of platinum. According to the substrate material used, the platinized anodes are classified as 01 platinized titanium anode 02 platinized niobium anode 03 platinised zirconium anodes 04 platinised tantalum anodes

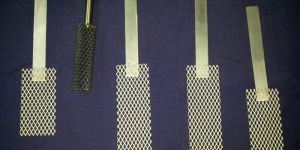

We offer the best quality on market to our customers. As a Manufacturer and Supplier, we proudly present Activated Titanium Anodes. We undergo a meticulous manufacturing process under strict supervision of a team of skilled professionals to ensure we deliver nothing but unparalleled quality. Our quality team allows us to provide a quality that is in compliance with the standards and parameters set by the industry. Description : The platinized titanium anodes are used as insoluble anodes in modern electroplating bathes for hard chromium plating of rotogravure cylinders. Chromic acid solutions which are containing sulphuric acid are used as electrolyte. For hard chromium plating of rotogravure cylinders semicircular anodes respectively bent conforming anodes, which adapt very good to the cylinder shape, are used. In principle there are two different types of anodes (A and B) with one or two bows. The platinized anodes basically consist of titanium and are offered in three different types of mesh rib (G, N and F) in mesh shape. Platinised Titanium mesh / plate Anode for Gold Rhodium plating, Plate anode for Hard chrome plating. The coating thickness will be 1.5 micron  5 microns as per partys requirement. We also manufacture super Platinized Titanium Anode as per special sizes and shapes provided by our clients.   For More Information Please Visit On :

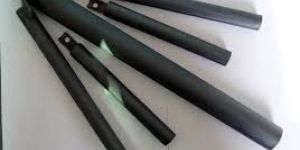

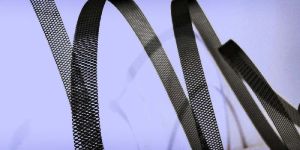

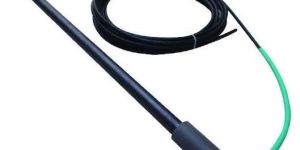

Electrodes (Anodes) consist of a basic component, which is responsible for mechanical stability and uniform current distribution. As Titanium has all these characteristics, insoluble electrodes are manufactured with titanium as basic component. The excellent stability of mixed metal oxide (MMO) coated titanium anodes have been used for almost 30 years. MMO coated titanium anodes are used in various environments such as seawater, brackish water, fresh water, carbon backfill, and concrete. However, many structure owners and CP engineers use MMO coated titanium anodes only specify the sizes without understanding the characteristics, limitations and evaluation method of the anodes. There are many different size and shapes are available, wire, ribbon, mesh, expanded mesh, rod, tubular, disc, probe etc.

Description :- This High quality platinized titanium anode is designed to use in electro plating baths for Rhodium and Palladium Plating or acid-based Gold solutions. Used by Professionals.  :-This versatile titanium Anode designed to use in electro plating baths for Rhodium and Palladium Plating or acid-based Gold solutions. High quality manufactured and durable.

Platinized Titanium Anodes, Plating Equipments, Rectifiers, Watchglass Cover

MMO Titanium Tubular Anodes, Aluminium Anodes, Cathodic Protection Erectio

Titanium Anod

Titanium Anode, Storage Tank, Air Preheater, Ventuary, Plug Screw Conveyo

Titanium Anodes, Heat Exchangers, Electroplated platinum anodes-epm

MMO Coated Titanium Anode, Heat Shrink End Cap, Zinc Anode

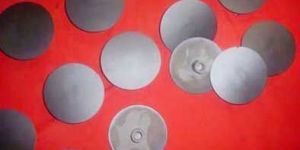

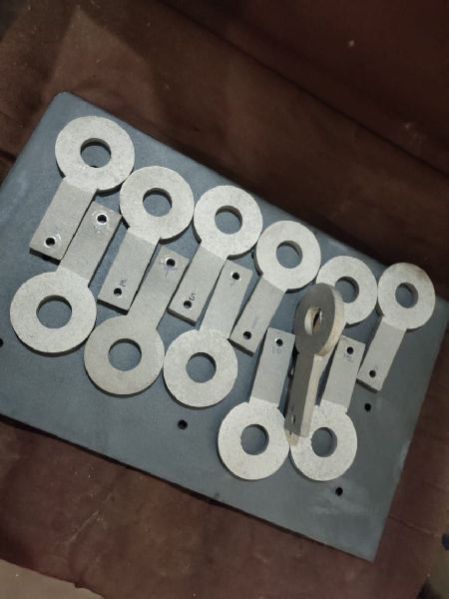

Titanium Disc Anodes, Chemical Process Equipments, Nickel Chromium Allo
