Toroidal Transformers Dealers

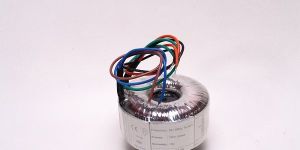

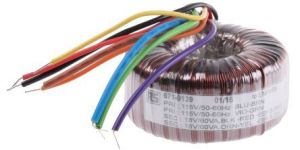

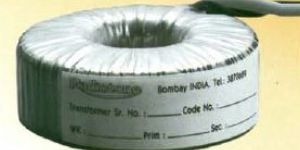

Matchless excellence is showcased by the Toroidal Voltage Transformers, which we provide. We are amidst the renowned Manufacturers and Suppliers of the Toroidal Voltage Transformers, located in Thane (Maharashtra). These Toroidal Voltage Transformers are acclaimed for their long-life and ease-of-installation. In addition, we provide these Toroidal Voltage Transformers at reasonable rates. Minimum Order Quantity : 500 pieces

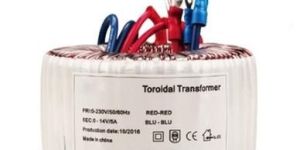

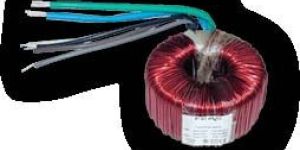

The Toroidal Transformers are manufactured by using High Quality Grade CRGO and CRNGO cores as per customers specification. Toroidal Transformers work more efficiently with low Stray Magnetic field.

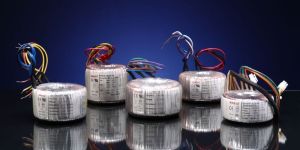

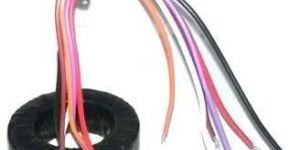

We are functioning from Bangalore(India); we are capable of serving the clients in a short time span. We have a team of expert quality analysts that stringently checks each and every stage for ensuring quality products at buyer's end. The Toroidal Transformer, supplied by us, is manufactured in compliance with the established industrial standards. Our Toroidal Transformers are designed using the cutting-edge technology.

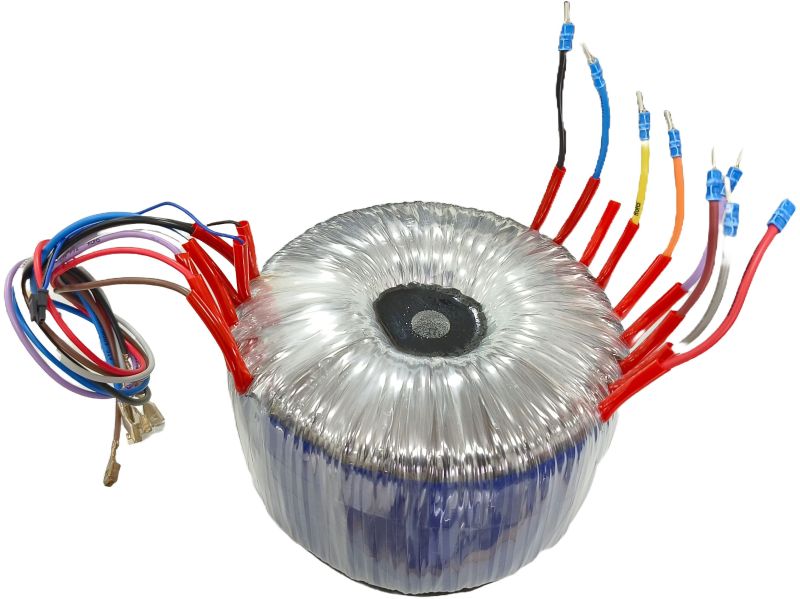

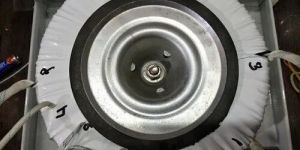

The company stands tall among the Manufacturers & Suppliers of Toroidal Transformers. The Toroidal Transformers offer many advantages over a conventional laminated transformer. Toroidal Transformer has a round shape with no air gaps and with the primary and secondary windings uniformly distributed around the core, they "lock in" the magnetic field and hence, they are very quiet and efficient. Toroidal Transformers meet today̢۪s requirements for smaller, more efficient, quieter and safer products and they are being accepted in an increasing range of electronic and electrical equipment. With Toroidal Transformers having smaller dimensions, lighter weight and low stray magnetic fields, you can build more compact, lower cost quality products without sacrificing performance. Basics of Toroidal Transformers Toroidal Transformers are built around a ring-shaped core, which, depending on operating frequency, is made from a long strip of silicon steel or permalloy wound into a coil, powdered iron, or ferrite core. A strip construction ensures that the grain boundaries are optimally aligned, improving the transformer's efficiency by reducing the core's reluctance. The closed ring shape eliminates air gaps inherent in the construction of an E-I core.The cross-section of the ring is usually square or rectangular, but more expensive cores with circular cross-sections are also available.The primary and secondary coils are often wound concentrically to cover the entire surface of the core.This minimizes the length of wire needed, and also provides screening to minimize the core's magnetic field from generating electromagnetic interference.

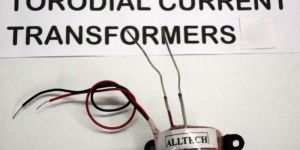

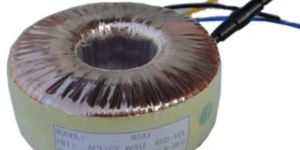

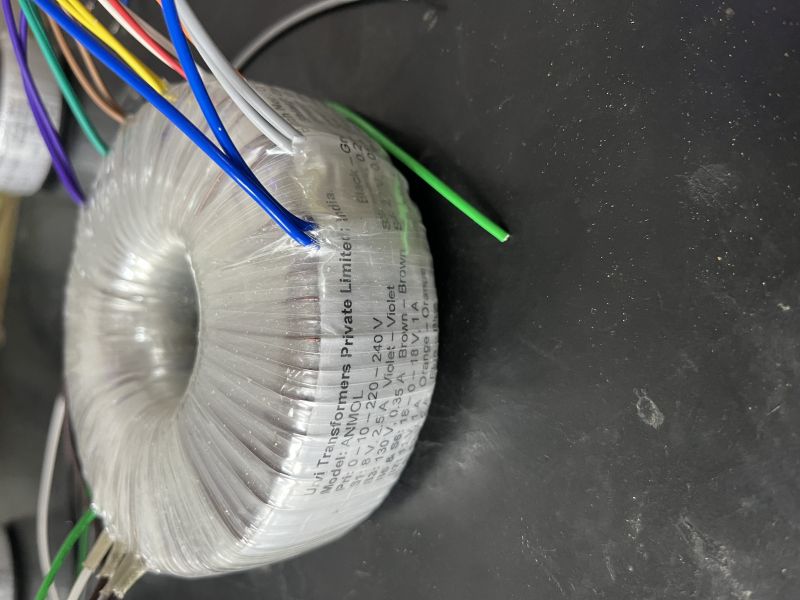

Toroidal Transformer offered by us is gaining more and more acceptance due to its unique features and advantages. It is being increasingly preferred over the conventional E&I transformers because of its low weight & height. Its low magnetic stray field & the low mechanical hum are the most advantageous features in certain applications. The Toroidal Transformer that we offer is 24 hours stand-by equipment. We are enlisted among the reputed Manufacturers, Exporters and Suppliers of Toroidal Transformer from Bihar, India.

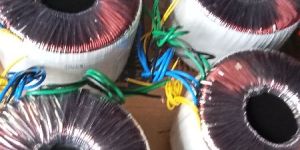

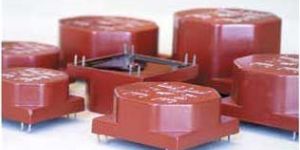

We make available the Toroidal Transformers that are manufactured in conformation to the set industrial standards. The highly sophisticated Toroidal Transformers are widely used for supplying power both for domestic and commercial usage. Clients can avail from us Toroidal Transformers in secured packing at market leading prices. Features Sturdy constructionDimensional accurateOptimum power transmissionLesser power loss in distributionBetter regulationLong service lifeReliable Applications Voltage StabilizersInvertersUPSPower supplies

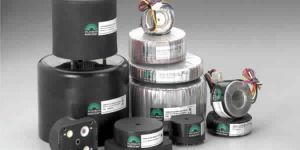

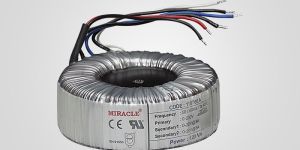

High Electrical efficiency. Small size & light weight Low stray magnetic fields Reduced Transformer humm. Low operating temperature. Easy to mount.

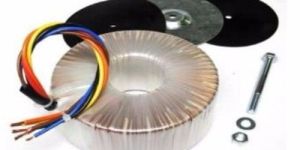

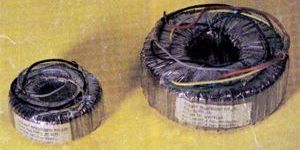

Windmill / Solar & Energy Saver ApplicationThese transformers are silent in operation, compact in size, less weight and are ideally suitable 24/7/365 operation due to very low no load losses. Isolated (OW) type• Capacity 50VA to 12 KVA• Three Phase Assembly• High Efficiency Energy Saver Transformers Auto Type• Capacity upto 30 KVA• Three Phase Assembly• Efficiency of 99% is possible in Energy Saver Application     Torroidal Transformers are gaining more and more acceptance due to its unique features and advantages. In fact, because of its low weight & height it is being increasingly preferred over theconventional E&I transformers. In certain applications, its low magnetic stray field & the low mechanical hum are the most advantageous features. The low no load losses of the Torroidal Transformer are of great value in 24 hours stand by equipment. This transformer being custom built proves very economical in large production batches. Dual out-put voltages can be provided if desired. It is also possible to have primary suitable for 115Vor 230V AC, 50Hz.  A Thermal cut off can be incorporated as a special feature at an extra cost. Our manufacturing experience of number of years has given us extensive knowledge & insight in designing the Torrodial Transformer. We use high quality material inputs in order to maintain the quality. The INSULATION between the primary & secondary winding is a fundamental safety feature,and to ensure this we use only,BIS (Bureau of Indian Standards) approved insulating material. Special attention is given to insulation resistance, Hi-pot test & creepage distances.

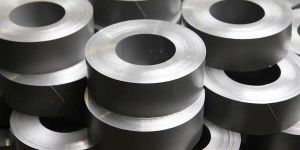

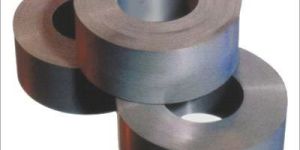

We are considered as one of the leading Manufacturers, Suppliers, and Exporters of Toroidal Core Transformer. Our Toroidal Transformer Core is fabricated under the guidance of experts to ensure its premium quality and dimensional accuracy. We conduct a special process with high degree of precision to manufacture Toroidal Transformer Core to meet the diverse needs of Reactors, Chokes and so on. Manufacturing process The manufacturing of strips wound cores is a specialized process, which requires a high degree of precision. These cores are manufactured from selected coils of crgo electrical steel to yield closely controlled electro-magnetic characteristics and dimensional accuracy. Cores are wound after slitting is done as per the required shape, on the core winding machine. The winding machine automatically stops when the pre-decided dimension is reached. The start and finish ends are firmly spot welded. After winding, the cores are stress-relief annealed to restore the magnetic properties. The cores are bonded where necessary, to provide increased firmness. All cores are spray painted or varnished (as required by customers) and are tested for magnetic properties. Testing Strip wound cores, unlike strip lamination, constitute a complete product and every core must meet the specified performance requirement. Consequently, quality control in the manufacturing of wound cores is vitally important at every stage of process. Dimensional tolerances The coils of crgo steel from which the cores are manufactured are carefully selected on the basis of tests carried in our laboratories to ensure that the correct grade of steel is used. Strict checks are made at every stage from winding to the final stage of spray painting & varnishing to ensure that the finished product is of a high quality. Moreover, each core is subject to inspection and electrical tests at BSP to make certain that our customers are provided with the specified performance requirement. Apart from being fully equipped to meet the exacting standards of testing required, BSP possesses the technical knowhow, the research facilities and the necessary raw-materials. Inside Diameter (d)Outside Diameter (d)Height (h)OverUptoTol.OverUptoTol.OverUptoTol.30100+ 1.230100+ 1.50150+ 1.0-0100150+ 1.5100200+ 2.0150200+1.2-0150200+ 2.0200400+ 3.0200500+2.0-0200400+ 3.0400800+ 4.0500+3.0-0400700+ 4.0------ Characteristic It is toroidal and wounded in the same direction of closed flux path, no magnetic leakage, so its magnetic performance is best of all. The coil winding is easy and high efficiency with toroidal winding machine. Application Used in 50 Hz and 400 Hz transformers Current transformers Reactors Chokes Magnetic components of electronic equipments

Avail from us an impeccable range of Toroidal Transformers that finds applications in various industrial areas. Our array of Toroidal Transformers is manufactured using automatic special purpose toroidal-winding machines. These transformers are highly in demand in the market, owing to their high quality and optimum efficiency. Besides, our range of Toroidal Transformers can be availed in varied dimensions and sizes at the most reasonable price. Preferred for : Quieter operationCorrosion resistanceLow stray magnetic fieldsLight weightDimensional accuracyNo air gapsCompact design Benefits : Reduction of assembly timeSavings in copper Applications : Medical InstrumentsPower SuppliesAudio/Video EquipmentSecurity Systems

We manufacture and supply precisely engineered Toroidal Transformers. Made from high-grade parts and components, our Toroidal Transformers are accredited for sturdy construction, flawless performance, excellent finish, minimal maintenance and longer service life. We make available our Toroidal Transformers at the most competitive rates. Also, we ensure timely and safe delivery of the orders owing to our fast & modern transit facilities. About Toroidal Transformers :Toroidal Transformers are passive electronic components, typically consisting of a circular ring-shaped magnetic core of high magnetic permeability material such as iron powder or ferrite, around which wire is coiled to make an inductor. Toroidal coils are used in a broad range of applications in AC electronic circuits, such as high-frequency coils and transformers. An inductor with a closed-loop core can have a higher magnetic field and thus higher inductance and Q factor than similarly constructed coils with a straight core (solenoid coils). This is because the entire path of the magnetic field lines is within the high permeability core, while in an inductor with a straight core the magnetic field lines emerging from one end of the core have a long air path to enter the other end. In recent years, the use of toroidal (donut) shape cores has increased greatly. The advantage of the toroidal shape is that due to its symmetry the amount of magnetic flux that escapes outside the core (leakage flux) is minimum, therefore it radiates less electromagnetic interference (EMI) to nearby circuits or equipment. EMI is of increasing importance in modern low power, high frequency electronics. A side effect in torus-shaped inductors is that, because the winding surrounds the central hole and the current traverses the winding in a circular direction, there is a weakpoloidal magnetic flux that threads the "donut hole" in the center of the torus, in addition to the main toroidal flux direction parallel to the core of the torus.

After years of hard work and experience, we have become the most reliable manufacturers, and suppliers of Toroidal Transformer based in Delhi, India. We have a team of workers who ensures that the Toroidal Transformer is handled as per global standards, and is of the highest quality. The Toroidal Transformers are light-weight, easy to install, and promise noise-free operation. While the Toroidal Transformers are available in standard colors, these are made up of Crgo Core, and Copper.   Specifications : Shape : oblong Size : Compact-sized Color : Standard colors Material : Crgo Core, Copper Installation process : Easy   Features : Easy to install Light-weight Noise-free operation

we are one of the leading manufacturer, supplier and exporter of wide range of ToroidalTransformer in Ahmedabad, Gujarat, India. The offered product is manufactured by our expert professional utilizing high grade copper, other magnetic materials and advanced techniques. These Taroidal Transformer used in large majority in the application where the lower power is required. Used in anapplication in industrial electronics as amplifier, charger, rectifier and other devices. This Transformer can be square, rectangle or circular shape. Available in various sizes, shape according specification given by our clients. Moreover, these Transformers can be available at a very nominal rate. Key Features Small in size Compact design High electrical efficiency Effectively deployed heating Low noise Low maintenance cost Application of AC Synchronous Motor Telecommunication system Automotive electronics Industrial Electronic Power Distribution equipment Audio system

A toroidal transformer has ring type core made from cold rolled grain oriented ( CRGO ) Silicon steel strip without any joints and annealed for stress relief after being wound. These wound cores are then suitably insulated by class B insulation and the winding of copper wire is usually done by winding machines.The core being continuous, without any air gap and the path of flux being along the direction of grain orientation, gives an opportunity for optimum use of flux density, besides very low iron loss and exciting current. The primary and secondary windings are closely linked magnetically. Therefore the leakage fluxes and reactance are negligible. A toroidal transformer has its winding spread over the entire periphery of the core. This results in largcr area for dissipating the heat. Till recently all such small low voltage type transformers needs were met almost universally by traditional or conventional El transformers. Now materials are easily available, so it has been possible to develop 'LOW VOLTAGE TOROIDAL TRANSFORMER' giving a whole set of advantages and wide range of applications in place of conventional transformers.
