Transformer Radiators Dealers

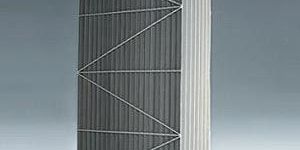

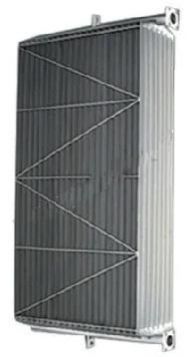

We manufacture pressed steel radiators for distribution & power transformer cooling. Our pressed steel radiators for transformers includes flange type pressed steel radiators, direct wieldable type pressed steel radiators, transformer panels. Besides standard products, we also design and manufacture customized pressed steel radiators to meet client’s special requirements. Our standard pressed steel radiators meet “ieema” specifications. all radiators after assembly undergo a full dimensional check. All radiators are pressure tested at 2.5 kg/cm2 individually under water .after painting the paint thickness is measured on all radiators. Paint peel off test is performed on randomly selected radiators.we provide continued quality guarantee to all our customers. features : high qualityeffectivecustomized designslow on cost

• Brand Name: GFI

We are the main supplier of this product.

• Feature: Premium grade, Rust proof, Flawless functionality, Cost efficient.

Mfg. And supply of pressed steel type power and distribution transformer radiator. Width wise 300mm , 520mm and length wise 600mm to 4500 mm center to center.

• Epoxy Primer: Red
• Epoxy Primer: gray

we are manufacturing power transformer Radiator and distribution Radiator. Our Transformer Radiator and distribution Radiator is well coated with Red-Oxide and as per customer demand.

The company has created a strong foothold in the business of manufacturing and exporting Pressed Steel Radiators of world class quality. Widely preferred over conventional radiators, the Pressed Steel Radiators with new circular embossing that enables the transformer oil to be distributed across the radiator at any level. This results in even heat dissipation over the total width of the element thus improving the heat dissipation and efficiency in comparison with other radiator types available in the markets. For the client�s convenience, we offer these Pressed Steel Radiators in customized specifications, at reasonable prices. Specifications : Centre distance 500 mm to 3500 mm & width 300 mm & 520 mm

• Size: Standard
• Type: Flange Type
• Material: Cast Iron
• Certification: ISO Certified
• Application: Agriculture
• Color: Orange
• Polishing: Polished
• Brand Name: Sonalika

• Fins/Tubes Material: CRCA
• Maximum Number Of Fins: 35 fins
• Centre Length: 3500 mm
• Width: 520 mm
• Finishing: Coated

With the help of our advanced engineering skills, we are able to provide a superior range of Electric Transformer Radiators. Our all-welded steel construction radiators are manufactured in compliance with the international standards for quality. The compact and sleek design of our range allows the clients to install it in limited floor space. Clients can avail our range in various specifications as per their requirements.

Gururaj Radiators is one of the leading manufacturers of Swan Neck Type Radiators. We fabricate these radiators using high grade CRCA Steel using latest technology. These radiators are in compliance with set industry standards. Our swan neck radiators are known for its high efficiency and performance Product Specifications:   Center Distance: 800mm to 3500mm   Width of Fin: 300 & 520mm   Pitch: 50 mm (as standard ), can be made as per customer specification   Pipe OD: 89 -114mm Features:   High efficacy & Durability   Customized availability   Compact design & Easy installation   Radiator is pressure tested to ascertain leakages in the water tank at a pressure of 2.0 Kg/cm2 for a period of 30 minutes.

We are offering Pressed Steel Radiators

• Feature: Easy To Use,Low Maintenance,Efficient Performance
• Sizes: upto 3500 mm CC.

• Application: Automobile
• Features: Commendable resistance to corrosion, Impeccable design, Superior service life
• Center distance: 800 mm to 3500 mm
• Width: 226 mm, 300 mm and 520 mm
•  :

• Type: Customised
• Features: Long service life, Rugged construction, High strength
• Tube Type: Steel Pressed
• Application: Distribution and Power transformers
• Coolant Used: Water

We are a dependable source for Buying Pressed Steel Radiator. These Pressed Steel Radiators are offered in standard width and non-standard width as per the client’s customized requirements. The range of width offered in Pressed Steel Radiator is inclusive of 240mm, 300mm and 380 mm. Further, we are ready to handle bulk requirements for Pressed Steel Radiator as per the requirement of the clients.

We are offering pressed steel radiators in the national markets. The pressed steel radiators offered by us are made using high grade material and advanced manufacturing techniques. Our pressed steel radiators offer reliable and safe operations for a longer period of time. Besides, we provide pressed steel radiators at the most affordable rates.

• Type: Customised
• Features: Effective performance, High tensile strength, Durable
• Usage/Application: Industrial
• Center distance: 500mm to 3500mm
• Off set: 130-150-180
• Width of fin: 520 mm
• Pipe of: 89 to 114 mm

• Center distance:: 1200- 4000mm
• Width of fin: 300-520mm
• Pitch: 40-45-50mm
• Pipe od: 89-114mm
• No. of elements: 1 to 41
• Flutes: 8, 21

• Type: Customised
• Application: oil immersed transformer
• width of plates :: 310mm, 480mm, 520mm, 535mm

SPI Transformer Radiator is part of the SPI Group. The Group is engaged in manufacturing of Transformer Cores, Transformer Radiators and Steel Drums. Based in Ahmedabad, it has a state-of-the-art manufacturing facility that manufactures world-class products. The company is ISO 9001 certified. Extend Surface Radiator is a special cooling equipment which is used in large and medium power transformer and reactor. It can be directly connected to the flanger of the transformer and reactor or separately fixed on a support near the transformer and reactor.

• Pressed Steel radiators: As per DIN 42559 / BS EN 50216-6 / IEEMA 9 / 1990

We are offering pressed steel radiators. pressed steel radiators fg type ( refer bs en 50216-6 / din 42559) l = 500 ~ 3500 / w = 226, 300, 520 / fin thickness 1 mm / 1.2 mm , no of fins as per cooling requirement. we also manufacture fa, fr, ftt types as well as directly weldable types, as per client requirement

• Length: 800 – 4000 mm
• Width: 460 – 535 mm

Transformer radiators Use for power transformer radiator fin automatic production line, Full automatic and High quality.

• Feature: Highly durable, Corrosion resistant, Quality approved.
• Certification: TUV Stamp
• Brand Name: TEPL
• Tube Type: Seamed

The new circular embossing introduced enables the transformer oil to be distributed across the radiator at any level which results in even heat dissipation over the total width of the element thus improving the heat dissipation and efficiency in comparison with the radiator types available in the market.

• Features: Easy to install, Sturdiness, Resistant to corrosion
• Centre Distance: 500 - 3500 MM

We are offering our customers an excellent rage of Transformer Radiators. We are Manufacturer and Supplier of Transformer Radiators from Aligarh, Uttar Pradesh. It is a wide source of heat, may be used for heating or cooling, to its environment. Our Transformer Radiators find their use in automobiles, electronics, buildings etc. Transformer Radiators are available with us in various technical specifications. Customers can get our Radiators of Power Transformers at nominal rates.

• Application: Automobile
• Standards: IEEMA 9, Din 42559, BSEN 50216
• Width: 226 mm, 300 mm and 520 mm
• Center distance: 800 mm to 3500 mm
• Features: Impeccable design, Superior service life

Radiators in this case are manufactured with Stainless steel (SS304, SS316 and SS316L). These radiators are manufactured with both 1mm CRCA sheet and 1.2 mm CRCA sheet as required and centre distance varying from 600 mm to 4000 mm. Stainless steel radiators can be offered with and without paint.

• Application: Automobile
• Center distance: 800 mm to 3500 mm
• Width: 226 mm, 300 mm and 520 mm
•  :
