Triaxial Cell Dealers

Total stresses when measured in a triaxial cell are more complex in their nature. Numerous parameters may be measured including back, pressure, pore water pressure and volume change. From these values various engineering properties can be calculated. Triaxial cell is used to apply total stress. The sample is subjected to an alround confining pressure. Load is then applied through piston of triaxial cell on a pressure pad on the top of the specimen. In a triaxial cell, sample is confined in a rubber membrane. Triaxial cells are manufactured from carefully selected material. The cells are manufactured to accomodate different sizes of specimen. Universal triaxial cell accommodates samples of diameters 38 MM to 100 MM.

• Blue: Red

Useful to determine specific gravity of clays, sand and gravel of size smaller than 10 mm. Salient Features Specifications : Comprises a 1 kg glass jar with brass cone, locking ring and rubber seal. Spare: Rubber seal.

• Features: Anti-corrosive ,Quality tested , Precious design

• Thickness: 6mm
• diameter: 38mm

The cell is useful for testing 38mm dia x 76mm high soil specimen. Transparent Perspex chamber with anvil and loading plunger, the cell is easily opened by releasing four nuts of the tie rods. It is leak proof up to 10kgcm.sq. Fluid pressure. An oil plug which can also be used as an air vent is provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration tests. The cell is fitted with four sleeve packed valves of no volume change type on the base. These valves are used for cell pressure, pore water pressure, drainage or back pressure. The loading plunger of the cell has dial gauge rest. Loading pad made of Perspex for 38mm dia specimens. Pair of plain discs made of Perspex 38mm dia 6mm thick. Pair of porous stones 38mm dia specimen. Split sand former for 38mm dia specimen. Sheath stretcher for 38mm dia specimen. One dozen rubber sheaths for 38mm dia samples. For synthetic rubber 'o' rings for 38mm dia specimen. One plastic drainage tube.

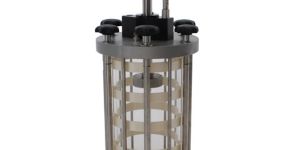

Aimil Triaxial Cells conform to the requirements of IS:2720 (Part 11) & (Part 12) and are made from corrosion resistant material. Particular attention is paid to the quality of the finish between the stainless steel plunger and the bushing. The cell cylinders are made from acrylic plastic material and those for use upto 20 bar (20 kgcm2 ) are usually reinforced by bands. Each cell has four take-off positions, drilled in the base, for Cell pressure, Pore water pressure, Drainage or back pressure. All valves are of 'no-volume change' type. Universal triaxial cells accept a range of base adaptors for testing a wide range of specimen sizes.

NAUGRALABS LABORATORY PRODUCT NAME: TRIAXIAL CELL FOR TESTING LAB NaugraLabs Laboratory Product Code: NLE-Export-116032 Description and Specification for Lab Tenders Triaxial Cell.  The cell is useful for testing 38mm dia x 76mm high soil specimen. Transparent Perspex chamber with anvil and loading plunger, the cell is easily opened by releasing four nuts of the tie rods. It is leak proof up to 10kg/cm.sq. Fluid pressure. An oil plug which can also be used as an air vent is provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration tests. The cell is fitted with four sleeve packed valves of no volume change type on the base. These valves are used for cell pressure, pore water pressure, drainage or back pressure. The loading plunger of the cell has dial gauge rest. Loading pad made of Perspex for 38mm dia specimens. Pair of plain discs made of Perspex 38mm dia 6mm thick. Pair of porous stones 38mm dia specimen. Split sand former for 38mm dia specimen. Sheath stretcher for 38mm dia specimen. One dozen rubber sheaths for 38mm dia samples. For synthetic rubber 'o' rings for 38mm dia specimen. One plastic drainage tube. civil lab equipments manufacturer   Soil Test Instruments Lab equipment manufacturers,exporters and Soil Test Instruments Lab suppliers

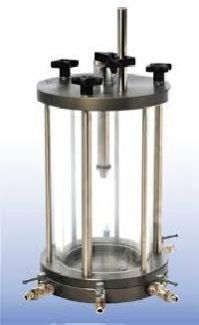

 Triaxial Cell : The cell is useful for testing 38mm dia x 76mm high soil specimen.Transparent Perspex chamber with anvil and loading plunger, the cell is easily opened by releasing four nuts of the tie rods. It is leak proof up to 10kg/cm.sq. Fluid pressure. An oil plug which can also be used as an air vent is provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration tests. The cell is fitted with four sleeve packed valves of no volume change type on the base. These valves are used for cell pressure, pore water pressure, drainage or back pressure. The loading plunger of the cell has dial gauge rest. Loading pad made of Perspex for 38mm dia specimens. Pair of plain discs made of Perspex 38mm dia 6mm thick. Pair of porous stones 38mm dia specimen. Split sand former for 38mm dia specimen. Sheath stretcher for 38mm dia specimen.

Triaxial cell, We also manufacture the equipments and control systems for sugar industries mainly mill automation, boiler instrumentation, prd stations and embibition water control system.

Aluminium and steel structure incorporating a high precision inductive transducer. Three units are generally recommended for axial deformation measurement. They can be easily applied to the specimen by a pair of elastic bands supplied as standard. It has to be connected to a suitable data logger or, directly to our Automatic control consoles MCC or ADVANTEST which can provide cyclic loading and automatic determination of the Modulus of Elasticity. A data logger as, for example, our model 82-P9008 http:www.controls-group.comenggeneral-lab-testing-equipmentdata-acquisition-unit-datalog-8.php, can be used with compression testers for axial deformation measurement when it's not mandatory to perform loading unloading cycles, but only loading ramps. In this case, one of the channel of the data logger should be used for the load signal coming from an additional pressure transducer with 3 way connector fitted to the compression tester. Please get in touch with our technicians for complete information and service.

• Soil testing lab equipments: Triaxial Shear Test Apparatus (Hand Operated

Product description:same as above but designed to with-stand 20kgcm2 fluid pressure. The perspex chamber is reinforced. Accessories for triaxial cells: three part split mould 38mm dia. With collar, base plate and hinged clamp. End former for 3mm bore polythene tubes, 4mm o.d. Three part split mould 50mm dia. With collar, base plate and hinged clamp. Three part split mould 75mm dia. Collar, base plate and hinged clamp. Three part split mould 100mm dia. Collar, base plate and hinged clamp. Spares for triaxial cells: porous stones for 38mm, 50mm, 75mm & 100mm dia. Specimen. Set of 'o' rings for 38mm, 50mm, 75mm & 100mm dia. Specimen. Plain perspex pads for 38 mm, 50mm, 75mm & 100mm dia. Specimen. Polythene tubing 2mm bore, 4mm o.d.

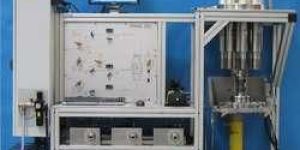

CRT: In cooperation with Polytechnic Lille and the team of Professor Shao, Top industries has developed a new concept of Triaxial cell, focused on ease of use while incorporating optimal security rules and compliance with European standards of appliances pressure. The continuity of cells for samples Ø 37mm, simple and easily transportable, and a new generation of turnkey Triaxial cells incorporating means of implementation, piloting and acquisition that will allow you to quickly reference results. At the same time, we have developed a wide range of high-pressure generators, covering the needs of axial pressure generation, containment and drainage.
