Variable Speed Motor Drives Dealers

Product Name AC Drive Part No VFD550B43A Brand Name Delta Description Constant Torque AC Motor Drive Brand Name :Delta Supply Type (�) :3 Voltage Class :440V HP :75 KW :55 Output Frequency (HZ) :0.10 TO 2000 HZ Output Current :110 Application :Constant Torque Application Braking Chopper :Optional Control Mode :VF, SENSORLESS VECTOR, VF-PG, VECTOR-PG PIDPLC Function :Simple PLCIn-Built PID PG Close Loop :YES Overload Endurance :150% FOR 1 MINUTE Start-up Torque :150% AT 1 HZ Comm. :RS-485 (MODBUS) Software Download :acdrive

Product Name AC Drive Part No VFD450VL43A Brand Name Delta Description Elevator Drive Brand Name :Delta Supply Type (�) :3 Voltage Class :440V HP :60 KW :45 Output Frequency (HZ) :0.00 TO 120 HZ Output Current :113 Application :Elevator for PMIM Motor Braking Chopper :In-Built Control Mode :VF, SENSORLESS VECTOR, VF-PG, FOC-PG, TORQUE-PG (2) FOC-PG (FOR PM MOTOR) PIDPLC Function :NO PG Close Loop :YES Overload Endurance :150% FOR 1 MINUTE and 200% FOR 2 SEC. Start-up Torque :150% AT 0.5 HZ and 200% AT 0.0 HZ (WITH PG) Comm. :RS-485 (MODBUS) Software Download :acdrive

Goodrive5000 series products are the new generation of high voltage variable frequency speed control systems manufactured by INVT, adopting power unit serial technology, DSP+FPGA+ARM 3-core technology for the control system and the most advanced high performance speed sensorless vector control mode compatible with SVPWM control, in features of high control precision, quick dynamic response, large low-frequency torque and dual-braking, etc. Besides, due to compact structure, the system can be installed against the wall with less maintenance, and its operating interface is more suitable for on-site applications. 1.It's easy switch between high performance open loop vector control and SVPWM(Space Vector Pulse Width Modulation) control by parameters setting; 2.It's easy switch between synchronous motor and asynchronous motor by parameters setting; 3.One drive more(Up to 8 motors for master-slave control; Downsize the equipment with one inverter driving multiple motors); 4.Strong overload capacity(120% of the rated current:120s, 150% of the rated current:5s, 200% of the rated current protect immediately); 5.Wide range of voltage fluctuation tolerance(Run normally when the grid voltage is in the range of -15%～+10%; Derate to run without stop when the voltage is 85%～65% of the rating or 110%～120% in a short time;AVR, automatically adjust output voltage according to bus voltage fluctuation);

Keeping the track of latest happening in this domain, we are engaged in manufacturing and supplying AC Variable Frequency Drive. The offered AC variable frequency drive is used in label printing machine, label inspection machine,UV coating machine and heat and pressure lamination. Available with us at cost effective prices, the AC variable frequency drive is highly demanded. Features: Optimum functionality Compact design Longer serving life Other Details: Indigenously designed AC drives Space Vector Modulation Technique DC Bus Ripple cancellation Low output THD (total harmonic distortion) Output short circuit protection Fault monitoring Custom designed human interface (HMI) Specifications: Ratings Available 0.37 kW to 600 kW 3 Phase, 380 V415 V480 V, 5060 Hz, Input Rating Power Supply, Tolerance Voltage: 10%, - 15%, Frequency -5%, Imbalance less than 3% Output Voltage 3 Phase, 380 V to 480 V (Proportional to input voltage) Output Frequency Range 1 Hz to 400 Hz Frequency Stability Digital setting: -0.01% of max. Frequency Analog setting: -0.2% of max. Frequency (at temperatures - 10 oC to 50 oC ambient) Output Rating Overload Capacity 150% for one minute Control system Space vector modulation with bus ripple compensation Adjustable current limit Programmable 30 to 200% of drive rated current Starting frequency 1 to 6 Hz adjustable Base Frequency 30 to 400 Hz Carrier frequency 2 kHz to 6 kHz programmable in steps of 1 kHz Jog function Available with programmable speedDec Catch on fly Drive will search the running Motor speed, catches it and then proceeds to the set speed Jump frequency One jump frequency control with adjustable jump range DC injection Braking.

We are offering ac drives. “kinco automation (i) pvt. Ltd.” was set up in the year 2010, at rajkot (gujarat, india). We are engaged inmanufacturing, trading and supplying of a wide range of vfd vector drives, vfd ac drives, hmi & mmi systems, ac servo systems, plc programmable logic controllers and stepper systems and many more. We are providing our products range under the brand name kinco. Our products are highly appreciated and accepted by our clients owing to their features such as reliable performance, longer service life and low maintenance. The products that we offer are manufactured at vendor’s end and quality tested under the guidance of quality experts, and are offered at most reasonable price. At our vendor’s high-end infrastructure facility, they use latest production technology to fabricate these products. Implementing parameters of total quality management in our processes and product selection method, we have achieved a great reputation for ourselves in the market.

Rushi Mechatronics Pvt. Ltd is a global leader in supplying premium quality SMV IP65. Our SMV IP65 is highly applauded for it rugged structure and sturdy design in various national and international markets.

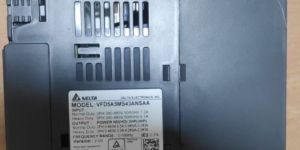

With modern power electronics and advanced microprocessor technology, Delta's AC Motor Drives are able to efficiently control motor speed, improve machine automation and save energy. Taking advantage of our strong position in power electronics technology, Delta's VFD Series of AC motor Drives has evolved rapidly. Each Drive series is designed to meet specific application needs. Our AC Drives accurately control speed and torque, smoothly handle an increased load, and provide numerous custom control and configuration operating modes. Our AC Motor Drive product line provides a full range of motor control technologies and is used throughout a wide range of industries, to enhance and improve machine automation.

Varispeed AC drives from L&T are rugged, reliable and easily adaptable to a variety of applications like Fan, Pump, Compressor, Conveyor and many more. Available upto 6000kVA, our drives with flux vector control provides enhanced performance and substantial energy savings have been achieved by various users. Our Drives are designed for optimal efficiency and productivity and are known for their ease of use, compactness, robustness & other powerful features.
