Video Measuring System Dealers

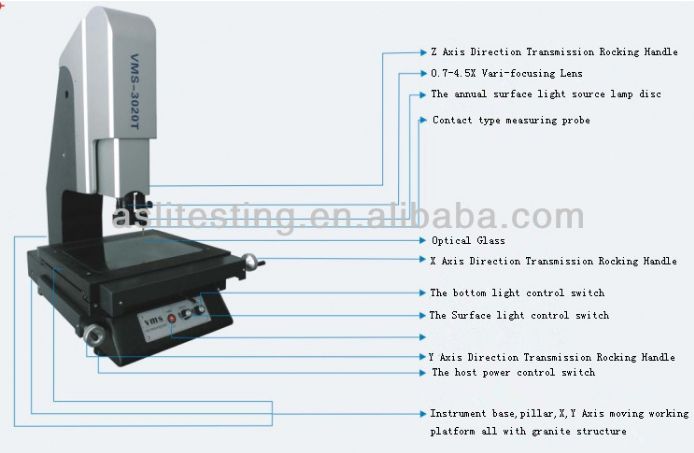

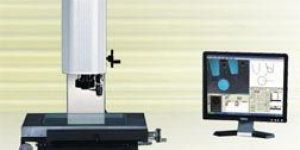

With our wide connectivity, trustworthy shipping facilities, we are flexible in delivering the product basket to the clientele within the dedicated time. Designed and developed using the premium raw material and modern work methods; we guarantee high quality standards and longevity of our products. Also, we make sure that the raw material is sourced from the trusted places.   Include : Resolution -  0.001mm Measurement Range (XYZ) -  200*100*150mm Lens -  0.7~4.5X Zoom lenses, provide superior optical performance and high vibration stability. 4. Imaging systems -  Original U.S.TEO C5 1/2” color CCD camera automatically adjusts the gain; graphics edge sharpness, non-flash image enhancement and correction of black and white contrast. Measurement software -  specialty 2.5D measurement software. The surface light source -  several partitions programmed light source system. Multi-regional, multi-channel control, from different directions on the product exposure and adjust the light intensity. Outline of the end of the light -  the bottom light. LED annularity cold light source. The machine adopts  precision grating. High-speed non-contact operation, to ensure zero friction and zero machine wear, open-type optical design ensures high performance, periodic error is usually on ± 0.25μm linearity error characteristics for each 60mm ± 1μm. Linear precision -  U1 = (3+ L/200) μm. Repeat precision -  3μm. Equipped with -  PC a 19 "MONITOR Work piece maximum height -  150mm. Weight limit -  15 Kg. Dimensions -  556 x 540 x 860 mm. Machine Weight -  180kg Machine positioning accuracy -  ± 0.003mm. File output formats -  STL, OBJ, IGES, and DXF, of VRML. Measuring the depth of field -  150mm/30mm. The structure of the machine -  0 precision 200mm thick granite platform fuselage basis. High accuracy, good stability, and not easily deformed, resistant of acid and alkali. Application areas -  mechanical, electronic, electrical, aerospace, automotive, military, mold, optical and other industries.

OGP Offers precision non - contact and multisensor coordinate measuring systems for dimensional measurement since its inception in 1945 with a presence in more than 60 countries with its own design and manufacture of the mechanics ,optics ,electronics and software used in the system. The OGP products fits in a range of categories: multisensor metrology, optical inspection, video measurement, laser scanning and more. OGP FLASH CNC 200 Smartscope Flash CNC 200 is the most productive general purpose dimensional measuring systems that fits on a bench top . Travel (XYZ) mm axis : ( 200 x 200 x 150)mm Measuring unit dimensions approx.(LWH) : (76 x 60 x 73)cm Work table : Hard coat anodized with fixture holes and removable stage glass , 16 kg load capacity.

Today, metrology systems must exceed the demands of manufacturing. Accuracy, traceability, reliability, ease-of-use, and speed are critical factors that require critical analysis when specifying a metrology system. Get all the 3D measurement data with one single set-up. In a single measurement routine. Using one fixture. Save time. Improve your productivity. With Video and Multisensor Systems from the world leader in multisensor metrology – Optical Gaging Products!

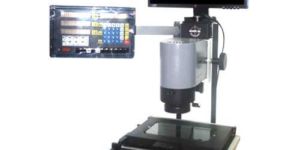

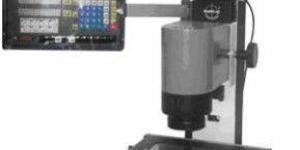

Mini Series Video measurement system is a compact, portable video measurement system for manual inspection, measurement and documentation of small components cost effective model is designed with portability in mind mini VMM has a compact design ideal for carrying around from one location to another 2D video measuring machine is widely used to measure the two coordinates in all application areas such as machinery, electronics, instruments, plastic etc.The powerful software which is extremely user friendly can heandle all measuring applications with eas. With RS232 interface the machine can be connected with computer adopt specialized measuring software which can manage & output the graphics.   The measuring data can be directly outputed into MS-Word, MS-Excel & AutoCAD. These feature together with the high quilty easy upgrades, online training , software support and unbeatable value for money the Mini Series Video measurement system a must for every QC Lab.

The company is a noted Supplier of highly efficient and accurate Video Measuring System. The zooming type of our Video Measuring System is 32x to 120x, which is known for providing excellent performance. It has HD digital camera having qms-2d/3axis software with most required geometrical features, deviations and general SPC's. Video Measuring System that we offer has multi-window features, scanned features, real time graphical representation and table size of 300x150 as standard.

Eliminating the filar eyepiece reduces operator fatigue and delivers improved repeatability. Easy-to-use Windows® software provides you with advanced measurement and analysis tools.

Non Contact Video Based Metrology provides more detailed data about sample than single point contact systems. The integration with highly accurate positioning auto edge determination and powerful 2 dimensional Data processing Software’s / hardware’s has made Video Measuring Systems one of the most versatile metrology tool. An excellent solution to the most critical requirements of high quality Optical Profile Measuring. Suitable for measuring different shapes, complicated profiles such as press components, gears, cams, treads, tools, dies, turned components, automats etc. Most effective device to measure most 2 dimensional parameters like linear dimension, angle. Software: Multi-Window display and easy operation. Automatic edge-detection 2-Axis geometrical measuring function 2D Parameters like Line, Circle, Angle, Distance, Rectangle etc. Focus Indicator – can precisely determine Z axis. Windows 2000/XP Vision tool equips edge-trimming, output the most precise data. Excellent graphic allows to save, print out, and transfer to CAD.

Our clients can avail high quality Video Measuring Machine that is available in various technical specifications and can be installed easily. It is used in various industries for measuring purposes. Our professionals use high quality components and advanced technology in the manufacturing of this machine. The offered machine is highly appreciated for its long working life, ruggedness, smooth operation and low maintenance. We are offering this Video Measuring Machine at industry leading prices.

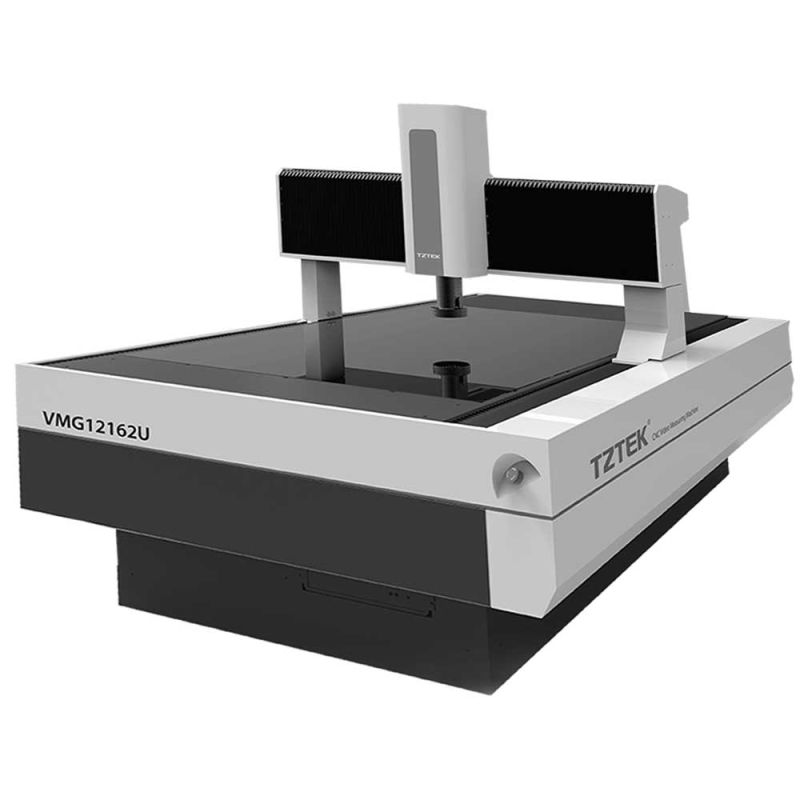

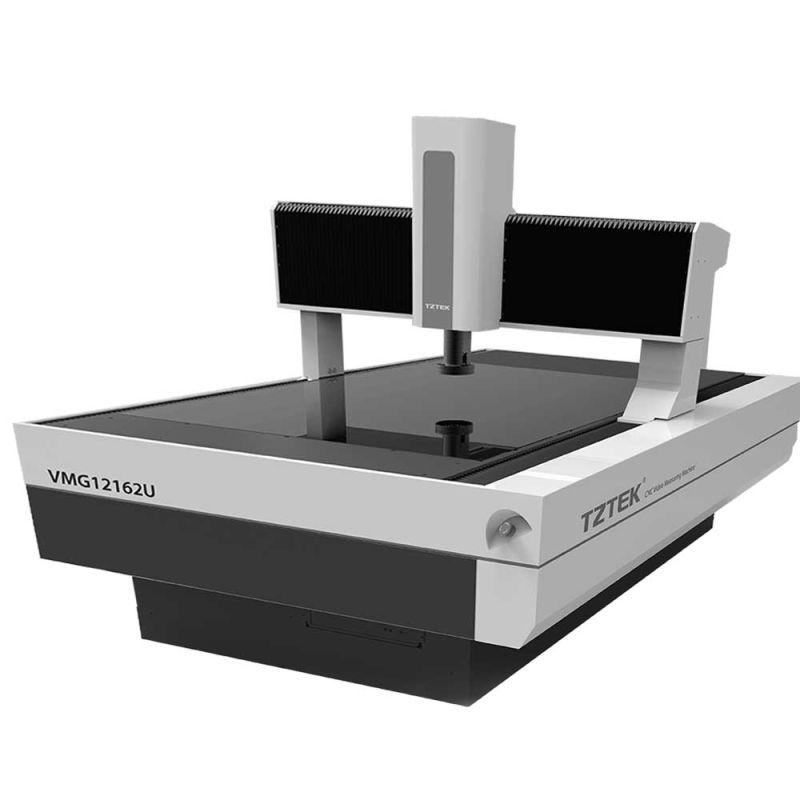

The bridge type construction is all aluminium resulting in low inertia and low thermal mass. Air bearings are used on all axes and a granite Y beam is used for increased accuracy. To know more about the product visit/

Video system: High resolution &High Accuracy CCD/High Speed Frame Grabber Card Optional: 0.5x lens 14x~90x(For Standard Lens)2x lens 56x~360x(For Standard or Co-axial Lens)5x lens 140x~900x(For Co-axial Lens)10x lens 280x~1800x(For Co-axial Lens) Illumination: Adjustable surface and contour illumination(High Brightness Ring illumination)(Optional:26 channel Multi-Sections illumination) Linear scale: 0.001mm on X, Y, Z -axis Length Accuracy:± (2+L/100)μm Motor: X,Y,Z AC Servo Motor Motor Operation: Mouse program or Joystick(Optional) Repeatability: 0.003mm Base: Precision granite table Power supply:AC220V, 50/60Hz Support software: SI-901 (Optional:SI-901A-Import Excellon File)

The VSM families of Vision measuring machines are designed to measure small, complex parts with a single camera image. VSM machine uses a High resolution Video Camera with Telecentric Optics and Lighting. The machines are offered with world class Metlogix M3 software with unique advantages.

Shreeji Video Measuring systems provide an economical solution for precision Non-Contact measurement of complex parts. They are available in 2 or 3 dimensional options alongwith didicated software which allows data to be transferred to excel, word or auto-cad files. The machines are constructed using a very precis and stable granite base and column making them very rugged and accurate. The large work table has adequate travel which enables inspection of large components and increased the operational efficiency of the machine.

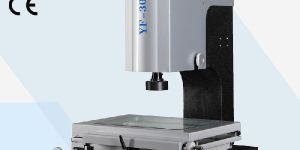

YF-D Series is the basic type manual Video Measuring System developed by Yihui. It has been widely used in machinery, electronics, metalwork, mould , plastic and other industries for precision measurement. 1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function. 2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness, flatness, perpendicularity, circular degree, coaxiality, etc. 3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view. II Features                            Motorized in Z axis, it can satisfy precision focus and high accuracy non-contact height, depth measurement with easy clicks on metrology software.2. It can measure point, line, circle, arc and oval, rectangular with the multipoint positioning function, combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure. 3. Various functions of data processing, display, input and output, Measurement data output Word, Excel and Auto CAD directly to conduct statistical analysis, particularly, and the work piece straightening function is very useful. 4. Digital measurement and data processing system are made up by the two coordinate's studio, the optical grating and the SDK -3000 data card. 5. It has RS232 interface with a computer and specialized measurement software which can also processes and output circular mapping.
