Vmch Coating Machine Dealers (22 products available)

Working Width : 1250 mm

Speed : Solvent base adhesive speed 100 mtr/minute

VMCH Coating for foil speed : 4 Gsm 40 to 80 mtr/minute and 6 Gsm 40 to 50 mtr/minute

Water base adhesive coating speed : 35 mtr/minute

Station Plate : 1800 mm X 500 mm X 40 mm (Solid Plate)

Maximum Cylinder Circumference : 1000 mm

V.M.C.H coating on Aluminum foil, and to Apply a thin coating of shellac on reverse foil surface in a single operation.   Dry lamination of two webs Speed : Solvent base adhesive speed 100 mtr/minute VMCH Coating for foil speed 4 Gsm 40 to 80 mtr/minute and 6 Gsm 40 to 50 mtr/minute Water base adhesive coating speed 35 mtr/minute Shellac coating : Gravure method Separate three air blower for shellac wash unit Air nozzles distribute uniform not air across the wash width and are placed against idle rollers for proper web support Air volumes can be controlled by manual dampers at each station V.M.C.H coating : Three roll coating system / Gravure method Pneumatic application for pressure roller, Doctor blade, Drying hood and Nip unit. Screw type adjustable roller at different points   1st Gravure Printing Station – 1no. Station Plate ; 1800 mm X 500 mm X 40 mm (Solid Plate) With "SHANTHI" Make main gear box Rubber roll pneumatically operated (Compressor not in our scope of supply) Doctor blade manually operated With sufficient no. of Aluminium rolls of 3 " & 4 " Dia Maximum Cylinder circum : 1000 mm 2nd Coating Head Tree Roll System : Same As Above But   Rewinding Station :/Unwind Station AIR SHAFT type rewinding station with motor(load cell base drive contol) 2NO Unwinding Station : complete with 1 No. Web alinger ( Accuweb Make) with station plates with 6 caliper Pneumatic Brake ( Load cell based ) Maximum Unwinding Roll Dia: 1000mm   Tunnel Total Tunnel length : 36 Ft ( 6 Ft X 6 ) High velocity VMCH drying system equipped with insulated drying tunnel Shellac drying system equipped with insulated drying tunnel of total 18FT(6ftx3) length For hot air required in the tunnel , 2 Lac Kcal OR 2.5 Lac Kcal hot air generated ( diesel fired ) along with the necessary ducting ( Insulated) shall be in buyer scope of supply. Inlet hot air shall be supplied from top of the tunnel . top door opening shall be provided for the tunnel A cat walk, along with ladder shall be provided by us on n one side of tunnel Top (VMCH) dryer rollers are of teflon coated to protect laquire shifting from coated foil For stable working of the machine , Sufficient no. of Vertical & Horizontal supports of channels & angles shall be provided   Electricals Electrical Motors 3 H.P. A.C. – 3Nos. ( 1 No. each For 1st gravure , 2nd three rol coating,+36 ft tunnel , ) 7.5 H.P. A.C.- 1No. ( For Rewinder ) .5 H.P. A.C.- 1No. ( For laminating ) 6 caliper Pneumatic brake with Load cell based for 2nos unwind motors of Coating Machine shall be of "BHARAT BIJLEE" OR "ABB". Balanced other motors like Blowers motor p.pack shall be of Standard make (as per mfg supply)   Drive System Drive system synchronized for coating+laminating+rewind+tunnaldrive ( also Motor & Brake ) Touch screen type base Panel shall be supplied along with the necessary control cables required for the same . Out of the above motors – 3 H.P. A.C. – 3Nos. motors shall be with load cell & 1 No. – 5 H.P. motor for rewinder & Unwinder Pneumatic Brake of 6 caliper Capacity shall be with load cell . 2 Nos. 3 H.P. conveyor motors shall be without load cell . All internal electrical power connection including required necessary cables not in our scope of supply . You shall provide us the connection upto our drive and all panel wiring All above electrical motors shall be "ABB" OR "BHARAT BIJLEE" Make   Salient Features of the Plant This machine is specially designed as a multipurpose plant, With additional facilities like polyester lamination silicon coating, adhesive coating for tapes and stickers, heat sealable coating on blister etc.

Working Speed : 140 M/min to 200 m/min

Max. Web width : 600 / 800 / 1000 / 1200 mm

Unwind Roll Dai. : 600 / 800 mm

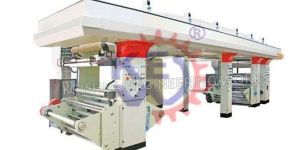

Krishna Engineering Works India, a leading manufacturer, exporter and supplier of Coating Machine from last 25 years. High-quality Coating Machine available with different types of range. Also manufacturer of Rotogravure Printing Machine and Slitter Rewinder Machine Manufacturer Heavy duty side M.S. steel walls to ensure vibration free running at high speed. Foundation free base frame. High velocity air blower for fast dying. Good quality electronic input drives, motors, Tension Control System etc. All free rollers are dynamically balanced. Pneumatic functions for impression rolls. Auto tension control. Auto web aligner. Careful quality control in manufacturing process to ensure years of maintenance free running.

Web Width : 400/600/800/1000/1200/1400/1600mm

Unwind Rewind Diameter : 600 – 1000mm

Plate Thickness : 45mm

Modular Printing Station Each Being Complete In It Self For Easy Adoptability Of When Required. Specially Designed Compensator Roll With Ball Screw To Achieve Extra-Fine Registration.

Condition : New

Warranty : 1 year

Width : 1350MM

Working Speed : 140 M/min to 200 m/min

Max. Web width : 600 / 800 / 1000 / 1200 mm

Plate Thickness : 45mm

From bulk to retail order fulfillment, we can do it all. Our company has a wide supply chain network to provide our buyers with the product all year round and make timely delivery. Our well-structured warehouse is the reason behind the safety of the products we offer. Moreover, we have installed advanced amenities essential for the safe storage of the lot.   Salient Features of the Plant : Hot Air Temp  -  50 – 1500oC Heat Source  -  Hot Air Generator (Optional) Exhaust  -  3 HP Main Drive  -  Coater / Nip -3 HP, Rewind – 5 HP AC digital drive for tension controller Tendency roll drive AC. With timing pulley Maximum speed for solvent base adhesive 225 m.p.m. Fully pneumatically lifting tunnels and impressions rollers, Doctor blade, Lay and Rolls Chilling roll provided before rewinding Comfortable exhaust system for solvent fumes Uniform heating system

maximum roll : 1000mm.

We are the popular manufacturer of VMCH Coating Machine. VMCH coating is done on Aluminium Foil. Colouring or Lacquering is of Aluminium, Metallized Film. VMCH Coating Machine from WebFlex Machines are popular in India & exported worldwide. Gamut of experience of our professional R & D staff has helped us to develop super quality VMCH Coating Machine. As is our forte we sell customized machine to our customers and these coating machines are popular for easy installation, smooth operation and easy maintenance. VMCH coating machine manufactured by us have multiple segments of industry for VMCH coating.

Dia : 3 " & 4 "

Total Tunnel length : 36 Ft ( 6 Ft X 6 )

ACCUWEB has developed special type VMCH Coating Machine, VMCH Coating for foil speed 4 Gsm 40 to 80 mtrminute and 6 Gsm 40 to 50 mtrminute, Gravure method Separate three air blower for shellac wash unit Air nozzles distribute uniform not air across the wash width and are placed against idle rollers for proper web support Air volumes can be controlled by manual dampers at each station, Three roll coating system Gravure method.

VMCH Shellac Coating Machine We provide a high quality range of VMCH Shellac Coating Machines. These machines are appreciated by our clients for their high production speed and low maintenance cost, which greatly enhances its cost effectiveness. The specifications of these products are as given below: Technical Specifications Coating Facility: Gravure & 3 Roll System Speed : Solvent base adhesive speed 100 to 120 mtr/minute . VMCH Coating for foil speed 4 Gsm 80 to 100 mtr/minute and 6 Gsm 70 to 90 mtr/minute Water base adhesive coating speed 100 mtr/minute Specially designed as a multipurpose plant, these machines possess facilities for polyester lamination silicon coating, adhesive coating for tapes & stickers and heat salable coating on blister. Fully pneumatically lifting tunnels and impression rollers Automatic balanced all steel rollers. Comfortable exhaust system for solvent fumes. Sound & Uniform heating system at high temperature. Air nozzles distribute uniform not air across the wash width and are placed against idle rollers for proper web support. VMCH tunnel is distributed in 8 Heating zones & 2 cooling zones having individual air blower for better temperature control..

The coating machine is used to produce protective layers on the substance to increase its life span. Our experts that design them according to the specified dimensions and specification that are approved in the industries prepare the machines we make. Our machines have greatre efficiency and give a uniform coating on the substance. We supply a wide range of coating machines useful in the pharmaceutical industry, snack bags, brown paper, food and beverage packaging, liquid packaging and shrink label coating. The machines are effective in working and are famous for their smooth working. We have a special team of designer that prepares the design as per the industry defined standards. The quality we deliver is the result of hard work and dedication of our highly intellectual team of professionals that manufacture the coating machine that can be supplied and exported to the countries all round the world.

Length : ± 0.1

OD : ± 0.05

VINTEX ROLLERS coating material (VINSPL™ EP SERIES) delivers a wide range of solvent resistance to Polar chemicals {like MEK, EtOH} or Non-polar solvents {like Petrol, Xylene, Cyclohexene and others}. The art of compounding and high quality raw materials by Vintex Rollers, guarantees excellent mechanical properties with lowest abrasion and high resistivity, equivalent to Industrial standards. It helps the customers improve their efficiency in the operations.

We are supplying 20mic blister coated foils, 30mic blister coated foils and 25mic coated foils ready available. We are also enabling blister printing service for one colour to 4 colour facilities. Aluminium blister foil is good barrier to moisture, vapour and gases and is suitable for high speed packing applications on rotary and flat bed blister packing machines.The blister packs are in compact in size and economical, as compared to strip packs. Tablets can be removed easily from blister packs, as the hard foil breaks quickly when tablet capsule is pressed from PVC side. Barrier properties of blister packs are comparitvely lower than strip pack due to usage of PVC film on one side.

Features : We provide Unwind Air Shaft with safety chuck so that it can easily have parent Rolls wound on Core Centers. Another provision we have made for customers is of Trolley Type Unwinder Unit with Auto EPC and Auto Tension Controls.

We are the popular manufacturer of VMCH Coating Machine. VMCH coating is done on Aluminium Foil. Colouring or Lacquering is of Aluminium, Metallized Film. VMCH Coating Machine from WebFlex Machines are popular in India & exported worldwide. Gamut of experience of our professional R & D staff has helped us to develop super quality VMCH Coating Machine. As is our forte we sell customized machine to our customers and these coating machines are popular for easy installation, smooth operation and easy maintenance. VMCH coating machine manufactured by us have multiple segments of industry for VMCH coating.

Type : Vmch Coating Machine

Color : Black, Brown, Grey

Voltage : 110V, 220V, 380V, 440V

Condition : New, Used

Driven Type : Electric, Hydraulic, Penaumatic

Warranty : 1year, 2years

Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw

Weight : 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Features : Precisely Engineered, Easy Maintenance
