Water Cooling Towers Dealers

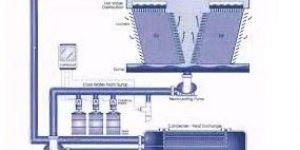

Water Cooling Tower Technical Description Cooling towers are a special type of counterflow heat exchanger. Warm water is sprayed from the top down through the column while airflows up through the column. Cooling is predominantly due to the evaporation of the water. The amount of water evaporated is measured. A fan supplies a variable cooling airflow. All important process parameters including the water flow rate are measured electronically and displayed. The measured values can be transferred to a PC for analysis and further processing. A data acquisition card and software are included. Four further cooling columns are available as accessories.

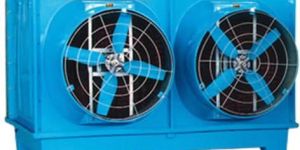

We design and manufacture evaporative condensers from 60 TR to 225 TR for Ice Plants and Sea Food industries. The coils will be of either carbon steel tubes with galvanizing or with SS 316 tubes based on the location. The fans will be either direct drive or belt driven type as per client's requirement. The coils are designed and assembled with special baffles to minimize vibration and the water spray nozzles are strategically designed to have ideal atomizing effect. Our evaporative condensers are energy efficient in the market.

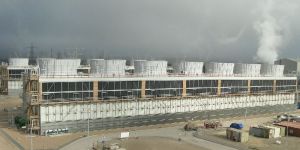

Evaporative cooling tower circulating cooling water that is brought in direct contact with the drawn-in surrounding air is cooled. A process' warm cooling water is spread out thinly over a contact body, which preferably has a large exchange surface. The air is led equally over this film of water.The cooling water is cooled by evaporation of a small amount (1-2%) of the circulating water. Per kg evaporated cooling water 2491 kJ is extracted from the circulating cooling water. The unsaturated air flow absorbs the evaporated water and the heat belonging to it.

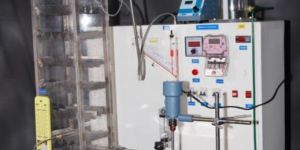

The set-up is designed to demonstrate and study of heat & mass transfer during the process in a forced draft counter flow type water cooling tower.The set up consists of specially designed; SS vertical tower packed with aluminium mesh packing, fitted with front side acrylic window to provide actual visualization of cooling tower operation.The air from a blower enters at lower end of tower and after passing through the mesh packing leave the column from top outlet to atmosphere. Counter – currently hot water from water bath is evenly distributed over the packing by nozzles at top of the tower using circulation pump. An arrangement is made to vary and measure the airflow rate & temperatures at different locations in the tower. The hot water bath is provided with level gauge enables to show the exact evaporation loss. The temperature of water in bath can be independently varied to simulate different conditions using digital temp Experiments Actual visualization of the cooling tower operation To find out mass transfer coefficient, plot pressure drop per unit height with airflow rate Features Superb Painted structure Simple to operate & maintain Compact & stand alone set up Utilities Required Water Supply & Drain Electricity Supply: 1Phase, 220 V AC, 0.5 kW Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted

Water cooling tower that is mounted on top of the stand pipe on the cooling tower.The sprinkler is rotated by the pressure of circulating water. There are numerous holes in the sprinkler pipe to allow the water to jet out as the pump impacts rotation

The evaporate cooling towers essentially combines a cooling tower and a condenser coil in single equipment. It eliminates the sensible heat transfer step of the condenser coil water which is required in the cooling towercondenser system. This permits a condensing temperature substantially closer to design wet-bulb temperature, and consequently, minimum heat process energy input. The closed circuit cooling tower was being tested at our factory with real heat load, with required water flow and was exported to Iraq after confirming the performance. The fan system sucks air through the falling water and over the coil surface. A small quantity of the water is evaporated, removing heat from the primary circuit and cooling it inside the coil. Therefore, like the cooling tower, all of the heat rejection is by evaporation, thus saving about 95% of the water normally required by a "once-through" system..!!

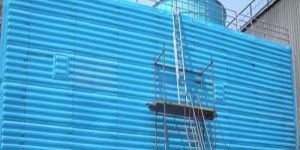

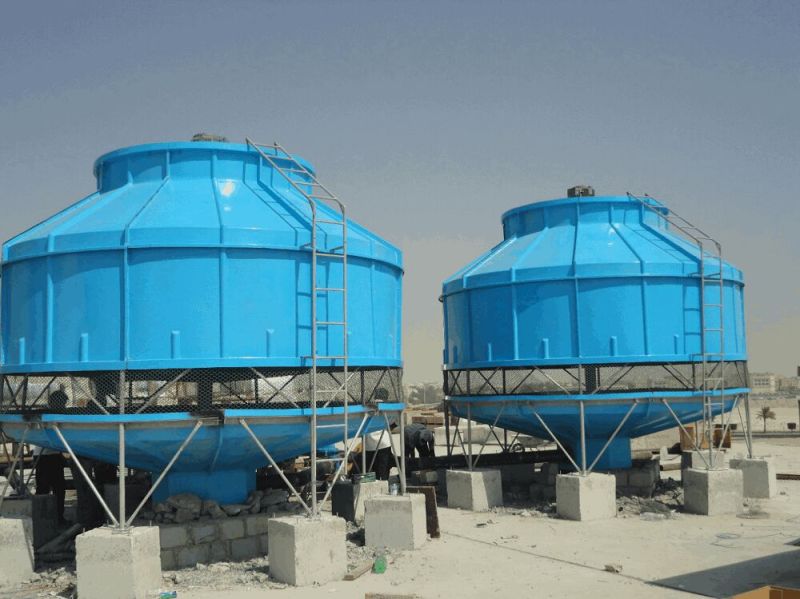

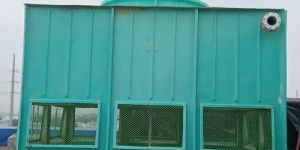

We are engaged in designing manufacturing and erection of an exclusive range of reliable, tailor-made Water Cooling Towers (FRP Induced Draft Counter Flow, Timber Induced Draft Cross and Counter Flow, RCC Induced Draft Cross and Counter Flow ) plus Air Blast Coolers and Air and Water Chilling Plants.

The GEM COOLING TOWERS is a pioneering product in Design & manufacture of FRP Cooling towers in South India. We are continuously striving to offer better Cooling solutions to customers, which are both, innovative and also state of the art. ECT is the Evaporative Coil Cooling tower which is an induced draft counter flow design Closed Circuit Cooler.DesignCasingFillSprinklerSCSP NozzlesDrift EliminatorAxial FanMotorsCorrosion FreeLight WeightInstallation, Service & Maintenance

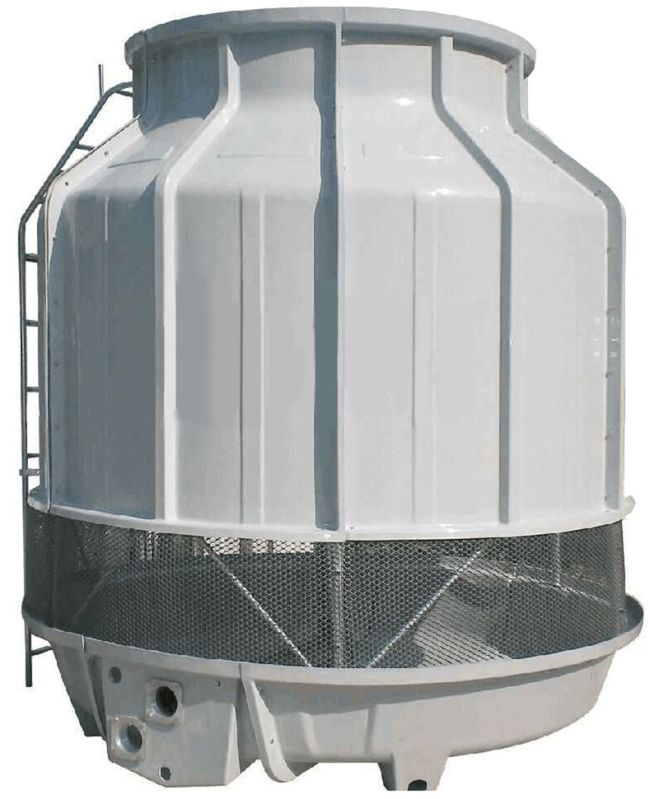

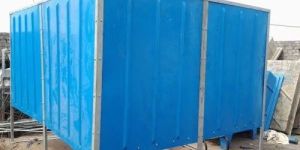

We are dealing in water cooling tower, We are one of the pioneers and leading cooling towers manufacturers from fiberglass in India with reputation for quality and reliability.

We are specialized in offering the superior quality Dry Cooling Towers. Offered cooling towers are developed from the high quality material and current techniques in adherence with the norms of industry. The offered cooling towers are tested in terms of quality so as to dispatch a perfect range. These cooling towers are accessible in diverse specifications at competitive price in a stipulated time.

Newtech Cooling Towers is leading manufacturer & exporter of Cooling Towers, Air & Water Cooled Chilled Plants. We are one of the counted names to reckon in Indian Plastic, Chemical & Pharmaceuticals, Air Conditioning & Refrigeration Industries. Being a front runner in this industry, we never compromise on quality and are committed towards customer satisfaction. We offer exceptional service to our clients throughout the globe and are committed towards a reliable delivery of our products within a stipulated time frame.

Optimized for heavy duty continuous operation Weather resistant engineering plastic Dynamically balanced for low noise operationHigh quality sealed motor Water proof Casing made from High heat transfer alloy metal

Evaporative cooling towers for providing cool water for air-conditioning, manufacturing and electric power generation. The smallest cooling towers are designed to handle water streams of only a few gallons of water per minute supplied in small pipes like those might see in a residence,
