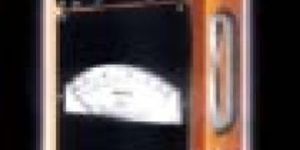

Housed in wooden boxes with bakelite top and handle for easy portability. Various models available for use in single phase and three phase balanced and unbalanced load. Available in Single Current-Single Voltage, Double Current-Double Voltage, and Double Current-Tripple Voltage. Portable Ammeters and voltmeters are designed for use in the field test rooms and laboratories, where precise measurement is required. These portable Instruments can be used equally well in educational institutions, where there is possible misuse; and in factories, where these instruments are important for making calibration check on switchboard panel instruments. General features: Knife edge pointer and Anti-parallax mirror scaleShock resistant pivot jewel movement. The pivots are made from carbon steel hard chrome plated and are mounted on spring loaded sapphire jewels. This ensures shock resistance due to vibrations in transit and minimum friction during use. Accuracy class 1.0% as per IS:1248Wooden case with Bakelite TopWide window for easy readingQuick response due to unique dampingScale Length 150mm(approx)Insulation Resistance Over 20 megaohms at 500 VDC Sensitivity 1000 ohms/V for DC Meters Test Voltage 2000V AC (rms)for 1 minute

Wattmeters are Meant for Measuring Effective Power and are Designed for Single Phase as Well as Three-phase Balance and Unbalance Load. Accuracy Class 0.5 for Portable Sub Standards, Precision Instruments and Class 1.0 & 1.5 for Portable and Panel Mounting Switchboard Instruments Confirming to is.

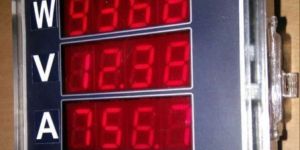

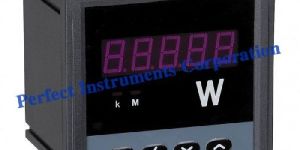

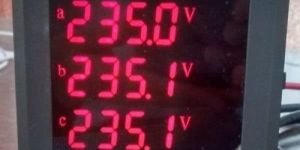

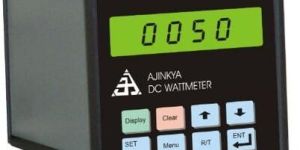

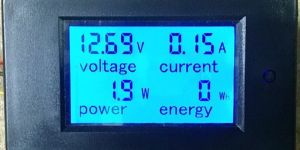

Product Description   We offer efficient and quality assured Wattmeters for measuring DC power in a load. Only genuine raw material is employed in the production stage to make sure that the quality of the final product is of high industry standards.   Some of the features of the products are listed below:   DC Voltage input Current input 75mA Shunt value programmable Display of voltage, current, wattage and Ampere Hour Size 96×96 mm depth 160 mm.

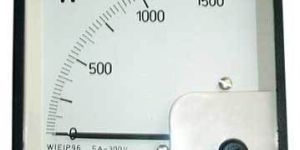

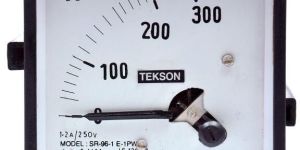

  Rear mounting rectangular meters.       Features: -    AC Moving Iron type for AC65(R) -    DC Moving Coil type for DC65(R), DC70(R), DC90(R) & DC120(R) -    AC Moving coil type with Rectifier Circuit in all above models Additional Accuracy : ±1.5% of Full Scale for DC70(R), DC90(R) & DC120(R) ±2.5% of Full Scale for AC65(R) & DC65(R)Standard : IS-1248Size : Dimensional data below.Application : • Marine X ray machines.• Switchgear.• Distribution systems.• Control panels.• Embedded generation.• Energy management.• Building management.• Utility power monitoring.• Process control.• Motor monitoring.

  Housed in wooden boxes with bakelite top and handle for easy portability. Various models available for use in single phase and three phase balanced and unbalanced load. Available in Single Current-Single Voltage, Double Current-Double Voltage, and Double Current-Tripple Voltage.

AC DC Wattmeters, Hour Meter, Centrifugal Pump Test Rig, Maxwell Bridg

Wattmeters, Phase Electronic Meters, Power Analyzer, Panel Meter

Digital Wattmeter, Test Instruments, Measuring Instrument

Wattmeter, Digital Ammeter, Voltmete

DC Wattmeter, Frequency Response Analyzer, Gm Counte

Digital Wattmeter / Varmeter, Power Factor Transducer, Frequency Transduce

Wattmeter, Wheatstone Bridge, Analog Power Factor Mete

Digital Portable Wattmeter, AC Power Transducer

DC Wattmeter, Square Root Timer, Voltage Control Pane

Portable Three Phase Wattmeters, Power Transducers, Frequency Transducer
