Tundish are used for example in continuous casting facilities where the liquid steel is cast into continuous strands. The weighing equipment is used in the ladle turret, tundish and outgoing roller table to determine the weight and control the process. Our tundish scales are very robust to withstand the large impact and shock load, our high temperature load cell are suitably designed and fit in to be turret application with wire and wireless inter connectivity. The tundish bar can withstand up to 200°C without any external insulation. The tundish can be manufactured to cater the specific requirement of high temp with air burging and ceramic and insulating materials The incredibly robust ladle turret scales are manufactured for the prevailing harsh ambient conditions. They are not affected by shock, interfering forces or huge fluctuations in temperature. Key Features  High accuracy and reliability  Mechanically Rugged design  High resistance to the influences of temperature  Turret bar can withstand up to 200°C  Wireless transmission of the weight to PC( or) PLC  Suitable for tough environmental conditions

Based in Delhi(India), we are listed amidst the most celebrated names offering a spectrum of products. Quality management is an important of our organization and we ensure, our entire range is quality guaranteed and reliable.

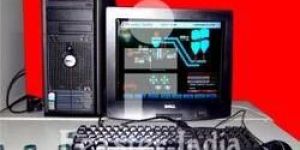

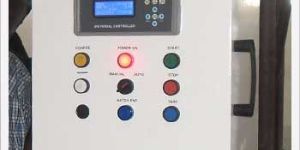

We provide superior quality Automatic Weighing & Batching System in the market. The Automatic Weighing & Batching System is used to weigh any product in powder and granule forms. Our Automatic Weighing & Batching System is compact in design, light in weight and simple. The system gives 99.9% accuracy. These Automatic Weighing & Batching Systems are based on load cell and controller totaliser panel. Areas of Operation : Rice Mill Plant, Solvent Extraction Plant, Distilleries, Breweries, Food Processing Plant, Poultry Feed Plant, Chemical Plant, Dyes & Stuff Plant.

We provide superior quality rail weighing systems, automatic weighing systems that are based on latest technology. Our rail in motion weighing systems is available in customized mode to meet the exact demands of our clients.

We offer a weight drop control (wdc) system that is used for regulating an accelerated weight drop unit (thumper). This integrated solution enables customers to commence automatic cycling and provides them with the authority to set the requisite number of hits. Our product is equipped with a remote control box, time delay display (time from fire command to hit) and gps interface (for positioning and timing

Tundish are used for example in continuous casting facilities where the liquid steel is cast into continuous strands. The weighing equipment is used in the ladle turret, tundish and outgoing roller table to determine the weight and control the process. Our tundish scales are very robust to withstand the large impact and shock load, our high temperature load cell are suitably designed and fit in to be turret application with wire and wireless inter connectivity. The tundish bar can withstand up to 200°C without any external insulation. The tundish can be manufactured to cater the specific requirement of high temp with air burging and ceramic and insulating materials The incredibly robust ladle turret scales are manufactured for the prevailing harsh ambient conditions. They are not affected by shock, interfering forces or huge fluctuations in temperature. Key Features   High accuracy and reliability   Mechanically Rugged design   High resistance to the influences of temperature   Turret bar can withstand up to 200°C   Wireless transmission of the weight to PC( or) PLC   Suitable for tough environmental conditions

Gross Weighing System is exclusively designed and developed as per international industrial standard. These are ideal to use for various sticky products. These are very easy to install in minimal height place also as these can be easily installed in the net weighing system. These are straightened with a sealing unit for sack weights ranging from 1 to 5 kg. Besides, its line operation is executed through paper sacks with an inner plastic coating. These are available in various technical specifications.

We are staffed with professionals and under their guidance; we keep a close check on the products and ensure that the range is as per the exact customers' requirements. We are staffed with dexterous team members and packaging experts; they ensure that the products are completely safe from the external damaging factors, and this is done by using quality-packaging material.   Software characteristic : No moving parts. The most reliable strain gauge load cells. High Accuracy. Practically no maintenance. Standard electronics will have relay outputs 4-20 mA isolated current, set point facility. Absolutely cost effective. Expandable control output to use as batch controller.

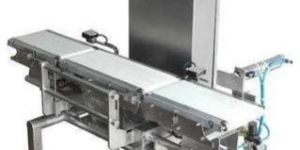

for grapes packaging1]Max capacity – 1200 gm 2] Weigh Range – 12-1200gm 3] Optimum Accuracy - - 0.5gm 4] Belt width – 150 mm 5] Feed speed – 10 -74 (m/min)  6] Max weigh speed - 220 (ea/mi

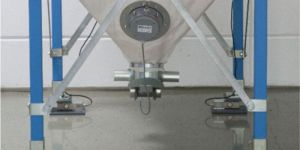

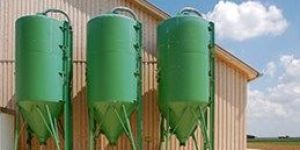

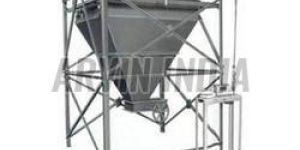

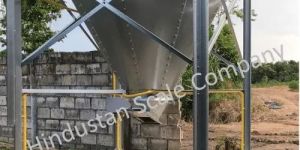

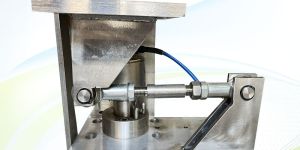

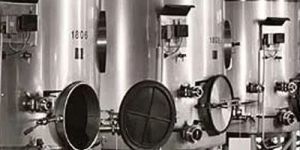

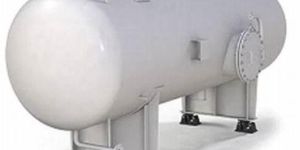

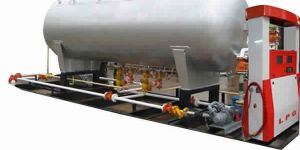

Swisser Instruments Pvt. Ltd. is the name counted upon for offering Tank Weighing System. These systems are manufactured using genuine grade raw materials that ensure countable features such as sturdy construction, fine finish, high durability and resistance to corrosion. Industrial Tank Weighing System is available in various specifications, conforming to the international standards such as BIS, ISO & CE. Moreover, the company is looked upon as one of the supreme electronic tank weighing System Manufacturers, Suppliers and Exporters in India. TANK / VESSEL/HOPPER WEIGHING SYSTEM Swisser Rugged and reliable and accurate weighment.Swisser’s models are ideal for accurate weighment of tank ,vessel or hopper SWISSER offer wide range of tank scales , weighing and batching system for various vessel weighing solutions.Our Hopper scales may incorporate multiple types of load cells depending on types/number of supports of the hopper.Tanks or hoppers can be suspended from tension load cells or weigh modules, with accuracy similar to that achievable with compression systems. This mounting method can be convenient if an overhead structure already exists, or if the ground space under the scale must be kept clear. It is applicable for scales with capacities of approximately 20 kilograms (45 lbs.) to 30 tons.SWISSER offer silo weighing system which are best suited for rugged and heavy duty applications in various process industries. Most tanks holding 10 kilograms to 80 tons or more are mounted on compression load cells or compression weigh modules for weighing. The Rocker Pin ensures the best accuracy in case of thermal expansion or contraction. Smaller tanks can be mounted on bench or floor scales, which is convenient for legal-for-trade applications.Over load Protected Load Cells Outdoor tanks must have safety features to protect the load cell during installation and operation. Tanks are exposed to wind forces. This requires features for weigh modules to cope with uplift forces on one side and extreme load on the other. Temperature changes can result in expansion and contraction of the support structure. Swisser weigh modules are designed to cope with such circumstances.. FEATURES :- • Capacity--- 300kg- to -100 tons.• 3 load cell or 4 load cell.• Screw jack facility for easy maintenance.

Features : * International quality load cells * Overload protection for load cells * Platform scales for small milk collection centers and * Bowl type scales for big Dairy farms * Programmable conversion factor for kilograms to liter * Optional complete stainless steel construction * Optional battery backup

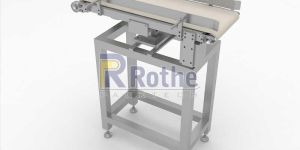

Frame: The mild steel ILS frame is an integrated assembly incorporating two supporting conveyor legs, with two analog load cells, a junction box and cabling. Installation: Bolt-on READY frames replace existing convey or legs. Junction boxes include pre-wired input and output cables for fast setup. Typically, two frames are required per conveyor. For static applications that require the use of two conveyor sections to create a longer weighing platform, a third frames is installed where the sections are joined together. Capacities: 300 Kg per frame. Total scale capacity is double the indiviudal frame rating. When selecting a capacity, the weight of the conveyor section must be factored in. Static Conveyor Sections: MONAD carries the ILS supports and can also provide static conveyor sections and indicators to build a complete system. Sizes: Widths – 24, 30 and 36 inches Lengths – 5 or 10 feet. Sizes: Placed on 3” centers for even load support and “set high” for unobstructed conveyance. 1.9” diameter, 16 ga. mild steel.

Specifications: input: 0-1 vdc, proximity (pnp type) digital inputs: two (potential free contacts) display: 14 digit 7-segment 0.56” red led display organised in three groups. aggregate rate (tons/hour) : 4 digits conveyor speed (meter/sec) : 3 digits total aggregate (tons) : 8 digits non-resettable eight digit totaliser (reset possible only thro’ password) keypad: eight keys membrane keypad discrete leds: two power supply: 230v +/- 10% ac proximity power supply: +24v dc/50 ma output options: 0 to 10 v dc relay: one for alarm condition serial interface: rs232 or rs485 (optional) scaling method: linear (multiplying factors: programmable) warm up time: 10 minutes accuracy: 0.1% of fs +/- 1 digit enclosure: metalised din standard, panel mounting type dimensions: outer: 144 mm x 144 mm x 120 mm panel cutout: 138 mm x 138 mm weight: approx. 2 kgs

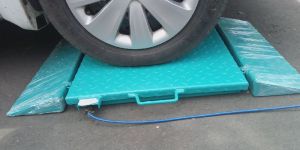

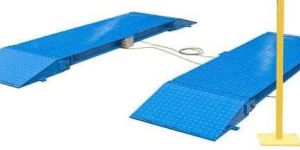

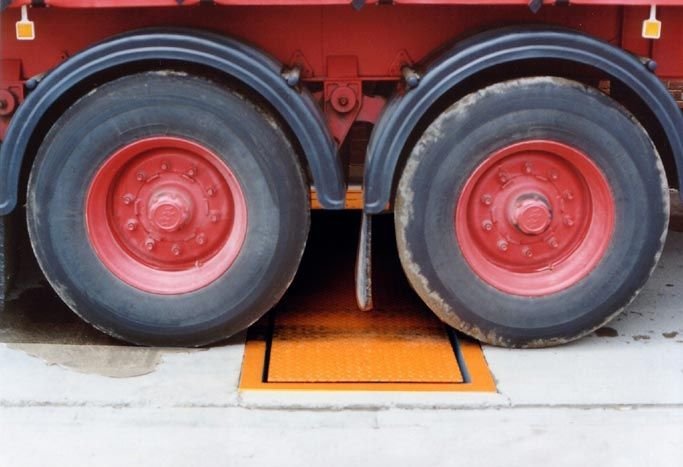

Axle Weigh Pads that we offer are appreciated for providing high accuracy in dynamic weighing. These Axle Weigh Pads are extensively applied in portable highway overload detection systems as they efficiently check out side overloads. Our Axle Weigh Pads are extremely easy-to-operate as these are provided with complete retrieval and statistical functions. Features Input with ease the complete vehicle license No. along with the name of city and province. Optional to input the monitoring organs, personnel, vehicle license No. and Axle types. Capable of performing either duty of highway administration and traffic police Detection data output to the computer Memorizing detection records of 1300 cars Simultaneously performing detection in both passages with high precision; applicable to check out side overload. AC/DC convertible; battery supply up to 40 hours for continual working; auto shutoff Battery voltage indication   Pad Specifications Rated capacity : up to 20 ton per pad @ 20 lb graduations Material : High strength aluminum alloy Static Accuracy : 0.25% full scale or better Dynamic Accuracy : +/- 1% of full scale with leveling track (See Weigh in Motion) Dynamic Accuracy : +/- 3% of full scale without leveling track Overload Capacity : 200% full scale Input/Output Resistance : 560 ohms +/- 50 ohms Output : 0.6 to 1.0 mV/V Excitation : 5 to 24 VDC Stability : 0.5% full scale/year Ground level Requirement : 5mm within 0-4m Weight : 52 lbs including ramps, 42 lbs without ramps Operating Temperature range : -10 to +55 deg C
