Wire Testing Machine Dealers

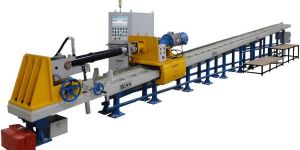

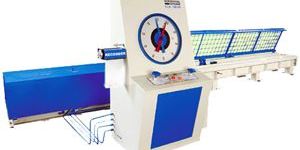

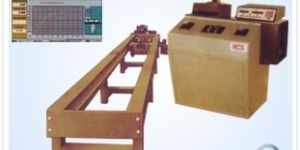

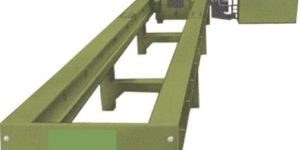

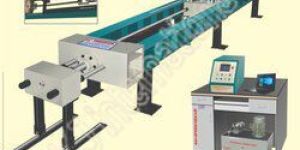

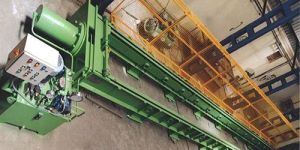

The MCS's Electronic Horizontal Chain & Rope Testing Machine incorporates design features to enable high accuracy testing with economy, speed and versatility • Loading accuracy as high ±1% as per Grade A of BS : 1610-1964 and Grade 1.0 IS : 1828-1975. • Straining at variable speeds to suit a wide range of materials • Motor driven gear shafts for quick and effortless adjustment of test length to facilitate rapid fixing of test specimen

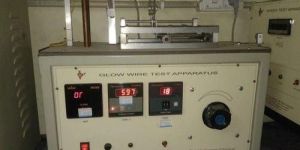

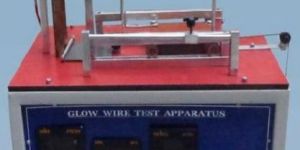

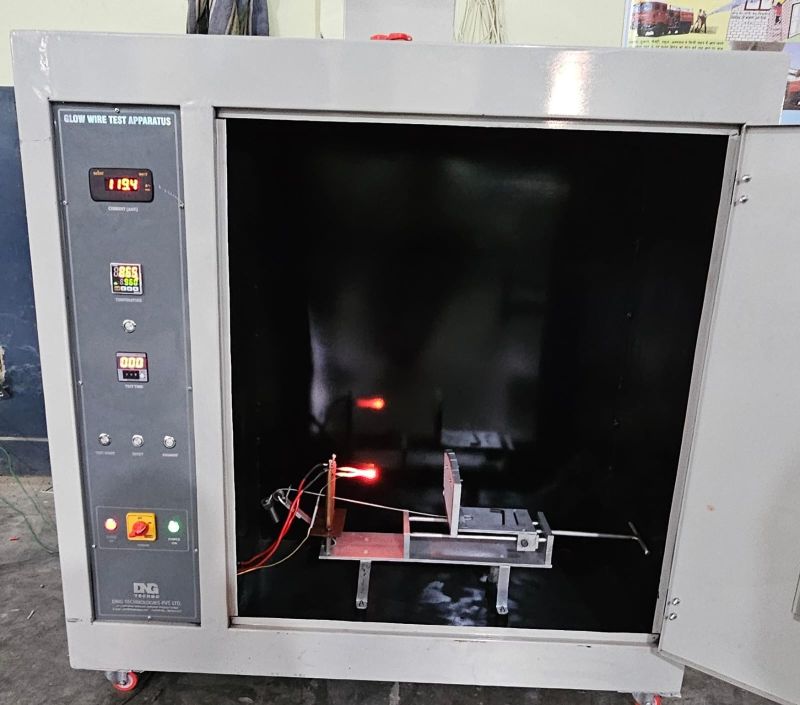

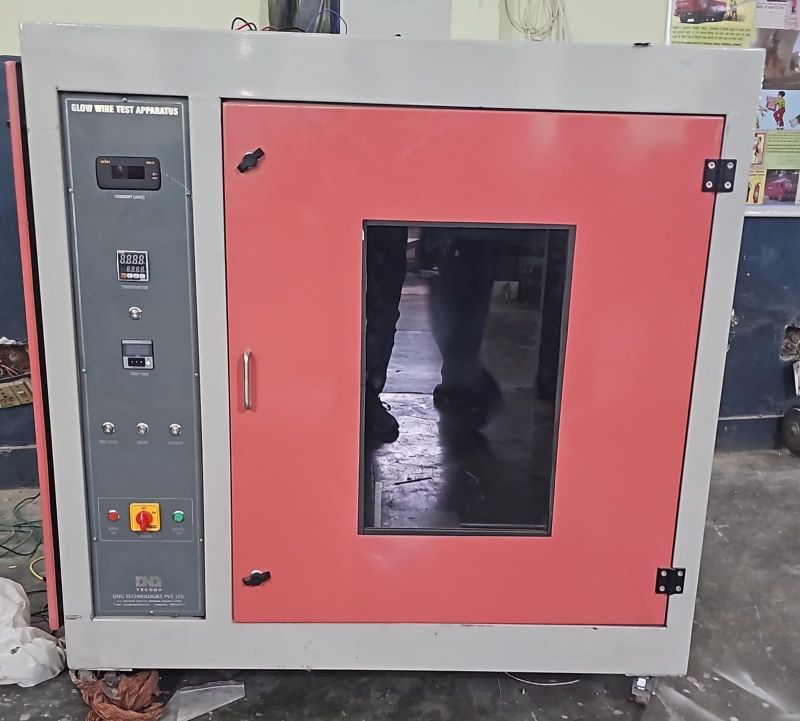

GLOW WIRE TEST APPARATUS  is intended for testing the flammability and ignitability of components and materials. This equipment is designed as per requirement of IEC:60695-2-10, IEC:60950-1, IEC:60335-1, IEC:60884-1, IEC:60238, IEC:60695-2-11, IEC:60695-2-12, IEC:60745-1, IEC:60400, IEC 60730-1, IEC:60598-1, IEC:61050, IEC:60320-1, IEC:61058-1, IEC:60742, IEC:60669-1, UL 746A, BS EN 60695-2-1, BS 6458, NF C20-921-1, IS:11000, ASTM D 6194-03 ‘Fire” hazard testing- part – 2 test method section 1, Glow wire test and Guidance.Nickel / Chromium (80: 20) Glow Wire, 4 m.m. in diameter, as per standard. Apparatus Glow Wire Test Apparatus consists of fine wire thermocouple, 0.5 mm diameter Cr/Al OR 1.0 mm Sensing Thermocouple. Sensing Thermocouple is also being supplied as per ASTM D 6194 for measuring the temperature of the Glow Wire. The equipment is simulated thermal stresses that are produced by sources of heat or ignition for short periods. When insulation is subjected to abnormal condition & can become a fire hazard. Fully Automatic Glow Wire Tester Besides the Conventional Glow Wire Test Apparatus a new model with complete automated Glow Wire Tester having touch screen and complete PLC control and monitoring for Time, Flame time, Force, Current and Exhaust time etc is also designed by Sensors India. The testing device consists of a loop of resistance wire, electrically heated to the for high temperature specified for the relevant standards and maintained under specified pressure & time. A PID digital temperature indicator with controller. The range of this control is 1000 Deg C. An auto current source use also provided with a CT operated ammeter, which is capable of delivering up to 150A for heating in loop. Besides that moving specimen holder trolley is pre-loaded with a force of 0.8 to 1.2 N against Glow Wire. Mechanical stopper limits movement of the tip of The Glow Wire in to the specimen to maximum permitted with scale to measure penetration depth. Digital timer for application and flame time adjustable clamp for holding the specimen under test & Scale for measuring flame height is also provided. Our apparatus provides excellent temperature control.

Universal Testing Machine is used to test the tensile stress, adhesion test, ductility, fatiguecyclic compressive strength of materials, components and structures. Our capacity is 100 KN. UTM test speed is min 0.01 mmmin to max 500mmmin

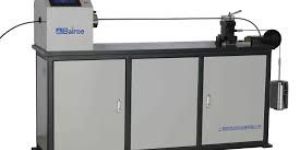

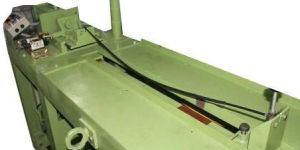

Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet materials torque measurement is by pendulum dyanometer system. Torque ranges can be adjusted by auto torque selector. Torque can be applied to specimen by geared motor through gear box. Autographic recorder gives the relation between torque and angle of twist. The accuracy of torque indication is ±1of the true torque.

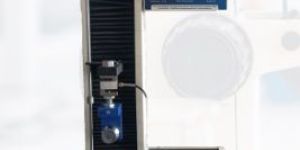

KEWIL Tensile Testing Machine Tensile Testing Machines for universal application, in substantial two column construction, especially designed for metallurgical and research laboratories.

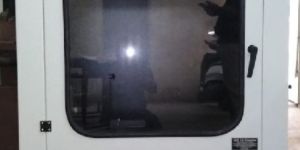

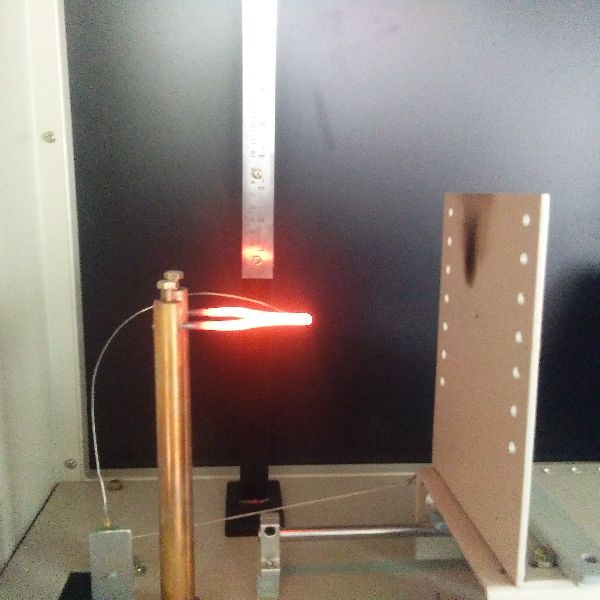

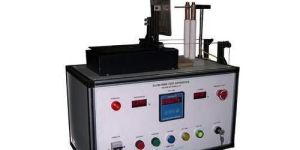

Backed with sound amenities and talented personnel, we have emerged as one of the leading manufacturers and suppliers of Glow Wire Test Apparatus. Offered apparatus is widely appreciated by clients for its excellent performance. Provided apparatus is used to examine the fire resisting properties of the products. Moreover, we provide this Glow Wire Test Apparatus to clients at nominal prices. Main Features of Glow Wire Test Apparatus ·         The Glow-wire is made from nickel/chromium (80/20) wire, with an overall nominal diameter of  4mm.The  wire is formed into a loop as detailed in figure 1 in IS 11000-2-1(2008) Electrical connections for the glow-wire are capable of carrying the current without affecting the performance or long-term stability of the circuit.   ·         Tne typical current necessary for heating the tip to a temperature of 9600 C  is between 120 A and 150 A     ·         The test chamber is operated in a draught-free condition. This can be achieved by using a chamber with a volume of at least 0.5 m3 which permits observation of the test specimen. The volume of the chamber shall be such that oxygen depletion during the test does not significantly affect the result.

Torsion Testing Machine is designed for checking Torsional porperty of varius metal wires, tubes, bars etc. Torque applied to the specimen is transfered to measuring dial through lever mechanism. Torque is measured by Pendulum Dynamometer system. Torque ranges can be adjusted by requred torque at other end of specimen. Autographic recordr gives the relation between Torque and Angle of Twist. These machines are calibrated as per latest relevent standards. Calibration is within ±1% within operating range of all models.

Owing to our well-maintained and organized inventory system, we deliver the same in the committed time. Product packaging is done using industrial grade materials by us to ensure safe and undamaged delivery of consignments. Further, we provide tailored packaging solutions.

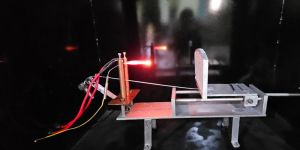

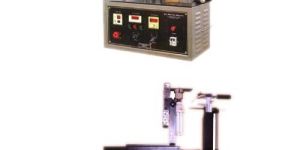

Applications: Resistance to flame and ignition test on insulating material such as CFI outer insulating material, HID lamp cap insulating parts etc System Features / Technical Data: The heating element is made of Nickel/ Chromium (80:20) wire, 4 mm in diameter The temperature sensor is made of a sheathed fine wire of Cr/ A1 thermocouple resistant to a temperature of 1000 C Self adjusting current source is used to heat the Glow-wire up to preset temperature A microprocessor based PID temperature controller is used to control temp of glow wire. (Range: Ambient to 960C, Resolution: 1°C Accuracy: 1% Display: 4 Digit Red LED) Microprocessor based digital timer is used for pre-setting the test duration (Range: 0.1 999scc) with audio alarm to remove the test sample from the glow wire tip Digital time interval meter to record the burning time of the sample Glow wire penetration into the sample can be limited mechanically Provision to press the sample towards the glow wire tip with a force of 1 Newton In Auto models motorized forward and reverse motion for the movement of specimen with additional manual jog switches Automatic start of the test and draw back of the sample after the pre-set test time with a single press button Manufactured confirming to IEC, BSS and IS specification.
