Automatic Wire Drawing Machines Dealers

Some features are : Efficient performance Minimal maintenance Resistance against corrosion Longer service life

Extra Heavy Duty, Barbed Wire Making Machine are particularly suitable for the production of barbed wire to I.S.I. or to any other standard. The longitudinal wire may be either 12 Swg. or 14 Swg. And wire of barbs the usual 14 Swg. or thicker guage according to buyers instruction. The pitch of barbs in variable from 3” to 6”.

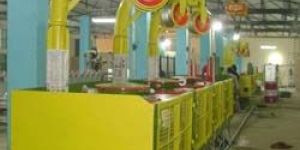

The OTO type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of low,medium and hi-carbon material, especially for mild steel wire, spring steel wire,  welding wire and copper wire aluminum wire, etc.   Scope Of Application: Welding wire, welding electrode, galvanized iron wire, binding wire, copper wire. Usage: The set of the machine is ideal equipment for drawing wire stock of high, medium and carbon steel, as well as copper, aluminum and alloy. The machines are supplied for drawing wire in the factories such as steel wire factory, metal mesh factory and nail making factory etc. Structure: The equipment consists of main reduction gear box.die casing box, drawing capstan  and electrical control system. The drawing blocks are vertically fixed in fabricated mild steel body. The gears are lubricated with oil. In order to lower residual heat on the surface of the block, the drawing capstans and die boxes are water cooled and air cooled Machine Features Each unit of OTOmachine is equipped with diebox.The drum interior water-cooling is designed with high efficiency circulation and spiral, fully filled water paths.The dieboxes employs a forced and direct circulation water cooling system.This model is suitable for wire coiling operations for low/middle/high carbon wire.Transmission System –Worm and Worm wheel type gear systemsMode of speed adjustment AC frequency conversion control   Optional Features Stripper blockRotating die holder Soap boxes with stirrersDie take- up cassettesDust suction systemsEnvironmental guardingWire diameter measuring heads

Wire drawing machine advantages • transmission through reducer in oil bath • reel with electronic friction • very functional operator panel • optional electronic winding unit • strong, solid frame • very reliable • compliance with the required standards the vm6p, vm10p and vm12p models are multi-pass straight-line drawing machines designed to process ferrous, non-ferrous and noble wires, which are available in two versions: variable speed, adjusted via potentiometer, or 2 fixed speeds (vm6p2, 10p2 and 12p2) in both cases the movement is ensured by a three-phase motor with alternating current transmission through reducer in oil bath and is able to guarantee a drawing speed of up to 80 mmin. explanation the movement is ensured by a three-phase motor with alternating current transmission through reducer in oil bath and is able to guarantee a drawing speed of up to 110 mmin. The steel conical reel with hard chrome surface comes with a mechanical clutch with auto-leveling tempered discs for the constant tensioning of the wire and the smooth startup of the system; a closed-circuit cooling and lubrication device ensures the temperature dispersion of the die-holder group and the motorized conical reel during processing in order to delay wear and collect scrap materials. An easily accessible, highly functional control panel allows the operator to manage all operations in an immediate, streamlined fashion. Activations via foot pedal when the machine is both open and closed. The vm6p, 10p and 12p drawings are equipped with optional electronic winding, and safety protection in accordance with internationally required standards.

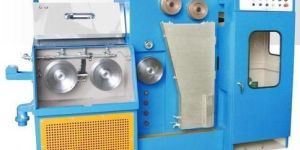

Al       1.2mm to 0.36mm   Cu       0.9mm to 0.12mm   GI - SS 0.8mm to 0.12mm

We are one of the leading manufacturers and exporters of a wide range of Continuous Wire Drawing Machine designed by highly trained engineers. Continuous steel wire drawing machines are manufactured under royal experience and advanced technology, enable to guarantee performance of all systems with interchangeable parts. Features offered by Continuous Wire Drawing Machine: 1. Vibration free performance 2. Fully covered 3. Driving gears made from special phosphorous bronze and worm of special alloy steel 4. Drum made from high grade C.I. Casting 5. All Gears & Bearings are oil immersed 6. All shafts made from EN8 Steel 7. Heavy duty Structure 8. Horizontally V-Belt driven

We have invested a huge amount in the automated warehousing system that is sprawling over a large area. We make certain that the wide array of product range we offer is strictly packed and kept safe till the final delivery. It is due to our guarantee of providing damage-free products to the clients; we are highly in demand amongst the buyers. Our packaging experts keep a stringent check on the entire packing procedure ensuring the same.Features : Low maintenance Well design Longer life Specifications : Model No. - SEW-IWDM Inlet Wire Diameter(mm) - 2.64 Finished Wire Diameter(mm) - 0.50 Approx Price : Rs 5.5 Lakh / Unit(s)

We own sound quality system, owing to which we carry out strict quality examination of the product basket. As a promising name, we bring forth a quality-centralized range of products that are designed and produced using the high quality raw material. We check the material on several counts prior to procurement.

We have carved a niche for ourselves in the industry owing to our high quality standards and technical superiority that is Wire drawing equipment reflected in each of ourBest Wire Spooling machine Manufacturers & Exporters in Delhi. We own a well established manufacturing unit, managed by a talented team of engineers & technicians with valuable industrial experience.

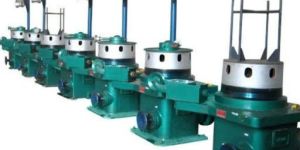

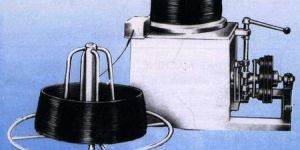

Six Block OTO Type Wire Drawing Machine Wire Drawing Machines are available from 3 Blocks to 11 Blocks & 300MM to 600 MM dia. DOUBLE BOX  TYPE CONTINUOUS WIRE DRAWING MACHINE FOR NO TWIST can also be offered. Bull Block Type Wire Drawing Machine & Double Dack Type Wire Drawing Machine Product Specification General Construction:All Drawing Blocks are internally water cooled by multi jet spray. The Blocks are manufactured from special quality cast iron. Die Box: Die Box Comprises of two separate compartments, one for the dry shop drawing lubricant, & another one for water cooling of the die. The box is adjustable in vertical & horizontal positions. Operator Controls :START-STOP Push Button, INCH foot switch, ON, OVER LOAD, GUARD OPEN indicators, etc. Guards:Machines have rear steel plate guard and also wire mesh guard provided covering the units from front. All mesh guards are electrically interlocked and when guard is open entire machine will shut down. Pull In Tong:Box type tongs with hardened jaws are supplied with each machine to cover the full range of wire sizes to be produced. The Tongs have a length of chain and a hook to fit into the pockets of each blocks. Note: Max. Power & Finished speed shall vary as per application.

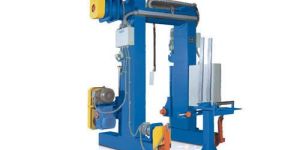

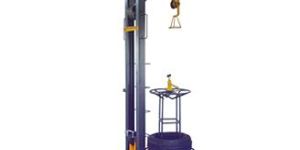

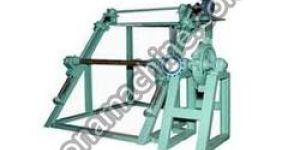

The Wire Drawing Machine Pintal Type Pay Off, provided by us, is reckoned for its make & long service life. Stay rest assured for the products that we offer as they will remain damage free. For this, we make use of only premium packaging material for the packing of the products. Over the years, our company has formed alliances with various leading logistics services providers. Therefore, we can make timely delivery of consignments.
