We offer close view of winker light on floating hose.

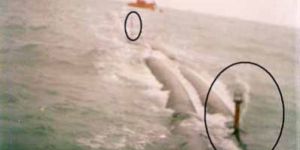

Winker Light At Sea On Floating Hose

We are a distinguished Winker Lights Manufacturer and supplier, offering solar marine lights. The whole design available with us has been made to fulfill the requirements of SBM's flexible hose's nighttime navigational guard/marker. We also deliver various types of solar powered navigational aids for offshore oil industry as well as for the port authorities and terminal operators. We have also kept provisions for glass cage/guard, which protect the glass from any collision impact. The main body of the unit is fitted with marine grade retro reflective tape so incase unit is not operative in that case this reflective tape helps to identify itself by incoming ship/tanker/tug/boat's lights. Products Winker Lights for SBM Hose strings Leading Lights Marine Navigational LED Lights

Lighting Type : Led

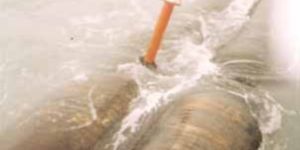

We offer winker light at sea on floating hose.

Technical details :- Product: Winkerlight for Flexible Hoses (SBM) Model: Flexiguard Height: 133cms. Weight: 15 Kg Approx Lens-Glass Colour: White, Blue, Green, Yellow and Red (as per Customer’s Choice) Visibility: 360’ Degrees Range: 2.5 Nautical Miles Flashing Rate: User Programmable 200 Iala Marine Flashing Codes Operative Period: Auto Starts At Sunset Hours and Auto Stops At Sunrise Hours It also Starts During Foggy Weather and in Poor Visibility Light Source: 6 Ultra High Intensity Led's Glass Colour: Transperent White Light Output: @ 9º Angle of Divergence Green - 8.3cd(candela) White - 8.3cd Red - 5cd Yelllow - 4cd Blue - 8.3cd [1]With Retro Reflective Tapes On the Main Body At Three Places [2]Base Plate Where the Light Lens is Installed is of Stain Less Steel GR 316 [3]Saftey Cage Guard for the Lens of Stain Less Steel of 20 MM Thickness [4]Flange Holding Screws of LN Type By Above New Added Features Ensures Increase in the Life of the Main Body. Current Draw Day Time: Nil 10% Duty Cycle: 10ma (max Power Setting) Lamp (Led) Life: Excess of 100,000 Hrs. Solar Module: 1watt 2 Volt Sealed Inside Lens Unit with Charge Controller Flash Codes: 250 International Codes Adjustable Via Two Rotary Switches Pulse Adjustment: Via 2 Dip Switches Unit Has Been Designed to Fit On the Top of the Flexible Hose of 24 Inches Dia or as per Order. Whole Unit Has Been Designed as Water Resistive and Coated with Marine Grade Paint Unit is Inrisically Safe to Operate in the Hydro- Carbon Content Atmosphere as all Electrical Parts are Sealed Inside polycarbonate Sterene Glass Material Which Helps to Increase Light Transperency also Ribs On the Glass Helps to Amplify the Different Viewing Angles specifications are Subject to Change Without Notice for Quality Improvement. customers are Requested to Give Their Drawings of the Flexible Hoses Flange with the Nuts and Bolts Sizes to Precisly Design the Mounting Base. any More Suggestion from Customer for Product Modifications/improvement is the Most Welcome. Commercial Details Name of Product :- Winker Light for Flexible Hoses of SBM Model :- Flexiguard Delivery :- Within 20 Days After Confirmed Order Payment :- By Cheque, On the Name “ Networks United”. 100% Payment to Be Made Within 30 Days After Delivery This Lights are Mounted On Top of the Mounting Assembly On the Sbm’s Flexible Hoses.

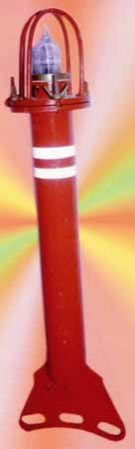

Winker Lights

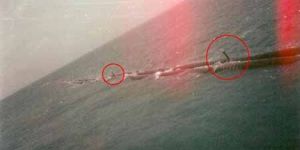

These White Led Lights are being used on the floating hoses of SBM during dark hours the light switches on automatically during night hours and switches off automatically during day break hours. This light, offer by us, has mini solar panel and has high capacity storage battery. It uses latest technology of LEDs which are more power saving as compared to conventional bulbs and has longer life cycle period.

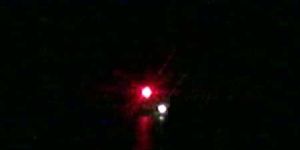

We offer red and white leading lights.

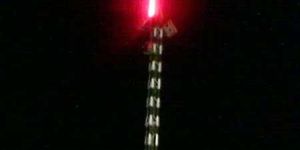

We offer red leading light(vadinar).

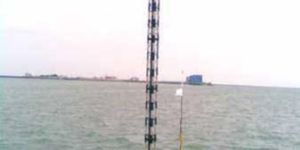

Red Leading Light Day Time with Tower Structure

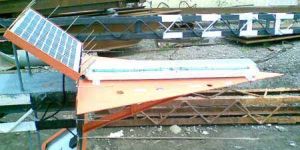

Red Leading Light Prior to Installation At Shore Testing

With the help of these Harbour Leading Lights, proffer by us, large oil tanker ships safely navigate in closed water during night. A gigantic range of Harbour Leading Lights are available with us at the most reasonable price. Moreover, we do not compromise with the quality of our product.

Size : 3Inch, 4Inch, 5Inch

Material : Aluminum, Plastic

Thickness : 10-15mm

Application : Tube Light Feetings

Feature : Corrosion Proof, Fine Finishing, High Strength, Perfect Shape

Surface Treatment : Coated

Fittings Type : Caps, Elbow, Nut

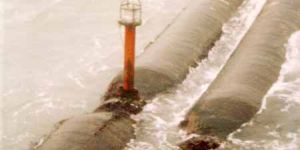

We offer winker lights floating hoses.
