Zephyr Fire Equipments (i) Pvt. Ltd. Edappally, Ernakulam, Kerala

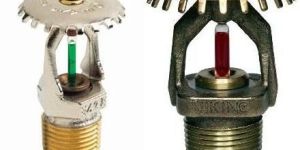

esponse   Standard/Quick Coverage Produce a hemispherical water distribution pattern below the deflector. Installation Upright installed in accordance with the standard installation rules recognized by the applicable Listing or Approval agency Temp. Rating 135“F/57°C,155°F/68°C, 175°F/79°C, 200"F/93'C Maximum ServicePressure 175psig/1.2MPa(12bar) Listings and Approvals  UL Finishes Natural brass, chrome plate

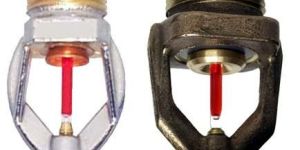

Standard response spray sprinklers are intended for use in the sprinkler systems in accordance with the standard installation rules recognized by the applicable listing or approval agency. They are available in pendent, upright, recessed, horizontal sidewall styles. Quick response spray sprinklers are designed with a 3 mm glass—bulb to react quicker at the specified temperature. They are available in pendent, upright, horizontal sidewall styles. During a fire conditions, the thermal-sensitive liquid in the glass bulb expands, causing the bulb to shatter, releasing the button and spring seal assembly. Water flowing through the sprinkler orifice strikes the sprinkler deflector, forming a uniform spray pattern to extinguish or control the fire. Standard and quick respondent are designed for use in a wild range of applications including office buildings, libraries, hotels, restaurants, banks, band shells, theaters, factories and storehouses.

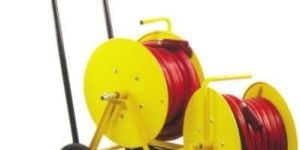

Slide plates red epoxy powder nishing. Automatic hose reel has integrated automatic stop valve which will open after 2 revolution of the reel. Threaded Inlet connection. Outlet connection for hose can be rotate for left and right direction. Waterways made from non ferrous metals which ensure corrosion free. Maximum working pressure 12bar, test pressure 18bar. Side plates available in stainless steel.

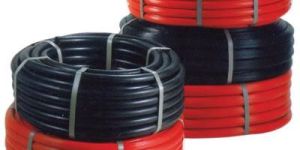

Fire Hose is constructed using best quality 100% Polyester Yarn practically free from Dirts, Knots,Lumps, lrregularities of the yarn and other visible defects. Lighter in weight, Compact, Flexible and Stronger in performance, Manufactured on Imported Plant & Machinery and is inside Seamless Rubberlined with leakproof and Non - Percolating lining, Ultra White appearance & Smooth Finish

Working Pressure : 14 bar

Material : Cold roll steel

Size : 3/4“ (19mm) / 1” (25mm)

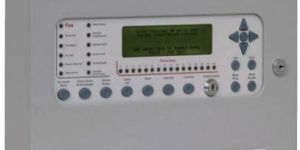

The zephyr analogue addressable panels are a powerful yet user-friendly series of control panels. They are designed to a high standard with LPCB approval to EN54, parts 2 & 4. Each panel in this modular series has considerable processing ability but is easy to install, programme and operate. This is supported by comprehensive support documentation. Panels are housed enclosures and are finished in harwearing epoxy paint. STANDARD FEATURES 1-4 loop addressable fire alarm panel (each with a 126 device capacity) LPCB Approved to EN54 parts 2 El 4 Devices can be grouped into 32 zones Network up to 15 panels (giving a total of 60 loops) 500mA output per loop with highly stable voltage platform, even under mains-failed conditions Powerful processing and extensive panel and loop I/O capability User-friendly controls (enabled by key switch) and a clear, unambiguous screen [4 x 20 character LCD display)

STANDARD FEATURES Automatic Horizontal oscillation when water pass through monitor Oscillation angle adjustable in 15 steps from 300 deg to 120 deg Oscillation angle adjustable from 2 to 10 per sec Manual movement 360 deg horizontal 4” ANSI inlet flange in gun metal RF 3” Stainless steel waterway Nozzle and flange in gun metal Oscillating mechanism: Aluminium Cover: Mild Steel
