Abbott Toolfast Pvt. Ltd. Sector 27, Faridabad, Haryana

We offer our clients an excellent quality range of Wedge Clamp that is manufactured using high grade raw materials and advance techniques. The entire range of product is tested on various parameters before the final delivery at the clients end. Our offered range of clamping kit is highly acknowledged by our clients as they feature durability, fine finish and reliability. These have extra material on jaws(soft) to machine as per the workpiece shape enabling fixturing of uneven or unusual shape workpieces.

Toggle clamps, These toggle clamps have a flanged base with holes for mounting on the fixture plate. Handle remains in vertical position while clamping. Available in two types of clamping arms as shown below: BR - Arm :- This type of Arm has s Strip Arm onto which the bolt retainer can be welded by the user at any desire angle. Bolt retainer is supplied loose with this model.

T nut, * marked models are not recommended for heavy duty use because of less wall thickness outside the threading.

Number Of Flower : T Nut

Material : Carbon Steel

Packaging Type : Metallic

Packaging Type : Carton Box, Plastic Packet

Surface Finishing : Polished

Head Shape : T Head

Widely used for low clamping forces such as in light machining of aluminum parts or in welding fixtures. Screw-in version can be mounted inside a hole provided in the fixture plate by locking the cylinder at desired height with the help of grooved nuts supplied as standard accessory, as shown below. These cylinders are also light weight aluminium cylinders having stainless steel piston rod.

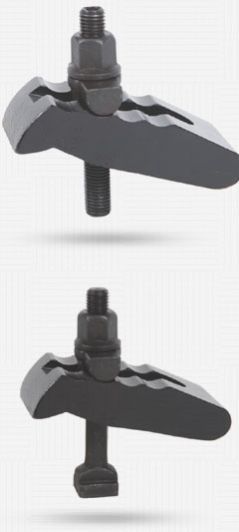

Mold clamps, The positioning of forged swival washer on required curved groove enables the operator to set the center distance between the clamping portion and the clamping bolt as per the nearest tapped hole available on platen (where there are noT-slots). No supports are required at the rear of the clamp as the rear portion rests on the platen and front holds the mould. Flanged nut is tightened on the swival washer which takes care of the positioning of clamp body. These clamps are equally useful on pressure die casting machines, hydraulic presses & power presses where low height clamping is done.

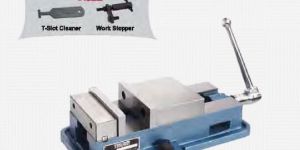

Machine vice, Look down jaw machine vice for machining center and milling machine, Accuracy in Parallelism and Squareness within 0.02mm.

Pull Action Clamps are Latch type clamps used for sealing chambers, lids, doors of moulds, drums, containers or other vessels etc. Also suitable for clamping moulds in industries such as resin, fibre glass, chemical & food. 'TOOLFAST' Pull Action Clamp has a unique design which enables use of the same clamp as a horizontal pull action clamp as shown in figure (A) as well as a vertical pull action clamp as shown in figure (B) below by using two different holes H1 and H2 for pulling pin P to be located in. Clamp is supplied complete with U-bolt & Latch Plate.

Alloy, metal and industrial nuts can be offer as both metric imperial inch sizes with coarse, fine, unc, unf, un, bsw, acme threads.Types of coating for long nut non standard special long nut that can be offered are electro zinc plating, hot dip galvanizing, ptfe fluorocarbon coating, aluminizing, ceramic filled fluorocarbon coating, nickel plating, zinc coating, electro zinc cobalt plating, electro zinc nickel plating, phosphate coating, electro less nickel plating, electro cadmium plating, dacromert 320 500 coating, pickled passivated, silver plating, chrome plating, etc. These nuts have longer life as they have more number of threads than ordinary nuts.

Length : 12,15

End clamp, Most useful clamp for plastic injection moulding or pressure die casting machines where mould I die is clamped in vertical position and these clamps with screwed in adjustable support are convenient to the operator as other loose supports tend to fall down while setting. Hardened adjustable support with large diameter forged base gives rigid clamping support and ensures machine bed safety. Extra thick body of the clamp accommodates more number of threads for rigidity of screwed support.

Clamping devices, 'TOOLFAST' Universal Strap Clamp is most suitable for die clamping on power presses and a very useful clamp for job clamping on 'T' slot table of Drilling, Milling, Shaping, Boring and other machine tools.

Angle plate, Angle Plate-Slotted is made out of high quality seasoned casting having precision ground outside faces & ends. Machined slots for clamping on both faces. >> Accuracy in parallelism & squareness within ± 0.01mm per 200 mm length. >> Inspection certificate is furnished.
