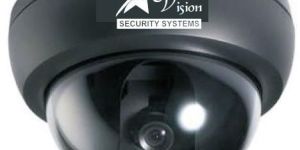

We are offering cctv dome camera.
Color camera pcb module with sony 1/3 super had ccd sensor
employs digital signal processor (dsp) ic for image control.
Pixel number : ntsc=270,000 / pal=320,000
high sensitivity, low smear, excellent anti-blooming, and high s/n ratio.
Supports functions: auto electronic shutter (aes), auto iris control (aic), auto gain control (agc), auto white balance (awb), back light compensation (blc), flicker less (fl)
built-in anti-aliasing and ir-cut optical filter
furnished with mini lens
furnished with power and signals connect wire
dc type, low power consumption. Economical, aesthetic.
Technical specifications
image sensor
sony super had 1/3 ccd
resolution
420 tv lines
minimum illumination
0.1 lux @ f2.0
lens furnished
3.6 / 6.00/8.00mm f3.5
power supply
12v dc
power consumption
1.44w / 120ma
auto electronic shutter
ntsc:1/60s~1/100,000s on / off switchable
auto gain control
high / low switchable
gamma characteristic
0.45
effective picture elements
eia:510*492, ccir: 500*582 (h*v)
synchronous system
internal, nagative sync.
S/n ratio
more than 45 db
operating termprature
-10 to 122)
auto iris control
video-drive iris control
auto white balance
colour temperature 2500 - 9500
backlight compensation
on/off switchable
flickerless mode
