UsageDie Clamping On Power Presses, Job Clamping On T-slot Table Of Drilling, Milling, Shaping, And Other Machine Tools
For Power Presses, Milling, Drilling, Shaping, Boring Etc.
CLAMP SMITH Universal Strap Clamp is most suitable for die clamping on power presses and a very useful clamp for job clamping on T-slot table of drilling, milling, shaping and other machine tools. It's front portion holds the die and rear portion adjust on the bed of the machine with its design itself.
For Power Presses, Milling, Drilling, Shaping, Boring Etc.
CLAMP SMITH Universal Strap Clamp is most suitable for die clamping on power presses and a very useful clamp for job clamping on T-slot table of drilling, milling, shaping and other machine tools. It's front portion holds the die and rear portion adjust on the bed of the machine with its design itself.
Number Of Flower : Clamp
Usage : Die Clamping On Power Presses, Job Clamping On T-slot Table Of Drilling, Milling, Shaping, And Other Machine Tools
SpecialitiesForged Stopper Bolt For Height Adjustment, Special Washer For Bolt Movement, Height Adjustment Feature For Clamping Different Sizes Of Moulds
UsagePlastic Injection Moulding & Pressure Die Casting Machines
BenefitsSaves Time During Mould Changes, Increases Productivity

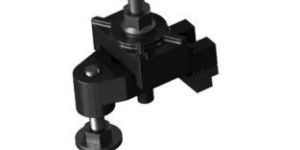

For Plastic Injection Moulding & Pressure Die Casting Machines
It is one of the conventional type clamping system made up of S.G.I steel in 500/7 grade. Used in clamping of heavy moulds on plastic injection moulding machines and pressure die casting machines. It comes with forged stopper bolt for the height adjustment and special washer at top of clamp to move the bolt in slot at desired portion. It is used to clamp different sizes of moulds on same machine through it height adjustment feature. It helps save the time of the operator while changing the mould on machine therefore increase the productivity.
For Plastic Injection Moulding & Pressure Die Casting Machines
It is one of the conventional type clamping system made up of S.G.I steel in 500/7 grade. Used in clamping of heavy moulds on plastic injection moulding machines and pressure die casting machines. It comes with forged stopper bolt for the height adjustment and special washer at top of clamp to move the bolt in slot at desired portion. It is used to clamp different sizes of moulds on same machine through it height adjustment feature. It helps save the time of the operator while changing the mould on machine therefore increase the productivity.
Material : S.G.I Steel In 500/7 Grade
Specialities : Forged Stopper Bolt For Height Adjustment, Special Washer For Bolt Movement, Height Adjustment Feature For Clamping Different Sizes Of Moulds
Usage : Plastic Injection Moulding & Pressure Die Casting Machines
SpecialityAdjustable Support For Thickness Adjustment, Black Finish
Hardened & Tempered, Black Finish

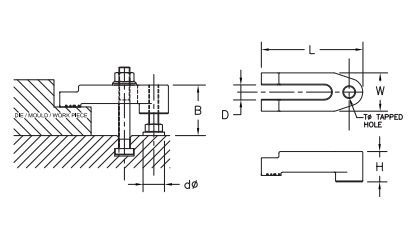

Tapped End Clamps are most useful clamps for injection moulding or pressure die casting machine where mould / die is clamped in vertical position, these clamp have adjustable support to adjust the thickness of mould plate.
(Note : T-Bolt or Stud with Nut, Washer etc to be ordered separately.)
Hardened & Tempered, Black Finish
Tapped End Clamps are most useful clamps for injection moulding or pressure die casting machine where mould / die is clamped in vertical position, these clamp have adjustable support to adjust the thickness of mould plate.
(Note : T-Bolt or Stud with Nut, Washer etc to be ordered separately.)
Usage : Industrial
Material : Hardened & Tempered Steel
Speciality : Adjustable Support For Thickness Adjustment, Black Finish
SpecialityTeeth At Rear For Matching Step Blocks, Single Piece Support
Hardened & Tempered, Black Finish
These Stepped Strap Clamps have teeth at rear matching to that of Step Blocks to be used as support. Unlike other clamps, single piece of step block (not a pair) can be used as support with Stepped Strap Clamp
Hardened & Tempered, Black Finish
These Stepped Strap Clamps have teeth at rear matching to that of Step Blocks to be used as support. Unlike other clamps, single piece of step block (not a pair) can be used as support with Stepped Strap Clamp
Form : Solid
Material : Hardened & Tempered Steel
Speciality : Teeth At Rear For Matching Step Blocks, Single Piece Support
FeatureDifferent Heights, Suitable For T-Slots, Use With Strap Clamps
Packaging TypeIndustry Standard Packaging
Step Blocks are used as adjustable supporting Blocks at the rear of the clamps while clamping the workpiece. Different heights can be achieved by using combination of two different sizes of step Blocks. Available in pairs.(Pair consists of 2 identical Step Blocks) Combination of two Step Blocks of same or different sizes is kept as support under one Strap Clamp. But in case of use of Step Blocks with Stepped Strap Clamp, only one Step Block of suitable size is kept as support under one stepped strap clamp
Step Block - Heavy duty is different then step block above in width only, more width enables use on bigger T-Slots and also with bigger sizes of Stepped Strap Clamps
Step Blocks are used as adjustable supporting Blocks at the rear of the clamps while clamping the workpiece. Different heights can be achieved by using combination of two different sizes of step Blocks. Available in pairs.(Pair consists of 2 identical Step Blocks) Combination of two Step Blocks of same or different sizes is kept as support under one Strap Clamp. But in case of use of Step Blocks with Stepped Strap Clamp, only one Step Block of suitable size is kept as support under one stepped strap clamp
Step Block - Heavy duty is different then step block above in width only, more width enables use on bigger T-Slots and also with bigger sizes of Stepped Strap Clamps
Material : Metal
Feature : Different Heights, Suitable For T-Slots, Use With Strap Clamps
UsageMachining Center, Milling, Shaping, Planning, Jig-Boring
MaterialHardened Steel
Number Of FlowerClamp
Included ComponentsHardened T-nuts, Standard Bolts

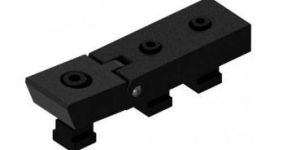

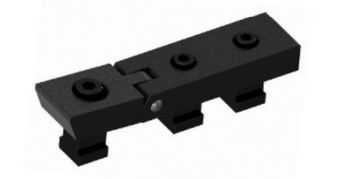

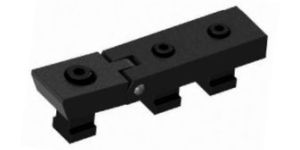

For Machining Center, Milling, Shaping, Planning, Jig-Boring Etc.

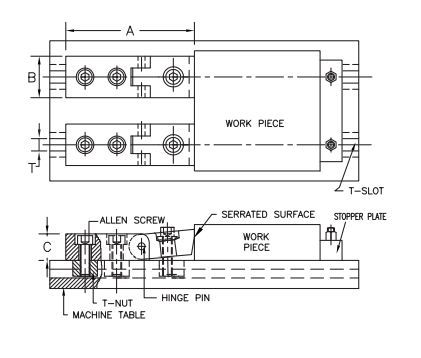

Used in machining centre, milling, shaping, planning, jig boring, etc. This clamp is useful for job clamping where complete top surface of job is to be machined in one setting & hence can be clamped only from side faces. When serrated front portion is pressed against the job by tightening the front bolt, it gives a downward as well as forward clamping force. It is made up of hardened steel & supplied with hardened T-nuts & Standard Bolts.
For Machining Center, Milling, Shaping, Planning, Jig-Boring Etc.
Used in machining centre, milling, shaping, planning, jig boring, etc. This clamp is useful for job clamping where complete top surface of job is to be machined in one setting & hence can be clamped only from side faces. When serrated front portion is pressed against the job by tightening the front bolt, it gives a downward as well as forward clamping force. It is made up of hardened steel & supplied with hardened T-nuts & Standard Bolts.
Usage : Machining Center, Milling, Shaping, Planning, Jig-Boring
ApplicationAdjustable Support Block For Clamps, Stopper, Leveling Block In Fixtures Or Machines, Leveling Surface Plates
Packaging TypeMetallic
DesignUnique Design Prevents Leveling Screw Rotation For Fine Level Adjustment
Special FeaturesHeavy Body, Knurled Nut, Suitable For Heavy Castings And Machines
Leveling Jacks & Height Blocks
Levelling jack can be used as an adjustable support block for clamps and as a stopper or levelling block in fixtures or machines, as well as for levelling surface plates or other heavy duty work pieces. Its unique design does not allow the levelling screw to rotate while adjustment ,hence makes it suitable for fine level adjustment.
Levelling Jack- Heavy Duty
Levelling jack-heavy duty is a heavier version of levelling jack with a heavy body and levelling screw & knurled nut. This jack is specially designed for heavy castings & machines. This is also available with flat head levelling screw.
Height Block for Levelling Jack-heavy Duty
As in case of levelling jacks,height block for levelling jack-heavy duty model CSHBLJ-HD-75 is available for piling with levelling jack heavy duty.
Leveling Jacks & Height Blocks
Levelling jack can be used as an adjustable support block for clamps and as a stopper or levelling block in fixtures or machines, as well as for levelling surface plates or other heavy duty work pieces. Its unique design does not allow the levelling screw to rotate while adjustment ,hence makes it suitable for fine level adjustment.
Levelling Jack- Heavy Duty
Levelling jack-heavy duty is a heavier version of levelling jack with a heavy body and levelling screw & knurled nut. This jack is specially designed for heavy castings & machines. This is also available with flat head levelling screw.
Height Block for Levelling Jack-heavy Duty
As in case of levelling jacks,height block for levelling jack-heavy duty model CSHBLJ-HD-75 is available for piling with levelling jack heavy duty.
Number Of Flower : Leveling Jack
Material : Metal
Application : Adjustable Support Block For Clamps, Stopper, Leveling Block In Fixtures Or Machines, Leveling Surface Plates
UsageClamping Heavy Blocks Or Thicker Plates For Facing Top Face In One Setting
ForMachining Center, Milling, Planning, Plano-Milling
Included AccessoriesT-Nuts, Standard Bolts
For Machining Center, Milling, Planning, Plano-Milling Etc.
These Clamps are offered in heavier version of the above clamp for clamping heavy blocks. Basic function is same but this is used for clamping from sides of heavy blocks or thicker plates for facing top face in one setting. It is made up of hardened steel & supplied with T-Nuts & Standard Bolts.
For Machining Center, Milling, Planning, Plano-Milling Etc.
These Clamps are offered in heavier version of the above clamp for clamping heavy blocks. Basic function is same but this is used for clamping from sides of heavy blocks or thicker plates for facing top face in one setting. It is made up of hardened steel & supplied with T-Nuts & Standard Bolts.
Number Of Flower : Clamp
Material : Hardened Steel
Usage : Clamping Heavy Blocks Or Thicker Plates For Facing Top Face In One Setting
SpecialityAdjustable Swivel Washer, Threaded Stud Or T-bolt
Suitable ForPlastic Injection Moulding & Pressure Die Casting Machines
For Plastic Injection Moulding & Pressure Die Casting Machines
It is one of the conventional type clamping system made up of S.G.I steel in 500/7 grade. Used in clamping of heavy moulds on plastic injection moulding machines and pressure die casting machines. Its adjustable swivel washer adjust the height automatically with the help of grooved curve on upper portion of clamp. It comes with threaded Stud or T-bolt as suitable.
For Plastic Injection Moulding & Pressure Die Casting Machines
It is one of the conventional type clamping system made up of S.G.I steel in 500/7 grade. Used in clamping of heavy moulds on plastic injection moulding machines and pressure die casting machines. Its adjustable swivel washer adjust the height automatically with the help of grooved curve on upper portion of clamp. It comes with threaded Stud or T-bolt as suitable.
Material : S.G.I Steel In 500/7 Grade
Speciality : Adjustable Swivel Washer, Threaded Stud Or T-bolt
Suitable For : Plastic Injection Moulding & Pressure Die Casting Machines
FeatureEconomical, Suitable For Different T-Slot Sizes
Packaging TypeWooden Box
Storage TypeDry Place
Other Characteristics34 Pieces, Taken From The Product Range In The Catalogue
CLAMP SMITH Clamping kit - 34 Piece is economical clamping kit housed in an elegant wooden box. Following table shows the contents of each model of clamping kit suitable different T-Slot sizes. All Items of clamping kit are taken from our range of products given in this catalogue.
CLAMP SMITH Clamping kit - 34 Piece is economical clamping kit housed in an elegant wooden box. Following table shows the contents of each model of clamping kit suitable different T-Slot sizes. All Items of clamping kit are taken from our range of products given in this catalogue.
Material : Mixed Materials
Feature : Economical, Suitable For Different T-Slot Sizes
Packaging Type : Wooden Box
Storage Type : Dry Place
Other Characteristics : 34 Pieces, Taken From The Product Range In The Catalogue
Our company is a reliable Manufacturer and Supplier of Blade Ejector Pins. The Blade Ejector Pins offered by us are known for their immaculate quality and reliable performance. Stringent quality-tests ensure that only defect-free Blade Ejector Pins reach the buyers. Courtesy our brilliant logistics network, we are capable of delivering bulk orders of the Pins within the allocated time. Buyers can obtain the Pins at affordable rates from us.
Our company is a reliable Manufacturer and Supplier of Blade Ejector Pins. The Blade Ejector Pins offered by us are known for their immaculate quality and reliable performance. Stringent quality-tests ensure that only defect-free Blade Ejector Pins reach the buyers. Courtesy our brilliant logistics network, we are capable of delivering bulk orders of the Pins within the allocated time. Buyers can obtain the Pins at affordable rates from us.
Adjustable support plates are used as adjustable support at the rear of the clamp. It comprises of number of plates each 2 mm thick hinged together. Desired height is achieved very easily by swinging aside the required number of plates and using the remaining as support block.
Adjustable support plates are used as adjustable support at the rear of the clamp. It comprises of number of plates each 2 mm thick hinged together. Desired height is achieved very easily by swinging aside the required number of plates and using the remaining as support block.
FeatureAttractive Powder Coated Metallic Rack, Variety Of Clamping Elements
Packaging TypeRack
Packaging TypeMetallic
Storage TypeHangable On Machine Or Wall, Or Table
Other CharacteristicsSuitable For Different T-Slot Sizes

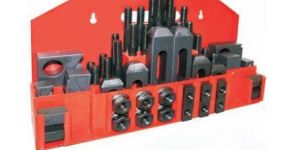

CLAMP SMITH Clamping kit - 58 Piece is available in an attractive powder coated metallic rack which can be hanged on machine or a wall or kept on a table. Each kit consists of all important clamping elements required to clamp a variety of work pieces. Following table shows the contents of each model of clamping kit suitable for different T-Slot sizes. All the items of clamping kit are taken from
CLAMP SMITH Clamping kit - 58 Piece is available in an attractive powder coated metallic rack which can be hanged on machine or a wall or kept on a table. Each kit consists of all important clamping elements required to clamp a variety of work pieces. Following table shows the contents of each model of clamping kit suitable for different T-Slot sizes. All the items of clamping kit are taken from
Material : Metal
Feature : Attractive Powder Coated Metallic Rack, Variety Of Clamping Elements
Packaging Type : Rack
Packaging Type : Metallic
Storage Type : Hangable On Machine Or Wall, Or Table
Other Characteristics : Suitable For Different T-Slot Sizes
