Escorts Construction Equipment Limited Sector 5, Faridabad, Haryana

  • Soil Vibratory Roller

    Soil Vibratory Roller

    Get Latest Price

    • Fuel Tank Capacity235 Ltr
    • BrandESCORTS
    • ModelEC 2420 Standard
    • Operating Weight11430 Kg
    • AmplitudeHigh 1.72 mm,Low 0.8 mm
    • TyresAW 23.1 / 18 - 26 12PR
    • Maximum Weight11950 Kg
    • Operating Voltage12 V,150 Amh
    • Hydraulic Oil Tank Capacity80 Ltr
    • Max Gradeability31.00%
    • Frame Steering+/-30 Degree
    • Oscillation Angle+/-10 Degree
    • Weight on Drum6600 Kg
    • Engine MakeKOEL
    • Weight on Tyres4830 Kg
    • Static Linear Load Front30.8 Kg/cm
    • Working Width2140 mm
    • Engine ModelHA 694
    • Drum Diameter1500 mm
    • Turning Radius6340 (outside) / 4200 (inside)
    • Engine TypeAir cooled Engine
    • Travelling Speed0-19.7 km/hr
    • Cylinder6 (meeting Bharat Stage II (CEV) (Emission Norms))
    • Rated Power82 kW / 112 HPAT 2500 RPM
    • Hydrostatic Drive Frequency33 Hz/42 Hz
    • Nominal Amplitude1.9 mm/0.8 mm
    • Working Speed0-10.3 km/hr
    ...more
  • Soil Vibratory Roller

    Soil Vibratory Roller

    Request for Price

    Fuel Tank Capacity : 235 Ltr

    Get Best Price
  • Rough Terrain Slew Crane

    Rough Terrain Slew Crane

    Get Latest Price

    • Brand NameEscorts
    • Width2500 mm
    • Rope Length125 m
    • Slewing SpeedUnladen 0-3.0 rpm
    • Turning Circle Diameter2 wheel steer-14.02 m,2 wheel steer-12.8 m (HY-17),4 wheel steer-8.68 m
    • Tyres4 Nos. 14.00 x 25 - 24 PR,earth mover
    • Lifting Capacity18 T @ 3 m radius on fully extended outriggers
    • Rope Diameter16 mm
    • Operation Weight21840 Kg
    • Hydraulic Tank Capacity300 Ltr
    • Wheel Base2460 mm
    • Fuel Tank Capacity160 Ltr
    • Max Speed30 km/hr(approx.)
    ...more
  • Rough Terrain Slew Crane

    Rough Terrain Slew Crane

    Request for Price

    Brand Name : Escorts

    Width : 2500 mm

    Get Best Price

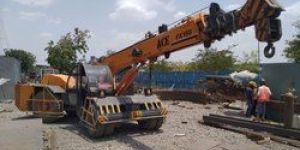

  • Pick-n-Carry Cranes

    Pick-n-Carry Cranes

    Get Latest Price

    • Electrical System12 V single battery, Negative earth
    • Hoist Mechanism4 Falls
    • Cooling SystemWater cooled
    • Fuel Tank Capacity45 Ltr
    • Hydraulic Tank Capacity90 Ltr
    • Axle Reduction Capacity2.45 Ltr
    • Operating Weight8850 Kg
    ...more
  • Pick-n-Carry Cranes

    Pick-n-Carry Cranes

    Request for Price

    Get Best Price

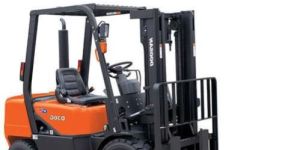

  • LPG Forklift Truck

    LPG Forklift Truck

    Get Latest Price

    • Brand NameEscorts
    • Engine TypePowerful 3.3 L diesel engine or 2,4 L LPG engine
    • Capacity1.5 ton to 3.0 ton in LPG & Diesel
    • Diesel ModelD15G, D18G, D20G, D25G, D30G
    • LPG ModelG1G, G18G, G20G, G25G, G30G
    • FeaturesEconomical Shoe Brake, Efficient Dual element air cleaner, Reliable powershift Transmission
    ...more
  • LPG Forklift Truck

    LPG Forklift Truck

    Request for Price

    Get Best Price
  • Doosan Hydraulic Excavator

    Doosan Hydraulic Excavator

    Get Latest Price

    • BrandDOOSAN
    • Maximum Operating weight (Kg)30000 Kg
  • Doosan Hydraulic Excavator

    Doosan Hydraulic Excavator

    Request for Price

    Get Best Price
  • Backhoe Loader

    Backhoe Loader

    Get Latest Price

    • Gross Power55.95 kW (76 Hp) at 2200 rpm
    • BrandEscorts
    • Fuel Tank Capacity134 Ltr
    • Wheel Base2140 mm
    • Engine Air CleanerDry Type,Mahale
    • Maximum Speed36.6 Kmph
    • Engine Capacity of Cooling System21+/-0.5 litres total typical capacity
    • Max Torque295 Nm @ 1300-1400 rpm
    • Gear Box TypeSynchromesh
    • Working Pressure120 Bar
    • Power Type12 V/24 V
    • Front Tyres12.5/80.18,12PR (Std)
    • Rear Tyres16.9x28.12PR (Std)
    • Hydraulic Tank Capacity110 Ltr
    • Rear Track1740 mm
    • Engine Coolant Capacity15 Ltr
    • Frame Long Member Size3420 mm
    • Engine Oil Capacity11 Ltr
    • Overall Width2380 mm
    • Transmission Oil Capacity16.5 Ltr
    • Rear Axle Oil Capacity17.1 Ltr
    • Engine Compression Ratio17.51 +/- 5%
    • Front Axle Oil Capacity9.1 Ltr
    • Gear Box Model and IdentificationTLB1 4WD
    • Front Axle Ratio16.00
    • Min Ground Clearance360 mm
    • Brake Reservoir Oil Capacity1.0 Ltr
    • Trenching Buckets0.09 cum,0.12 cum,0.18 cum
    • Special Purpose Buckets0.30 cum,0.32 cum
    • Coal Bucket1.5 cum
    • No of Rotation of the Wheel3-4 (Lock to lock)
    • Total Braking Area181.899 x 6 surfaces cm2
    • Clutch TypeTorque Converter
    • Rock Bucket0.26 cum
    • Trench Bucket300 mm
    • Max Engine Output55.95 kW at 2200 rpm
    • Engine Bore X Stroke91x110 mm
    • Battery Rating150 AH
    • Max Engine Torque295 Nm @1300-1400 rpm (Gross)
    • Operating Weight8350 Kgs
    • Rear Axle Ratio19.04
    • Steering TypeHydrostatic
    • Overall Length7950 mm
    • Steering Wheel Diameter372 mm (steering wheel thickness 27 mm.)
    • Steering Ratio21.61
    • Wheel Rim Size11x18 or 6.00G x 16 -Front,W15L x 28 or 10.00/1.5 x 25-3P-Rear
    • Tyre Size and Ply Rating12.5/80-18,12 PR or 9.00-16-16 PR Front 16.9-28-12PR or 14.00-25,20PR-Rear
    • Min Turning Circle Diameter8.63 (RHS),8.73 (LHS) m
    • Dynamic Rolling Radius of Tyre658-692 mm
    • Tyre Pressure4.9- Front,2.8- Rear kg/cm2
    • Max Output90 A
    • Fuel Tank MaterialSteel (IS2062,FE 410W ''''''''B'''''''')
    • No of Cylinders4
    • Overall Height3780 mm
    • Engine Model and IdentificationAE4.286K-3A
    • Front Track1875 mm
    • Max Clearance Circle DiameterFixed Axle / Bend Axle
    • Maximum Gradeability5.7 Degree (10 %) (laden)-4 Gear
    • Steering Steered AxleFront
    • Engine Oil Sump Capacity9.5 Ltr
    ...more
  • Backhoe Loader

    Backhoe Loader

    Request for Price

    Gross Power : 55.95 kW (76 Hp) at 2200 rpm

    Get Best Price
  • Professional Forklifts

    Professional Forklifts

    Get Latest Price

  • Professional Forklifts

    Professional Forklifts

    Request for Price

    Get Best Price
