Characteristics
H-beam steel placed on workpiece support frame with 45°, which is suitable for boat welding.
Gantry welding machine walks on rails at adjusted welding speed.
Use SAW welding to weld two seam.
Arc-guide frame automatic seam tracking.
Flux automatic feed and recovery system
Applicable Materials

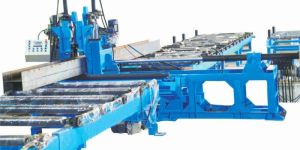

This automatic Gantry welding machine is mainly used for submerged arc welding of assembled H beam.
Specifications
Name Data
Model H-BEAM ASSEMBLY (HORIZONTAL) WELDING MACHINE
Rail Gauge 4000 mm
Web Height 2000 mm
Flange Width (Y) 200-800 mm
