We provide Progressive Blocks having one inlet port and a number of outlet ports. The block is used for the division of required amount of grease to the ports. Plunger pins helps in the smooth processing of Progressive Blocks. The block is manufactured according to the numbers of lubrication points as every point is directly connected to lubrication point. The progressive blocks are available in different sizes according to their outlet ports i.e from 4 to 20.The discharge is 0.4 gms per stroke.
Features :
Available in different sizesHigh performanceDurableHigh efficiency
Reasonable cost :
Made using high quality materialProperly tested by experts
We provide Progressive Blocks having one inlet port and a number of outlet ports. The block is used for the division of required amount of grease to the ports. Plunger pins helps in the smooth processing of Progressive Blocks. The block is manufactured according to the numbers of lubrication points as every point is directly connected to lubrication point. The progressive blocks are available in different sizes according to their outlet ports i.e from 4 to 20.The discharge is 0.4 gms per stroke.
Features :
Available in different sizesHigh performanceDurableHigh efficiency
Reasonable cost :
Made using high quality materialProperly tested by experts
Pneumatic Grease Pump exported and manufactured by our company has high efficiency. The Pump has a reservoir of 1.5 kilograms that is highly suitable to the needs of clients. On the right hand side of the pump, A1/4â port is provided while it has got outlet port of ¼â BSP on both the sides.
Use :
Pneumatic Grease Pump is used in feeding grease to bearings and other movable parts of machine. The output pressure of this pump is 100 kg/cm2. The grease is discharged with 6cc to 10cc per stroke.
Applications :
Calendering MachineMixing MillRolling MillBending MachineFurnaces
Pneumatic Grease Pump exported and manufactured by our company has high efficiency. The Pump has a reservoir of 1.5 kilograms that is highly suitable to the needs of clients. On the right hand side of the pump, A1/4â port is provided while it has got outlet port of ¼â BSP on both the sides.
Use :
Pneumatic Grease Pump is used in feeding grease to bearings and other movable parts of machine. The output pressure of this pump is 100 kg/cm2. The grease is discharged with 6cc to 10cc per stroke.
Applications :
Calendering MachineMixing MillRolling MillBending MachineFurnaces
The Oil Mist Lubrication System that we offer has a huge capacity. It is a pneumatically operated system. The air is prompted through On-Off solenoid valve. Airborne fog coats the bearings, gears etc. to form an oil film that reduces wear of machine parts. The air pressure required is from 4 to 6 kgcm2.
Major Components :
Oil Filling PortMist Outlet PortAir Inlet PortSolenoid Valve
Features :
DurableHigh strengthGood capacitySafe Usage
The Oil Mist Lubrication System that we offer has a huge capacity. It is a pneumatically operated system. The air is prompted through On-Off solenoid valve. Airborne fog coats the bearings, gears etc. to form an oil film that reduces wear of machine parts. The air pressure required is from 4 to 6 kgcm2.
Major Components :
Oil Filling PortMist Outlet PortAir Inlet PortSolenoid Valve
Features :
DurableHigh strengthGood capacitySafe Usage
Oil Circulatory System provided by our company is used to return the oil supplied to various parts to the reservoir. Apart from this, the system contains high capacity measured from 10 LPM to 2000 LPM.
Features :
Long lifeUniform coating
Major Parts :
Oil ReservoirThree Phase MotorQuality PumpHeat Exchanger to cool the return oilControl ValvesFiltersFlow SwitchesTubing and Fitting
Applications :
Steel plantsSugar plantsCement plantsPower plants
Oil Circulatory System provided by our company is used to return the oil supplied to various parts to the reservoir. Apart from this, the system contains high capacity measured from 10 LPM to 2000 LPM.
Features :
Long lifeUniform coating
Major Parts :
Oil ReservoirThree Phase MotorQuality PumpHeat Exchanger to cool the return oilControl ValvesFiltersFlow SwitchesTubing and Fitting
Applications :
Steel plantsSugar plantsCement plantsPower plants
The Multiline Radial Lubricator offered by our company is used to deliver predetermined amount of oilgrease from the plungers at high pressure to lubrication point independently. These are of high reservoir capacity varying from 1.5 kg to 100kg and are used in various applications to meet numerous needs.
Applications :
Cement PlantsRoad Building MachinesSteel MillsSugar MachinesPaper PlantStone Crushing
Components of Multiline Radial Lubricator :
ReservoirHousingMotorGear BoxCouplingFilterRelief valveStirrer
The Multiline Radial Lubricator offered by our company is used to deliver predetermined amount of oilgrease from the plungers at high pressure to lubrication point independently. These are of high reservoir capacity varying from 1.5 kg to 100kg and are used in various applications to meet numerous needs.
Applications :
Cement PlantsRoad Building MachinesSteel MillsSugar MachinesPaper PlantStone Crushing
Components of Multiline Radial Lubricator :
ReservoirHousingMotorGear BoxCouplingFilterRelief valveStirrer

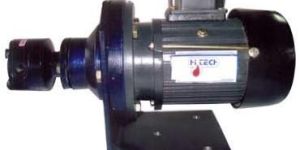

The Motor Pump Assembly that we offer to our customers helps in converting the electrical energy into hydraulic energy. It can be easily fitted on a reservoir or can also be mounted separately.
Features :
High PerformanceSmooth WorkingGood FinishingHigh Durability
Use :
The Motor Pump is efficiently used for re-circulating the oil or transferring the oil. This combination of electric motor and pump makes the process of circulation of oil much easier.
The Motor Pump Assembly that we offer to our customers helps in converting the electrical energy into hydraulic energy. It can be easily fitted on a reservoir or can also be mounted separately.
Features :
High PerformanceSmooth WorkingGood FinishingHigh Durability
Use :
The Motor Pump is efficiently used for re-circulating the oil or transferring the oil. This combination of electric motor and pump makes the process of circulation of oil much easier.
The Hand Operated Piston Pump that we manufacture and export is operated manually i.e. with the usage of hands. It has huge oil reservoir capacity of 300 ml to 1750 ml and discharge of pump is 4cc to 10cc per stroke at 12kg/cm2. These pumps are piston type, where piston is actuated by cam, integrated with handle, pump discharge oil with pressure from handle and the piston returns back to its original position, which causes the causes the reducing of pressure in lubrication line. The body is fabricated from acrylic and aluminium. It has an outlet for the fitment of 6mm OD tube and outlets are available on both the sides.
Applications :
In Pouch Packing MachineSurface GrinderFor Power PressesPharmaceutical Machines etc.
Nature :
Meet customers needPocket friendlyEasy to useHigh Reservoir Capacityï ï ï ï ï Discharge is 4cc to 10cc per stroke at 12 kg/cm2
The Hand Operated Piston Pump that we manufacture and export is operated manually i.e. with the usage of hands. It has huge oil reservoir capacity of 300 ml to 1750 ml and discharge of pump is 4cc to 10cc per stroke at 12kg/cm2. These pumps are piston type, where piston is actuated by cam, integrated with handle, pump discharge oil with pressure from handle and the piston returns back to its original position, which causes the causes the reducing of pressure in lubrication line. The body is fabricated from acrylic and aluminium. It has an outlet for the fitment of 6mm OD tube and outlets are available on both the sides.
Applications :
In Pouch Packing MachineSurface GrinderFor Power PressesPharmaceutical Machines etc.
Nature :
Meet customers needPocket friendlyEasy to useHigh Reservoir Capacityï ï ï ï ï Discharge is 4cc to 10cc per stroke at 12 kg/cm2

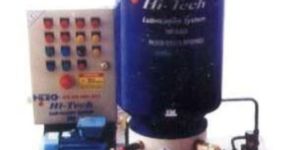

The Dual line Grease/oil lubrication system is a centralised lubrication system in which grease/oil is fed to lubrication points in measured quantity through dose feeders from a common source. In the system there are two main lines which work alternatively. The system has a control panel that helps in easy operation of the system.
Components :
Motorized Pump StationExcellent Control PanelReliable Dose FeedersQuality Tubing and FittingsEnd Pressure RelayInbuilt Filters
Characteristics :
Easy to work withCost- efficientUse of Advanced TechnologyHuge Discharge Capacity
The Dual line Grease/oil lubrication system is a centralised lubrication system in which grease/oil is fed to lubrication points in measured quantity through dose feeders from a common source. In the system there are two main lines which work alternatively. The system has a control panel that helps in easy operation of the system.
Components :
Motorized Pump StationExcellent Control PanelReliable Dose FeedersQuality Tubing and FittingsEnd Pressure RelayInbuilt Filters
Characteristics :
Easy to work withCost- efficientUse of Advanced TechnologyHuge Discharge Capacity

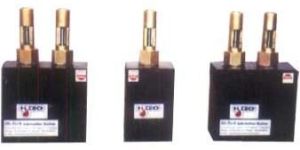

We offer Dose Feeders having different versions and various outlets. Dose feeders help in feeding oil to various parts in measurable quantities. Thus, they are of great importance for appropriate oil feeding.
Features :
International standardsAvailable in different sizesReasonable PriceCustomer Satisfaction
Attributes :
Strong and hardGood performanceHigh FlexibilityMade in compliance with the International standards
We offer Dose Feeders having different versions and various outlets. Dose feeders help in feeding oil to various parts in measurable quantities. Thus, they are of great importance for appropriate oil feeding.
Features :
International standardsAvailable in different sizesReasonable PriceCustomer Satisfaction
Attributes :
Strong and hardGood performanceHigh FlexibilityMade in compliance with the International standards

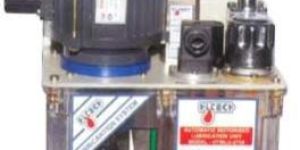

We offer high quality Automatic Lubrication System that gives high performance and is durable in nature. These units are single or three phases electrically operated. The operations of the system are performed automatically. Motorised lubrication units are single/three phase electrically operated. These units are designed to run intermittently and best suited for single shot lubrication. These units are provided with electric motor, reservoir (3ltrs. To 100ltrs ), Oil filler, suction suction strainer, pressure switch, pressure relief valve bleed valve etc.
Composed of :
ReservoirElectric MotorStrainerPressure SwitchPressure Relief ValveBleed Valve
Applications :
Power PressInjection Moulding MachinePrintingDie Casting Machine
We offer high quality Automatic Lubrication System that gives high performance and is durable in nature. These units are single or three phases electrically operated. The operations of the system are performed automatically. Motorised lubrication units are single/three phase electrically operated. These units are designed to run intermittently and best suited for single shot lubrication. These units are provided with electric motor, reservoir (3ltrs. To 100ltrs ), Oil filler, suction suction strainer, pressure switch, pressure relief valve bleed valve etc.
Composed of :
ReservoirElectric MotorStrainerPressure SwitchPressure Relief ValveBleed Valve
Applications :
Power PressInjection Moulding MachinePrintingDie Casting Machine
