FeatureAllow faster and accurate behaviour evaluation of the product in controlled climate conditions.
MODELPTH - 225

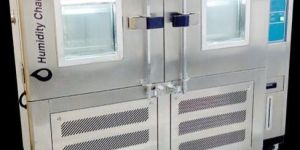

Programmable Temperature & Humidity Test Chamber is the latest technology designed for evaluation of material, product and component's behaviour and its tolerance level in harsh weathering conditions including temperature and humidity.
Programmable Temperature & Humidity Test Chamber is the latest technology designed for evaluation of material, product and component’s behaviour and its tolerance level in harsh weathering conditions including temperature and humidity.
The testing chamber can precisely generate the real-life environmental/climatic conditions in a controlled manner for the stipulated duration. It can deliver a faster assessment of product’s performance and helps in quality improvement. It complies with a wide range of global testing standards which are commonly used for industrial and medical products.
The most commonly tested products are electronic gadgets, home appliances, batteries, plastics, polymers, F&B-Packages, paper products, automobiles, automobile components, metals, building materials, consumer-durables, defence equipment, aerospace, etc.
With the advanced touch screen feature on Programmable Temperature & Humidity Test Chamber, the operator can easily program the test with setting temperature, humidity and time values for rounds of tests. One can have a clear view of the running test values on screen and use it further for assessment. The chamber constructed using high-quality material ensuring long-life working.
CapacityTemp range(Ambient to 65ºC) Humidity(Ambient to 95%RH)
Accuracy± 2 °C in Temp. & ±3% in Humidity
Resolution0.1 °C in Temp. & 1 % in Humidity
Sensor TypePT 100 for temp. & Imported Pen type for Humidity
Temperature ControllerDigital controller
Humidity ControllerDigital controller
PaintMild steel Powder coated Havell Gray & Blue combination finish and bright chrome / zinc plating * Outside stainless steel model also available
Sample typeautomobile parts, electronic and semiconductor devices, plastics, rubber etc
IndustryPaint and Plating,Textile & Yarn Testing,Plastic industry, Rubber
Presto’s Humidity Test chambers can aid reliable testing by subjecting various products to environmental extremes like humidity, temperature.
Presto’s Humidity/Conditioning chamber is able to provide quick temperature change rates and humidity conditions required for analyzing the effects of ecological changes on the product. The product helps to judge the reliability and quality of various products like plastics, rubbers, electronic goods, automobile parts and semiconductor devices, etc. The procedure of the equipment relies on the principle of accelerated environmental testing.

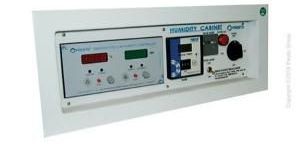

Presto’s conditioning test chambers are ideally designed with sophisticated technology to maintain designated temperature and humidity at set points controllable by the user at the front control panel. The machine is equipped with highly insulated glass wool Ergonomic that ensures lowest heat loss ratio. The machine has completely digital controls.
Air is constantly circulated throughout the chamber which can be easily monitored from the transparent glass for comparison to set points and can be treated if necessary. Heating is done by the electric heaters that can turn on and turn off for temperature control.
The inner body of the chamber is made up of Stainless Steel and the outer body is of Mild Steel duly powder coated.
The inner dimension of the laboratory instrument is 18” x18” x 28”. (Other Sizes on Request)
The temperature range can be set from Ambient to 65 Degree Celsius.
Ambient to 95 % humidity can be maintained in the chamber with the accuracy of +2% RH.
Temperature range can be set from Ambient to 65°C (± 3°C)
The testing instrument is equipped with the Digital Controller for measurement of accurate temperature and proper humidity control.
The chamber is equipped with humidity sensor for accurate results.
Touch sensitive controls for ergonomic relieve.
It requires low maintenance cost.
Temperature controls through PT-100 sensor
Alarm system with buzz sound at test end process
Highly accurate test results under uniform temperatures and humidity levels in the chamber
Digital Control for Humidity and Temperature
High Grade imported Glass Wool insulation
Maximum Thermal Efficiency by insulation means.
SSR-based heaters
Digital Preset timer with LED Display
Inbuilt Auto tuning function
Water Level Indicator
Equipped with rapid air circulation fan for uniform and homogenous heating , cooling, humidity, dehumidity inside the chamber
Inbuilt Calibration features with reference to master PID controller
Setting to RTD PT-100 sensor through advanced PID controller
Auto-stop feature to stop machine at set time
Time totalizer to calculate the no. of Hours run by the instrument
Presto’s Humidity Test chambers can aid reliable testing by subjecting various products to environmental extremes like humidity, temperature.
Presto’s HumidityConditioning chamber is able to provide quick temperature change rates and humidity conditions required for analyzing the effects of ecological changes on the product. The product helps to judge the reliability and quality of various products like plastics, rubbers, electronic goods, automobile parts and semiconductor devices, etc. The procedure of the equipment relies on the principle of accelerated environmental testing.
