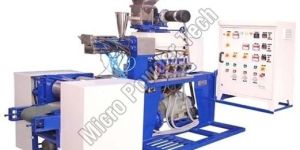

Lab cum Production Twin Screw Extruder (MPT - 30 PC) is suited for lab sample of powder for creating optimal formulation & colour as well as for small volume production with compact structure, so obtaining the optimal formulation and small scale production. It is well matched with compact cooling belt.
Feature
Excellent Mixing effect, high efficiency
Accurate & real color matching to production effect
Easy to clean & operate.
Safe and reliable operation
Convenient maintenance
Gearbox equipped with lubricating oil distributor and oil cooler.
Feeding system with volumetric screw
Chill knife end discharge fully self-wiping with no product hold up
Lab cum Production Twin Screw Extruder (MPT - 30 PC) is suited for lab sample of powder for creating optimal formulation & colour as well as for small volume production with compact structure, so obtaining the optimal formulation and small scale production. It is well matched with compact cooling belt.
Feature
Excellent Mixing effect, high efficiency
Accurate & real color matching to production effect
Easy to clean & operate.
Safe and reliable operation
Convenient maintenance
Gearbox equipped with lubricating oil distributor and oil cooler.
Feeding system with volumetric screw
Chill knife end discharge fully self-wiping with no product hold up

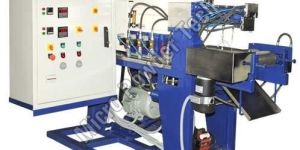

Twin Screw Extruder (MPT-30 Lab) is suited to manufacture the sample of powder for creating optimal formula & obtaining the optimal parameters for the production of extruder. The equipment finds application in development of new formulations and at raw material suppliers for the quality control of resins, pigments and additives. This machine is composed of extruder & Chill Rollers are mounted on the machine itself.
Features
Simulate the running parameters for for production Twin Screw Extruder
Accurate & real color matching to production effect
Easy to clean & operate.
Safe and reliable operation
Convenient maintenance
Twin Screw Extruder (MPT-30 Lab) is suited to manufacture the sample of powder for creating optimal formula & obtaining the optimal parameters for the production of extruder. The equipment finds application in development of new formulations and at raw material suppliers for the quality control of resins, pigments and additives. This machine is composed of extruder & Chill Rollers are mounted on the machine itself.
Features
Simulate the running parameters for for production Twin Screw Extruder
Accurate & real color matching to production effect
Easy to clean & operate.
Safe and reliable operation
Convenient maintenance
The Grinded material obtained from ACM is filtered using Sieving / Sifter Machine. It has two discharges one is used for optimal product collection which is sent for final packing. Nylon bolting cloth is used for filtration. All contacts parts are of SS.
Features
Easy to clean & operate.
Safe and reliable operation.
Convenient maintenance.
Fast operation
The Grinded material obtained from ACM is filtered using Sieving / Sifter Machine. It has two discharges one is used for optimal product collection which is sent for final packing. Nylon bolting cloth is used for filtration. All contacts parts are of SS.
Features
Easy to clean & operate.
Safe and reliable operation.
Convenient maintenance.
Fast operation

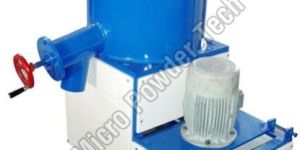

Premixer High Speed Batch Mixer of SS series is made exclusively of stainless steel. The Premixer High Speed Batch Mixer is used for homogeneous mixing of all the Raw Materials. Premixer High Speed Batch Mixer is specially designed to incorporate both mixing and crushing functions. We are a reliable Manufacturer, Exporter and Supplier of Premixer High Speed Batch Mixer in India.Features
Mixing Homogeneously
Efficient Crushing
Low Power Consumption.
Safe to operate.
Preset Mixing Duration.
Short Mixing time.
Easy to clean and maintenance.
Premixer High Speed Batch Mixer of SS series is made exclusively of stainless steel. The Premixer High Speed Batch Mixer is used for homogeneous mixing of all the Raw Materials. Premixer High Speed Batch Mixer is specially designed to incorporate both mixing and crushing functions. We are a reliable Manufacturer, Exporter and Supplier of Premixer High Speed Batch Mixer in India.Features
Mixing Homogeneously
Efficient Crushing
Low Power Consumption.
Safe to operate.
Preset Mixing Duration.
Short Mixing time.
Easy to clean and maintenance.

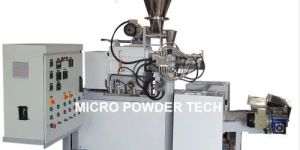

We have experience of more than 80% powder coating manufacturing plants which are installed by us in India, We have laboratory with most modern equipments for researching new formulation and manufacturing equipments, MPT-30PC,MPT-40PC MPT- 45PC & MPT- 55PC TWIN SCREW POWDER COATING EXTRUDER are the latest developments in a long line of proven energy efficient and cost effective . High speed and high cutting & mixing capability with screw speed 0 - 500 RPM, compared with other type of machine MPT-PC TWIN SCREW EXTRUDER can produce finished product with significantly increased glossiness , leveling property and fullness with the same gloss powder formula without changing screw configuration. Special high - grade alloy steel is used to ensure superior hardness and wear resistance. The Extruder features smooth and balanced transmission.
We have experience of more than 80% powder coating manufacturing plants which are installed by us in India, We have laboratory with most modern equipments for researching new formulation and manufacturing equipments, MPT-30PC,MPT-40PC MPT- 45PC & MPT- 55PC TWIN SCREW POWDER COATING EXTRUDER are the latest developments in a long line of proven energy efficient and cost effective . High speed and high cutting & mixing capability with screw speed 0 - 500 RPM, compared with other type of machine MPT-PC TWIN SCREW EXTRUDER can produce finished product with significantly increased glossiness , leveling property and fullness with the same gloss powder formula without changing screw configuration. Special high - grade alloy steel is used to ensure superior hardness and wear resistance. The Extruder features smooth and balanced transmission.

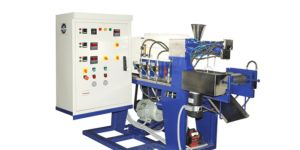

A unit for the off-line production of small sample. Sample which can be produced at rate of upto 6 - 8 Kg./Hr. need only be a few hundred grams and are typically used for colour matching, custmer evaluation, production control and research. The equipment finds application in development of new formulations and at raw material suppliers for the quality control of resins, pigments and additives. It has a clam shell opening Barrel and easy to clean. The screw can be set to variable speed. The barrel is heated by electric heaters and the temperatures are digitally auto controlled.
A unit for the off-line production of small sample. Sample which can be produced at rate of upto 6 - 8 Kg./Hr. need only be a few hundred grams and are typically used for colour matching, custmer evaluation, production control and research. The equipment finds application in development of new formulations and at raw material suppliers for the quality control of resins, pigments and additives. It has a clam shell opening Barrel and easy to clean. The screw can be set to variable speed. The barrel is heated by electric heaters and the temperatures are digitally auto controlled.
Designed specifically to interface between laboratory and production continuous output range of 30 to 300 kg / hr. and determining the operating parameters for larger ACM mills, in combination with screw feeding, high efficiency Cyclone, Dust Collector Unit and Control Panel & all contact parts constructed in Stainless Steel. This mill is particularly useful for applications that require frequent product change as it can be cleaned with in 60 minutes to the fast opening of each group. Low cost compared with all other major suppliers.DESIGN ADVANTAGES# Low specific energy requirement up to 50% energy saving.# Dust free operation.# Extremely compact space saving design.# Particle size readily adjustable without shutdown. # Steep particle size distribution.# Short changeover time between product batches.# Easy to clean Stainless Steel Construction.# Reversible impact liner for longer life.# Easy and high efficient product recovery 98 to 99%, dust collection up to 99.9%.# Cool & smooth grinding.# Robust mechanical construction.# Very economically priced.# Low temperature grinding enable heat sensitive Materials like Powder Coating, Phenolic Resin, Sugar, Melamine Resin, Chemicals, Pharmaceuticals,
Designed specifically to interface between laboratory and production continuous output range of 30 to 300 kg / hr. and determining the operating parameters for larger ACM mills, in combination with screw feeding, high efficiency Cyclone, Dust Collector Unit and Control Panel & all contact parts constructed in Stainless Steel. This mill is particularly useful for applications that require frequent product change as it can be cleaned with in 60 minutes to the fast opening of each group. Low cost compared with all other major suppliers.DESIGN ADVANTAGES# Low specific energy requirement up to 50% energy saving.# Dust free operation.# Extremely compact space saving design.# Particle size readily adjustable without shutdown. # Steep particle size distribution.# Short changeover time between product batches.# Easy to clean Stainless Steel Construction.# Reversible impact liner for longer life.# Easy and high efficient product recovery 98 to 99%, dust collection up to 99.9%.# Cool & smooth grinding.# Robust mechanical construction.# Very economically priced.# Low temperature grinding enable heat sensitive Materials like Powder Coating, Phenolic Resin, Sugar, Melamine Resin, Chemicals, Pharmaceuticals,

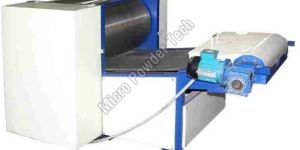

Chill Roll & Flaker Unit is composed of Stainless Steel Chill Rollers, Rubberize Belt, Flaker and driving system. The kneaded melting material output from extruder is diverted to chill roller and is sheeted at a thickness of 1-2mm. The rolls are cooled by cooling water. The sheeted material is transported to flaker unit which reduces the material to small sized chips, are suitable for feeding into the fine grinding machine.
Features
Easy to clean & maintenance.
On wheels compact unit
Excellent efficiency.
Protect Contamination.
Chill Roll & Flaker Unit is composed of Stainless Steel Chill Rollers, Rubberize Belt, Flaker and driving system. The kneaded melting material output from extruder is diverted to chill roller and is sheeted at a thickness of 1-2mm. The rolls are cooled by cooling water. The sheeted material is transported to flaker unit which reduces the material to small sized chips, are suitable for feeding into the fine grinding machine.
Features
Easy to clean & maintenance.
On wheels compact unit
Excellent efficiency.
Protect Contamination.

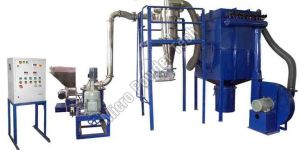

The ACM Grinding Mill system is designed with high speed grinding, air classifying, high efficiency cyclone separating and fine powder collecting. All contact parts of Stainless Steel. A perfect particle size distribution of powder coatings could be achieved by fully adjustable classifier speed, air flow rate and feed rate. This mill is especially useful for applications that require frequent product change as this system can be cleaned within 60 minutes. This grinding system can also be used to produce other products such as Phenolic Resin, Melamine Resin, Pharmaceuticals, Pigments, Food stuffs and other heat sensitive materials.
Features
Low specific energy requirement up to 50% energy saving
Particle Size distribution adjustable
Easy & fast cleaning due to fast opening of each part
Temperature controlled grinding
Extremely compact, space saving design
Reversible impact liner for longer life.
Equipped with interlocking system in Panel Board
Recovery Rate ≥ 98%
Constant output
Dust free operation
The ACM Grinding Mill system is designed with high speed grinding, air classifying, high efficiency cyclone separating and fine powder collecting. All contact parts of Stainless Steel. A perfect particle size distribution of powder coatings could be achieved by fully adjustable classifier speed, air flow rate and feed rate. This mill is especially useful for applications that require frequent product change as this system can be cleaned within 60 minutes. This grinding system can also be used to produce other products such as Phenolic Resin, Melamine Resin, Pharmaceuticals, Pigments, Food stuffs and other heat sensitive materials.
Features
Low specific energy requirement up to 50% energy saving
Particle Size distribution adjustable
Easy & fast cleaning due to fast opening of each part
Temperature controlled grinding
Extremely compact, space saving design
Reversible impact liner for longer life.
Equipped with interlocking system in Panel Board
Recovery Rate ≥ 98%
Constant output
Dust free operation
Secondary Business TypeExporters / Wholesale Suppliers
Year of Establishment1997
No. of Employees6 - 20
Annual TurnoverRs. 0.5 to 2.5 Crore Approx.
Ownership TypeIndividual (Sole proprietorship)
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
Micro Powder Tech is a firm established by S.C. Jain having experience from 1997 in manufacturer and exporter of Powder Coating Machines, Powder Coating Plant, Powder Coating Production Machine, Twin Screw Extruder , ACM Grinding Mill & Sieving / Sifter Machine. Owing to our ability to offer these small & medium scale machines at a very competitive prices and meeting bulk requirements of our clients within stipulated time frame, we are able to acquire 80% of the total powder coating production plants in India. A range of machinery designed by ourselves to produce quality Powder Coating Paints & incorporating design features for easy clean down & maintenance with a technical know how. This together with a technology package tailored to suit the requirements of the small medium size entrants into the powder coating industry.
