Narendra Gravure Sector 4, Faridabad, Haryana

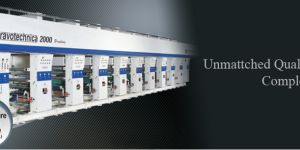

These Multi station Roto Gravure Printing machines are normally used for printing on flexible films like Polyester, B.O.P.P., Polythene, Aluminium Foil, paper etc. These machines are capable of printing reel to reel. Specification: Web Width : 1000mm to 1300mm Cylinder Repeat : 520mm Line Speed : Up to 250 mar./min. Unwind Reel Dia : 1000mm
Rewind […]

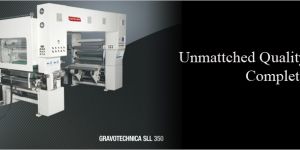

Offers solvent less lamination machines. Specifications: web widths:1000 mm to 1300 mmmachine speed :up to 350 mtr.min. Material:polyester, b.o.p.p., ldpe, alu. Foil unwinder 'a' core :76 mm 152 mm unwinder 'b' core :76 mm 152 mm rewinder core :152 mm drive:all a.c. Digital drives area required :5000 x 3000 x 4000.

We are offering rotogravure printing machine 150. These multi station rotogravure printing machines are normally used for printing on flexible films like polyester, b.o.p.p, polyethene, aluminum foil, paper etc. These machine are capable of printing reel to reel. Specifications: web widths:500 mm to 1500 mm cylinder repeat :400 mm to 800 mm printing speed :up to 150 mtr.min. Material:polyester, poly, b.o.p.p, foil drying source :thermic fluid, hot air generator, electric heaters area required :20000 x 2700 x 3000.

These Multi station Roto Gravure Printing machine are normally used for printing on flexible film like polyester, B.O.P.P, Polythene, Aluminum foil, Paper etc. These machine are capable of printing reel to reel. SPECIFICATIONS: Web Width:1000 mm to 1300 mm Cylinder Repeat :400 mm to 800 mm Printing Speed :Up to 250 mtr. min Material:Polyester, Poly, B.O.P.P., Paper, Foil Drying Source :Thermic Fluid, Hot Air Generator, Electric Heaters Area Required :22000 X 2700 X 4000

SPECIFICATIONS: Maximum Unwind Reel Dia :800 mm Web Width:800 mm to 1200 mm Unwind Reel Core Dia :76 152 mm Rewind Reel Core Dia :76 mm Max. Rewind Reel Dia :450 mm Max. Design Speed :400 mtr.min. Min. Slit Width :100 mm Max. Slit Width :600 mm

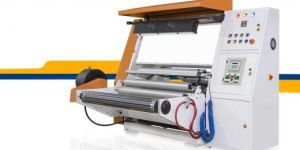

This inspection machine serves as a filter between the Printing & Lamination Process. The output of the printing machine is screened for printing defects such as mis – register, blade lines, shade variation etc. by means of a full width stroboscope provided as standard equipment. The defective thus identified is removed by cut & paste […]

Specifications: maximum unwind reel dia :800 mm web width :800 mm to 1800 mm unwind reel core dia :76 mm 152 mm rewind reel core dia :76 mm max. Rewind reel dia :500 mm maximum design speed :200 mtr. Min. Min. Slit width :100 mm

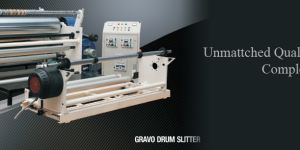

These centre drum slitter are use for slitting poly films polyester film and Aluminium foils. As the rewind reel is wound on centre drum the soft & delicate material can be handled comfortably. Specification: Maximum Unwind Reel Dia. : 800 mm Web Width : 800 mm to 1800 mm Unwind Reel Core Dia : 76 […]

Availability : 4000-5000kg

Doctoring Machine or Salvage Winding  Machine is basically used for rewinding the slitted slip reels or used for Ink jet coding of batch number on pre printed laminates. For making the machine, operator friendly the machine is made in cantilever design which permits the operator to take out & load the reel very quickly. Both […]

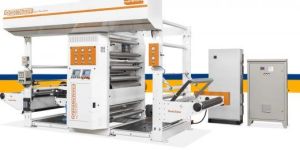

U.V. Coating Machines are mainly used for coating U.V. varnish on printed paper. The application of this U V varnish and after curing this will enhance the Printed paper shine. Besides shine ti will also improves the barrier of Paper laminate which will further improves the shelf life of product to be packed. Specification: Web […]

The Rotogravure Printing Machine we deliver is known for its efficient performance, as it prints at a speed of 130-150m/min and has a web width of 600-1500mm. The drying system of this machine consists of either electric heating system or diesel fired heating system.

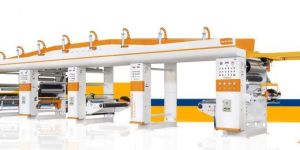

We deals in manufacturing and exporting of Dry Lamination Machine.

we are well known for manufacturing and exporting of triplex lamination machine

Narendra gravure private limited is a prominent manufacturer and exporter of paper foil lamination machine.

We are leading manufacturer and exporter of special coating plants.

We deals in manufacturing and exporting of Center Slitting Machine.

Specifications: web widths:800 mm to 1200 mm machine speed :up to 250 mtr.min. Core dia :76 mm 152 mm max. Unwind dia :1000 mm max. Rewind dia :1000 mm
