Natraj Corrugating Machinery Co Sector 6, Faridabad, Haryana

The leading edge of the wheel Three axis feeding system With Dust Suction System.Applied VFD (Variable Frequency Drives) Control Suction Volume Due To Different Boards’ Size And Also Suitable For bent Boards. 2.Main Motor With Frequency Control Servo Motor which is much Faster And Precise Also With Start Delay Protection Function.3.With Newest Double Screws For the Slotting Unit Adjustment, Avoid the Slotting Cutter Holder Stuck With The Axis.Softy and smoothly Adjustment, also much Precise(Our Patent Design).4.Servo Motor Speed Compensation System To Keep Anvil Roll Speed Always The same With Die Cutting Roller.To Ensure Die Cutting Accuracy. Compensation Ranges ±3mm For Normal Corrugated boards.5.All Units Use Expansion Sets Tight Link To Reduce abrasion of the shaft.To keep precision of the Machine for long years.6. All Gears with Alloy Steel Carton Treatment，Precision Grinded 40Cr Alloy .Hardness 60-63 Degree.7. Whole Machine Equipped with High-precision Ball Lead screw Which Make Sure the adjustment more precise and also durable.8. Anilox Roller With Fast Roller Shaft Structure, which can quick Change the Chamber Doctor Blades Instead Of Normal Rubber Roller. Much Convenient and Flexible for Users.9.Boards Guide Wheels can Fast Adjust with Fast Lock and unlock design, save time.10.Main Motor With Start Delay Protection Function. If Not All the Units Locked Well,the Main Motor Will Not Work.

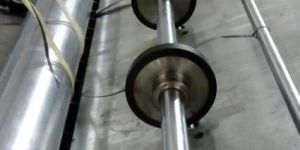

Roller Diameter : 50-100 mm

Roller Length : 0-100 mm

We are prominent names in the industry in offering a wide range of Flexo Printer Slotter Die Cutting.Feeding up roller use single inserting groove rubber , to make balance rectifying, ensure feeding smooth and steady, good precision Feeding down roller use embossing steel roller, hard-chrome plating, wear-resisting, movement balance adjustment Up and down feeding roller use cross-shaped driving micro adjusting device, spanner adjusting, dial showing, adjusting convenient, self-locking Automatic reset, return-zero device The whole machine returns zero ,push the zero switch, convenient for change-order operation, short the change- order time, reduce waste of cardboard

Brand Name : Super Nataraja

Country of Origin : 380 V

Power : 5.5 kW

Brand Name : NAGPAL NATRAJ

Usage/Application : Sheet pasting

Model Number : FOUR ROLLER SHEET PASTING

Capacity : 4000 sheet per day

Automation Grade : Semi-Automatic

Blank sizes: 900X1700 mm Feed conveyor: 30 mMin Press conveyor: 5 mMin Feeding system: Bottom belt feed Available shape of blank: Straight type of blank Both side & lock bottom Available sheet: Cardboard E, B, A, flute corrugated board Applying glue: Emulsion type glue Compression system: Press conveyor system Dimension: 4200X2000X1500 mm Total power: 3.5 kWFeeder Gluing device Both side bottom glue pot Double overhead glue gun Main folding unit Press conveyor

Packaging Type : Loose

Brand Name : Natraj Corrugating Machinery Company

Condition : New

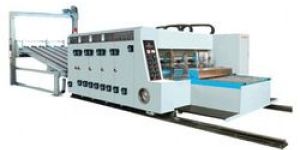

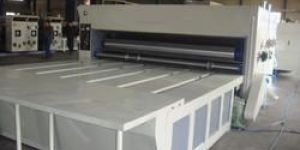

Carton Flexo Printing Slotter Machine designed according to the high request and the reliable function, the operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a short time, and display with an exact data.

Computerized control, auto-reset, lack ink alarm Printer rolls grinded surface, cover chrome Arraying suction vacuum for pulling roll, so the Sectional capacity can be adjusted easily to ensure Sheet transfer precise Adjustable speed control system makes change order quickly Doctor blade system is optional. Rubber roll: best inking Dual doctor blades system: perfect spot print. Drying device is optional, it can ensure print quality and Raise production efficiency

Model: RNN-1650 Die-Cutting Ways: Platen Max.Paper Size: 1500x1200 mm Min.Paper Size: 650x450 mm Max.Die-cutting Size: 1640x1190 mm Max.Die-cutting Pressure: 300 Nc Thickness: 1-8 mm Max.Die-cutting Speed: 4500 sheetsh Max.Feeding Pile Height: 1400 mm(above the level ) Max .Delivery Pile Height: 1200 mm(above the level ) Main Motor Power: 15 kW Total Power: 18 kW Weight: 28 T Dimensions: 5625x4600x2600 mm Additional Information: Item Code: Rnn1650mm Minimum Order Quantity: 1 Unit

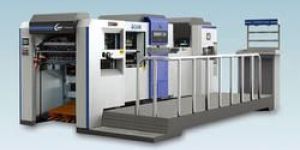

Since the inception of our firm in this domain, we are actively engaged in offering a wide array of Fully Automatic Flat Bed Die Cutting And Creasing Machine.Since the inception of our firm in this domain, we are actively engaged in offering a wide array of Fully Automatic Flat Bed Die Cutting And Creasing Machine.

Nagpal industries India's leading suppliers of corrugated board and box making machine introduces design speed 70 MtMin. Specifications: Available Width: 1200-2200 mm Pressure Roll dia: 305 mm Design Speed: 70 MtMin

Nagpal industries India's leading suppliers of corrugated board and box making machine introduces design speed 70 MtMin.

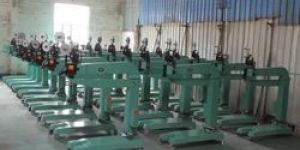

Manual Double servo drive with high precision is applied to reduce mechanical transmission so that less mechanical failure shall happen.1) Taiwan touch screen is applied for operation, settings of stitching distance, number of stitches, varieties of stitches are easy.2) Siemens PLC control system is applied.3) Bottom die and blade are of Japanese tungsten material (wear-resistant)4) Whole stitching head are imported from Taiwan, made out of special die steel.Specifications of the machine:-

Brand Name : Nagpal

Material :   en-8/9/19/24, 48 mocr, 52 moc

Design Speed: 200 mMin-250 mMin Effective width: 1400 mm-2500 mm Cutting length: 500 mm-9000 mm Cutting precision: 1 mm (Running at steady speed) Additional Information: Item Code: RNN1600mmcuttoff Minimum Order Quantity: 1 Unit Port of Dispatch: Delhi Production Capacity: 10 Pcs Delivery Time: 1 month Packaging Details: Loose

The speed, 500 nails per minute It does not require skilled personnel, more flexible Effective in reducing labor intensity, Double servo drive, operation more convenient, less mechanical transmission part, so the failure rate is lower A dual-purpose machine, single and double sheet can be nailed Special cartonsThe gear reducer gear reducer used in Taiwan. Taiwan days a button switch, a travel switch, terminal blocks. Taiwan Yang Ming photoelectric switches, counters, Taiwan contacts. Adopting Taiwan conveyor belt. The entire group of paste head using imported materials precision machining, wear resistance, corrosion resistance.

We are suppliers of Corrugated Carton Box Partition Slotter Machine SR automatic rotary cellular machine is suitable for making The cellular board in the packing cartons of liquors beverages, medicines, fruits, electrical appliances and Glass vessels, etc. And small sized paper box. It is the ideal equipment for the carton factories to produce in large-scale all kinds of Cellular boards of all types of dimensions and to make simple and small-sized cassette paper box. 800 high-speed auto clapboard machine is developed special equipment of cardboard according to market service of our factory. Mainly is used for slotting of three or five layers corrugating cardboard and hard slip. Its features are correct feeding-paper, wide working-breadth, broad adjustment space, strong adaptive capacity and high efficiency is adapted to every kind of cardboard factory.

Total Power: 17.6 kW Total Weight: 17 T Max. Sheet Feeding Size: 1060×760 mm Min. Sheet Feeding Size: 400×370 mm Max. Die-cutting Size: 1050×750 mm Dimensions: 7690×3800×2330 mmBoard Cutter Heavy Duty Front Back Guide, Harden Alloy Steel Blades, Hand Operate

Carton Flexo Printing Slotter Machine designed according to the high request and the reliable function, the operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a short time, and display with an exact data.

We are the manufacturers and supplier of this products.

Brand Name : JS Machine India Pvt Ltd , Indore

Capacity : 150 mtrs per min

We are the leading supplier of this products.

Brand Name : Js machine,xingyuang,mingwei

Total Carbohydrate : 10 days
