Profile Projector Digital
Get Price Quote

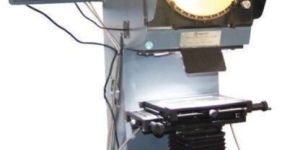

Presto’s Profile projector is a cost effective solution for angular measurements and for Digital linear. The machine also has a built-in DRO. The basic use of Profile Projector in PET & Preform Industry is to identify an edge or point of the shadow of the PET Bottles in order to measure the length of the PET or Preform from this particular point. By expanding the image via profile projector, the operator can easily decide that from where the edge or the point of the shadow starts. Profile images are also used to take important decisions to fulfill various measurement purposes like it matches the size of the bottles with standard size to evaluate whether a part of the bottle is designed correctly or not. FEATURES The profile projector offers standard magnification of 10x. The diameter size of the screen is 300 mm Projector view of the field is 30 mm It provides a working distance of 65 mm X-Y Range of the profile projector is 50 x 50mm* (*with Use of Gauge Blocks) The measuring unit of the instrument is Micrometer Heads (0 – 25 mm Imported) It provides the resolution/ least count of 0.01 mm It offers a rotary measuring stage. The stage glass diameter is 70 mm The maximum height of Test piece can be 125 mm The projector provides Contour Illuminator type illumination of 24V/ 150W and Surface Illumination of 12V/ 100W, Halogen brightness adaptable via solid-state variable control bulge that operates on the power supply of 220V/ 50 Hz. The machine provides cooling with the help of in- built noiseless and vibration free fan motors. The instrument is incorporated with some furnished accessories like silicon cloth, Power supply cord-vinyl, cover-fuse bulbs and operating manual.
Optical Profile Projector
525,000 Per Piece
Usage/Application : Shop Floor Optical Precision Inspection for CNC Turned Parts, seals, gaskets, gears, shafts, bearing
Brand : i-nspection
Features : Digital screen protractor, Built in helix adjustment for Horizontal Projectors, Sturdy all-steel design, Easy-view vertical screen
Best Deals from Profile Projector
Profile Projector
Get Price Quote
Profile projector is primarily utilized for measuring the dimensions of the component. In the manufacturing process, it is very crucial to test each and every material before incorporating the same. In order to ensure high quality in your production line, making the best use of Profile Projectors in the industry will be beneficial. Therefore, it is important for the manufacturer to understand the advantages and applications of profile projectors in industries.
Horizontal Profile Projector
Get Price Quote
Horizontal Profile Projector, gear lead profile tester, roundness tester
Profile Projector For Notch Test
Get Price Quote
Profile Projector For Notch Test
Profile Projector
Get Price Quote
nc machine components, precision cnc milled components
Profile Projector
Get Price Quote
Tensile Testing Machine, Rockwell Hardness Testers
