Rachitech Engineering Private Limited Sector 25, Faridabad, Haryana

Capacities from 0.5 T to 30 T.Standard lift in 6 & 8 meters.Crane Hoist duty (S3S4) TEFC SCSR motors.Extra low head room on request. Under slung and over riding trolley travel. Lifts up to 40 meters on specific requirement.A.C. D.C. fail to safe brakes. Overload and over travel protection. Complete conformity with design standards IS-3938, IS-807, and IS-800. A.C. Variable Frequency Drive (Optional). Remote Control Operation (Optional).

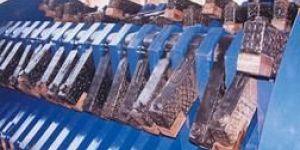

Heavy Duty Fibrizor manufactured up to 15,000 TCD Sugar Plants. Cast SteelForgedFabricated machined hubs with SS pins for hammers. High Preparatory Index (90% +). Equal weight swing hammers with replaceable carbide tips and side hard facing for longer life (approx 4-5 lacs tonnes of cane). Specially designed cast steel bearing housings with oil cooling of Spherical Roller bearings on shaft and water cooled housing jacket. Ample sized forged carbon steel shaft- UT tested and precisely machined suitable for both end drive. Hard faced pocketed anvil with 900 to 1800 wrap angles. Desired heavy spring loaded anvil gap adjustment to absorb heavy shocks. Robust construction of Hood to house the entire assembly for longer life. Deflector plate and Discharge Chute lined with Stainless Steel plates for longer life. Dynamically balanced rotor assembly for minimum vibration. Pusher Roller and Drive for additional support to Cane feeding on request.

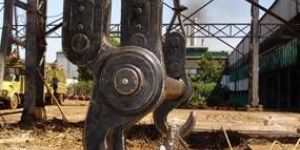

This arrangement gives an advantage of bulk unloading up to 20 T of cane in a single grip. Cane unloading with sling bar arrangement requires systematic loading of cane in the vehicles with slings that are provided by the sugar factory. Sling bar unloads the cane directly on the Feeder Table. Cane feeding in the main conveyor is easily controllable by Feeder Table with variable speed.

Purity : Max. capacity up to 20 T of Cane/ Grip Robust Construction. Auto de-slinging through swivel hooks. Suitable for bigger batch sizes of Cane.

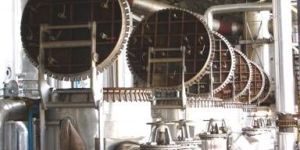

Complete steel construction. Designed for optimum heating efficiency. Robust Construction. Specially designed machined cover plates with quick opening arrangement. Stainless steel drain air vent plugs. Reamed finished tube holes and ligaments made in close tolerance. Designed for 4-5 m tube lengths. Hydraulically tested at 6 kgcm2 gauge pressure before dispatch. Accessories such as Double Beat valve, RA valve etc. provided on request. Glass wool insulation and Al cladding after complete erection for min. heat loss.

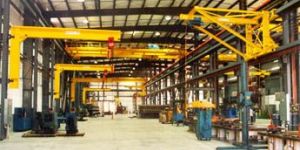

Independent Pillar or Column mounted.Slewing radius up to 6 meters.Capacity up to 5 T (S.W.L.)Lift up to 8 meters.3600 Manual Motorized slew. Complete Conformity with Design Standards IS- 3938, IS-807 & IS-800.Fitted with Wire RopeChain ElectricManual Hoist.

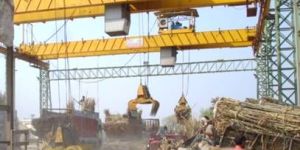

High operating speeds (Hoist – 26 mmin , C.T.L.T. - 30 mmin),Up to 100 Thr (with standard grab) Cane unloading capacity.Suitable for attachment – Hydraulic Grab.Robust design suitable for round the clock operation. Low maintenance.Energy efficient.Noise free operation.Anti Vibration Design. Drive speeds easily controllable.Complete conformity with design standards IS-3177, IS – 807 and IS – 800.Fitted with operator’s cabin.

High operating speeds (Hoist � 26 mmin , C.T.L.T. - 30 mmin) Up to 100 Thr (with standard grab) Cane unloading capacity. Suitable for attachment � Hydraulic Grab. Robust design suitable for round the clock operation. Low maintenance. Energy efficient. Noise free operation. Anti Vibration Design. Drive speeds easily controllable. Complete conformity with design standards IS-3177, IS � 807 and IS � 800. Fitted with operator�s cabin.

Hi-Lo Unloaders are conveniently used to unload cane from specially designed wagon trolley directly to the Feeder Table or open yard. Hi-Lo type Unloaders are hydraulically operated traveling trolley comprising of lifting, tilting and traveling mechanism. It usually runs on rails on ground level and capable to feed cane on all Feeder Table installed near the rails on one line. Hi-Lo Unloader is generally made in robust pipe or plate box fabricated trolley, structure housing, machinery and hydraulic power pack for 5, 10, 15 & 20 T capacities. It is provided with an operator cabin and a ladder. Hi-Lo Unloaders are designed for round the clock working with electric power or Diesel Engine driven as per customer’s requirement.

Loading capacity up to 40 tonnes.robust steel construction.special high strength feeder table conveyor chain.gun metal anti fiction ball bearings for journals. Dyno drive a.c. Variable frequency drive for precise speed control.standard inclination from 3-50 towards head shaft. Inclination up to 450 as per specific requirement. reverse kicker for leveled feeding (optional).

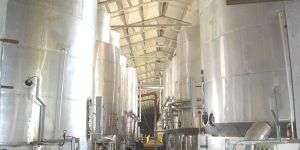

Complete steel construction,Custom designed in Multiple Effects with respect to availability of steam. Semi Kestner Robert type Evaporators as per plant layout. Reamed finished tube holes and ligaments made in close tolerance. All seams are welded with SMAW MIG welding process with approved welding procedures and qualified welders. All vessels provided with quick opening man holes for ease of maintenance. All connections such as lightsight glasses (chrome plated), covers, washing coils for hotcold water and caustic soda, juice inletoutlet are welded on the vessels. Meticulously designed SAVEALL CATCHALL for minimum entrainment. Additional poly baffles provided for zero entrainment. Special layout of tubes and air passage for quick withdrawal of noxious gases and good circulation of steam vapour. All accessories, valves and fittings on Client’s Request. Glass wool insulation and Al cladding after complete erection for min. heat loss.

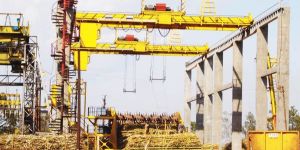

Rachitech Engineering P. Ltd. is a leading manufacturer of special purpose crane commonly known as Cane Unloader which unloads the Sugar Cane from Trucks Trolleys Carts Tempo to the Main Conveyor Feeder Table

Rachitech Engineering P. Ltd. is a leading manufacturer of special purpose crane commonly known as Cane Unloader which unloads the Sugar Cane from Trucks Trolleys Carts Tempo to the Main Conveyor Feeder Table

Feature : Capacity up to 20 S.W.L. Span up to 30 meters Max. up to 400 T/hr (with sling bar) and 200 T/hr (with grab) Cane unloading capacity

Rachitech CANE MECHANICAL GRAB is made from steel. It has 2 sets of grabbing fingers mounted on either side lifting beam. The robust design of this grab allows approx 2.5 Tonnes of Cane Grip. It can easily accommodate in the inside width of any Tractor Trolley Truck etc.

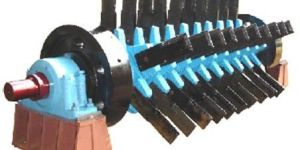

Width to suit Cane Carrier.Swing diameter up to 1800 mm.Ample sized forged carbon steel shaft- UT tested and precisely machined suitable for both end drive.Anti Friction Roller bearings with grease packed cast steel housings.Hard faced knives for longer life.Provided with packing plates for gap adjustment with cane carrier slats. Cast steelForgedFabricated Steel hubs with slotted pockets for secured knife holding. Knifes fitted with high strength bolts, nylock nuts and spring washer. Designed for optimum cane preparation efficiency.Robust Construction.Dynamically balanced rotor assembly for minimum vibration.

Rachitech STANDARD CANE HYDRAULIC GRAB is all steel construction. It has 2 sets of grabbing fingers mounted on either side of body. It is meticulously designed to accommodate in the inside width of a standard truck trolley. Rachitech Hydraulic Grabs are designed up to 5T cane handling cap. per cycle. Opening and closing action of grab is actuated by hydraulic cylinders. Positive and swift action enhances the cane unloading capacity by more than 50% over mechanical grab.

Feature : Standard capacity of 2.5 T per cycle. Quicker opening and closing in 3-4 seconds. Positive grabbing with minimum cane slippage. Reduced switching of main motor increases its life.

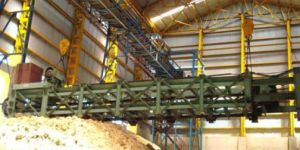

Conventionally, Bagasse from the yard is conveyed back for boiler feeding by a Return Bagasse Carrier. The loading on Return Conveyor is done by means of Dozers, Tractors and manual labour. Rachitech Bagasse Reclaimer System consists of a crane and a moving suspended conveyor. The conveyor has been designed to achieve constant feeding of Bagasse from the Bagasse heap in the entire Bagasse yard. The main advantage of this reclaiming system is constant feeding without involving manual labour and other equipments. The loading length of Return Bagasse Conveyor is installed in the entire length of Bagasse yard. The overhead crane manipulates Reclaimer Conveyor which feeds the Bagasse from the heap to the conveyor. The entire system is operated by a single operator from a cabin installed at desired location.
