Stiffness Tester Dealers in Sector 32, Faridabad

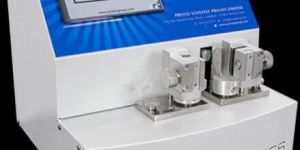

Crease Stiffness Tester Prima Model

Get Price Quote

• Accuracy±2% of reading
• FeatureOverload protection (Preset), Peak force value
• Test time15 seconds
• Test ReportYes ( PDF Format )
• MODELPCS 3.0 Prima Series
• Presto has recently introduced a crease stiffness HMI tester to test the crease resistance and board stiffness of various products like carton board, paper, printing, and packaging materials. The board stiffness and crease recovery are critical in the performance of cartons, especially on high-speed packaging machines and manual folding. The value of crease stiffness is technically important in the folding of carton blanks, most importantly during the release and closure. This lab-testing instrument has been designed as a stable mechanical structure with a focus on precision, quality, and durability. We have designed the equipment to provide ease of access by making it simple and yet featured. The equipment is featured in such a way that when a test is complete, the dynamic fixtures automatically move to the base location. It also stores the stiffness value for your convenience.   With the use of this crease stiffness tester, users can get the power to control the program parameters for a time of their choice and convenience. We have made all these features available to you from the latest and fastest Human Machine Interface (HMI) powered by a Cortex-A8 high-speed processor.   A dedicated program and UI are embedded in the equipment to perform equipment calibration which is password protected to keep unauthorized access away. You can generate and download the soft copy of the report in-a-go in pdf format by inserting a USB in the HMI.   This lab testing equipment has been designed in accordance with industrial standards that includes BS 6965-Part-1-1988, BS 3748, PMI 068, BS ISO 2493:1, TAPPI T556 (15 ° Only), & SCAN P29. With the help of this quality lab testing equipment, users can test with maximum, minimum, and average results for ten samples.

...more

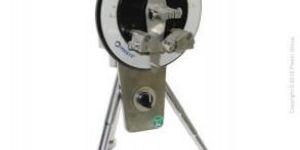

Stiffness Tester for Paper

Get Price Quote

• Power220V, 50Hz, single phase
• Weight of pendulum500, 1000, 2000, 3000, 5000 SU
• Weight of stud10 ± 0.001gm
• Sample size70 ± 1mm X 38.1 ± 0.3mm
• Angle7.5°, 15°
• Motor2 RPM
• Presto’s stiff resistance tester is the perfect tool to measure the flexural strength of the paper and linear boards or paper boards. Assessing this property is important as it decides the economic value of the paper. It complies with the testing standards of TAPPI – T489 OM-08. It measures the flexural rigidity of the test sample very precisely. This is one of the best methods to determine the quality of the paper and paper boards. The resistance of paper depends on various factors like its composition at the time of manufacturing.    To test the paper, the specimen is mounted on the tester using the clamping system. Located at the pendulum, the lower faces of the clamp jaws are at the centre. The jaws adjust themselves according to the different thickness of the test paper. To get the accurate test results, the test and angle of deflection are kept constant. To get the value of the test, the load is applied on the lower end of the specimen. It is the perfect way to determine the quality of the paper. Stiff resistance tester helps in segregating the substandard paper from the high quality. It is one of the most important test instrument used in paper industry. Presto offers this instrument at very competitive prices. Calibration certificate is provided along with the instrument. This certificate is valid for one year.

...more

Stiffness Tester

Get Price Quote

• Power220V, 50Hz, single phase
• Motor2 RPM
• To test the paper, the specimen is mounted on the tester using the clamping system. Located at the pendulum, the lower faces of the clamp jaws are at the centre. The jaws adjust themselves according to the different thickness of the test paper.

...more

Stiffness Tester

Get Price Quote

• Horizontal41.50
• Test accuracy0.1mm
• Stiffness Tester helps to determine the bending height, flexural rigidity and bending modulus of fabrics. It employs the principle of cantilever bending; a rectangular sample is supported on a smooth low-friction horizontal platform, with adjustable bend angle indicator, below the plane of the platform surface. Stiffness Tester is a widely used method for determination of Stiffness of Fabrics by cantilever Test method. In this test, the fabric specimen is allowed to bend under its own weight as the length of the overhanging portion of the sample is gradually increased. The free length which bends under its own weight sufficiently, to make its leading edge intersect a plane of 41.5° inclination is taken so as to evaluate the stiffness of the fabric

...more
