Xcel Stiro Pvt. Ltd. Sector 2, Faridabad, Haryana

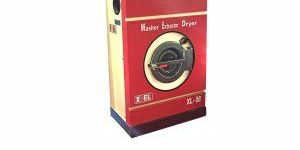

XCEL with its continuous innovation, strong R&D introduces one of its kind three in one washer / extractor / dryer for all types of Laundry. The revolutionary design of one machine concept is unmatched is the industry. It incorporates washing upto drying in one machine, resulting in tremendous saving of space, labour, time & electricity making washing area free from flowing water & soap residuals as the garment goes in dry & comes out dry.   Features Ensures space saving and provides high efficiency Helps in maintaining Water less floor. Mainly stainless steel construction. CNC embossed perforations for better fluid circulation. Auto timed, Auto temperature Sensor, Digital temperature indicator. Built in VFD provides adjustable drum speed for various types of washing, completely safe for delicate & sequential garments. Instant drain & filling thru manual valves. Auto operation of water, steam & drain are available as optional. Soap dozer Thermally insulated with blanket wool to prevent heat loss & maintain uniform temperature. Moisture evacuation is through balanced centrifugal high suction blower directly mounted on motor for optimum efficiency & silent operation. Option of manual operated machine or automatic through microprocessor. Capacities The Washer Extractor comes in Three capacities 08 Kg 15 Kg 30 Kg Variants The Washer Extract Dryer comes in two variants Steam heated / Electric heated

For Hotels, Garments & Commercial Laundry Standard & Customized Sizes. ALS Imported All steam iron without element using steam to heat the base. Releases steam by pressing lever when desired. Heat proof handle, steam volume adjustment, Wt. 1.75 Kgs FERRO Imported electric steam iron, Ergonomically designed base plate with long passage for optimum steam heating to provide absolutely dry steam. Antishock handle. Zero maintenance. Teflon shoe for shine prevention 1.75 kg wt. 800 W.

Application : It provides batch process for fixation of reactive dyes and acids (Post Process) Features   Batch Size-100 / 200 meters Comes with operator friendly features Pressure Switch Controlled Digital Timer / Completion Alarm Pressure Indicator Fully 304 Stainless Steel Construction Completely Insulated Auto timed with steam by pass Assembly Selection of Top and Bottom Heating System Electrical Consumption – 1 kw for top heating Steam required – 50 - 100 kg/hr Fully Stainless Steel & Pressure controlled

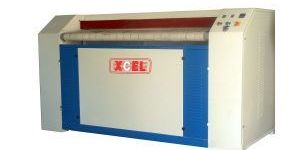

Application : These Ironers offer optimal heat conductivity and uniform temperature steam (Post Process) Features Size - 65 inch / Also can be customised Steam required - 50 kg/hr Electrical sensors also available - 9 kw Motor ½ hp Built in variable frequency drive Pneumatically operated All safety Features for operator Forward & Reverse movement

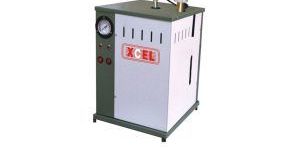

Various safety devices for high pressure control, built in excessive steam release valve & Dry cut out systems & Buzzer. Portable Steamer For instant pressing Portable Steam Ironing System. High pressure Steam can be generated any time by simple plugging to single phase point. Incorporated with advance features & 4 level safety mechanism. Buzzer to indicate water level. High pressure steam Built in drainage system avoid scale formation. Seamless drawn stainless steel shell.

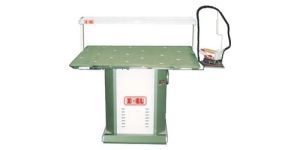

Features The modern & sturdy design in vacuum table for wrinkle free & shine less finishing. Strong suction ensures extraction of moisture for impeccable finish & also holds the garments in firm position for easy handling. Most efficient table top with uniform perforation prevents table wetting through thermostatically controlled surface elements. Hammertone coating with rust prevention treatment. Long lasting imported silicon foam for uniform surface. Polyester cover for heat and shine prevention. Aluminium motor for longer life. The components are easily detachable and can be replaced within moments for servicing. Table top perforations are symmetrical for uniform suction on complete top. Ductable exhaust to reduce noise & humidity in the finishing hall. The top sheet is galvanized iron, powder coated for rust prevention. Optional Light & utility tray fixture. Swivel buck arm, customized for contour pressing. Blowing assembly.

Features XCEL presents the highly efficient & energy saving extractor, built to last forever. Direct Drive Auto DC injection brake Basket is directly mounted on heavy duty motor resting on base frame with in built rubber buffer cushions. High speed, short cycle duration, energy saving. Auto timed, built in safety devices, electrically interlocked top lid stops the machine when opened. Self balancing for vibration free and noiseless operations. Inner basket & outer drum are SS 304 Strong argon arc welded construction, epoxy painted heavy base frame. Wall mounted separate electric panel, completely safe against sparking. Capacities The Hydro Extractor comes in Three capacities 12 Kg 35 Kg 50 Kg

Brand Name : XCEL

Dual purpose machine - inspection cum rolling to reduce labour & time. Visual control of fabric, using over head as well background light. Makes uniform & tight roll of all fabrics, built in manual edge controls. Rubber pressed aligned roller for proper grip of fabric. Rolling length counter Variable speed control Forward / Reverse movement 1 hp motor with gear & variable speed control device Single phase / Three phase, Fabric size 68 x 24 inches Dimensions : 78x44x70” Optional : Electronic Meter Counter Fabric width upto 116”

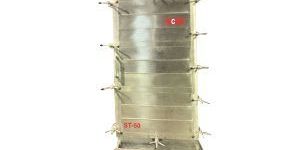

Automatic Electrical Steamer available in various versions for upto 12 irons. Most advanced technology incorporating float switch controls for continuous steaming unaffected by voltage variations. Unique pressure vessel with optional built in condensate separator for completely dry steam. Modular operation allows right amount of steam at no extra power consumption. Detachable stainless steel elements are protected by thermostats. Various safety devices for high pressure control, built in excessive steam release valve & Dry cut out systems & Buzzer.

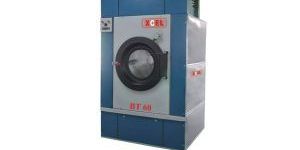

  Construction Heavy fabricated outer body is metallic painted with clear coating for longer life, large sized die pressed powder coated door for easy loading, The machines are epoxy coated inside for rust prevention. Drying Chamber Thermally insulated stainless steel basket, double walled prevent heat loss & maintain uniform temp. Drive Balanced cast iron pulleys & flexible plumber block housing with double ball bearing to sustain all loads. Suction Moisture evacuation is through balanced centrifugal high suction blower directly mounted on motor for silent operation. Lint Screen Sliding lint screen is provided in the front panel for easier operation. Steam / Electric Radiator Copper coils with aluminium fins for steam heated and fin type elements for electric heated are provided with sliding mesh to prevent dust on radiator. Diesel / PNG Operated The most economical & automatic operating system, Diesel / PNG burner is fitted in a heat exchanger made of numerous seamless pipes for quick air heating with sliding mesh. Capacities The Drying Tumbler comes in four capacities 15 Kg 30 Kg 60 Kg 120 Kg

Condition : New

Power : 6-9kw

Automatic Grade : Automatic

Voltage : 110V

Certification : ISO 9001:2008

Warranty : 2 Yrs

Weight : 150-200Kg

Driven : Electric

Country of Origin : India

Type : Drying Tumbler

XCEL with its innovation, technical expertise, & self belief launched india’s only indigenous Perc Dry to Dry Cleaning machine The machine is highly advanced & one of its kinds with optional water / oil based perc recovery unit, reducing the power consumption by upto 20% & is available as CKO or CBU in association with European associates. Perchloroethylene (Perc), a special solvent carriers out the cleaning process. The solvent has strong detergent Qualities & quite aggressive with all kinds of dirt. The machine operates as a closed cycle with built in distillation & recovery where solvent & solvent vapors stay inside the machine, making them friendly to the user & the environment. The end result is fresh looking garments with impeccable finish without any shrinkage & smell. Capacities The Perc Dry cleaning Machine comes in Five capacities. 8 Kg 10 Kg 15 Kg 25 Kg 35 Kg   Advantages Variable speed control, for delicate fabrics & attachments. Rapid drying process ensures shorter cycle duration. Upgraded filtration process to eliminate perc smell Completely. Built in electrical panel to protect overloading, best suited for Indian conditions. High Productivity, minimum Solvent consumption. Highly advanced computer system. The basket is mounted on hub, completely sate against un-balancing even at higher loads. Features 03 – storage tanks. Tank to tank Perc transfer Nylon ecological filters Microprocessor Computer with memory, manual override. Exhaust door vent. Closed cycle operation. Electric or steam heated. Batch distillation Large loading and still door Large button trap Drying system Soap container Heating Unit Double air filter Emission free solvent filling Parts made of stainless steel : basket, cage, recover section, button trap body, filter, still, condenser, water separator, drying unit & solvent tanks.   Optionals/Add-ons Doze pump Water saving valve Nylon Deco filter Air Compressor Cooling Tower Refrigeration Unit Microprocessor Computer

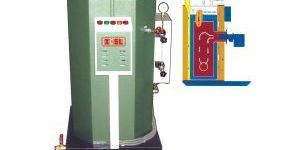

Diesel Steamer comes in two types. Shell n Tube Shell n Shell. Shell n tube is a Horizontal steamer& Shell n Shell is a Vertical steamer Automatic diesel / PNG steamer. No heating effect or fumes, can be installed inside. High efficiency and low diesel consumption Saves precious production time due to minimum maintenance The control panel is simple in design for trouble free operation Completely safe, multiple pressure switch control, steam relieve valve, auto water level controls, auto cut off switches. Works on the principle of reverse technology where the flame & gases reverse in the air tight chamber resulting in complete combustion & absolute utilization of energy. Panels are structure / hammertone coated & treated with anti rust treatment for longer life. Strong construction with seamless tubes in seamless shell of 11mm thickness.
