1) slitter details :
manufacturing year: 2017
sheet thickness: 0.5 - 12mm
sheet width - till 1600 mm
coil i.d - 450/500/700mm
coil o.d - 1000-1800 mm
coil weight - max. 35 tons
coil material - usually q235, q345b, ss416 as well as any grade as per requirement.
other specification :
slitting accuracy: width accuracy≤±1mm
running speed: 20m/min
arber diameter: 250 mm
slitter cutter of diwas brand, madhya pradesh: 320x425x20mm
spacer : 320x350x10mm
recoiler motor - not available
slitter motor - not available
*any motors can be installed as per the customer demand of slitting sheets.
equipment list :

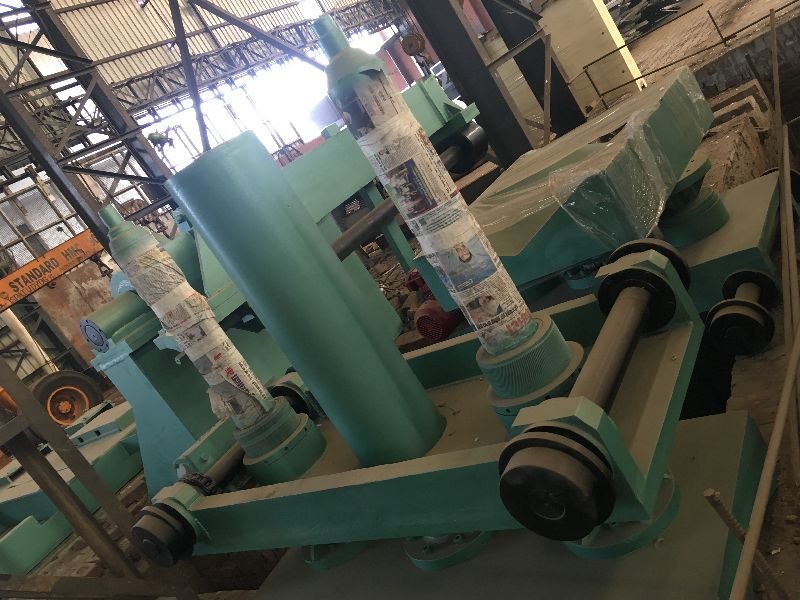

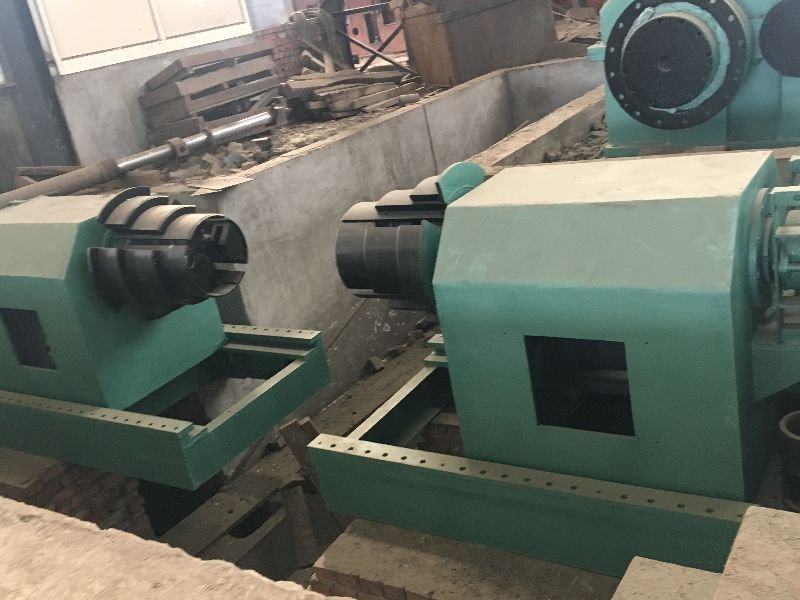

1- uncoiler
1 -uncoiler lifting trolley

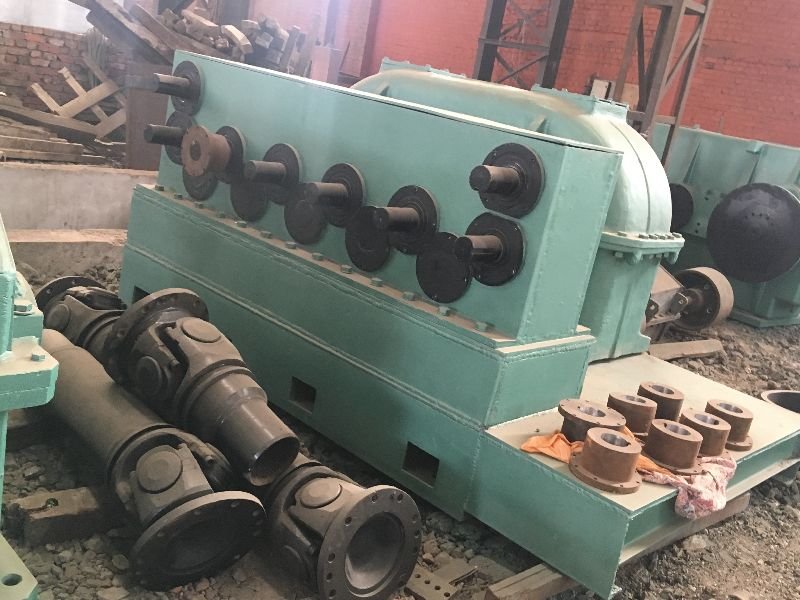

1- head straightener
1- pinching
3- vertical roller

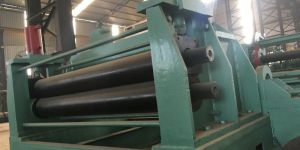

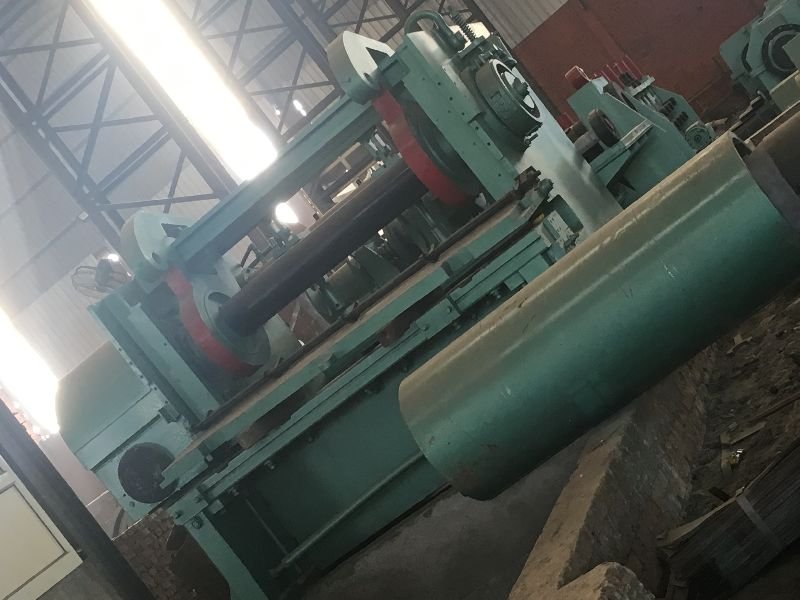

1- slitter
2- scrap rewinders
1- tensioning device
1- recoiler
1- coil discharge car
1- hydraulic system
*required cutters and spacers with complete tooling set.
1) slitter details :
manufacturing year: 2017
sheet thickness: 0.5 - 12mm
sheet width - till 1600 mm
coil i.d - 450/500/700mm
coil o.d - 1000-1800 mm
coil weight - max. 35 tons
coil material - usually q235, q345b, ss416 as well as any grade as per requirement.
other specification :
slitting accuracy: width accuracy≤±1mm
running speed: 20m/min
arber diameter: 250 mm
slitter cutter of diwas brand, madhya pradesh: 320x425x20mm
spacer : 320x350x10mm
recoiler motor - not available
slitter motor - not available
*any motors can be installed as per the customer demand of slitting sheets.
equipment list :
1- uncoiler
1 -uncoiler lifting trolley
1- head straightener
1- pinching
3- vertical roller
1- slitter
2- scrap rewinders
1- tensioning device
1- recoiler
1- coil discharge car
1- hydraulic system
*required cutters and spacers with complete tooling set.
