Jayant Engineering Chhatral, Gandhinagar, Gujarat

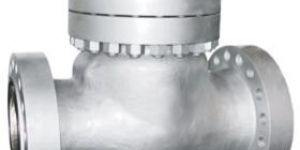

Design features : design and manufacturing : bs 1868 inspection and testing : api 598 , bsen 12666 part 1 & 2 end flanges dimension : asme b 16.5(for nps ≤ 24”) series a & b (for nps ≥ 24), mss sp – 44 (for nps ≥ 24) bw end dimension : asme b 16.25 face to face & end to end dimension : asme 16.10, bs 2080 special features : counter weight arrangement hydraulic cylinder arrangement ibr certified nace mr 0175 & mr 1030 lift type check valves will be supplied for the sizes for nps < 2” rest of the sizes are in swing type design. gasket design : asme b 16.20 disk design : gravitational acceleration while not a valve in the traditional sense, check valves serve an important application namely to prevent flow in one direction while allowing it in the other. A check valve is self-actuated and designed to prevent fluid from flowing back into the system (prevent reverse flow). Real-life applications include preventing back flow into an injection line or into a pump. The fluid flow opens the valve by forcing a disk or ball in one direction. When the flow stops, the disk or ball is seated and closes the valve. They can be installed in horizontal or vertical upward flow piping.

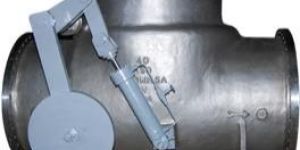

DESIGN FEATURES : Design and Manufacturing : API 6D Inspection and Testing : API 6D End Flanges dimension : ASME B 16.5 BW end Dimension : ASME B 16.25 Face to Face & End to End Dimension : API 6D/ASME B16.10 Disc Design : Gravitational acceleration Design : Capability of a value to permit the unrestricted passes of Piggability Drain & Vent Connection, Lifting Lugs & Support Legs SPECIAL FEATURES : Counter Weight arrangement Hydraulic Cylinder Arrangement NACE MR 0175 & MR 0103 Drain & Vent connction, lifting lugs & Support legs.

DESIGN FEATURES : Design and Manufacturing : ASME B 16.34 Inspection and Testing : API 598, BSEN 12266 Part – 1 & 2 End Flanges Dimension : ASME B 16.5 BW End Dimension : ASME B 16.25 Face to Face & End to End Dimension : ASME B 16.10 Wedge Design : Flexible Wedge Plug Design : Parabolic , Regulating Disc Design : Gravitational Acceleration Bonnet Design : Pressure Seal

We are leading manufacturer, supplier and exporter of pneumatic operated valve.

We are well known for manufacturing, supplying and exporting of hand wheel operated valve.

We deals in manufacturing, supplying and exporting of gear operated valve.

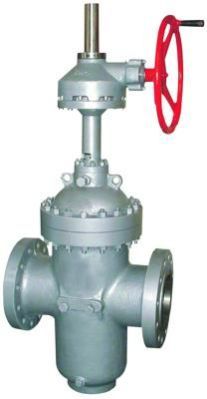

DESIGN FEATURES : Design and Manufacturing : API 6D Inspection and Testing : API 6D Inspection and Testing : API 6D End Flanges dimension : ASME B 16.5 BW end Dimension : ASME B 16.25 Face to Face & End to End Dimension : API 6D ASME B 16.10 Design : SLAB Type, Through conduit passage – Piggable Anti-friction ball thrust bearing in yoke sleeve Drain & Vent Connection, Lifting Lugs & Support Legs, Double block & bleed, fire safe design. SPECIAL FEATURES : Gear Operation – applied force exceeds 350N Limit switch Arrangement Electrical & Pneumatic Arrangement Position indicator Locking arrangement Fugitive Emission test Resilient seal. NACE MR 0175 & MR 0103 Pneumatic Acuator

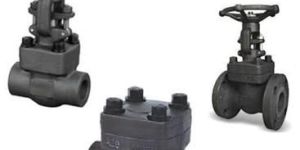

DESIGN FEATURES : Design & Manufacturing : API602/ISO 15761 for Class 800 & 1500, ASME B 16.34 for Class 2500 Inspection and Testing : API 598, BSEN 12266 Part – 1 & 2 End Dimension : ASME B 16.11 for Socket Weld & ASME B 1.20.1 for Screwed End BW End Dimension : ASME B 16.25 Face to Face & End to End Dimension : Manufacturer Standard Gasket Design : ASME B 16.20 Plug/Disc Design : Parabolic, Regulating, Soft seated Wedge Design : Solid wedge

We are the main supplier of this product.

Size : 4inch

Material : Stainless Steel

Pressure : High Pressure

Structure : 2way

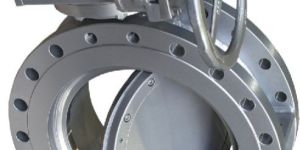

Advantages of butterfly valve A butterfly valve is much smaller than other valve design.Its advantages are saving in materials, less weight, small space requirement, andeasy installation and operation. The liner materials used in the construction ofJAYANT butterfly valve are either Elastomer or TEFLON.Wafer construction provides maximum strength under conditions of pipeline strain.JAYANT butterfly valve performs the basic functions of flow, one is stopping the flow, second is Controlling flowand third is regulating flows and pressure with several advantage functions such as: Tight shut off Less fluid resistance achieved through amooth flow Low pressure drop. On-off ot throttling application Suitable for automation with low operationg torque and 90 deg. Operating angle. Reduced weight and installation space. No flange gasket Quick fitting and dismantling Easy replacement and renewable seat.   SPECIAL FEATURES : Concentric rubber lined 2 piece split body ptfe lined Double eccentic high perfomance Tripple eccentic high perfomance Lever , gear operated Electic actuator , pneumatic actuator Wafer type , lug type , double flanged   DESIGN FEATURES : Design and Manufacturing : API 609 , BS EN 558 , DIN 3202, ISO 5752 FLANGE : ANSI , BS , DIN , ISO, UNI , JIS,AS PRESSURE RATING: TRIPPLE ECCENTIC HIGH PERFOMANCE DN40-300: PN16 (200 PSI) DN350 & ABOVE: PN10 (150 PSI) TESTING: API 598 , MSS SP 61 , ANSI B16.104

We are leading manufacturer, supplier and exporter of huge range of Gate Valves like Bolted Bonnet Type Gate Valve, Pressure Seal Type Gate Valve and API 6D Gate Valve etc.

We are well known for manufacturing, supplying and exporting of wide variety of Globe Valves like Bolted Bonnet Type Globe Valve and Pressure Seal Type Globe Valve etc.

We deals in manufacturing, supplying and exporting of wide range of Knife Gate Valves.

We are well known for manufacturing, supplying and exporting of wide variety of Strainers such as 'Y' type and Mono.

We are leading manufacturer, supplier and exporter of huge range of Bolted Bonnet Type Globe Valve like Hand Wheel Operated Valve, Gear Operated Valve and Pneumatic Operated Valve.
