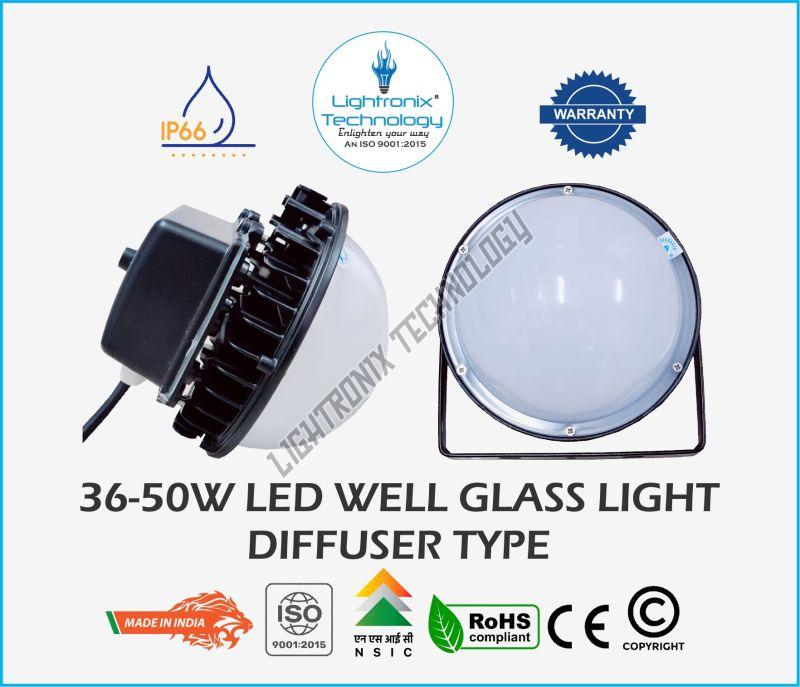

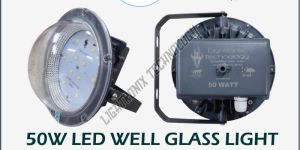

GENERAL INFORMATION Order Code LT-50WWG-DL-5050 (MILKY WHITE DOM) Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 10   OPTICAL PARAMETERS Led Beam Angle 120 Degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White/Warm White/Cool White (As Per Order) Color Temperature 2700-6500K(As Per Order) Led Voltage/Current 6.2V/750mA LED Make Bridge lux/Osram (As per Requirement) Optical Lens NA Luminous Efficiency 170 Lm/W Total Lumens 8500(±5%) Optical Efficiency >93% Thermal Efficiency >90%     ELECTRICAL PARAMETERS Wide Input Voltage Range 90-310VAC(With Auto Cutoff) Operating Frequency 50/60HZ Power Consumption 50 Watt Power Factor >0.95 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection Under voltage Protection 90VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 133X133 mm     MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Round Total Luminaries Weight 1.04 Kg Luminaries Size   Diameter - 185 mm Height – 162 mm Mounting Device Bracket Mounting Style Ceiling/Roof/Hanging Glass Type Milky white Dom Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP65/IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Brand Name : LIGHTRONIX

Material : Aluminium,Aluminum

Lighting Type : LED WELL GLASS LIGHT

Shape : Round

Power Consumption : 50 WATT

Lighting Color : Pure White

Feature : WELL GLASS LIGHT

Number Of Flower : Led

Total Carbohydrate : 2Years

Country of Origin : India

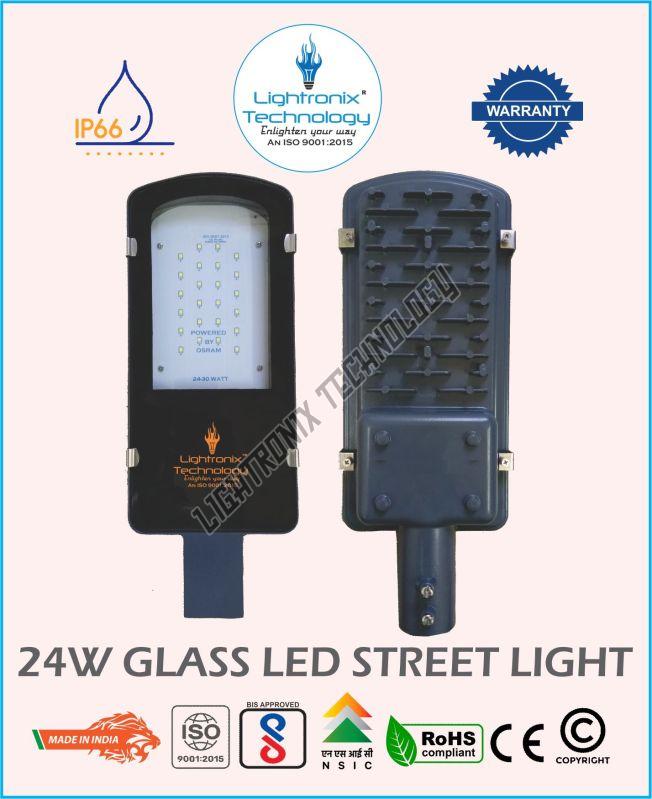

GENERAL INFORMATION Order Code LT-24WSL (LENS MODEL) Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 3030 LED Number of LED 24   OPTICAL PARAMETERS Led Beam Angle 90 Degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White/Warm White/Cool White (As Per Order) Color Temperature 2700-6500K(As Per Order) Led Voltage/Current 6.2V/150mA LED Make Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) Optical Lens Yes Luminous Efficiency 140 Lm/W Total Lumens 3360(±5%) Optical Efficiency >93% Thermal Efficiency >90%       ELECTRICAL PARAMETERS Wide Input Voltage Range 90-310VAC(With Auto Cutoff) Operating Frequency 50/60HZ Power Consumption 24 Watt Power Factor >0.95 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection Under voltage Protection 90VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 110x60 mm       MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Rectangle Total Luminaries Weight 0.440 Kg Luminaries Size 280 ×108 × 50mm3 Pole Dia Entry 45mm Mounting Device Clamp Mounting Style Pole/Wall Glass Type Poly carbonate lens Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP65/IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Total Carbohydrate : 2

Number Of Flower : LED

Lighting Type : LED

Material : Aluminium

Brand Name : LIGHTRONIX TECHNOLOGY

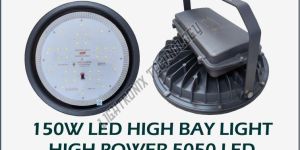

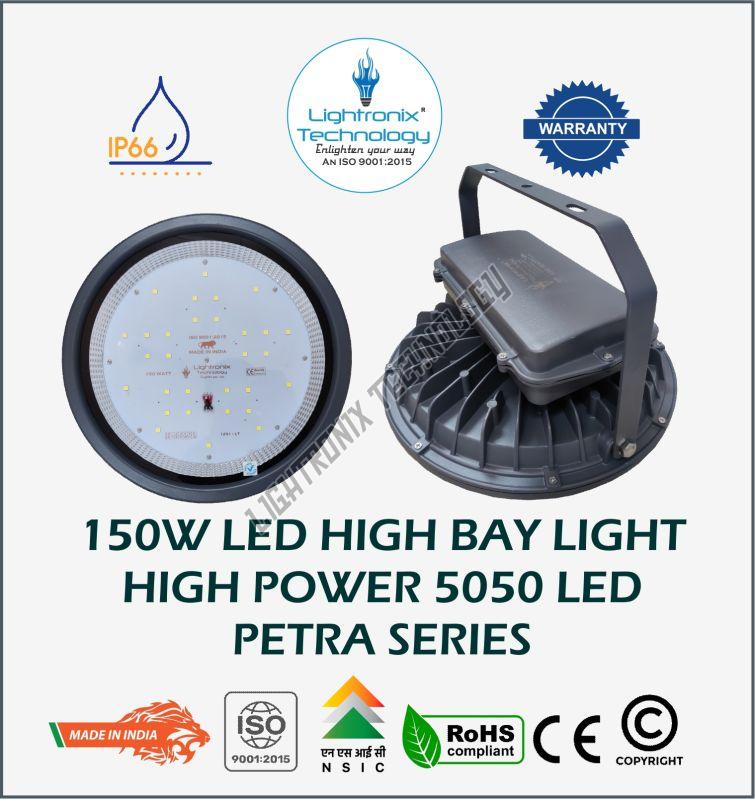

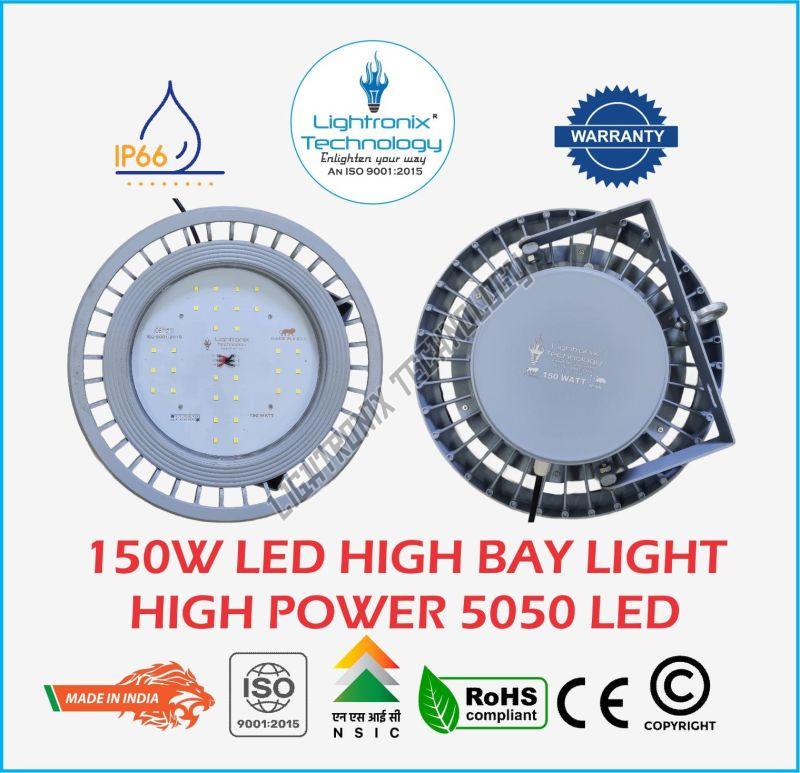

GENERAL INFORMATION Order Code LT-150WHBL-PETRA Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 30   OPTICAL PARAMETERS Led Beam Angle 120 Degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White/Warm White/Cool White (As Per Order) Color Temperature 2700-6500K(As Per Order) Led Voltage/Current 6.2V/750mA LED Make Bridge lux/Osram (As per Requirement) Optical Lens NA Luminous Efficiency 170 Lm/W Total Lumens 25500(±5%) Optical Efficiency >93% Thermal Efficiency >90%       ELECTRICAL PARAMETERS Wide Input Voltage Range 90-310VAC(With Auto Cutoff) Operating Frequency 50/60HZ Power Consumption 150 Watt Power Factor >0.95 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection Under voltage Protection 90VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 250X250 mm       MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Round Total Luminaries Weight 3.91 Kg Luminaries Size   Diameter - 320 mm Height – 190 mm Mounting Device Bracket Mounting Style Ceiling/Roof/Hanging Glass Type 4mm Toughened Glass Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP65/IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Lighting Color : White /Warm White /Cool White

Brand Name : LIGHTRONIX TECHNOLOGY

Material : Aluminum Casting

Housing Material : Aluminum Pressure Die Casting

Shape : Round

Power : 150W

Color Temperature : 2700-6500K

Power Factor : >0.95

Model Number : LT-150WHBL-PETRA

Certification : ISO, CE, ROHS, BIS, MSME,NSIC

Feature : Bright And Shining, Low Consumption, Stable Performance, Suitable For Indoor Or Outdoor

Number Of Flower : Led High Bay Light

Beam Angle(°) : 120

Country of Origin : India

IP Rating : IP66

Protection rating : IP66

Maximum Lumens : 25500

CRI : 80

Driver : 6KV IP66 Isolated Driver

SPD : 10KV (As per requirement )

Lifetime : 50000 Hrs

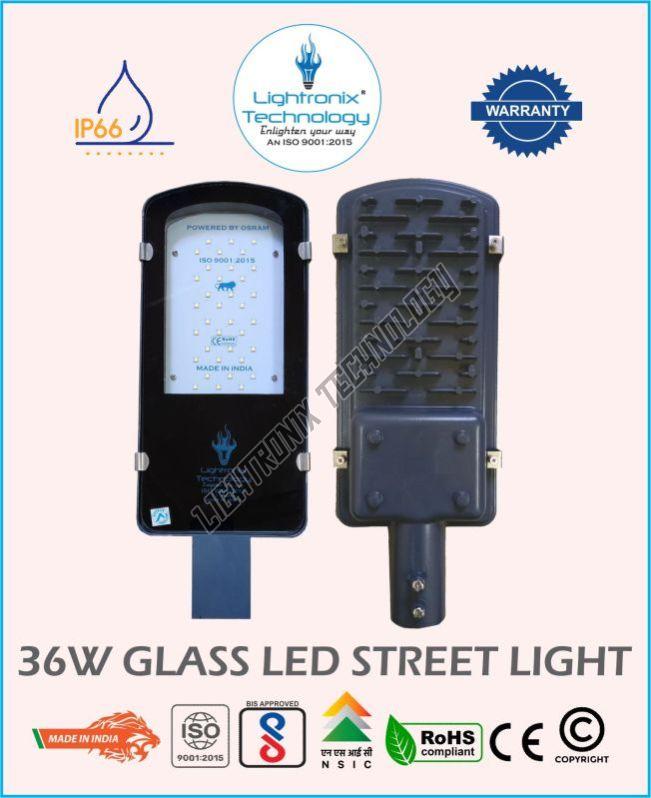

Led street light, ac led street light, street light, roadway light, roadway led light, outdoor led street light, high power led street light, pure white led street light, warm white led street light, white led street light, cool white led street light, natural white led street light, power led street light, lens model led street light, lens led street light, glass led street light, frame led street light, dolphin led street light, leaf led street light, capsule led street light, aluminum led street light, led street light luminaire, street light luminaire, street light fixture, led street light fixture, Grampanchayat led light, smart street light, smart led street light, automatic on off led street light, auto on off led street light, ldr sensor based led street light, led street light with ldr sensor, day night on off street light, street light with auto on off switch, sensor based led street light, photo sensor led street light, auto dimming led street light, led street light with auto dimming, street light fitting, street light housing, energy saving street light, energy saving led street light, power saving street light, street light for pole, aluminum die cast led street light,

Brand : Lightronix

Shape : Round

Wattage : 200-250 W

Housing Material : Aluminium Die Casting

Country of Origin : India

IP Rating : IP66

Power Factor : >0.95

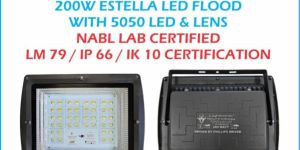

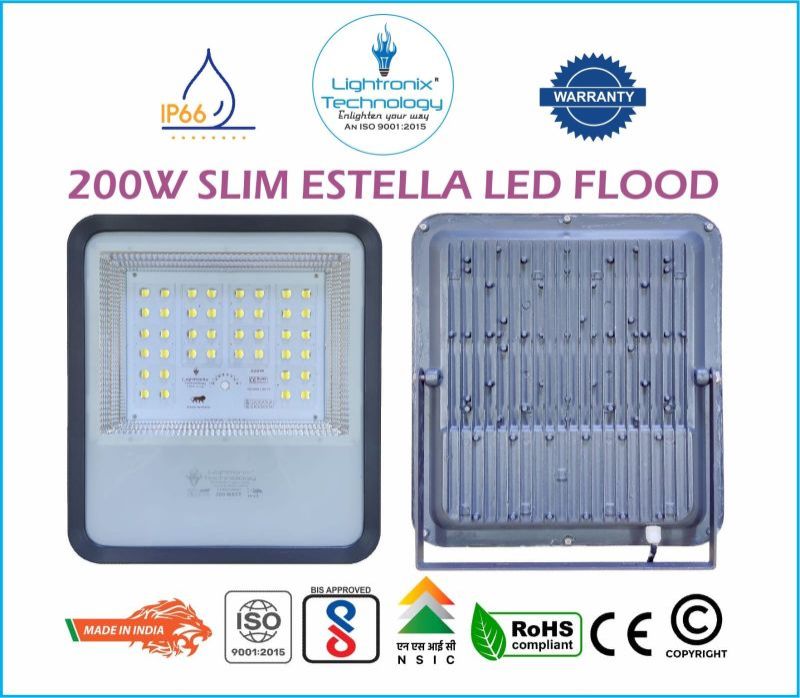

GENERAL INFORMATIONOrder CodeLT-200WFL-ESTELLAMakeLightronix TechnologyCountry of OriginINDIALighting Source & TypeSMD 5050 LEDNumber of LED40 OPTICAL PARAMETERSLed Beam Angle30,45,60 or 90 degree Polycarbonate lensCRI (Color Rendering Index)>80LED Life Span>60000 HoursColorWhite/Warm White/Cool White (As Per Order)Color Temperature2700-6500K(As Per Order)Led Voltage/Current6.2V/750mALED MakeBridge luxOptical Lens30,45,60 or 90 degree Polycarbonate lensLuminous Efficiency170 Lm/WTotal Lumens34000(±5%)Optical Efficiency>93%Thermal Efficiency>90%   ELECTRICAL PARAMETERSWide Input Voltage Range90-310VAC(With Auto Cutoff)Operating Frequency50/60HZPower Consumption200 WattPower Factor>0.95THD90%Supply PhaseSingle Phase SupplyOver voltage Protection440VAC ProtectionUnder voltage Protection90VACAuto cutoff VoltageLower Side310VAC    PCB INFORMATIONPCB Thickness1.6mm(±5% Tolerance)PCB MaterialPure Aluminum-CopperCopper Layer ThicknessStandard 0.35 MicronCopper Conductivity>1 WattPCB Size267x200mm   MECHANICAL PARAMETERSHousing MaterialAluminum Pressure Die CastingHousing Color TypeMetal Powder CoatedHousing ShapeRectangleTotal Luminaries Weight5.100 KgLuminaries Size397 × 290 × 135 mm3Mounting DeviceBracketMounting StyleWall/Pole/Ceiling/Roof/HangingGlass Type4mm Toughen GlassGlass Size273x345 mm²Cable Entry OptionPG7 Cable Gland with Rubber WasherScrew TypeStainless Steel ScrewGasket TypeSilicone Rubber GasketIP RatingIP65/IP66Impact RatingIK08/IK10Marking TypeLaser Marking/Engraving

Country of Origin : India

Material : ALUMINIUM DIE CAST

Brand Name : LIGHTRONIX

No. Of LED : 40

LED : osram

Input Volt. : 230VAC

Lumens* : 34000

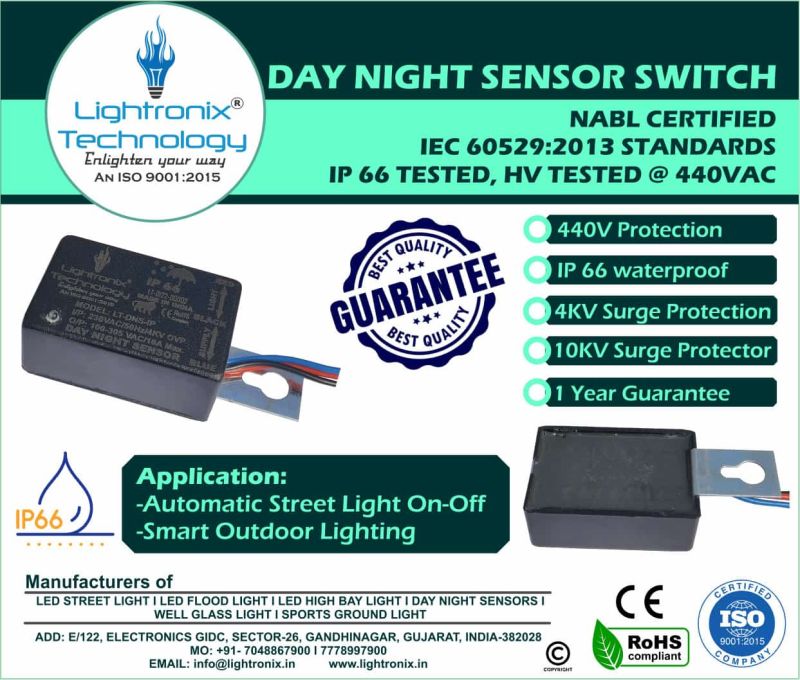

Model LT-DNS-IP (IP66 DAY NIGHT SENSOR) Certification IEC 60529:2013 IP66 TEST (NABL CERTIFIED) Dimension 60×38×25 mm3   (±2mm Tolerance)   Weight 90 gm (IP)  (±10gm Tolerance) Input Voltage 100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) Operating Frequency 50 Hz External Load capacity Up to 300 Watt Output Voltage/Current 240VAC / 10 A / 16A / 20A (±10% Tolerance) Off load power consumption 0.54 W Surge protection 4 KV Protection Ambient Light 6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX Availability With IP66 Potted Potting Material Hybrid polymer (Thermal conductivity – 0.7) Warranty 1 Year ( Warranty will not cover if sensor is in burn condition) Additional Features -With best quality and Original components for automatic circuit. -Single shot ON-OFF operation. -No flickering at load side. -Heavy duty and long life circuit. Fit and Forget module. Application -Street light, Security lights, Garden lights, -Industrial lights, Outdoor lights Function Automatic switch ON light in NIGHT. Automatic switch OFF light in MORNING. Terminology AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length)

Brand Name : Lightronix

Application : Multi Use

Size : 60x30

Certification : CE Certified, NABL certificate IP66

Country of Origin : 240V

Max. Current : 10A

Country of Origin : India

Max. Voltage : 220 V,440VAC

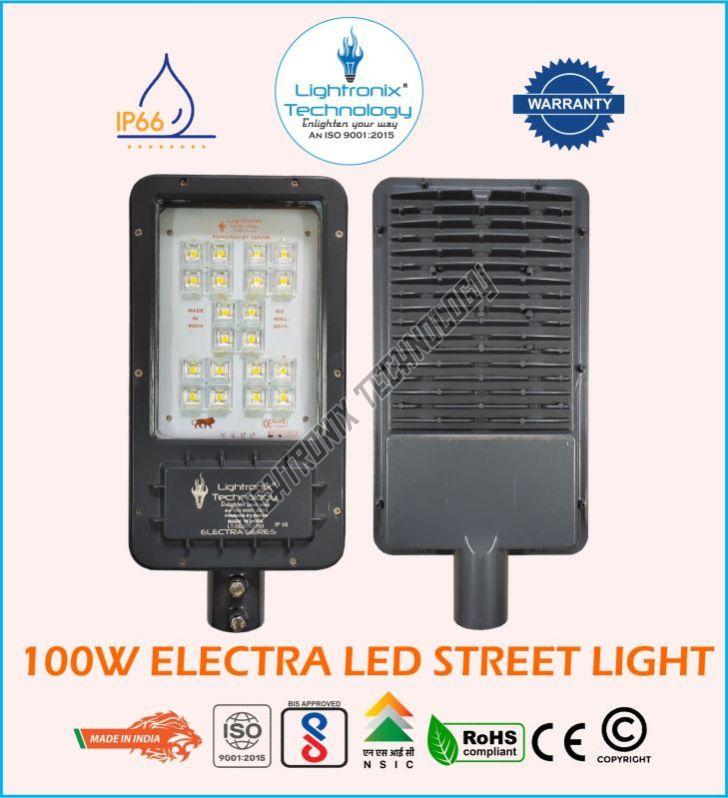

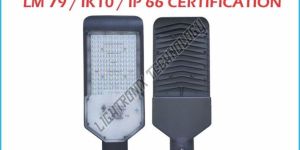

general information order code lt-100wsl-lens (100w lens led street light) make lightronix technology country of origin india lighting source & type smd 3030 led number of led   100   optical parameters led beam angle 90 degree cri (color rendering index) >80 led life span >60000 hours color white/warm white/cool white (as per order) color temperature 2700-6500k(as per order) led voltage/current 6.2v/150ma led make bridge lux optical lens yes luminous efficiency 140 lm/w total lumens 14000(±5%) optical efficiency >93% thermal efficiency >90%       electrical parameters wide input voltage range 90-310vac(with auto cutoff) operating frequency 50/60hz power consumption 100 watt power factor >0.95 thd 90% supply phase single phase supply over voltage protection 440vac protection under voltage protection 90vac auto cutoff voltage lower side310vac         pcb information pcb thickness 1.6mm(±5% tolerance) pcb material pure aluminum-copper copper layer thickness standard 0.35 micron copper conductivity >1 watt pcb size 192x148 mm       mechanical parameters housing material aluminum pressure die casting housing color type metal powder coated housing shape rectangle total luminaries weight 1.630 kg luminaries size 480 ×190 × 72 mm3 pole dia entry  70 mm mounting device clamp mounting style pole/wall glass type poly carbonate lens cable entry option pg7 cable gland with rubber washer screw type stainless steel screw gasket type silicone rubber gasket ip rating ip65/ip66 impact rating ik08/ik10 marking type laser marking/engraving

Brand Name : Lightronix

Material : Aluminum

Lighting Type : LED

Color Temperature : 6500K

Number Of Flower : Led

Total Carbohydrate : 2 Years

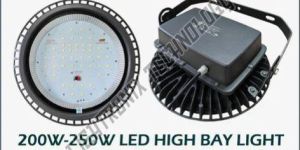

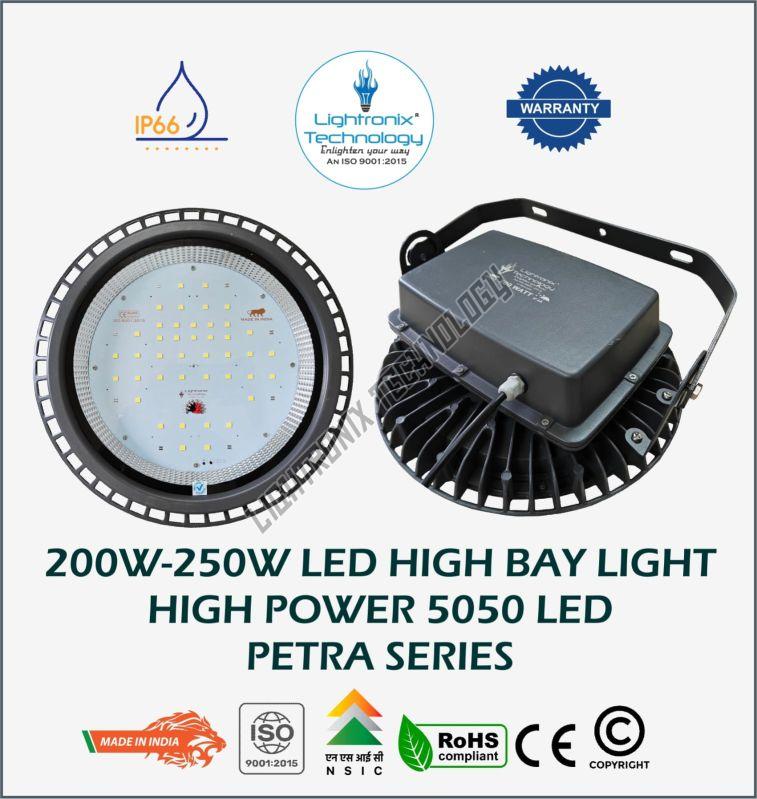

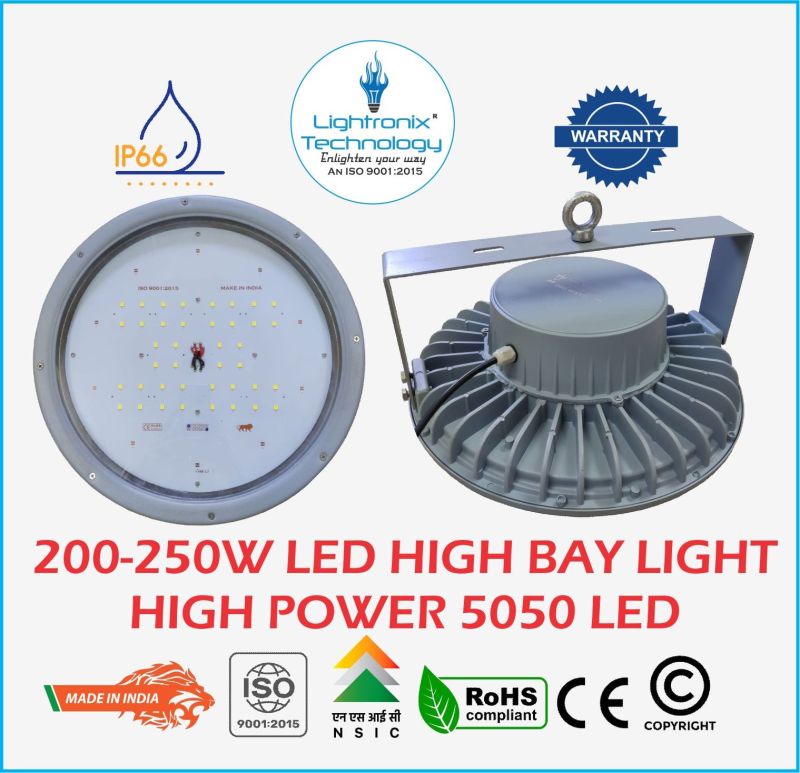

Led high baylight, ac led high baylight, high baylight, baylight, high power led high baylight, pure white led high baylight, warm white led high baylight, white led high baylight, cool white led high baylight, natural white led high baylight, power led high baylight, lens model led high baylight, lens led high baylight, UFO led high bay light, slim led high bay light, led high baylight luminaire, baylight luminaire, high baylight fixture, led high baylight fixture, high baylight fitting, high baylight housing, energy saving high baylight, energy saving led high baylight, power saving high baylight, high baylight for factory, aluminum die cast led high baylight, bay light for factory, high bay light for industry, led high baylight for tennis court, high baylight for tennis court, IP66 led high baylight, IP66 waterproof led high baylight, waterproof led high baylight, weatherproof led high baylight, led high bay light for shed, high baylight for cold storage, Dom high bay light, industrial led light, industrial light, factory light, well glass led light, well glass light, led well glass light, led lights for plant, Dom type high bay light, low bay light, led lights for warehouse, warehouse light, godown led light, godown light, led lights for godown, factory lighting solutions, industrial lighting solutions, cold storage led lights, led lights for cold storage, high bay light with reflector led high bay light with reflector, industrial well glass led light, industrial dom led high bay light, led highbay light, led warehouse light, high bay lamp, led high bay lamp, led highbay lamp, highbay lamp, Lightronix led high bay light, Lightronix highbay light, Lightronix bay light, Lightronix well glass light, Lightronix led well glass light, Lightronix bay light, Lightronix highbay lamp, Lightronix industrial light, Lightronix led light

Brand : Lightronix

Shape : Round

Wattage : 200-250 W

Housing Material : Aluminium Die Casting

Country of Origin : India

Led high baylight, ac led high baylight, high baylight, baylight, high power led high baylight, pure white led high baylight, warm white led high baylight, white led high baylight, cool white led high baylight, natural white led high baylight, power led high baylight, lens model led high baylight, lens led high baylight, UFO led high bay light, slim led high bay light, led high baylight luminaire, baylight luminaire, high baylight fixture, led high baylight fixture, high baylight fitting, high baylight housing, energy saving high baylight, energy saving led high baylight, power saving high baylight, high baylight for factory, aluminum die cast led high baylight, bay light for factory, high bay light for industry, led high baylight for tennis court, high baylight for tennis court, IP66 led high baylight, IP66 waterproof led high baylight, waterproof led high baylight, weatherproof led high baylight, led high bay light for shed, high baylight for cold storage, Dom high bay light, industrial led light, industrial light, factory light, well glass led light, well glass light, led well glass light, led lights for plant, Dom type high bay light, low bay light, led lights for warehouse, warehouse light, godown led light, godown light, led lights for godown, factory lighting solutions, industrial lighting solutions, cold storage led lights, led lights for cold storage, high bay light with reflector led high bay light with reflector, industrial well glass led light, industrial dom led high bay light, led highbay light, led warehouse light, high bay lamp, led high bay lamp, led highbay lamp, highbay lamp, Lightronix led high bay light, Lightronix highbay light, Lightronix bay light, Lightronix well glass light, Lightronix led well glass light, Lightronix bay light, Lightronix highbay lamp, Lightronix industrial light, Lightronix led light

Brand : Lightronix

Shape : Round

Wattage : 150 W

Housing Material : Aluminium Die Casting

Country of Origin : India

IP Rating : IP66

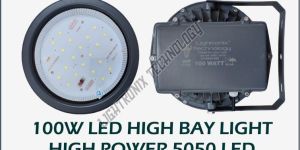

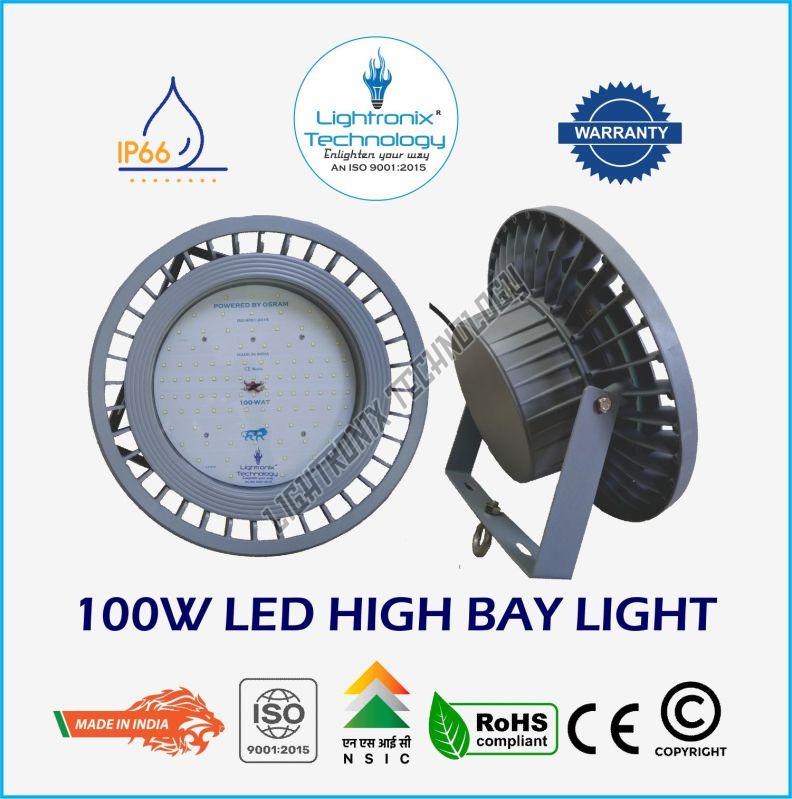

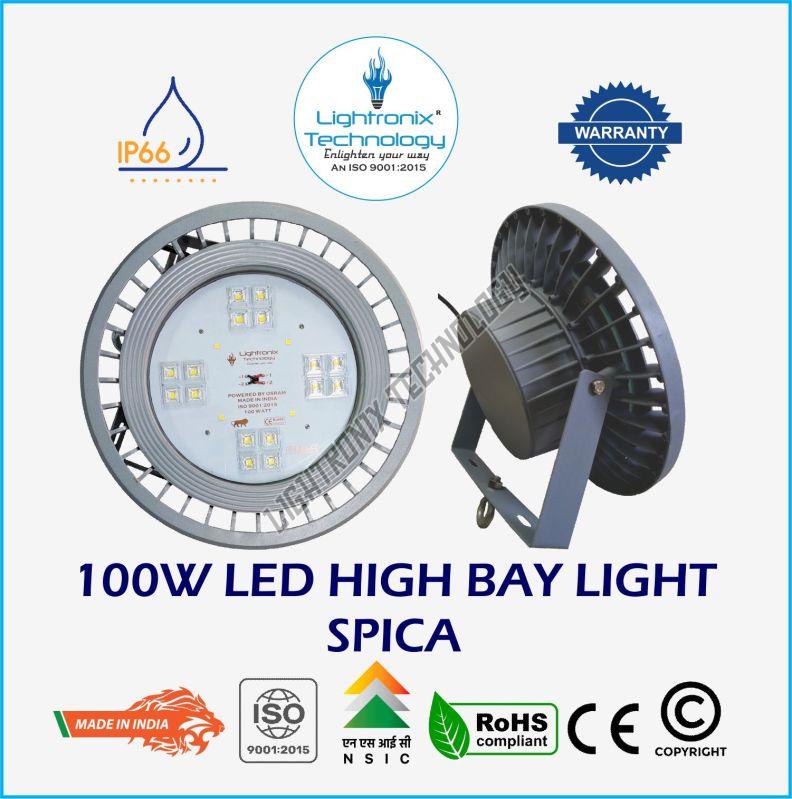

GENERAL INFORMATION Order Code LT-100WHBL-5050 Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 20   OPTICAL PARAMETERS Led Beam Angle 120 degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White/Warm White/Cool White (As Per Order) Color Temperature 2700-6500K(As Per Order) Led Voltage/Current 6.2V/750mA LED Make Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) Optical Lens NA Luminous Efficiency 170 Lm/W Total Lumens 17000(±5%) Optical Efficiency >93% Thermal Efficiency >90%       ELECTRICAL PARAMETERS Wide Input Voltage Range 90-310VAC(With Auto Cutoff) Operating Frequency 50/60 HZ                    Power Consumption 100 Watt Power Factor >0.95 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection Under voltage Protection 90VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 230X230 mm       MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Round Total Luminaries Weight 3.910 Kg Luminaries Size  Diameter - 380 mm Height – 122 mm Mounting Device Bracket Mounting Style   Ceiling/Roof/Hanging Glass Type 4mm Toughen Glass Glass Size  Diameter - 242 mm Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP65/IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Brand Name : LIGHTRONIX TECHNOLOGY

Material : ALUMINIUM PRESSURE DIE CAST

Driven Type : Electric

Lighting Type : LED HIGH BAY LIGHT

Shape : ROUND

Condition : New

Power Type : AC

Power : 100W

Power Source : 230VAC

Power Supply : 230VAC

Color Temperature : 2700-6500K

Power Consumption : 100W

Lighting Color : White /Warm White /Cool White

Application : Industrial

Model Number : LT-100WHBL-5050

Certification : ISO, CE, ROHS, BIS, MSME,NSIC

Country of Origin : 230VAC

Operating Temperature : -40 to 75°C

Frequency : 50Hz

Phase : Single Phase

Total Carbohydrate : 2Years

Country of Origin : India

IP Rating : IP66

Make : LIGHTRONIX TECHNOLOGY

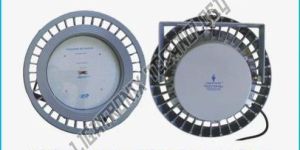

GENERAL INFORMATION Order Code LT-100WHBL-PETRA Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 20   OPTICAL PARAMETERS Led Beam Angle 120 Degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White/Warm White/Cool White (As Per Order) Color Temperature 2700-6500K(As Per Order) Led Voltage/Current 6.2V/750mA LED Make Bridge lux/Osram (As per Requirement) Optical Lens NA Luminous Efficiency 170 Lm/W Total Lumens 17000(±5%) Optical Efficiency >93% Thermal Efficiency >90%       ELECTRICAL PARAMETERS Wide Input Voltage Range 90-310VAC(With Auto Cutoff) Operating Frequency 50/60HZ Power Consumption 100 Watt Power Factor >0.95 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection Under voltage Protection 90VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 175X175 mm       MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Round Total Luminaries Weight 2.17 Kg Luminaries Size   Diameter - 230 mm Height – 180 mm Mounting Device Bracket Mounting Style Ceiling/Roof/Hanging Glass Type 4mm Toughened Glass Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP65/IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Lighting Color : White /Warm White /Cool White

Brand Name : LIGHTRONIX TECHNOLOGY

Material : Aluminum Casting

Housing Material : Aluminum Pressure Die Casting

Shape : Round

Power : 100Wt

Color Temperature : 2700-6500K

Power Consumption : 100W

Power Requirement : 100W

Power Factor : >0.95

Application : warehouse, factory shed, etc.

Model Number : LT-100WHBL-PETRA

Certification : ISO, CE, ROHS, BIS, MSME,NSIC

Feature : Bright And Shining, Low Consumption, Stable Performance, Suitable For Indoor Or Outdoor

Country of Origin : 230VAC

Number Of Flower : Led High Bay Light

Wattage : 100W

Total Carbohydrate : 2years

Beam Angle(°) : 120

Country of Origin : India

IP Rating : IP66

Light Source : LED

Protection rating : IP66

Maximum Lumens : 17000

CRI : 80

Driver : 6KV IP66 Isolated Driver

SPD : 10KV (As per requirement )

Lifetime : 50000 Hrs

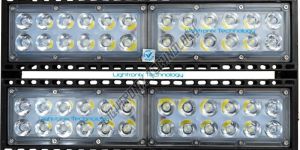

GENERAL INFORMATION Order Code LT-200WFL-SPORTS (200W TO 2000W AVAILABLE) Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 40   OPTICAL PARAMETERS Led Beam Angle 15,30,45,60 degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White Color Temperature 6500K Led Voltage/Current 6.2V/750mA LED Make Bridge lux Optical Lens 15,30,45,60 degree Polycarbonate lens Luminous Efficiency 170 Lm/W Total Lumens 34000(±5%) Optical Efficiency >93% Thermal Efficiency >90% Vertical area Output >100ft Radius Area Output 200-300ft     ELECTRICAL PARAMETERS Wide Input Voltage Range 108-305VAC Operating Frequency 50/60HZ Power Consumption 200 Watt (200W TO 2000W AVAILABLE) Power Factor >0.97 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection (48 Hours) Under voltage Protection 108VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 148x45mm – 04 PCB     MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Rectangle Total Luminaries Weight 3.57 Kg Luminaries Size 390×210 ×100 mm3 Mounting Device Bracket Mounting Style Wall/Pole/Ceiling/Roof/Hanging Glass Type PC Lens cover Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Body Material : Aluminium Die

Driven Type : Electric

Condition : New

Power : 250-500 W

Certification : ISO 9001:2008 Certified

Country of Origin : 220-240V

Packaging Type : Corrugated Boxes

Light Type : LED

Number Of Flower : Tennis Court Lights

Total Carbohydrate : 2 Yrs

Country of Origin : India

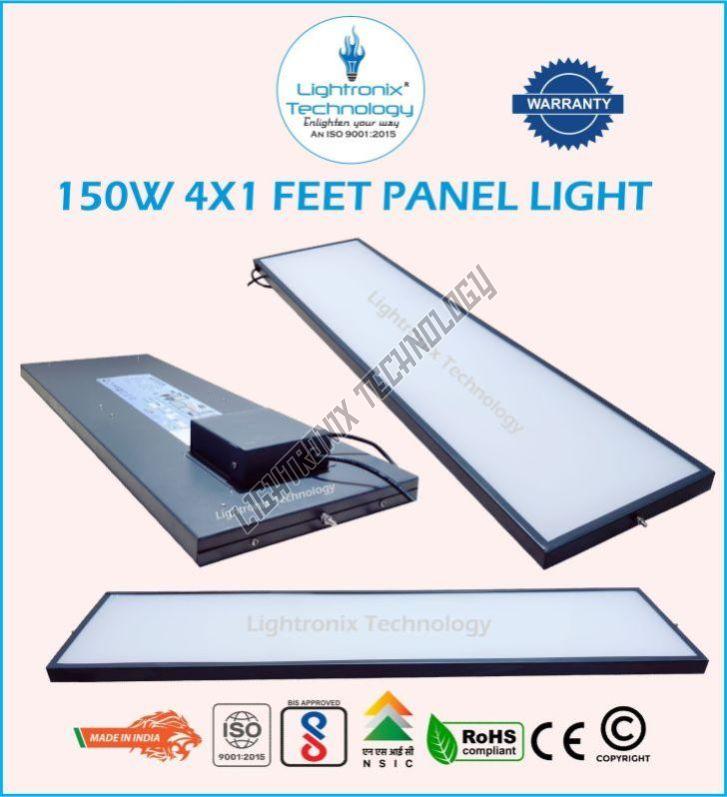

general information order code lt-150wpanel-4×1 make lightronix technology country of origin india lighting source & type smd 2835 led 0.2w number of led  750   optical parameters led beam angle 120 degree cri (color rendering index) >80 led life span >60000 hours color white/warm white/cool white (as per order) color temperature 2700-6500k(as per order) led voltage/current 3.2v/60ma led make bridge lux optical lens na luminous efficiency 140 lm/w total lumens 21000(±5%) optical efficiency >93% thermal efficiency >90%     electrical parameters wide input voltage range 90-310vac(with auto cutoff) operating frequency 50/60hz power consumption 150 watt power factor >0.95 thd 90% supply phase single phase supply over voltage protection 440vac protection under voltage protection 90vac auto cutoff voltage lower side310vac         pcb information pcb thickness 1.6mm(±5% tolerance) pcb material pure aluminum-copper copper layer thickness standard 0.35 micron copper conductivity >1 watt pcb size  1161x266 mm ( 3 pcb of 390x266 mm)     mechanical parameters housing material metal body (20 gauge thickness) housing color type anti-dust off grey powder coating housing shape rectangle total luminaries weight 8.660 kg luminaries size 1219 x 310 x 30mm3 (±5%) diffuser glass size 1215 x 295mm mounting device  clamp mounting style wall mounting/ceiling/hanging glass type anti-glare diffuser glass (2 mm thickness) cable entry option pg7 cable gland with rubber washer screw type stainless steel screw ip rating IP54 – Dust proof (Protection against Dust & Water Splashes) impact rating ik08/ik10 marking type laser marking/engraving

Country of Origin : India

Total Carbohydrate : 2 Yrs

Number Of Flower : Tennis Court Lights

Light Type : LED

Packaging Type : Corrugated Boxes

Country of Origin : 220-240V

Certification : ISO 9001:2008 Certified

Power : 150 WATT

Condition : New

Driven Type : Electric

Body Material : Aluminium Die

GENERAL INFORMATION Order Code LT-300WFL-SPORTS (200W TO 2000W AVAILABLE) Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 60   OPTICAL PARAMETERS Led Beam Angle 15,30,45,60 degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White Color Temperature 6500K Led Voltage/Current 6.2V/750mA LED Make Bridge lux Optical Lens 15,30,45,60 degree Polycarbonate lens Luminous Efficiency 170 Lm/W Total Lumens 51000(±5%) Optical Efficiency >93% Thermal Efficiency >90% Vertical area Output >100ft Radius Area Output 200-300ft     ELECTRICAL PARAMETERS Wide Input Voltage Range 108-305VAC Operating Frequency 50/60HZ Power Consumption 300 Watt (200W TO 2000W AVAILABLE) Power Factor >0.97 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection (48 Hours) Under voltage Protection 108VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 148x45mm – 06 PCB     MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Rectangle Total Luminaries Weight 5.52 Kg Luminaries Size 390×315 ×100 mm3 Mounting Device Bracket Mounting Style Wall/Pole/Ceiling/Roof/Hanging Glass Type PC Lens cover Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Country of Origin : India

Total Carbohydrate : 2 Yrs

Number Of Flower : Tennis Court Lights

Light Type : LED

Packaging Type : Corrugated Boxes

Country of Origin : 220-240V

Certification : ISO 9001:2008 Certified

Power : 250-500 W

Condition : New

Driven Type : Electric

Body Material : Aluminium Die

Badminton court light, badminton court lighting, led lights for badminton court light, 100W led light for badminton court, 150W led light for badminton court, 110W led light for badminton court, 100W Badminton court light, 150W Badminton court light, 110W Badminton court light, 3x1 feet Badminton court light, 4x1 feet Badminton court light, 3x1 feet led Badminton court light, 4x1 feet led Badminton court light, Squash court lightings, squash court light, led lights for squash court, Tennis court lightings, tennis court light, led lights for tennis court, tennis court led light, Outdoor court led lights, indoor court led lights, sports ground light, sports ground led light, indoor sports light, indoor sports ground light, led lights for indoor sports, led lights for indoor stadium, indoor stadium light, indoor stadium led light, sports arena lightings, football arena lights, basketball ground lighting, basketball court lighting, indoor basketball court lightings, basketball ground lighting, led lightings for basketball ground,

Country of Origin : 220-240V

Body Material : Aluminium Die

Driven Type : Electric

Light Type : LED

Total Carbohydrate : 2 Years

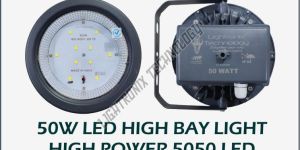

GENERAL INFORMATION Order Code LT-50WHBL-PETRA Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 10   OPTICAL PARAMETERS Led Beam Angle 120 Degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White/Warm White/Cool White (As Per Order) Color Temperature 2700-6500K(As Per Order) Led Voltage/Current 6.2V/750mA LED Make Bridge lux/Osram (As per Requirement) Optical Lens NA Luminous Efficiency 170 Lm/W Total Lumens 8500(±5%) Optical Efficiency >93% Thermal Efficiency >90%       ELECTRICAL PARAMETERS Wide Input Voltage Range 90-310VAC(With Auto Cutoff) Operating Frequency 50/60HZ Power Consumption 50 Watt Power Factor >0.95 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection Under voltage Protection 90VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 133X133 mm       MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Round Total Luminaries Weight 1.22 Kg Luminaries Size   Diameter - 185 mm Height – 162 mm Mounting Device Bracket Mounting Style Ceiling/Roof/Hanging Glass Type 4mm Toughened Glass Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP65/IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Lighting Color : White /Warm White /Cool White

Brand Name : LIGHTRONIX TECHNOLOGY

Material : Aluminum Casting

Housing Material : Aluminum Pressure Die Casting

Shape : Round

Power : 50Wt

Color Temperature : 2700-6500K

Power Factor : >0.95

Application : warehouse, factory shed, etc.

Feature : Bright And Shining, Low Consumption, Stable Performance, Suitable For Indoor Or Outdoor

Number Of Flower : Led High Bay Light

Total Carbohydrate : 2years

Beam Angle(°) : 120

Country of Origin : India

IP Rating : IP66

Light Source : LED

CRI : 80

Driver : 6KV IP66 Isolated Driver

SPD : 10KV (As per requirement )

Lifetime : 50000 Hrs

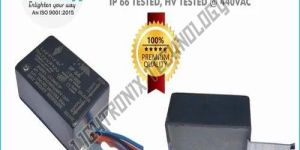

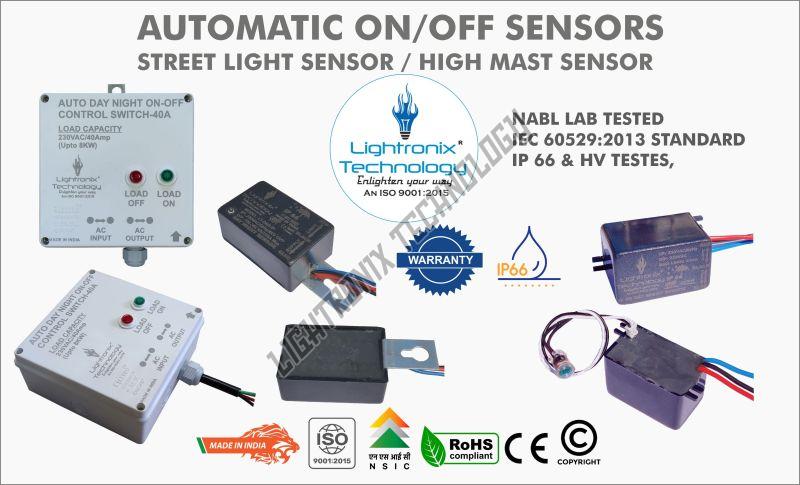

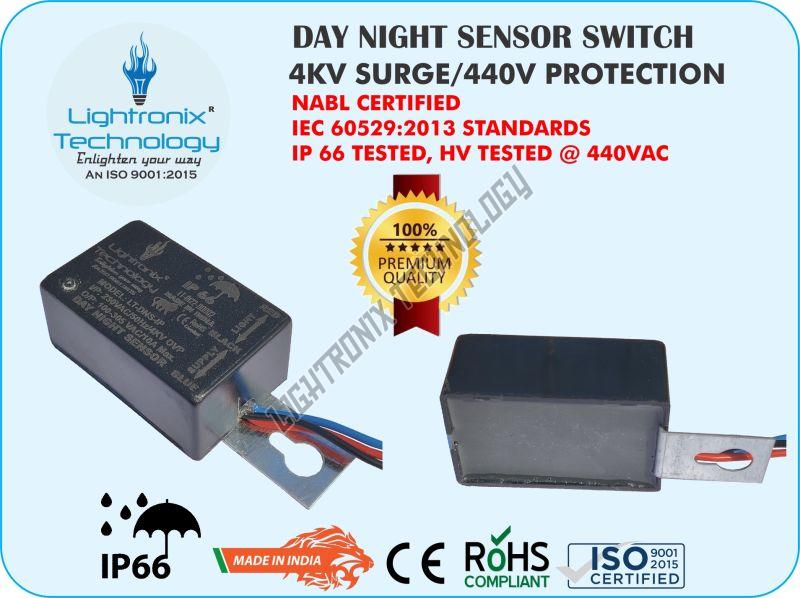

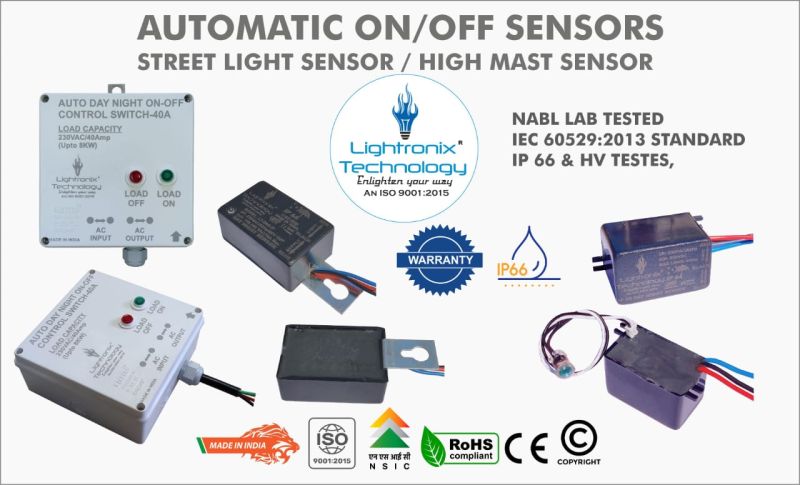

Day night sensor, day night sensor switch, waterproof day night sensor, IP66 day night sensor, IP66 day night sensor switch, IP66 auto on off sensor switch, 10A day night sensor switch, 6A day night sensor switch, outdoor sensor switch, day night switch Day night switch, day night auto on off switch, day night sensor for street light, auto on off switch for street light, auto on off switch for led street light, Street light sensor, IP66 Street light sensor, street light auto on off sensor, smart street light on off sensor, led street light sensor, led street light on off sensor, led street light auto on off sensor, Dusk to down sensor, dusk to down sensor for street light, day night light sensor, dusk to down switch, IP66 dusk to down sensor, IP66 dusk to down sensor switch, Ldr sensor, Ldr sensor switch, auto on off Ldr switch, Ldr switch for led street light, Ldr switch for auto on off street light, Ldr sensor module, 10A Ldr sensor switch, 6A Ldr sensor switch Photo sensor switch, photo sensor switch for led street light, photovoltaic sensor switch, High mast sensor switch, high mast light sensor switch, Led High mast sensor switch, IP66 High mast sensor switch, High mast auto on off switch, 40A high mast auto on off switch, 3 phase high mast sensor switch, IP66 High mast auto on off switch High mast led auto on of switch, led high mast auto on off switch, high mast sensor, 20A day night sensor switch, 15A day night sensor switch, Smart street light sensor, street light with sensor, led street light with sensor, led street light with auto on off sensor, led street light with day night sensor, led street light with inbuilt sensor,

Country of Origin : India

Frequency : 50HZ

Certification : CE Certified

Application : Street Light Control

Brand Name : Lightronix

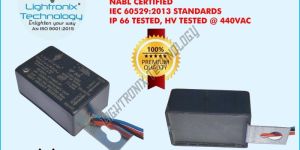

Model LT-DNS-IP (IP66 DAY NIGHT SENSOR) Certification IEC 60529:2013 IP66 TEST (NABL CERTIFIED) Dimension 60×38×25 mm3   (±2mm Tolerance)   Weight 90 gm (IP)  (±10gm Tolerance) Input Voltage 100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) Operating Frequency 50 Hz External Load capacity Up to 300 Watt Output Voltage/Current 240VAC / 10 A / 16A / 20A (±10% Tolerance) Off load power consumption 0.54 W Surge protection 4 KV Protection Ambient Light 6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX Availability With IP66 Potted Potting Material Hybrid polymer (Thermal conductivity – 0.7) Warranty 1 Year ( Warranty will not cover if sensor is in burn condition) Additional Features -With best quality and Original components for automatic circuit. -Single shot ON-OFF operation. -No flickering at load side. -Heavy duty and long life circuit. Fit and Forget module. Application -Street light, Security lights, Garden lights, -Industrial lights, Outdoor lights Function Automatic switch ON light in NIGHT. Automatic switch OFF light in MORNING. Terminology AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length)

IP Rating : IP66

Country of Origin : India

Total Carbohydrate : 1year

Theory : AUTOMATIC STREET LIGHT ON OFF

Number Of Flower : Light Sensor

Application : AUTOMATIC STREET LIGHT ON OFF

Condition : New

Material : ABS

Brand Name : LIGHTRONIX

Day night sensor, day night sensor switch, waterproof day night sensor, IP66 day night sensor, IP66 day night sensor switch, IP66 auto on off sensor switch, 10A day night sensor switch, 6A day night sensor switch, outdoor sensor switch, day night switch Day night switch, day night auto on off switch, day night sensor for street light, auto on off switch for street light, auto on off switch for led street light, Street light sensor, IP66 Street light sensor, street light auto on off sensor, smart street light on off sensor, led street light sensor, led street light on off sensor, led street light auto on off sensor, Dusk to down sensor, dusk to down sensor for street light, day night light sensor, dusk to down switch, IP66 dusk to down sensor, IP66 dusk to down sensor switch, Ldr sensor, Ldr sensor switch, auto on off Ldr switch, Ldr switch for led street light, Ldr switch for auto on off street light, Ldr sensor module, 10A Ldr sensor switch, 6A Ldr sensor switch Photo sensor switch, photo sensor switch for led street light, photovoltaic sensor switch, High mast sensor switch, high mast light sensor switch, Led High mast sensor switch, IP66 High mast sensor switch, High mast auto on off switch, 40A high mast auto on off switch, 3 phase high mast sensor switch, IP66 High mast auto on off switch High mast led auto on of switch, led high mast auto on off switch, high mast sensor, 20A day night sensor switch, 15A day night sensor switch, Smart street light sensor, street light with sensor, led street light with sensor, led street light with auto on off sensor, led street light with day night sensor, led street light with inbuilt sensor,

Country of Origin : India

IP Rating : IP67

Power Source : 220-240 V AC

power frequency : 50 Hz

Rate Load Current : 10 A

Brand Name : Lightronix

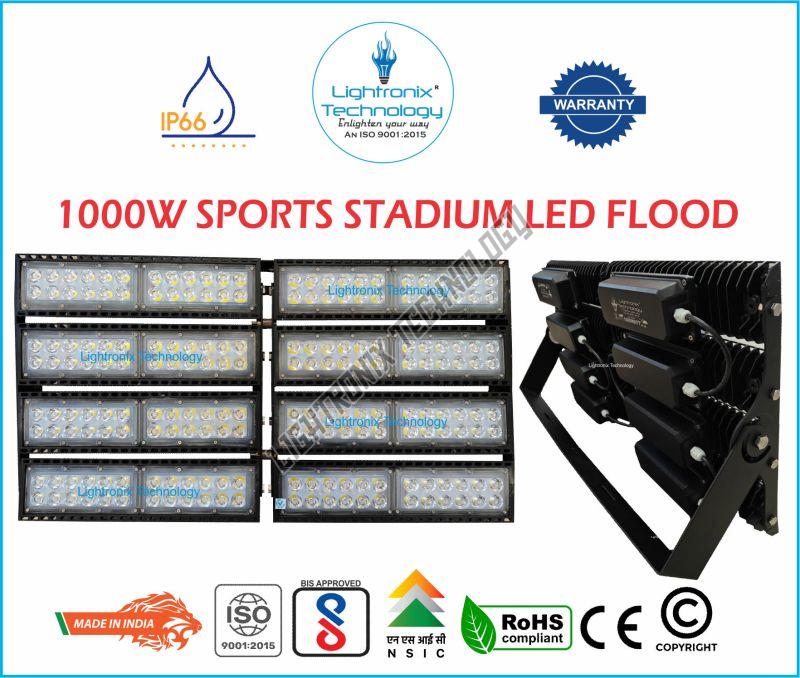

GENERAL INFORMATION Order Code LT-1000WFL-SPORTS (200W TO 2000W AVAILABLE) Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 192   OPTICAL PARAMETERS Led Beam Angle 15,30,45,60 degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White Color Temperature 6500K Led Voltage/Current 6.2V/750mA LED Make Bridge lux Optical Lens 15,30,45,60 degree Polycarbonate lens Luminous Efficiency 170 Lm/W Total Lumens 170000(±5%) Optical Efficiency >93% Thermal Efficiency >90% Vertical area Output >300ft Radius Area Output 600-1000ft     ELECTRICAL PARAMETERS Wide Input Voltage Range 108-305VAC Operating Frequency 50/60HZ Power Consumption 1000 Watt (200W TO 2000W AVAILABLE) Power Factor >0.97 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection (48 Hours) Under voltage Protection 108VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 148x45mm – 16 PCB     MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Rectangle Total Luminaries Weight 14.92 Kg Luminaries Size 800×410 ×100 mm3 Mounting Device Bracket Mounting Style Wall/Pole/Ceiling/Roof/Hanging Glass Type PC Lens cover Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Condition : New

Power : 1000 WATT

Power Source : Electrical

light shape : Rectangular

Application : Grounds, Parks

Certification : CE Certified, ISO 9001:2008

Feature : Durable, Heat Resistant, High Power, High Quality, Low Consumption, Stable Performance, Water Proof

Country of Origin : 240v

Number Of Flower : Stadium Lighting

Country of Origin : India

IP Rating : IP66

Light Source : LED

GENERAL INFORMATION Order Code LT-1000WFL-SPORTS (200W TO 2000W AVAILABLE) Make Lightronix Technology Country of Origin INDIA Lighting Source & Type SMD 5050 LED Number of LED 192   OPTICAL PARAMETERS Led Beam Angle 15,30,45,60 degree CRI (Color Rendering Index) >80 LED Life Span >60000 Hours Color White Color Temperature 6500K Led Voltage/Current 6.2V/750mA LED Make Bridge lux Optical Lens 15,30,45,60 degree Polycarbonate lens Luminous Efficiency 170 Lm/W Total Lumens 170000(±5%) Optical Efficiency >93% Thermal Efficiency >90% Vertical area Output >300ft Radius Area Output 600-1000ft     ELECTRICAL PARAMETERS Wide Input Voltage Range 108-305VAC Operating Frequency 50/60HZ Power Consumption 1000 Watt (200W TO 2000W AVAILABLE) Power Factor >0.97 THD 90% Supply Phase Single Phase Supply Over voltage Protection 440VAC Protection (48 Hours) Under voltage Protection 108VAC Auto cutoff Voltage Lower Side310VAC         PCB INFORMATION PCB Thickness 1.6mm(±5% Tolerance) PCB Material Pure Aluminum-Copper Copper Layer Thickness Standard 0.35 Micron Copper Conductivity >1 Watt PCB Size 148x45mm – 16 PCB     MECHANICAL PARAMETERS Housing Material Aluminum Pressure Die Casting Housing Color Type Metal Powder Coated Housing Shape Rectangle Total Luminaries Weight 14.92 Kg Luminaries Size 800×410 ×100 mm3 Mounting Device Bracket Mounting Style Wall/Pole/Ceiling/Roof/Hanging Glass Type PC Lens cover Cable Entry Option PG7 Cable Gland with Rubber Washer Screw Type Stainless Steel Screw Gasket Type Silicone Rubber Gasket IP Rating IP66 Impact Rating IK08/IK10 Marking Type Laser Marking/Engraving

Lighting Type : LED

Driven Type : Electric

Base Material : ALUMINIUM DIE CAST

Condition : New

Lighting Color : Pure White

Application : Sports Use, Stadium Use

Number Of Flower : Sports Lighting

Total Carbohydrate : 2 Yrs

Country of Origin : India

Height : 30-40 Feet

IP Rating : IP 66

Location : Indoor, Outdoor

Led Floodlight, ac led Floodlight, Floodlight, roadway light, roadway led Floodlight, outdoor led Floodlight, high power led Floodlight, pure white led Floodlight, warm white led Floodlight, white led Floodlight, cool white led Floodlight, natural white led Floodlight, power led Floodlight, lens model led Floodlight, lens led Floodlight, glass led Floodlight, frame led Floodlight,  aluminum led Floodlight, led Floodlight luminaire, Floodlight luminaire, Floodlight fixture, led Floodlight fixture,  smart Floodlight, smart led Floodlight, automatic on off led Floodlight, auto on off led Floodlight, ldr sensor based led Floodlight, led Floodlight with ldr sensor, day night on off Floodlight, Floodlight with auto on off switch, sensor based led Floodlight, photo sensor led Floodlight, auto dimming led Floodlight, led Floodlight with auto dimming, Floodlight fitting, Floodlight housing, energy saving Floodlight, energy saving led Floodlight, power saving Floodlight, Floodlight for pole, aluminum die cast led Floodlight, High mast lighting, Led high mast light, Led mast light, Led light for high mast, Flood light for high mast pole, sport led light, sports ground light, sports led flood light, led lights for sports ground, led flood light for sports ground, cricket stadium light, led light for cricket stadium, led light for football ground, led flood light for football ground, led flood light for tennis court, flood light for tennis court, IP66 led flood light, IP66 waterproof led flood light, waterproof led flood light, weatherproof led flood light, led flood light for ground, flood light for ground, led flood light for cricket stadium, flood light for cricket stadium, focus light, led focus light. High beam led flood light, narrow beam led flood light, led flood light for factory, led flood light for outdoor area, focus light for outdoor area, led focus light for ground, outdoor led lighting, high mast tower light, high mast tower led light, slim led flood light, down choke led flood light, GM model led flood light, led flood light with 2 years warranty,

Country of Origin : India

Color Temperature : 6500K

Led high baylight, ac led high baylight, high baylight, baylight, high power led high baylight, pure white led high baylight, warm white led high baylight, white led high baylight, cool white led high baylight, natural white led high baylight, power led high baylight, lens model led high baylight, lens led high baylight, UFO led high bay light, slim led high bay light, led high baylight luminaire, baylight luminaire, high baylight fixture, led high baylight fixture, high baylight fitting, high baylight housing, energy saving high baylight, energy saving led high baylight, power saving high baylight, high baylight for factory, aluminum die cast led high baylight, bay light for factory, high bay light for industry, led high baylight for tennis court, high baylight for tennis court, IP66 led high baylight, IP66 waterproof led high baylight, waterproof led high baylight, weatherproof led high baylight, led high bay light for shed, high baylight for cold storage, Dom high bay light, industrial led light, industrial light, factory light, well glass led light, well glass light, led well glass light, led lights for plant, Dom type high bay light, low bay light, led lights for warehouse, warehouse light, godown led light, godown light, led lights for godown, factory lighting solutions, industrial lighting solutions, cold storage led lights, led lights for cold storage, high bay light with reflector led high bay light with reflector, industrial well glass led light, industrial dom led high bay light, led highbay light, led warehouse light, high bay lamp, led high bay lamp, led highbay lamp, highbay lamp, Lightronix led high bay light, Lightronix highbay light, Lightronix bay light, Lightronix well glass light, Lightronix led well glass light, Lightronix bay light, Lightronix highbay lamp, Lightronix industrial light, Lightronix led light

Brand : Lightronix

Shape : Round

Wattage : 200-250 W

Housing Material : Aluminium Die Casting

Country of Origin : India

IP Rating : IP65/IP66

Model LT-DNS-IP (IP66 DAY NIGHT SENSOR) Certification IEC 60529:2013 IP66 TEST (NABL CERTIFIED) Dimension 60×38×25 mm3   (±2mm Tolerance)   Weight 90 gm (IP)  (±10gm Tolerance) Input Voltage 100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) Operating Frequency 50 Hz External Load capacity Up to 300 Watt Output Voltage/Current 240VAC / 10 A / 16A / 20A (±10% Tolerance) Off load power consumption 0.54 W Surge protection 4 KV Protection Ambient Light 6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX Availability With IP66 Potted Potting Material Hybrid polymer (Thermal conductivity – 0.7) Warranty 1 Year ( Warranty will not cover if sensor is in burn condition) Additional Features -With best quality and Original components for automatic circuit.-Single shot ON-OFF operation.-No flickering at load side.-Heavy duty and long life circuit. Fit and Forget module. Application -Street light, Security lights, Garden lights,-Industrial lights, Outdoor lights Function Automatic switch ON light in NIGHT.Automatic switch OFF light in MORNING. Terminology AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length)

Application : For Automatic On-off Street Light, Security Lights, Garden Lights, -Industrial Lights, Outdoor Light

Condition : New

Brand Name : LIGHTRONIX TECHNOLOGY

Country of Origin : India

IP Rating : IP66
