Masibus Automation and Instrumentation Pvt. Ltd. Gandhinagar, Gujarat

Wireless Humidity & Temperature Transmitter Model HT16W is state of the art wireless Humidity Temperature Transmitter to measure, display and transmit Relative Humidity and Temperature with high accuracy. The data is streamed wirelessly over Zigbee network at set intervals. Even if the user wishes to push the data in between of set intervals, it can be done by pressing the front key. The unit has low power consumption, operates on 2 x AA Lithium cells and is housed in an elegant wall mount enclosure.

Wireless Clock System MC-2 Master Clock and DDU-2426, DDU-4446 Slave Clock is a perfect solution for a wide range of applications where accurate, synchronized time is required over wireless. It displays parameters like Time and Date. Wireless Clock System eliminates wiring and reduces installation cost and also allows a retrofitting of an existing installation in a convenient way. Each clock can work as Slave cum repeater that helps to extend the network range. The Wireless system allows multiple Slave clocks to work on samemultiple frequency range and can retransmit without interfering with other wireless products.

The Silver Series is a family of compact industrial infrared thermometers. The Silver Series contains the latest advances in digital processing to provide the most accurate, repeatable, and reliable measurements for this type of sensor. Line of sight alignment with optional external laser aiming, 4-20mA and voltage outputs which are linear with, Internal sensor and process ambient temperature output.

The PRO 4050 Series offers a complete family of single-wavelength infrared thermometers featuring state-of-the-art technology to provide accurate and reliable measurements for a wide range of industrial applications. PRO 4050 Series sensors feature a variety of input, output, and alarm options to enable advanced process monitoring and control capabilities. Each sensor can be configured to operate as a stand-alone sensor or with a remote Interface Module using the sensor’s six conductor interconnecting cable.

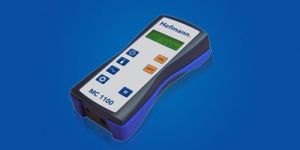

Vibrometer Portable and ready-to-operate. Measuring Vibrations, Speed, Temperature and Belt Tension. Identification of critical operational areas, Evaluation of the condition of rolling bearings.

Temperature : 0 to 200 °C

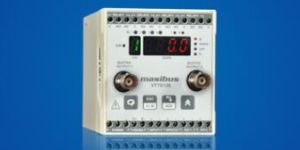

Vibration Transmitter VT7S12E is the most advanced & Compact Vibration Transmitter. It accepts input directly from ICP type Accelerometer, processes the signal and gives analog output in the form of standard current or voltage; the vibration measurement range is field configurable for acceleration, velocity or displacement. Optionally VT7S12E also accepts one RPM input. The output signal is usually interfaced with PLC or DCS for monitoring and protection. Vibration Transmitter VT7S12E Transmitter has two Relay outputs per channel for Alarm, Trip. Also has additional outputs like Buffered output on BNC connector for analysis purpose, and optional RS485 serial port for direct interface with PLC, DCS or SCADA VT7S12E is aimed for balance of plant equipments like Pumps, Motors, Fans, Blowers, etc to provide monitoring and protection, the unit Employs True-RMS and calculated RMS-Peak measurement techniques, considered best for general machine condition monitoring.

Frequency range rolling bearing condition 5 - 50 kHz Display Range 0 - 2,000mms, μm, mils Excellent cost performance ratio Applications Measuring overall vibration Measuring unbalance vibrations Balancing in production ...

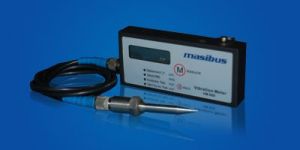

VM908 vibration meter is a basic portable vibration measurement product that reads vibration in various modes. It provides essential periodic monitoring of fan, pump, motor and other industrial machines. It measures the vibration to which it is exposed. a proven track record of manufacturing portable instruments and online process monitoring instruments for over 3 decades. Vibration meter makes cost-effective off line vibration monitoring instrument with various important parameter i.e. displacement, velocity, acceleration.

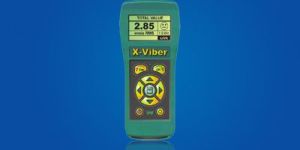

Vibration Analyzer X-Viber and Route instrument with transfer to X-Trend PC-software trough USB. Selectable Measuring unit, Frequency range, Single plane balancing with the 3-point method, Single plane balancing with the vector method.

Feature : X-Viber is a low-cost route data collector.

Analysis and Route instrument with transfer to X-Trend PC-software trough USB Selectable Measuring unit, Frequency range,Options of Data Logging,Single plane balancing with the 3-point method,Single plane balancing with the vector method,Higher availability, low power consumption, avoids catastrophic failure.

Feature : X-Viber is a low-cost route data collector,Route measurements via X-Trend PC software,FFT analysis

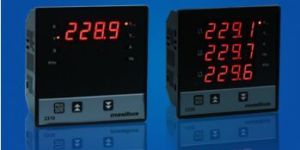

Masibus Digital VAF Meter 2310 & 2330 are an easy-to-use, cost effective electrical VAF Indicators that offer all the basic measurement capabilities required for monitoring an electrical installation. It offers Class 1.0 accuracy. This Indicator measures accurately all three parameters Voltage, Current and Frequency. Digital VAF Meter is available in flush panel mount enclosure having front panel keys for easy setup. The CTPT ratio and PT secondary is site selectable, making it possible to use the meter in various types of three phase & single phase installations.

Digital VAF Meter 2310 & 2330 are an easy-to-use, cost effective electrical VAF Indicators that offer all the basic measurement capabilities required for monitoring an electrical installation. It offers Class 1.0 accuracy. This Indicator measures accurately all three parameters Voltage, Current and Frequency. Digital VAF Meter is available in flush panel mount enclosure having front panel keys for easy setup. The CTPT ratio and PT secondary is site selectable, making it possible to use the meter in various types of three phase & single phase installations.

Feature : Field programmable CT/PT Ratio.

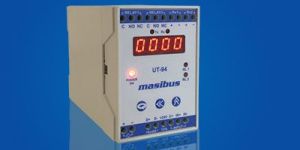

AUX Powered Temperature Transmitter UT-94 is a 4 wire versatile universal transmitter that isolates & converts wide range of conventional unconventional process inputs into standard process signals acceptable to commercially off the shelf (COTS) automation products. Signal inverting option is also available. The input circuit can accommodate a variety of input signal levels including bi-directional, reverse, true and live-zero. A built in 4 digit display facilitates the user to monitor process value and helps in fast configuration and calibration. Model UT-94 enables analog signals to transmit without galvanic connections between the fields to the receiving instrument.

Power : 4-20mA DC

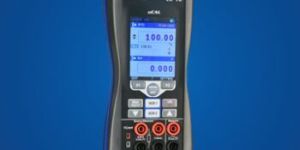

Universal Calibrator uCAL model UC12 is the compact, rugged and easy to use hand held device with graphical user interface for precise measuring and sourcing of electrical and physical parameters Universal Calibrator UC12 is designed to provide the best accuracy in all modes of operation. Universal Calibrator UC12 has Source and Measurement capability with independent parameter and range selection for Source and Measure. UC12 has mA V mV mA (24V) Switch-test RTD TC Frequency Pulse measurement capability and also has mA V mV mA (2W) Resistance RTD TC Frequency Pulse source capability. There is an isolation between measure and source measure sections. Universal Calibrator UC12 or has easy to operate short cut keys SCR1 and SCR2 for input selection for measure and source measure respectively.

Specialities : Compact, handheld, User friendly menu, Measure: mA/ V/ mV/ mA (24V)/ Switch-test / RTD/ TC/ Frequency/ Pulse,Data Logging to measure long time drift,Pulsed RTD transmitter compatible

The hermetic sealed triaxial industrial piezoelectric accelerometer model 131 is design to monitor the vibration in harsh industrial environment. Triaxial Accelerometer uses the industry standard ®ICP 2-wire voltage transmission technique with a 2 mA minimum constant current supply. Signal ground is isolated from the mounting surface and outer case to prevent ground loops. Faraday shielding will limit sensitivity to ESD to a minimum. Annular shear mode design will prevent from thermal transient and from spurious signal from high transverse vibrations. Low noise electronic and a temperature compensated design will give you accurate result over the complete temperature range. Large choice of frequency range will help to fit almost every customer requirements. Low frequency accelerometers (A=9X, 0X) incorporate a low-pass filter within the conditioning electronics. This filter attenuate the sensor mechanical resonance and the associated distortion and overload.

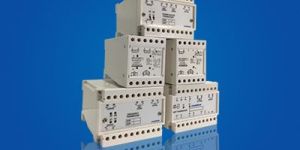

High quality Electrical Transducer of various types to help you manage and conserve electricity. All electrical parameters such as Current, Voltage, Active Power, Reactive Power, Frequency and Power factor can be accurately measured. A corresponding linearized signal is then transmitted for various applications such as SCADA, SS automation, remote indication etc. Output proportional to measured electrical parameter can be connected further to Controllers, Data-Loggers, PLC’s, Analog Digital Indicators, Recorders for display, analysis or control. Electrical Transducer series offers an economical and accurate means of current & voltage measurement on systems where the waveform is a pure sine wave. Transducers are calibrated to true RMS value of the sine wave. They can also be used with distorted waveforms where high accuracy is not required.

Feature : Minimum ripple at the output.

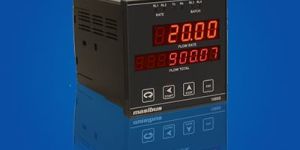

Totaliser 1008S is a panel-mount rate totalizer with separate rate and total display in 14 DIN size. It accepts linear currentvoltage and pulse input for flow monitoring. This Indicator shows process variable on 5-digit and integrated total value on 8-digit display. Measured parameters are displayed with high accuracy and floating decimal point position.

Power Supply : 90-270VAC, 24VDC

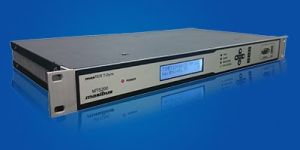

Time Synchronization Server masTER Time-Sync MTS200 is capable for the time synchronization requirements in various industries like Power, IT, Process, Telecommunication. Time Synchronization Server MTS200 generates wide range of time code and pulse signals via different output ports like Serial, PPS, IRIG-B, Ethernet and PFC relay. Time Synchronization Server MTS200 time sync unit has a 2 x 20 LCD display for viewing of time parameters, status of GPS receiver parameters and output ports, discrete LEDs provide at-aglance status and health information. The GPS receiver has built-in RTC backed up with on board battery to maintain time during power loss and instant recovery on power resumption.

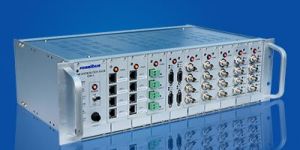

TDR-4 Time Distribution Rack amplifies input signal which is connected on rear side and distributes via different timing outputs. Time Distribution Rack (TDR-4) accepts signals like 1PPS, IRIG-B TTL, IRIG-B Modulated, NMEA (RS232) and Event from GPS and gives four isolated outputs of each signal same as input. Time Signal Splitter TDR-4 is housed in a compact 19’’, 3U rack mounted package. It has nine output card slots and one power supply card slot. Each output card has 4 outputs thus maximum 36 outputs of different or same type possible in single TDR-4 Time Signal Splitter TDR-4 has High Intensity LEDs on each card to shows the power status of the card and four numbers of isolated outputs signal status. All the inputs are connected on the rear side & all the output signals are on the front of the equipment.

Feature : Six Different types of output cards in single rack.

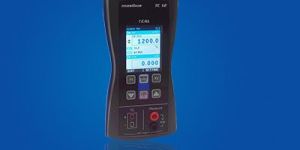

Thermocouple Temperature Calibrator tCAL model TC12 is the Ultimate Thermocouple Calibrator for Precise source and measurement tool for calibrating Thermocouple instruments. Also use for measuring Loop current, mV and V. It is compact, rugged and easy to use hand held device with graphical user interface. Thermocouple Temperature Calibrator Masibus TC 12 Thermocouple Calibrator is designed to provide best accuracy in all modes of operation. TC 12 has simultaneous Source or Measure (ThermocouplemV) and (VmAmA (loop powered supply)) capability.VmAmA (loop powered supply) Measure and ThermocouplemV (Source or measure) are isolated from each other.

Specialities : Data Logging to measure long time drift.

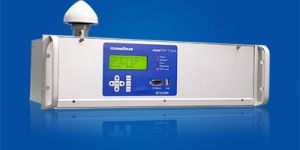

Redundant GPS Time Server masTER Time-Sync MTS300R is GPS based time server available in redundant and non-redundant options, capable for the time synchronization requirements in various industries like Power, IT, Process, Telecommunication sector. Redundant GPS Time Server MTS300R is housed in a compact 19’’, 3U rack mounted package that can accommodate power supply card slots, GPS receiverclock Card slots, single CPU card (with internal intelligent switch Card) and other multiple optional output cards.

Feature : 12 Satellite parallel tracking.

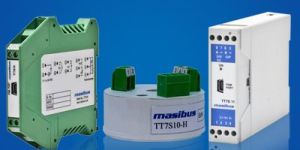

Loop Powered Temperature Transmitter TT7S series are designed for Isolated and accurate temperature measurements and signal conditioning Applications. Loop Powered Temperature Transmitter Model TT7S10 is 2-wire Loop powered; Model TT7S11 is 4-wire Auxiliary powered and Model TT7S10-H is Head mount version of TT7S10. All models are programmable for Thermocouples, Pt-100 RTD, mV and ResistancePotentiometer. Output signal is standard 4-20mA in 2-wire and mA or Volts in 4-wire. Programming of the Transmitters is easy by means of user friendlymTRANwindows based configuration software.

Brand Name : Masibus

Country of Origin : 85-265VAC

SBM-16 The String Box Monitor is designed to monitor DC current of Solar PV strings using non-contact Hall Effect Sensors or DC shunt Resistors. Solar panels generate DC current, which flows through strings into a combiner box. String monitoring box SBM-16 measures the current flowing through individual strings in the combiner box to check that the solar array is operating at its peak capacity, before they are combined into one DC output. Using this technology one can detect instantaneously any issues affecting the photovoltaic array and therefore the energy yield by the PV modules.

Feature : DC monitoring of PV strings.

For the complete solution of your industrial vibrating process, avail our highly affordable services. Our vibration analysis services are provided with our technical expertise and industrial experience. Our team of professionals is experts in the process of structural vibration analysis. They study various components of vibration analysis and thereby offer the best solution keeping the objective of our clients in the mind. In addition to this, we are reckoned to be one of the most reliable sources of vibration analysis engineering services in the industry.

The company is known for providing peerless thermography services to its clients. Infrared thermography is an important process automation of various industries. We are well supported with professional experts for high quality industrial vibration analysis. Our skillful domain experts are capable enough to render the most satisfactory services keeping the end vision of our esteemed clients in the mind. In addition to the above, when it comes to the most reliable service providers of thermography services in India, you can always bank on us.

(SCADA) - HMI SCADA Configuration - 3 DAYS Course Objective SCADA has traditionally meant to be a window into the process of a plant or togather of data from devices in the field, but now the focus is on integrating this process data into the actual business and using it in real time. The emphasis of the workshop is on practical industry topics highlighting recent developments using case studies. The latest application of SCADA technologies and the fundamentals of SCADA systems will be covered. The workshop is aimed at those who want to be updated on the latest developments in SCADA systems and want to get a good Understanding of the fundamentals of SCADA design, installation and troubleshooting. Who should attend? Those who want to become familiar with SCADA project development techniques SCADA users including engineering staff, maintenance staff and plant supervisors Technical users who maintain and improve their installed SCADA and control systems Managers who want more than a basic understanding of SCADA SCADA System Integrators and Designers HMISCADA Configuration Course Outline DAY 1 of 3 Day one involves introduction to the various components of SCADA, project design, communications and graphics Project Editor Graphics Builder Program Editor Managing Projects Include Projects The Design Specification Setting up Communications Graphics True Color DAY 2 of 3 Day two implements various areas of the project design including controls, alarms and the graphic interface design Commands & Controls Adv. graphictools Devices Events Alarm DAY 3 of 3 Day three continues with the project design elements of SCADA and introduces methods of reporting and monitoring the system Trends Process Analyses tool Navigation Accumulators Reports Security

(PLC) - Workshop on Demystifying PLC - 2 DAYS Course Objective The aim of this intensive two-day course is to go beyond the basic concepts and introduce you to the practical techniques and applications (ICE) of 61131-3. If you ever need to program PLCs or just understand more about their capabilities, then this course is for you. If you are a trainee engineer, graduate engineer, control systems engineer, technician, or senior operator you will gain essential knowledge that will significantly enhance your existing knowledge of PLCs. PLCs have become the backbone of industrial automation. The International Electro-technical Commission (IEC) has developed a standard set of programming languages for industrial PLCs. The success of these languages can be measured by the large number of major PLC manufacturers who are developing products that are 61131-3 compliant. IEC 61131-3 is becoming the standard of choice in many industries, and will boost productivity and enhance software quality. If you master the subject today your programming knowledge will be applicable across brands well into the future. This knowledge is vital for professional growth. Course Program Introduction to PLC applications, hardware, memory structure of PLC. PLC Wiring Introduction to PLC programming software Ladder diagrams Upload Download Monitoring Advance instructions Fault finding Documentation Communication with SCADA software Hands on experiment for real time applications Who should attend? Those who want to become familiar with SCADA project development techniques SCADA users including engineering staff, maintenance staff and plant supervisors Technical users who maintain and improve their installed SCADA and control systems Managers who want more than a basic understanding of SCADA SCADA System Integrators and Designers

We are providing Practical Data Communication & Industrial Networking - 2 DAYS Course Objective This workshop is designed for personnel who need to understand the techniques required to use and apply industrial communications technology as productively and economically as possible. In modern manufacturing and process industries, the challenge for engineers and technicians is to make more effective use of modern control systems and “Smart” instruments by linking them together with Data Communication systems that are correctly designed and implemented to fully utilize the available technology. This Practical Data Communication and Networking workshop is designed to benefit instrumentation engineers and technicians who have little previous experience in Data Communications and are involved in specifying, commissioning and debugging Data Communications and Networking systems for instrumentation and control in the industrial environment. This workshop has been structured to cover the main concepts of Data Communications, to clarify their meaning and to describe their applications in a modern process and control system. Course Program The fundamentals of data communications How to troubleshoot RS-232 & RS-485 links How to install communications cables The essentials of industrial Ethernet & Local Area Networks How to troubleshoot protocols such as Modbus The fundamentals of FieldBus & DeviceNet standards Who should attend? Anyone with a need to understand the techniques required to use and apply industrial communications technology as productively and economically as possible, like Instrumentation & Control Engineers Process Control Engineers Electrical Engineers Control System Engineers Consulting Engineers Maintenance Supervisors Control Systems Applications Engineers

(CAL) - Workshop on Calibration 2 DAYS Course Objective This workshop is designed to basics you to the Calibration introduce, its requirement and benefits, some calibration terms, measurement uncertainty and Temperature & Pressure Calibration. The aim of this workshop is to provide you with the skills and fundamentals required for any calibration process. The course covers specification of laboratory reference equipments, testing & calibration techniques including documentation, traceability, and uncertainty evaluation as required by ISOIEC guidelines. Course Program Understand Calibration, Its basic requirements and benefits Be able to select the Reference Calibration Standard Understand Calibration Terms and its importance Be able to estimate the Measurement Uncertainty Be able to establish the system to comply the ISO 9001:2008–Calibration Requirements Be able to decide the Calibration Interval and balance between cost of calibration and loss because of Calibration problem. Understand Temperature Calibration and it's techniques Understand Pressure Calibration and its techniques. Who should attend? Calibration Engineer Technician Instrumentation Engineer Technician Maintenance Engineer Technician QA QC Engineer Technician Process control Engineer Technician

(ICS) - Tuning of Industrial Control System - 2 DAYS Course Objective This workshop is designed to introduce you to the techniques of tuning industrial control systems, the aim of this workshop is to provide you with the skills and fundamentals required to tune controllers for optimum performance, real process dynamics are simulated and controlled to reinforce the concepts discussed. Course Program Know how to characterize the dynamic response of an industrial process Be able to measure the dynamic parameters of a process Be able to select performance criteria and tune feedback controllers Be able to pick the right controller modes and tuning parameters that match the objectives of the control system Understand the effect of sampling frequency on the performance of computer-based controllers Know when to apply and how to tune cascade, feed-forward, ratio, and multivariable control systems Be able to apply adaptive and auto-tuning control strategies to compensate for process nonlinearities Who should attend? Instrumentation and control engineers Process control engineers Operators controlling processes Automation engineers Systems integrators

(WIA) - Wireless for Industrial Automation - 2 DAYS

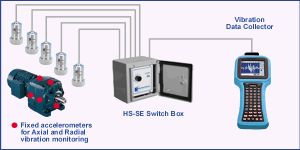

We are providing approach to vibration monitoring & protection. course objective the aim of vibration monitoring is to detect of changes in the vibration condition of the object under investigation during its operation. The vibration measurements can be conducted without any change in the operation mode of the object. Practical training workshop on vibration monitoring is aimed to simplify the vibration measurement technology for practical use. course program value of condition monitoring fundamentals of vibration instrument & sensor vibration measurement vibration analysis workshop practice who should attend? professionals working in industry who desire to know the fundamentals of vibration measurement in rotating machines and the best practices in the use of vibration as condition monitoring techniques for design maintenance trouble-shooting in control & instrumentation systems would find this course a tremendous value addition to their skills. instrument engineers maintenance engineers sr. Engineer & asst. Engineer trainees & technicians

(TPM) - Industrial Temperature Pressure Measurement Workshop - 2 DAYS Course Objective Practical training workshop on Industrial temperature and pressure measurement technology in industry. Who should attend? Professionals working in any industry having desire to know about best practices in the use of temperature and pressure measurement techniques to design maintain trouble-shoot in Control & Instrumentation systems would find this course a tremendous value addition to their skills. Basic knowledge of instrumentation engineering is required. Course Program DAY 1 - Introduction What is Instrumentation and Controls (I&C)? Selection Of Measurement And Control Devices ElectricalElectronic Considerations, Communication Safety, Equipment Location, Performance Air Supply, Electrical Supply, Grounding Installation And Maintenance Process Data Sheets Engineering contractor scope of work Package equipment scope of work Pressure Measurement Overview, Comparison Table for application and selection Units of Measurement Gauges, Transmitters (DCSs) Accessories: Seals, Snubbers, Calibrators and Manifolds Installation Instrument Specification Sheets DAY 2 - Temperature Measurement Overview, Comparison Table for application and selection Thermo wells Thermocouple Resistance Temperature Detector (RTD) Infrared Pyrometers Instrument Specification Sheets Alarm And Trip Systems Overview Fail-Safe and De-energize-to-Trip Elements (Inputs, Logic, Output) Design, Documentation Testing (Input, Logic, Output) Management of Change Enclosures Overview, General Requirements Documentation, Fabrication, Protection and Rating Electrical, Pneumatics Temperature and Humidity Control Inspection and Testing, Certification, Shipping Besides the Course….. You will participate in practical sessions. Learn about diagnostic features and how to use them. Learn practical tips & tricks on trouble shooting.

(ITH) - Workshop on Industrial Thermography - 2 DAYS Course Objective Predictive maintenance helps ensure the equipment efficiency by detection of early faults. Thermography is the most effective condition monitoring technique used to isolate conditions that indicate impending failure. Our training workshop on Industrial Thermography is aimed at developing imaging and analytical skills in troubleshooting day to day faults. Course Program Industrial Maintenance Fact Fundamentals of Thermodynamics related to maintenance Concept of Electromagnetic spectrum range Impact of Heat transfer theory in maintenance Temperature measurement technique with demo exercises Application of Thermography in Industries & case study Infra-red software handling & work shop practice Thermography reporting & presentation Who should attend? Facility management personnel of Datacenter IT firm Electrical Mechanical Maintenance personnel in any industry Condition Monitoring Personnel Building Surveyors Service providers

(BCS) - Workshop on Boiler Control Engineering - 2 DAYS Course Objective This workshop is designed to enable the Instrumentation Engineer, Boiler Operation Engineer and Boiler Manufacturer to understand, configure and simulate the critical parameters of the boiler, build the control strategy and Fine tune the parameters to optimize Boiler Efficiency. Course Program Be able to appreciate the Air & Flue Gas Cycle, Water & Steam Cycle for Boiler Be able to Configure Algorithms for Critical Measurements like Drum Level Measurement, Steam Flow Measurement, Feed Flow Measurement and Air Flow Measurement Be able to build auto control strategy for Single Element, Two Element & Three Element Drum Level control and simulate the performance on simulator Be able to appreciate the control strategy for combustion control, Furnace draft control and Steam temperature control Understand the Safety and Fail Safe features incorporated in boilers Able to select suitable flame scanners for Boiler Flame monitoring Able to select the suitable Gas and Liquid Analyzers for performance monitoring of the boiler Able to appreciate the Boiler Efficiency Calculation and simulate the effect of Key parameters on simulator Explore the coordinated control strategy for Boiler, Turbine and Generator Load. Who should attend? Instrumentation Engineers and technicians Boiler Operation Engineers Boiler Manufacturers Boiler Plant Commissioning Engineers
