Input Voltage100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC)
Weight90 gm (IP) (±10gm Tolerance)
Model

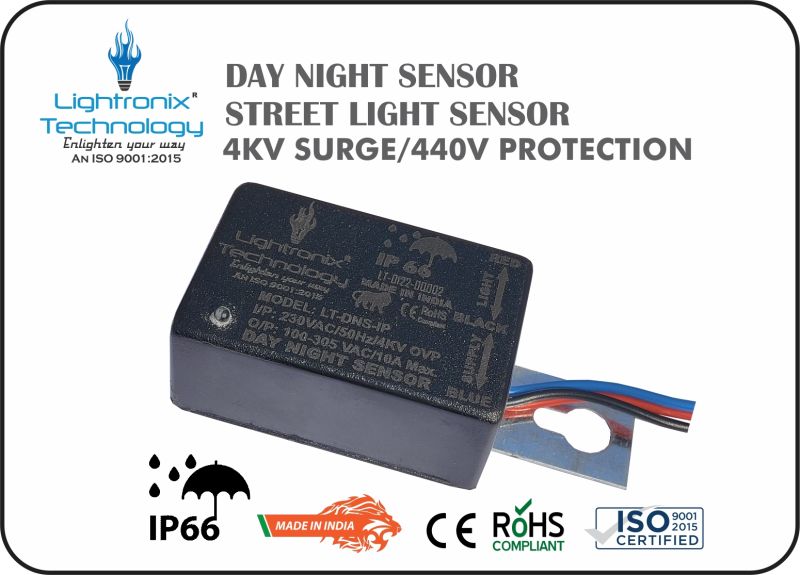

LT-DNS-IP (IP66 DAY NIGHT SENSOR)
Certification
IEC 60529:2013 IP66 TEST (NABL CERTIFIED)
Dimension
60×38×25 mm3 (±2mm Tolerance)
Weight
90 gm (IP) (±10gm Tolerance)
Input Voltage
100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC)
Operating Frequency
50 Hz
External Load capacity
Up to 300 Watt
Output Voltage/Current
240VAC / 10 A / 16A / 20A (±10% Tolerance)
Off load power consumption
0.54 W
Surge protection
4 KV Protection
Ambient Light
6 lux to 40 lux (± 5% tolerance)
lux level for switching on from 6 to 14 LUX
lux level for switching off from 20 to 35 LUX
Availability
With IP66 Potted
Potting Material
Hybrid polymer (Thermal conductivity – 0.7)
Warranty
1 Year ( Warranty will not cover if sensor is in burn condition)
Additional Features
-With best quality and Original components for automatic circuit.-Single shot ON-OFF operation.-No flickering at load side.-Heavy duty and long life circuit. Fit and Forget module.
Application
-Street light, Security lights, Garden lights,-Industrial lights, Outdoor lights
Function
Automatic switch ON light in NIGHT.Automatic switch OFF light in MORNING.
Terminology
AC Input – BLUE & BLACK Wires
Output – RED & BLACK Wires (Connect with Light or Load)
(0.5 square mm copper cable – 200mm length)
