Smruti Cables Pvt. Ltd. Gandhinagar, Gujarat

Cable features Manufactured from bright-annealed 99.97% pure bare copper conductors these cables have low conductor resistance. These wires are insulated with a special grade PVC compound formulated and manufactured in-house which is impervious to water, oil, grease, acids, etc. and are tough to protect from any mechanical abuses. Technical Data

Size : 0.50 Sqmm to 1000 Sqmm confirming to IS 694

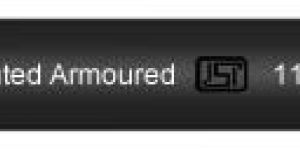

Cable features Manufactured from bright annealed 99.97% pure bare copper & Aluminium condactors This cables are insulated with PVC compound. Taped/Extruded inner sheath. Round steel wire / Flat galvanised steel strip Armoured. The inner & outer sheaths can be PVC, HR PVC, FRLS, HR-FRLS or FR depending upon the application and requirement of customers.     Application The Power Cables are used under ground as well as over head transmission of power in power plants, industries, projects and all other electrical installations.

Brand Name : Powercab

Wire Size : 0.5 Sqmm - 400 Sqmm

Current Rating : 4 A - 400 A

Country of Origin : 1100 V

Cable Structure generally conforms to, Based on CENELEC HD 22-6 , DIN VDE 0282 ,IEC 245-6 Conductor: Extra-fine class 5 conductor for H01N2-D & class 6 for H01N2-E conforms to IEC 60228, DIN VDE 0295 Separation: Polyester tape Outer Sheath: HOFR Sheath (Polychloroprene), black and oil resistant Cable Marking: We are providing sequential marking on cable.*Any other Color on specific request can also be supplied     Cable features Ultra high performance flexible welding lead, double insulated for longer life and added safety Excellent flexibility to last longer in flex applications RoHS Compliant Based on CENELEC HD 22-6 31, VDE 0282, IEC 245-6, IS 473, BS 638-4 Outstanding toughness & durability High resistance to cuts, tears & abrasion Resistance to oil, solvents and chemicals Excellent ozone and weather resistant

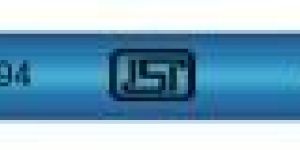

Cable Structure generally conforms to IS 694, BS 6004, IEC 60227, DIN VDE 0281-3, IS 8130 & IS 5831 Conductor: EC grade flexible copper, generally conforms IEC 60228, IS 8130 Insulation: Specially formulated FR+HR PVC compound with a high insulation resistance value PVC type - A Colour: Red, Green/Yellow, Blue, Black, Brown, Grey, Orange, White, Green, Yellow Cable Marking: We are Provide 1 to 90 M. Sequential Marking on Cable*Any other Color on specific request can also be supplied Cable features Manufactured from bright annealed 99.97% pure bare copper conductors these cables have low conductor resistance resulting in power saving. These wires are insulated with a special grade PVC compound formulated and manufactured in-house. The insulation is far superior in terms of critical oxygen and temperature index as also in light transmission and acid gas generation. The skin coloration offers high insulation resistance and long life.   This is a premium product of electrical wires from 'POWER CAB'. These cables are ideals for wiring in residential and commercial complexes, high-rise buildings, hotels, hospitals, schools, colleges etc. Where density of people is high. During a fire these cables not only emit less smoke and toxic hydrochloric acid gas but also retard the spread of fire enabling those trapped inside to escape safely. Technical Data

Size : 0.75, 1.00, 1.50, 2.50, 4.00 and 6.00 Sq. mm.

Cable features Manufactured from bright-annealed 99.97% pure bare copper conductors these cables have low conductor resistance. The inner cores are insulated with a special grade PVC compound formulated and manufactured in-house. The tough robust outer PVC jacket protects it from the oils, greases, various chemicals and abrasions, thereby giving long life and electrical safety.   Application The PVC insulated and sheathed 3 core flat cables are used for giving electricals connection to the submersible pump motors. These are manufactured keeping in mind the severe, tough and difficult conditions in which they have to operate. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. These cables conform to and are marked IS 694:1990 upto 4.00 sq. mm. The sizes above 4.00 sq. mm. cables generally conform to IS 694:1990. Technical Data

We are offering submersible flat 3-4 core cables.
