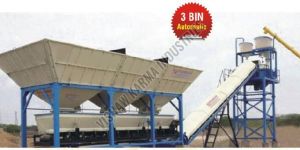

VKC 45-3 BIN Automatic Mobile Concrete Batching Plant
Get Price Quote
MOQ1 Piece(s)
Output Capacity45 CUM /Hr.
Output Rate43-45 cum hr
Batch Capacity1000 LIT
Main Mixer Drive40 HP
Conveyor Moto( (Gattering)7.5 HP
Conveyor Motor (Slinger)10 HP
Cement Screw Cott Motor12.5 HP
Water Pump3 HP
Air Comporesser Motor3 HP
Admix Pump1 HP
Vibration Moter3 No. x 1/2 HP
Tatal Conntected Power78 HP
Sugoest DG Set120 KVA
Features :
FuLLy automatic Turbo Pan Mixer Type.
Available in 20 cum / 30 cum / 45 cum hr. Capacity.
Robust structure with Bins.
Large mixer platform for ease of maintenance.
Added safety with limit switch in mixer.
Modular design providing flexibility to adopt to different layout requirements.
Easy maintenance & low running cost.
Consistency & uniform mixing in all hatches.
Planetary mixer enables efficient mixing of concrete with less wastage & improved quality parameters.
Includes printout & USB system.
Main reduction gear : Imported planetary gear box.
Whole plant assembly on single chassis.
Digital load cell based material weighing system.
Material feeding system through conveyor belts.
Cement feeding system through inclned screw conveyor.
Digital load cell based water feeding system.
Auto add mixture dozing system.
PLC based control panel with integral computerized batch controller which accommodates different mix receipes.
