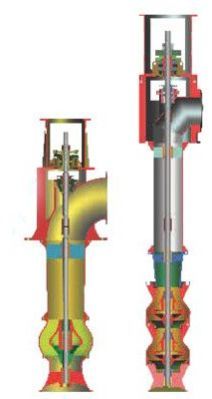

Horizontal and Vertical Axial Flow Pumps Saf & Svaf
Get Price Quote
Capacity (Maximum)40,000 m3/hr
Head (Maximum)300 mtrs.
Temperature95°C
Working Pressure35 kg/cm2
This range of pumps offer widest range of selection depending upon the pumping liquid from clear water to varying degrees of contamination. These pumps are designed to operate at 50Hz or 60 Hz, in single or more than one stage according to head required. Features- Vertical pumps take little space in plan since the liquid is led away to the axis of shaft. The impeller is submerged, so pump does not require to be primed and is always ready for use. The positive suction condition also prevents the cavitation in the pump and pitting in impeller & diffuser. Due to positive head at suction the pump gives its rated performance as well as high overall efficiency, whereas in Horizontal pumps due to losses in suction line, foot valve etc. the rated performance of the pumps is not achieved.
