AccuracyLinearity: +/- 0.5% for 0.2 Q max to Q max : +/- 1.0% for Q min to 0.2 Q max Repeatability: Better than +/- 0.1%
Max. Pressure100 kg.cm²
Temperature Range- 10°C to 50°C
Material BodyASTM A216 Gr. WCB
RotorPolyacetal or Aluminium
Field ElectronicsA range of low frequency and high frequency pulser are available.

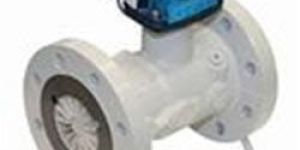

We offer rockwin�s fuel gas turbine flowmeter are designed for precise metering of all non aggressive gases and fuel gases such as natural gas, propane, butane, ethane, coke oven gas, town gas, acetylene, nitrogen, carbon- dioxide, air and all inert gases. These are available for flows upto 4000 actual m3hr. The meters are approved by legal methodology for custody transfer application.
Fuel gas flowmeter has a wide rangeability of 20:1. The meter incorporates direct reading local mechanical totalizer. Option of pulse transmission for remote indication is available. Flow computers and volume correctors are available as optionals.
