Mechanical Seals Dealers in Ghaziabad

(4 products available)

All IndiaGhaziabadMumbai Delhi Ahmedabad Tirupur Banaskantha Coimbatore Thane Chennai Pune

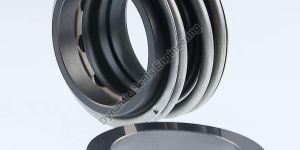

DMG1 Mechanical Seal

Get Price Quote

MOQ500 Piece
MaterialRubber
ShapeRound
Automation GradeManual
UsageIndustrial
Packaging TypePacket
Number Of FlowerIndustrial Seals
FeatureGood Quality, Fine Finish, Easy To Install

Advantages 100 % compatible with MG1 Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings Optimal alignment characteristic through self-cleaning of disk/shaft Improved centering across entire pressure operating range No torsion on bellows Shaft protection over entire seal length Protection of seal face during installation due to special bellows design Insensitive to shaft deflections due to large axial movement ability Suitable for low-end sterile applications Dimension adaptions and additional seats available Operating range Shaft diameter: d1 = 15 … 110 mm (0.59″ … 4.33″) Pressure: p1 = 18 bar (261 PSI), vacuum … 0.5 bar (7.25 PSI), up to 1 bar (14.5 PSI) with seat locking Temperature: t = -20 °C … +140 °C (-4 °F … +284 °F) Sliding velocity: vg = 10 m/s (33 ft/s) Admissible axial movement: ±2.0 mm (±0.08″) Materials Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSiC-Q7, Q1) Seat: Silicon carbide (eSic-Q7, Q1), Tungsten carbide (U3) Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4) Metal parts: CrNiMo steel (G), Hastelloy® (M) Further materials upon request. Standards and approvals Various material approvals available (depending on type and material combinations). Please inquire! FDA WRAS UBA (KTW) ACS W270 Recommended applications Fresh water supply Building services engineering Waste water technology Food technology Sugar production Pulp and paper industry Oil industry Petrochemical industry Chemical industry Water, waste water, slurries (solids up to 5 % by weight) Pulp (up to 4 % otro) Latex Dairies, beverages Sulfide slurries Chemicals Oils Chemical standard pumps Helical screw pumps Stock pumps Circulating pumps Submersible pumps Water and waste water pumps Notes The eMG1 can also be used as a multiple seal in tandem or in a back-to-back arrangement, please inquire. Dimension adaptations for specific conditions, e.g. shaft in inches or special seat dimensions are available upon request.

...more
www

Dynamic Seals Engineering

Ghaziabad

GST 5 yrs 5.0 (4)

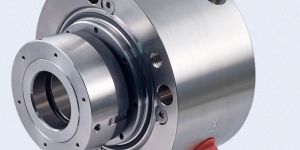

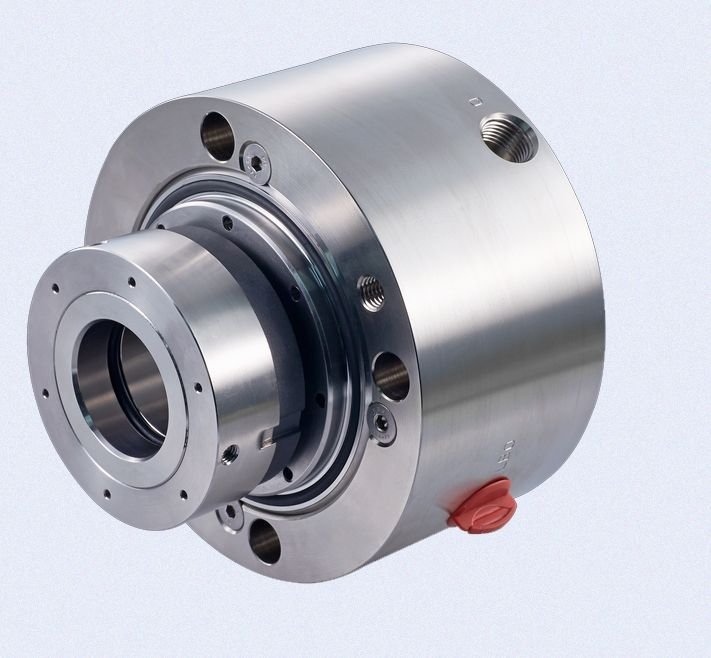

PS75 Mechanical Seals

Get Price Quote

MOQ10 piece
MaterialCold Rolled Steel
FinishingPolished
ShapeRound
Surface of ApplicationIndustrial
FeatureAPI 682 Category 2 Und 3, Type A, Arrangement 2 Seal, Dual Seal In Face-to-back Arrangement, Cartridge Unit, Rotating Multiple Springs, Dry Non-contact Outer Seal (containment Seal)
Number Of FlowerIndustrial Seals
Country of OriginIndia
AdvantagesUniversally applicable both for retrofits or original equipment, Efficient stock keeping due to stan
Operating RangeShaft diameter: d1 = 20 ... 110 mm (0.79

Materials Seal rings: Blister resistant carbon Mating rings: Silicon carbide SSiC (Q1), RBSiC (Q2) Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K) Springs: Hastelloy® C-4 (M)* and C-276 (M5) Metal parts: CrNiMo steel 316 (G) or equivalent, optional materials on request. Recommended Applications Refining technology Petrochemical industry Chemical industry Oil and gas industry Media with gaseous leakage API 610 / ISO 13709 pumps Process pumps

...more
Pack Seals Engineering

Shastri Nagar, Ghaziabad

GST 12 yrs 4.0 (1)

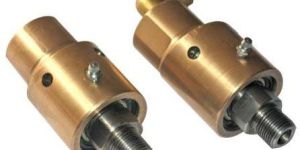

Mechanical Seal

Get Price Quote

Number Of FlowerRotary Joint
MaterialAssume Carbon/Ceramic
UsageSealing Applications,Industrial

We are offering mechanical seal. we are manufacturer all types of rotary joints for all application
www

Hi-tech Seals Industries

Mohan Nagar, Ghaziabad

GST 15 yrs 4.4 (30)
Mechanical Seals

Get Price Quote

Mechanical Seals, O Rings, Oil Seals, Rubbers, Brake Cup

Binbow Auto India Pvt. Ltd.

Tronica City, Ghaziabad

23 yrs
