Iti limited mankapur (a govt. Of india undertaking)

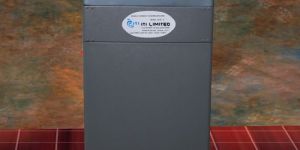

ncm-floor model (vacuum suction type)
counting method : vacuum suction system
counting speed : 4 second per 100 notes
hopper capacity : 175 notes
note size range : 45x95 mm to 80x180 mm
note thickness : 0.06 mm to 0.15 mm
control : micro-controller based system
setting interface : stored in serial eeprom
user interface : tactile keypad and display
counting display : 4 digit
batch display : 3 digit
turret display : 3 digit
progress indicator : 5 mm led indicator x 7 num.
Power supply : 230v ac + 10% 50 hz
power consumption : 425w (max.) in counting mode at 230vac
power socket : 5 amps. 3 pin
w : 402 mm + 5%
d : 290 mm + 5%
height : 790 mm + 5%
weight : 33 kg (max.)
base material : metallic powder coated
body material : metallic powder coated
top cover material : frp (fiber reinforced plastic)
operating temperature : 00c to 450c
relative humidity : 20% to 95%
