Modulo Enclosures Surajpur, Greater Noida, Uttar Pradesh

We have vast range of multipurpose subrack (card frame) made of suitable grade aluminium extrusions (rails) and high grade aluminium sheets. our subracks have been designed in a way to meet precision and stability suitable for critical applications of the product. bom of standard subrack: side panels: 2 nos front extrusions: 2 nos rear extrusions: 2 nos 19ã¢ï¿½ï¿½ mounting extrusions (side angles): 2 nos hardware set standard configuration available: width (in hp): 21, 28, 42, 63, & 84 depth (in mm): 182, 242, 302 & 362 heights (in u): 2, 3, 4, 5, & 6 side plates: standard versions are pre-punched mounting holes at a pitch of 15mm giving the user more flexibility (this enables mounting of additional aluminium extrusions as and when required). it also has half shear to provide easy and faster assembly of extrusions in the side plate. The standard subrack comes with front extrusions (suitable for mounting front or facia panels), rear extrusions (suitable for mounting vme motherboard) having groove for threaded inserts (strips). these front & rear extrusions are mounted using dual screws on either side to ensure strength and proper alignment.

Powder Coated : Blue

Powder Coated : Anthracite Grey

Packaging Type : Box

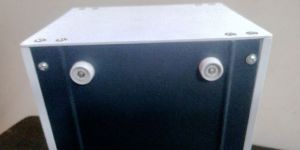

Round Feet are used with Instrument Casings (Cases) and Subracks (Card Frames). They are made of Plastic and has Light Grey Colour. They are supplied in set of 4 with necessary Screw & Nut.

Material : Plastic

Shape : Round

Feature : Fine Finishing

Country of Origin : India

Brand Name : Modulo

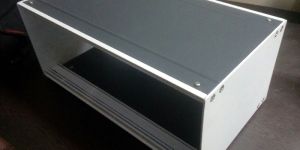

the ecocase std (standard type) instrument casings have been designed to meet cost effective requirements of table top electronics packaging in indoor ambience. the 84 & 81 hp width casing can be provided with 'l-shaped height extrusion' for 19" rack or panel mountable versions. these l-shaped aluminium extrusion can also be mounted externally for mounting any size of ecocase stb on some mounting plate or bracket or wall. this arrangement is retrofitted. ecocase std is all aluminum construction and modular in design. the easy to use and flexible design offers high functionality and easier modifications. the top & bottom covers and front & rear (screw-on type) panels could be removed easily to access mounted electronics from all around. ventilation slots can be provided in top, bottom or side panels. good air flow achieved through ventilation ensures a long lifespan for the internal electronics. the bottom covers are supplied with provision for fixing case feet by default. our casings are an ideal match for systems valuable electronics, and liberates electronics engineer from the headaches of designing and getting mechanical housing fabricated. now he may just concentrate what he loves doing, in more professional way.

Number Of Flower : Instruments Case

Material : Aluminium

Shape : Rectangular

Storage Condition : Modern

Application : Packaging of Electronics

Feature : Attractive Look, Durable, Good Quality

Pattern : Plain, Ventilated

Screen Size : As per 19" standard

Finishing : Powder Coating

Country of Origin : India

Brand Name : Modulo

Standard Facia Panels are made of 2.5mm Aluminium Sheet in naturally anodised finish. These are available in various width and height to suit the applications. Typical Facia Panel will have one (or two for 6U) Facia Handle, Four sets of Bush Facia and Collar Screw and Two Die Cast PCB Holder mounted on inner surface.

Condition : New

Application : Pump Use

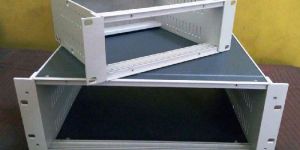

These Aluminium Enclosures are used to house electronic components inside. These are available in various sizes and colours.

Number Of Flower : Enclosures

Material : Aluminium

Feature : Fine Finishing

Frame Material : Aluminium

EcoCase RMT is 'Rack Mount Version' of EcoCase. Please note Rack Mount Kit can not be retrofitted in EcoCase Standard Casings. The Casing has two 'T' shaped Aluminium Extrusion with suitable 19" mounting holes on it. These Rack Mount Kit is screw mounted to Width Extrusion and holds Side Panels in between.

Number Of Flower : EcoCase RMT

Brand Name : EcoCase RMT

Material : Aluminium

Card Frames are used to systematically mount multiple PCB of same size together. These are made of Aluminum and available in multiple sizes.

Material : Aluminium

Finishing : Anodised

Packaging Type : Bright Anodised

Application : For mounting Electronics PCB

These 'Bow Handles' are used for easier handling of Instrument Casings and Sub Racks. Standard Handles are made of Aluminum Round Extrusion and have M4 threading on either side. The Pair is supplied with required M4 Screws. We can also supply these Handles with M5 Tapping.

Application : Cabinet

Country of Origin : India
